Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

25 part groups · 6 illustrations

Illustrations

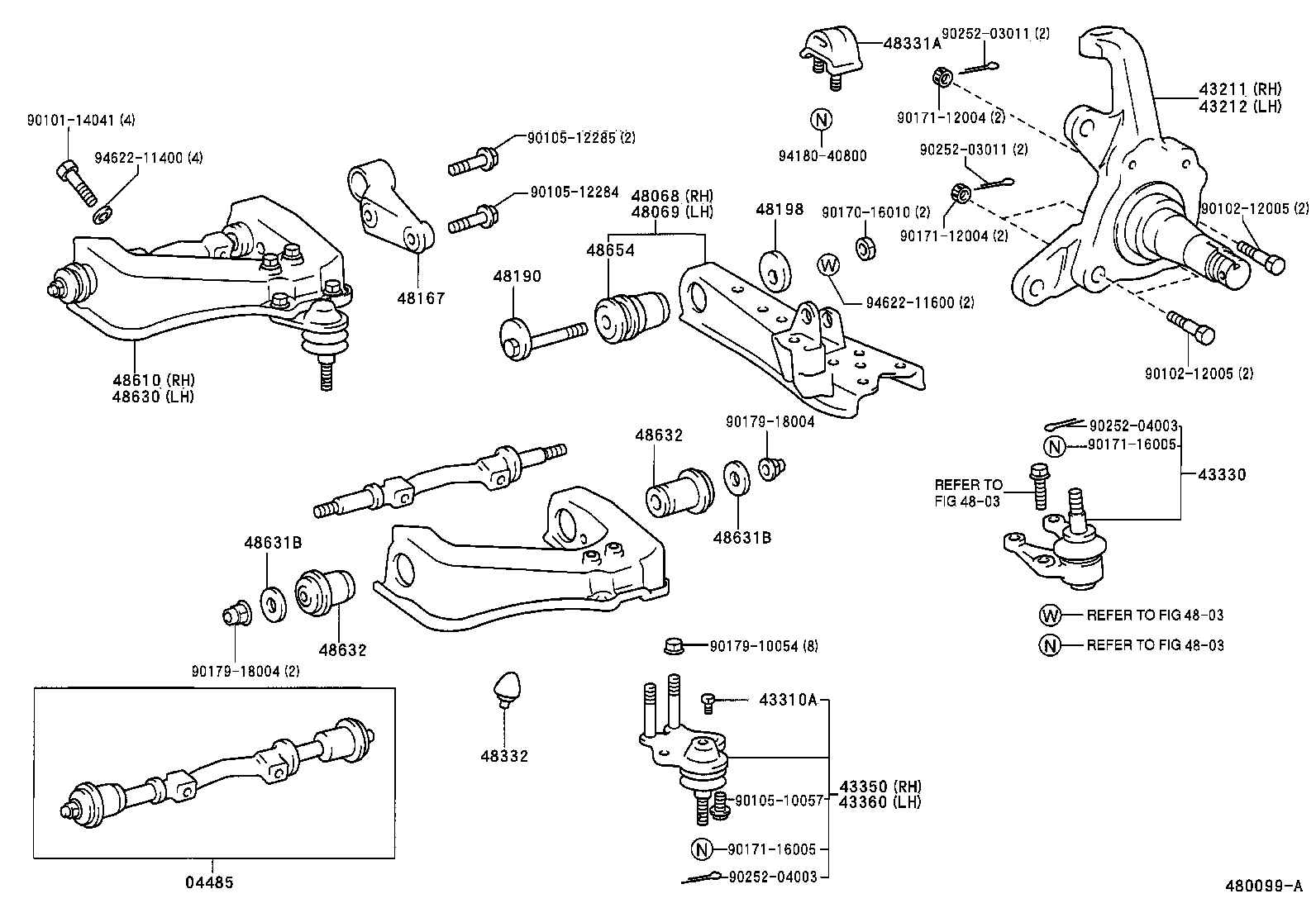

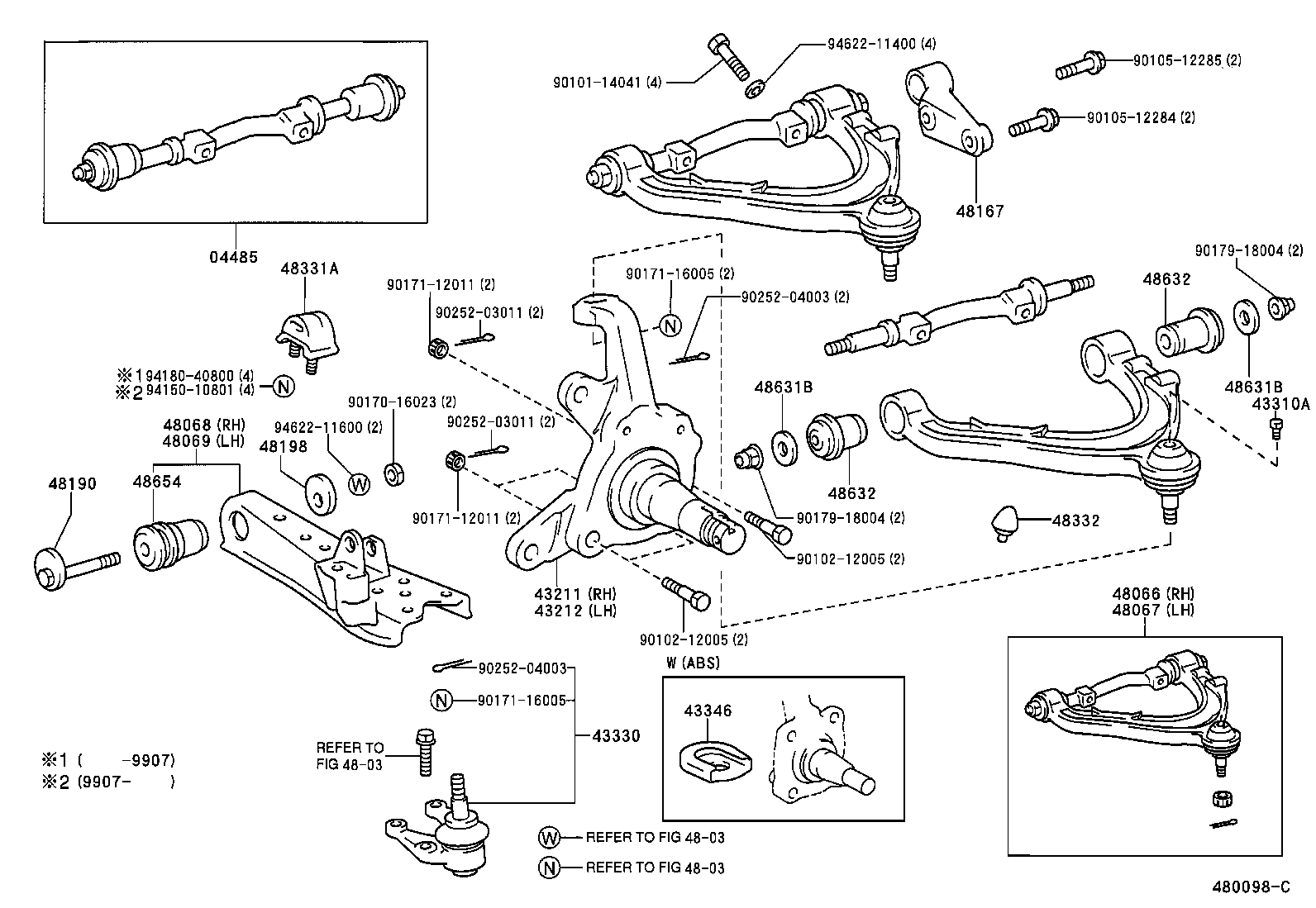

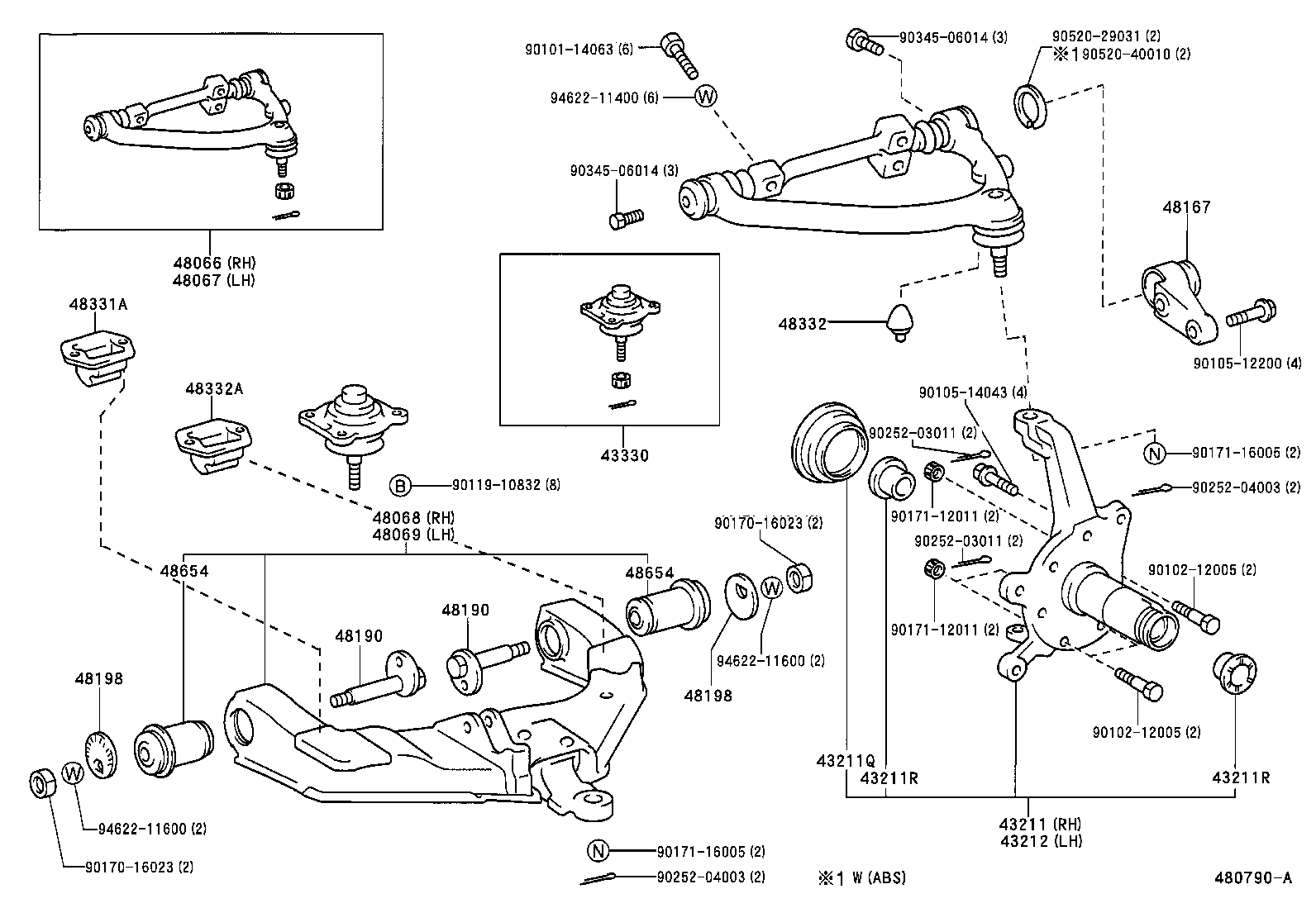

Figure 480097B 480097B 1989-08 → 1995-08 Figure 480097B 480097B 1995-08 → — Figure 480099A 480099A 1995-08 → 1996-08 Figure 480098C 480098C 1995-08 → — Figure 480098C 480098C 1995-08 → — Figure 480790A 480790A 1998-08 → —

Part groups

PNCDescription
04485 Shaft Kit, Upper Suspension Arm
43211 Knuckle, Steering, RH
43211Q Seal, Oil (FOR STEERING KNUCKLE)
43211R Bush (FOR STEERING KNUCKLE)
43212 Knuckle, Steering, LH
43310A Plug (FOR BALL JOINT)
43330 Joint Assy, Lower Ball, Front
43346 Protector, Lower Ball Joint Dust Cover
43350 Joint Assy, Front Upper Ball, RH
43360 Joint Assy, Front Upper Ball, LH
48066 Arm Sub-assy, Front Suspension, Upper RH
48067 Arm Sub-assy, Front Suspension, Upper LH
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48167 Arm, Torque
48190 Cam Assy, Camber Adjust
48198 Cam, Camber Adjust, NO.2
48331A Bumper, Front Spring, NO.1
48332 Bumper, Front Spring, NO.2
48332A Bumper, Front Spring, NO.3
48610 Arm Assy, Front Suspension Upper, RH
48630 Arm Assy, Front Suspension, Upper LH
48631B Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
48632 Bush, Upper Arm
48654 Bush, Lower Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
