Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

24 part groups · 12 illustrations

Illustrations

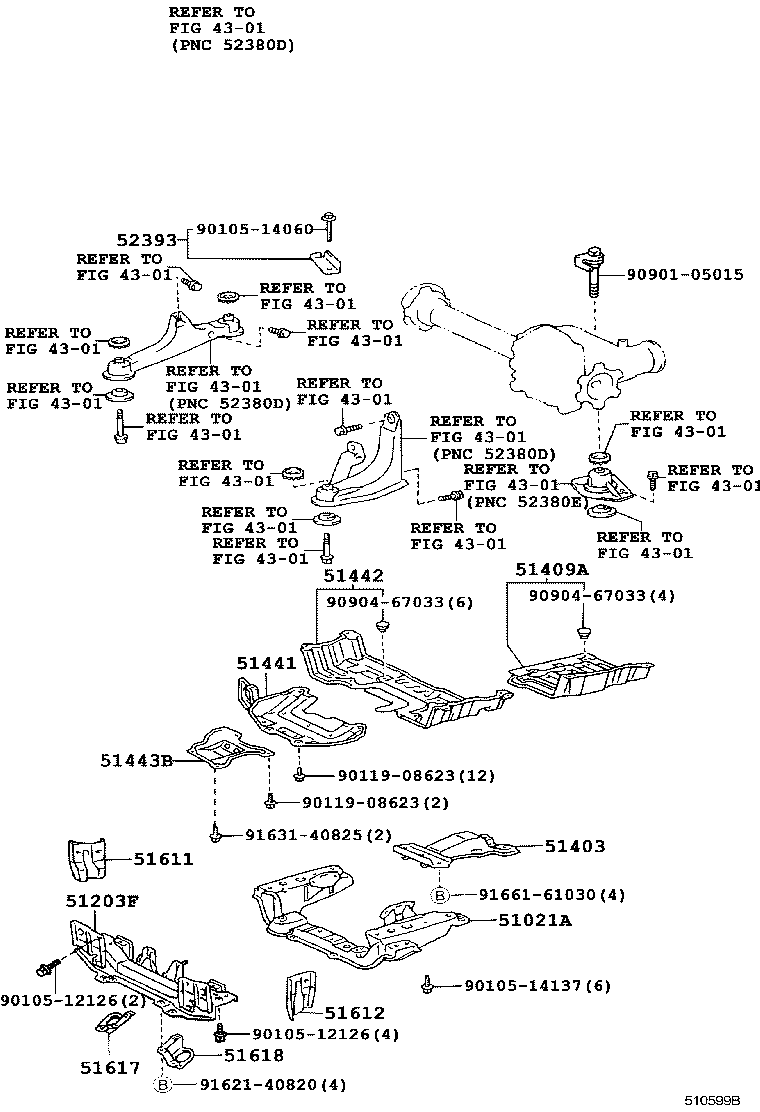

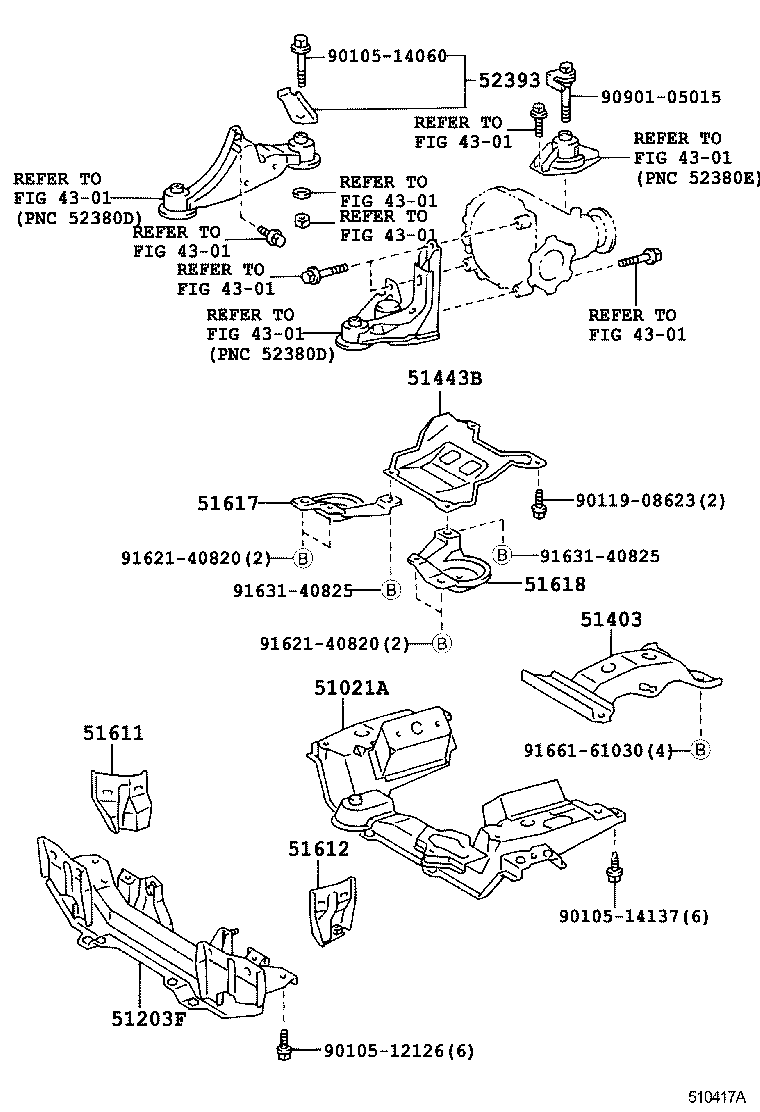

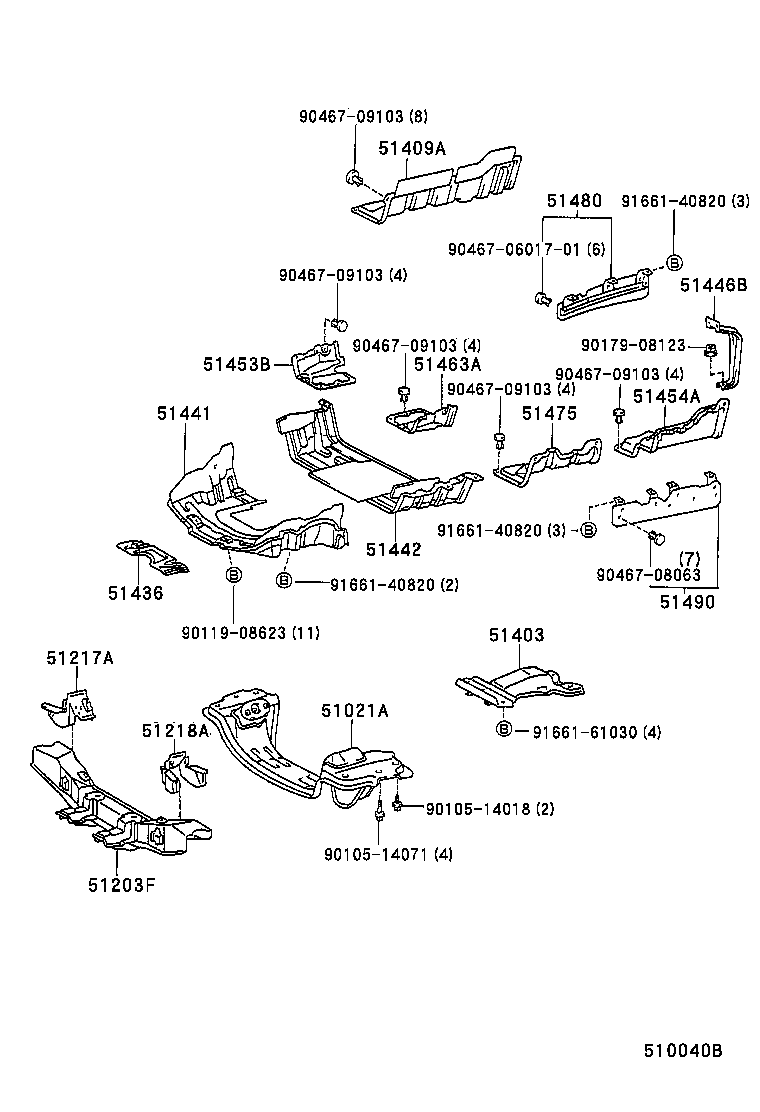

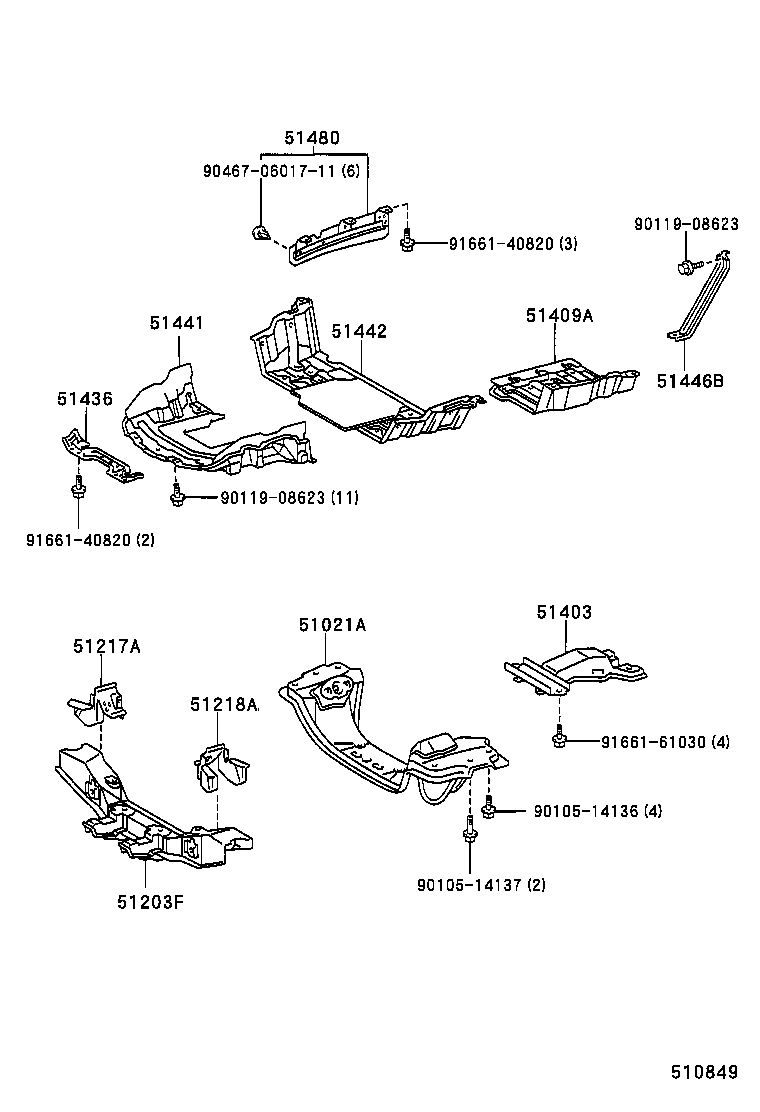

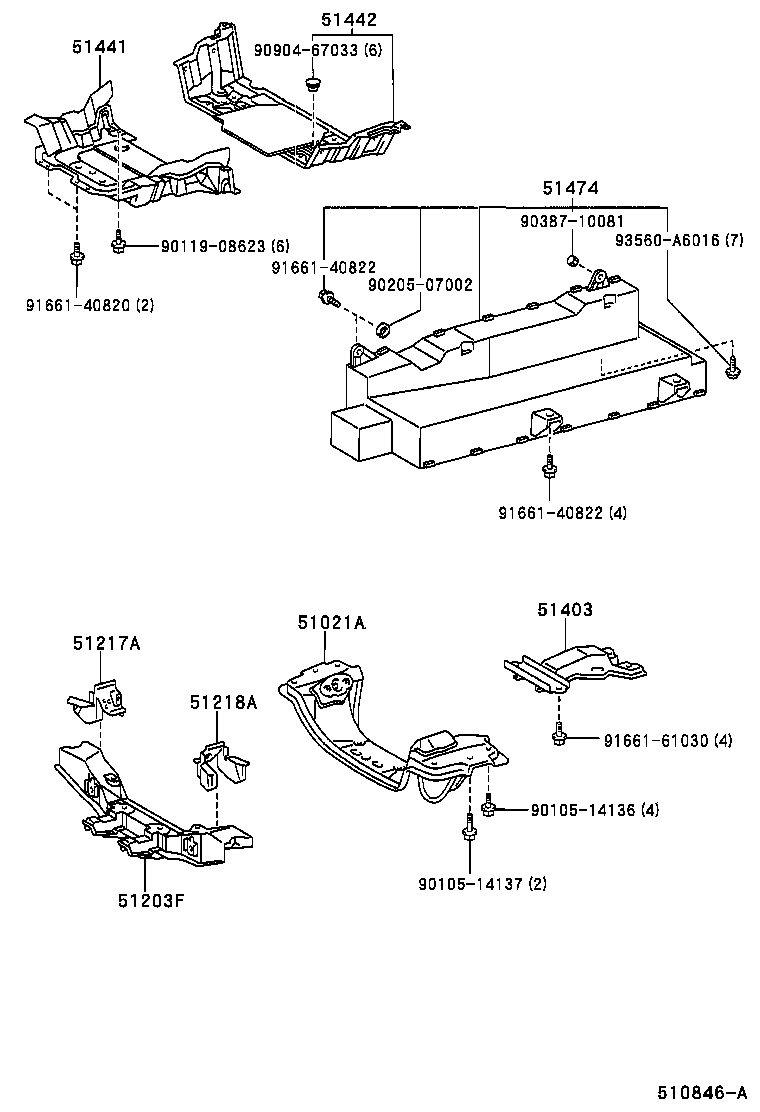

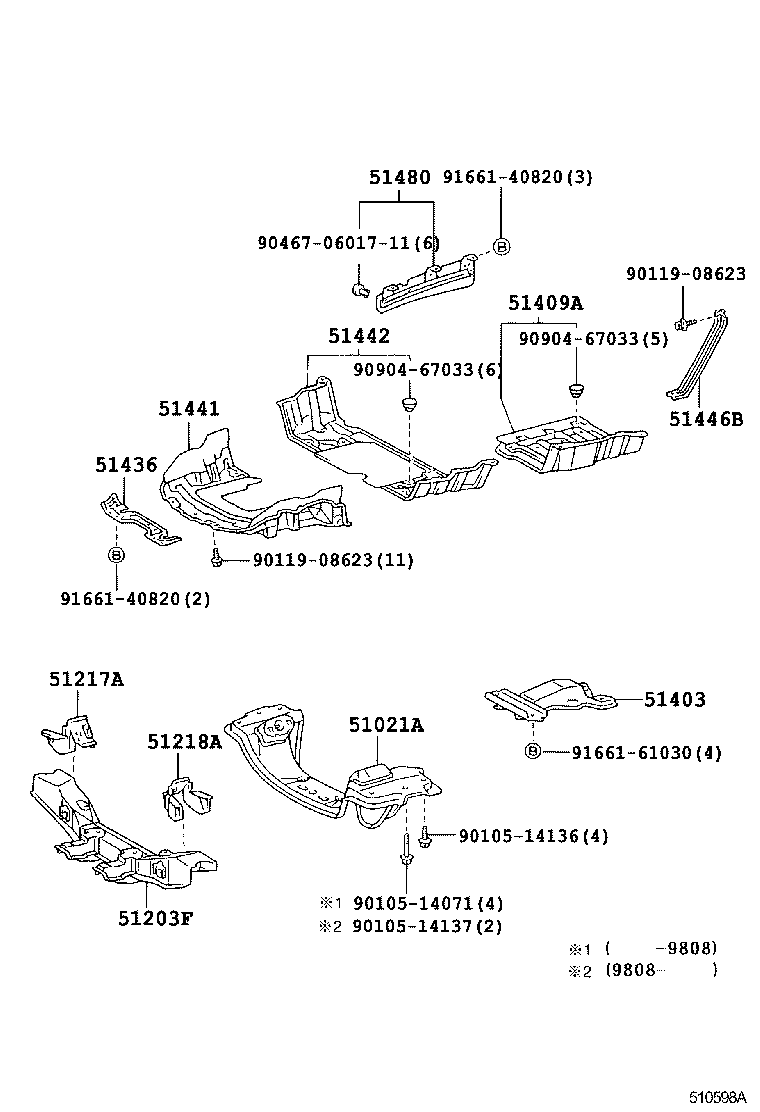

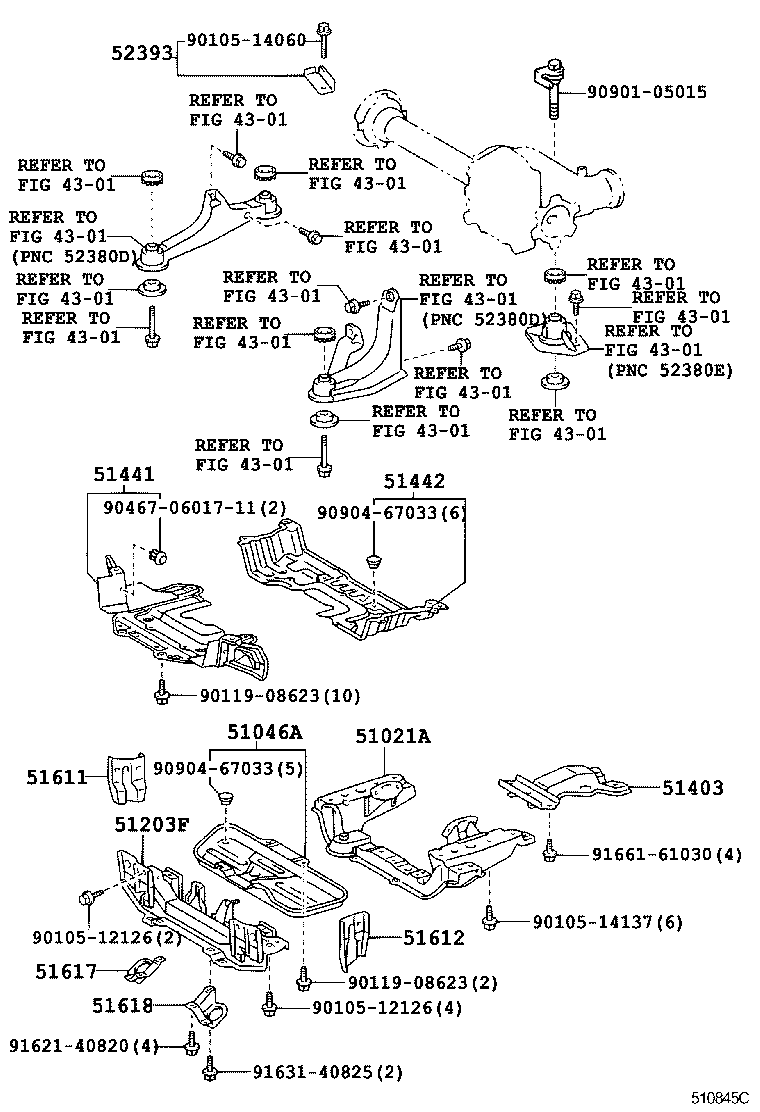

Figure 510369A 510369A 1989-08 → 1992-05 Figure 510040B 510040B 1992-05 → 1993-08 Figure 510041G 510041G 1992-05 → 1993-08 Figure 510598A 510598A 1993-08 → 2002-08 Figure 510417A 510417A 1998-08 → 2000-08 Figure 510599B 510599B 2000-08 → 2002-08 Figure 510847C 510847C 2002-08 → — Figure 510847C 510847C 2002-08 → — Figure 510846A 510846A 2002-08 → — Figure 510849 510849 2002-08 → — Figure 510848A 510848A 2002-08 → — Figure 510845C 510845C 2002-08 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51046A Cover Sub-assy, Engine Under, NO.5
51203F Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51403 Bracket Sub-assy, Engine Rear Mounting
51409A Cover Sub-assy, Engine Under, NO.4
51436 Protector, Engine Front Support
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51446B Bracket, Engine Under Cover, NO.2
51453B Silencer, Engine Under Cover, RH
51454A Silencer, Engine Rear Cover
51463A Silencer, Engine Under Cover, Front, LH
51474 Cover Sub-assy, Engine Side, LH
51475 Silencer, Engine Under Cover, NO.5
51480 Shutter Assy, Engine Rear Side, RH
51490 Shutter Assy, Engine Rear Side, LH
51611 Stopper, Front Suspension Bound, RH
51612 Stopper, Front Suspension Bound, LH
51617 Guard, Front Differential Support, RH
51618 Guard, Front Differential Support, LH
52393 Support, Front Differential, NO.2
