Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 7 illustrations

Illustrations

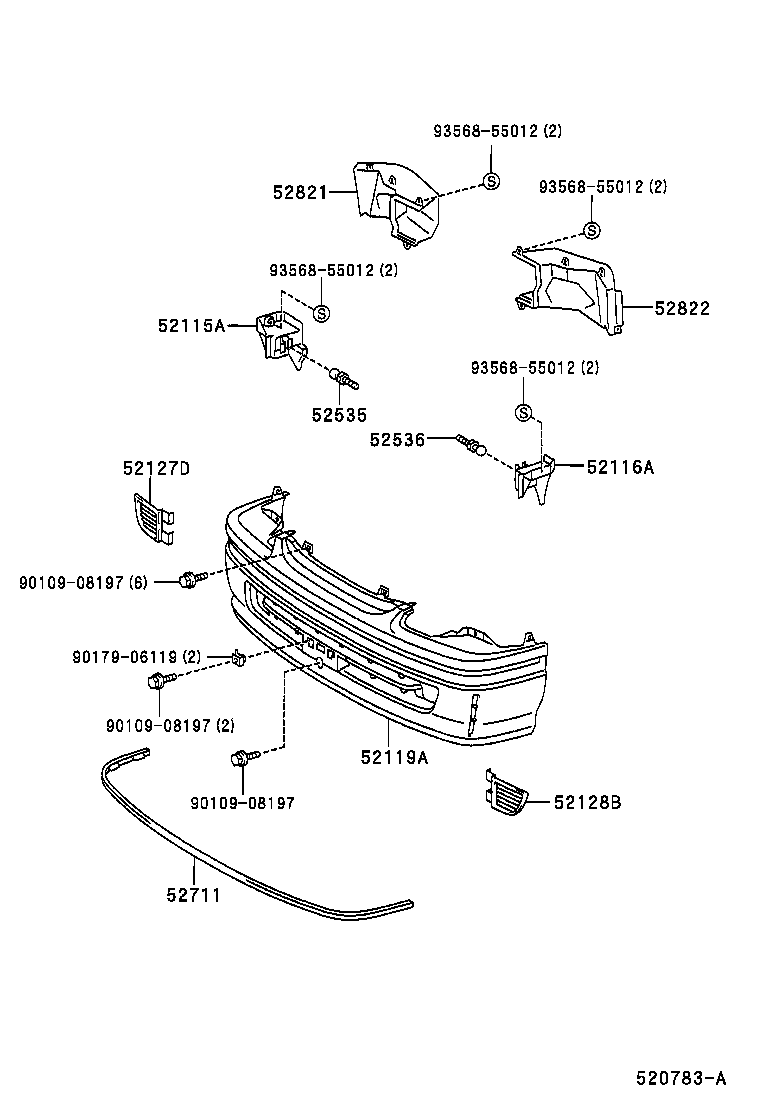

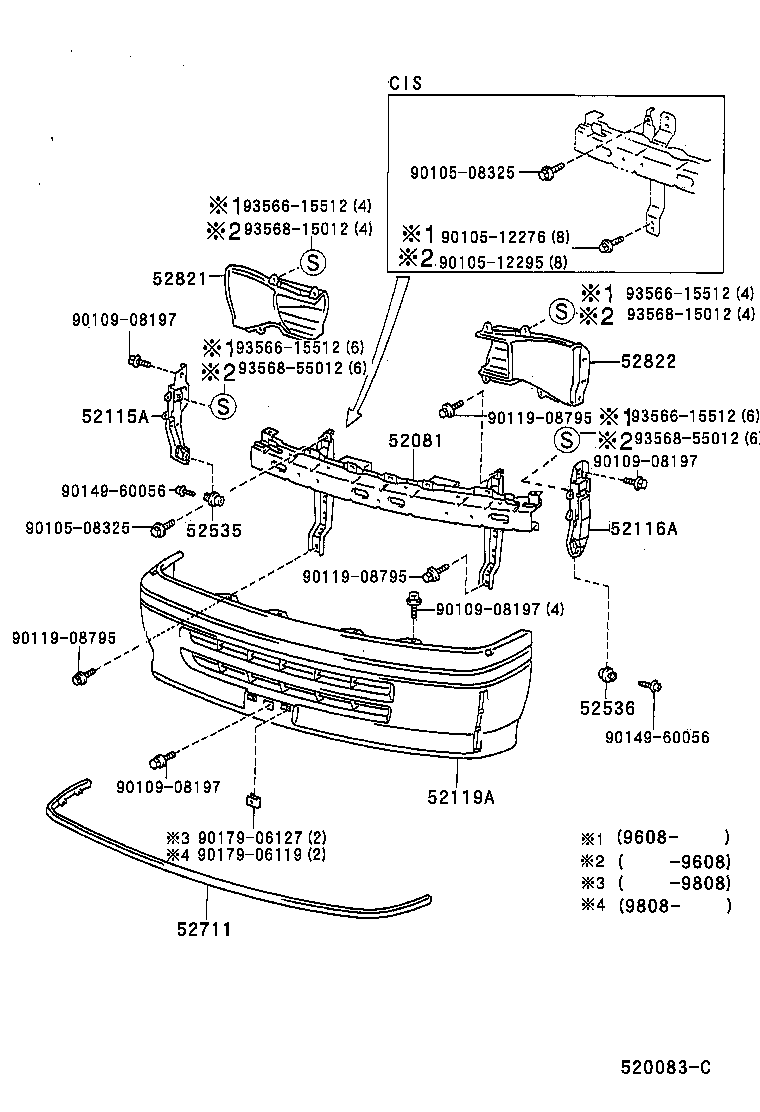

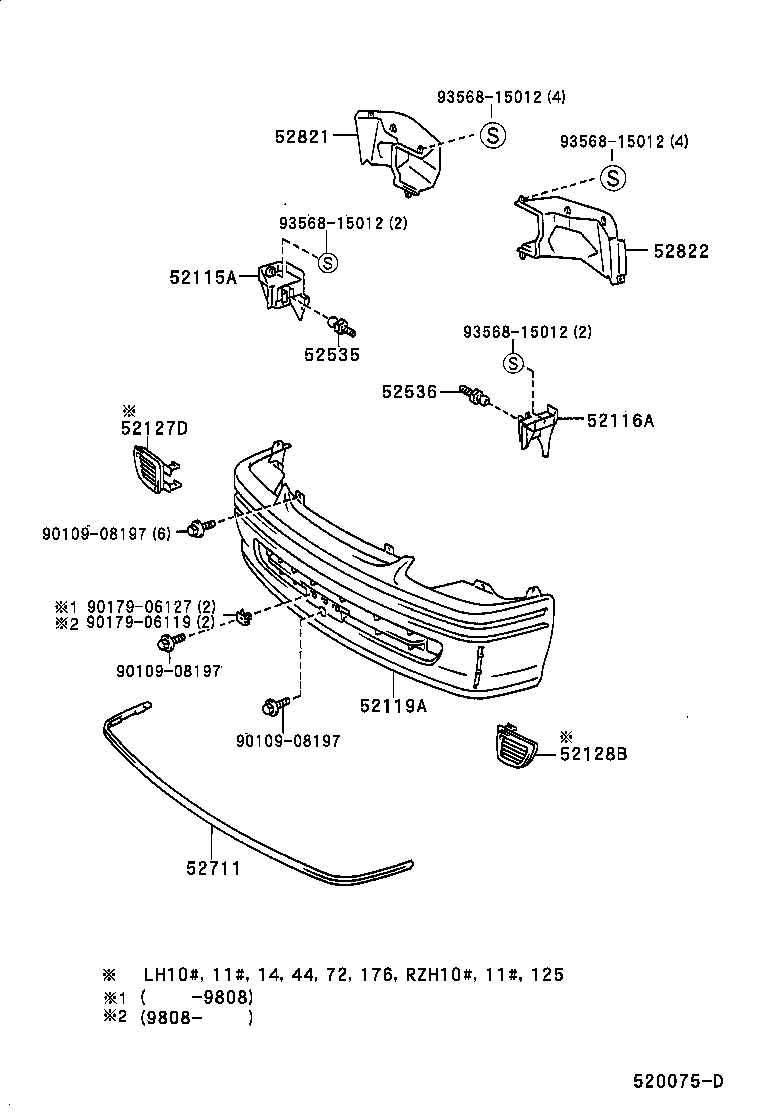

Figure MBX732 MBX732 1993-08 → 1996-08 Figure 520083C 520083C 1989-08 → — Figure 520083C 520083C 1989-08 → — Figure 520083C 520083C 1989-08 → — Figure 520075D 520075D 1996-08 → 1999-07 Figure 520783A 520783A 1999-07 → — Figure 520784A 520784A 1999-07 → —

Part groups

PNCDescription
52081 Stay Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52711 Moulding, Front Bumper
52713 Plug, Front Bumper Moulding
52714 Plug, Front Bumper Moulding, LH
52821 Duct, Air Intake, RH
52822 Duct, Air Intake, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
