Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 6 illustrations

Illustrations

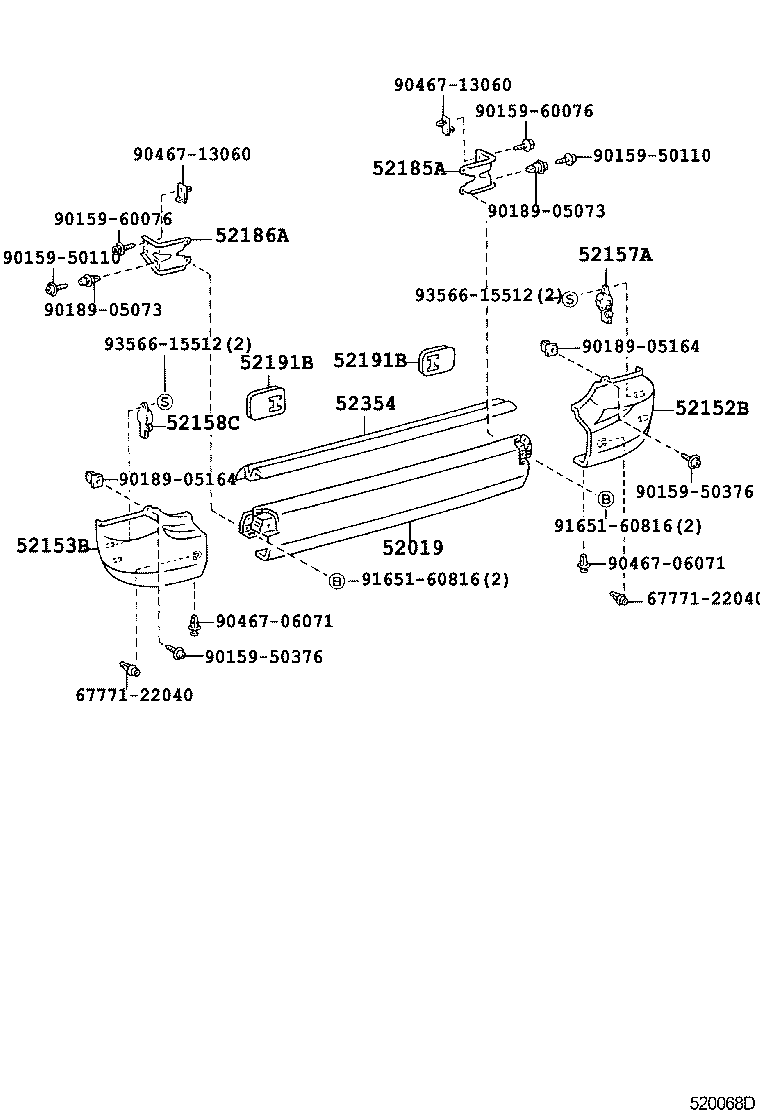

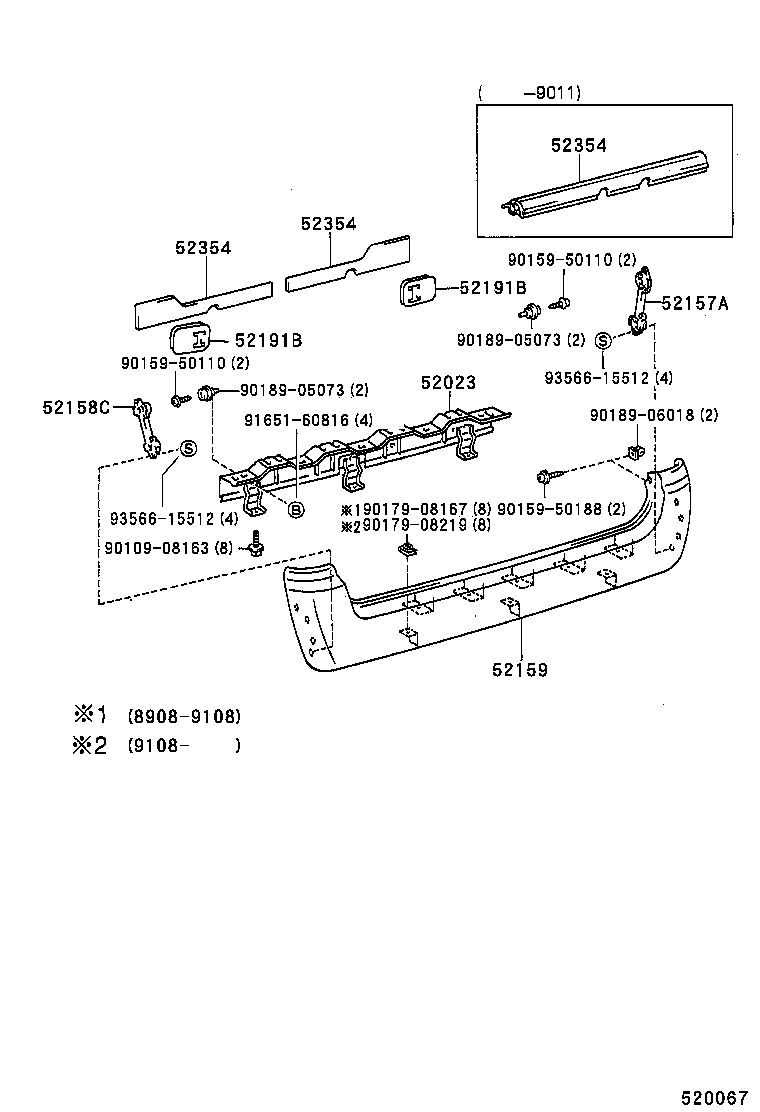

Figure 520064 520064 1989-08 → 1993-08 Figure MBT102B MBT102B 1989-08 → 1993-08 Figure 520067A 520067A 1989-08 → 1993-08 Figure 520066G 520066G 1993-08 → — Figure 520068D 520068D 1993-08 → — Figure 520076E 520076E 1993-08 → —

Part groups

PNCDescription
52019 Bar Sub-assy, Rear Bumper
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52185A Bracket, Rear Bumper Side, RH
52186A Bracket, Rear Bumper Side, LH
52191B Grommet, Rear Bumper Stay
52302 Step Sub-assy, Back
52354 Shutter, Rear Cross TO Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
