Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Ventilator

6 part groups · 2 illustrations

Illustrations

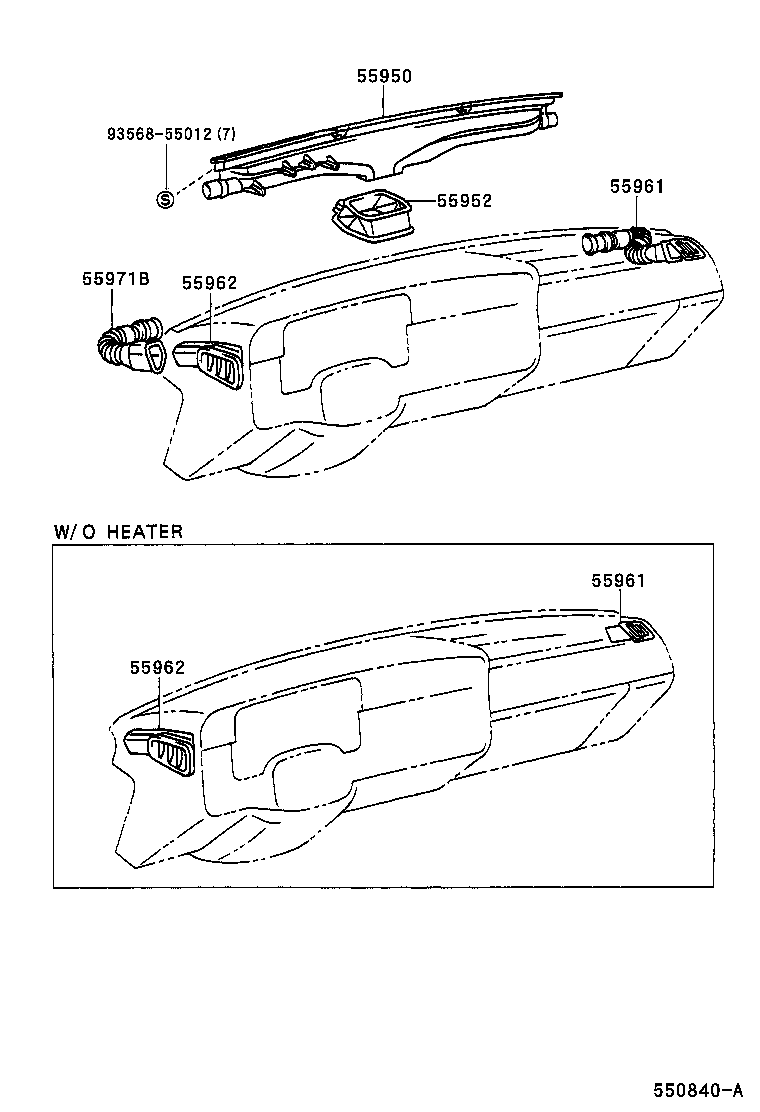

Figure 550839A 550839A 1989-08 → — Figure 550840A 550840A 1989-08 → —

Part groups

PNCDescription
55950 Nozzle Assy, Defroster
55952 Nozzle, Defroster, Front LH
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55971B Duct, Side Defroster Nozzle, NO.1
55972A Duct, Side Defroster Nozzle, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
