Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Panel & Windshield Glass

13 part groups · 6 illustrations

Illustrations

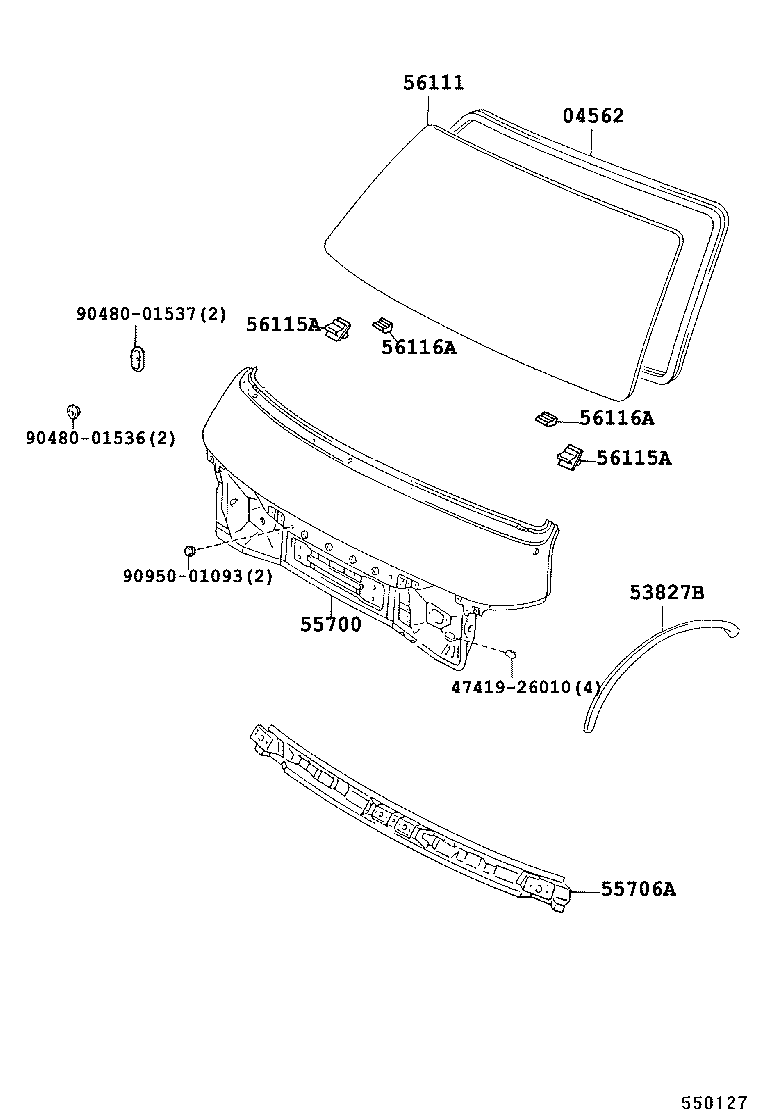

Figure 550109H 550109H 1989-08 → — Figure 550127C 550127C 1996-11 → — Figure 550127C 550127C 1998-08 → — Figure 550127C 550127C 1998-08 → — Figure 550127C 550127C 1999-07 → — Figure 550127C 550127C 1999-07 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53013 Guide Sub-assy, Front
53827B Protector, Front Fender Side Panel
55700 Panel Assy, Front
55706A Reinforcement Sub-assy, Front Panel, Upper
55871F Seal, Air Duct
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116A Spacer, Windshield Glass
56117 Dam, Front Pillar, Outer
56121 Weatherstrip, Windshield
56128 Support, Windshield Drain Hose
56129 Hose, Windshield Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
