Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

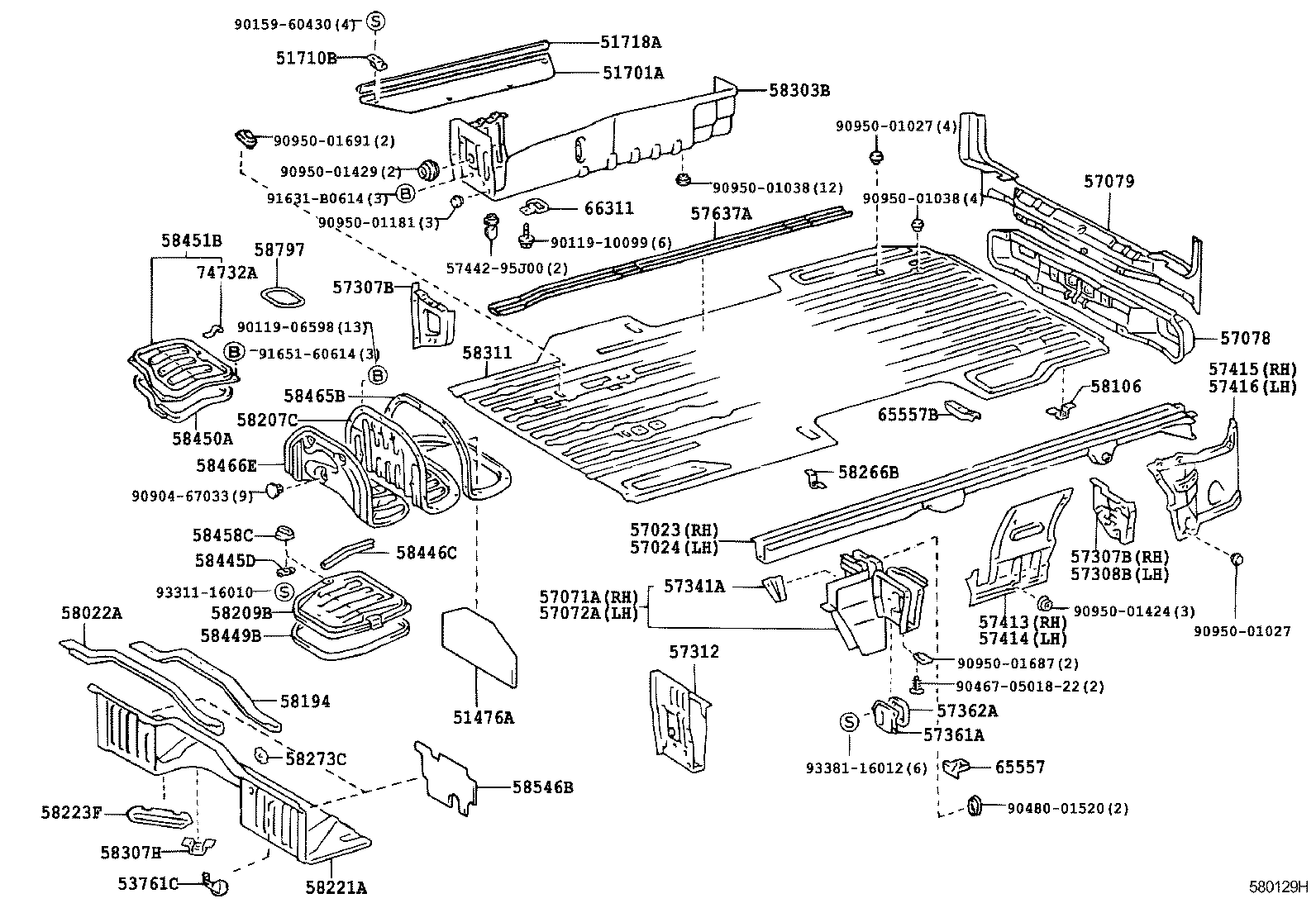

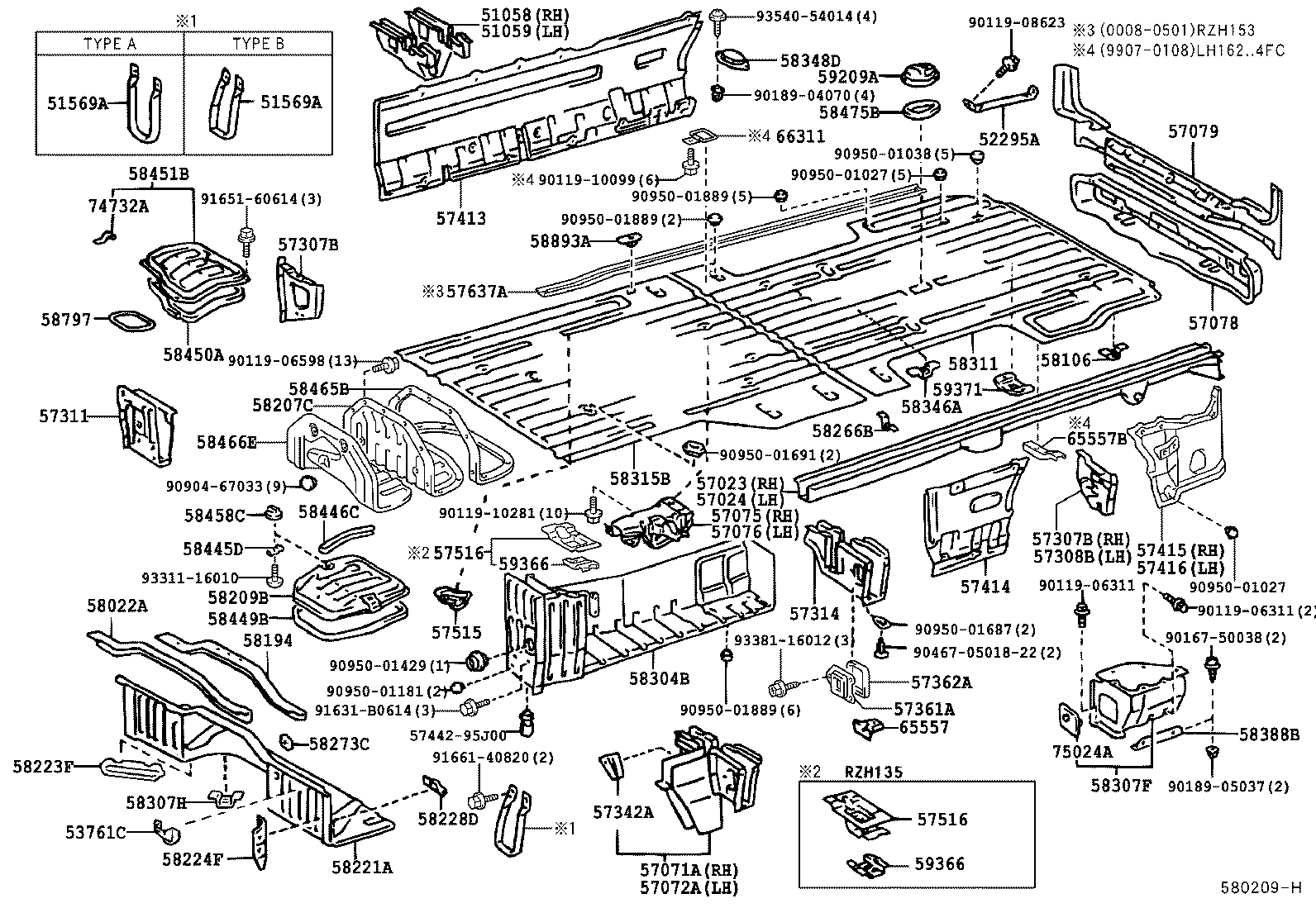

Rear Floor Panel & Rear Floor Member

136 part groups · 13 illustrations

Illustrations

580126C 1989-08 → 1993-08

Part groups

PNC	Description
51058	Bracket Sub-assy, Lower Control Link, RH
51059	Bracket Sub-assy, Lower Control Link, LH
51265A	Bracket, Rear Shock Absorber, RH
51266A	Bracket, Rear Shock Absorber, LH
51267A	Reinforcement, Rear Shock Absorber Mounting, RH
51268	Reinforcement, Rear Shock Absorber Mounting, LH
51341B	Gusset, Frame NO.4 Crossmember, RH
51341C	Gusset, Crossmember, NO.4 Upper
51354	Plate, Rear Shock Absorber Member
51476A	Silencer, Transmission Cover, Center
51527	Bracket, Lateral Rod Support, Rear NO.1
51537B	Bracket, Lateral Rod Support, Front
51538B	Bracket, Lateral Rod Support, Rear
51569A	Guard, Propeller Shaft
51682	Bracket, Flexible Hose, NO.2
51701A	Cover Sub-assy, Side Door Step Panel, RH
51702A	Cover Sub-assy, Side Door Step Panel, LH
51710B	Clamp, Side Door Step Opening
51718A	Protector, Step Cover, RH
51719A	Protector, Step Cover, LH
52295A	Brace, Rear Suspension Member, RH
53761C	Bracket, Battery Clamp
57023	Member Sub-assy, Rear Side, RH
57024	Member Sub-assy, Rear Side, LH
57071A	Hanger Sub-assy, Rear Spring, Front, RH
57072A	Hanger Sub-assy, Rear Spring, Front, LH
57075	Bracket Sub-assy, Upper Control Link, RH
57076	Bracket Sub-assy, Upper Control Link, LH
57078	Member Sub-assy, Rear Floor Rear Cross, Outer
57079	Member Sub-assy, Rear Floor Rear Cross, Inner
57307B	Outrigger Sub-assy, NO.4 RH
57308B	Outrigger Sub-assy, NO.4 LH
57311	Outrigger, NO.1 RH
57312	Outrigger, NO.1 LH
57314	Outrigger, NO.2 LH
57341A	Gusset, Outrigger, NO.2 RH
57342A	Gusset, Outrigger, NO.2 LH
57361A	Cover, NO.2 Outerigger Hole
57362A	Packing, NO.2 Outrigger Hole Cover
57413	Rail, Floor Side, Center RH
57414	Rail, Floor Side, Center LH
57415	Rail, Floor Side, Rear RH
57416	Rail, Floor Side, Rear LH
57419A	Plate, Rear Seat Lock
57515	Bracket, Parking Brake, RH
57516	Bracket Sub-assy, Parking Brake, LH
57617A	Retainer, Exhaust Pipe Bracket
57637A	Reinforcement, Rear Floor Side, RH
57652C	Member, Rear Floor Cross, NO.1
57653D	Member, Rear Floor Cross, NO.2
57654B	Member, Rear Floor Cross, NO.3
57655A	Member, Rear Floor Cross, NO.4
57656C	Member, Rear Floor Croos, NO.5
57657B	Member, Rear Floor Cross, NO.6
57657C	Crossmember, Rear Floor, NO.6
57658	Member, Rear Floor Cross, NO.7
57665A	Reinforcement, Rear Floor Crossmember, NO.2
57666A	Reinforcement, Rear Floor Crossmember, NO.3
57667A	Reinforcement, Rear Floor Crossmember, NO.4
57668B	Reinforcement, Rear Floor Crossmember, NO.5
57688A	Reinforcement, Rear Floor Crossmember
57689	Reinforcement, Rear Floor Crossmember, NO.2
57691	Brace, Rear Floor NO.2 Crossmember, Inner RH
57692A	Brace, Rear Floor NO.2 Crossmember, Inner LH
57693B	Brace, Rear Floor NO.6 Crossmember
57695A	Extension, Rear Floor Crossmember Rear Side, RH
57696A	Extension, Rear Floor Crossmember Rear Side, LH
57699A	Retainer, Fuel Tank Set Band
57749A	Reinforcement, Lateral Rod Bracket, NO.2
57751	Support, Rear Suspension Spring, Outer RH
57767	Retainer, Fuel Tank Band
57771	Plate, Rear Spring, RH
57773	Reinforcement, Rear Spring
57774A	Reinforcement, Rear Spring, LH
57779	Retainer, Upper Control Link, Upper
57799	Gusset, Rear Floor Crossmember
57815	Reinforcement, Belt Anchor, NO.1
57817	Reinforcement, Belt Anchor, NO.2
57817A	Reinforcement, Belt Anchor, NO.2
57829	Reinforcement, Seat Leg
58022A	Reinforcement Sub-assy, Header Panel
58106	Bracket Sub-assy, Brake Tube Connector, NO.2
58194	Retainer, Engine Cover Hinge
58207C	Cover Sub-assy, Transmission Service Hole
58209B	Cover Sub-assy, Battery Service Hole
58221A	Panel, Header
58223F	Reinforcement, Header Panel, NO.2
58224F	Reinforcement, Header Panel, NO.3
58228D	Patch, Header Panel, LH
58266B	Bracket, Fuel Tube Clamp
58273C	Reinforcement, Belt Anchor TO Center Floor
58278D	Protector, Fuel Tank, Upper
58303B	Step Sub-assy, Rear Floor, RH
58304B	Step Sub-assy, Rear Floor, LH
58307F	Cover Sub-assy, Rear Floor Step
58307H	Bracket Sub-assy, Brake Tube Conn, NO.1
58311	Pan, Rear Floor
58315B	Panel, Rear Floor, Front
58316E	Retainer, Rear Seat Set
58318C	Bracket, Rear Floor Crossmember
58346A	Bracket, Rear Floor Heat Insulator, NO.2
58348D	Cover, Rear Absorber Service Hole, RH
58388B	Bracket, Plate Rear Floor
58445D	Lock, Battery Service Hole Cover
58446C	Protector, Battery
58449B	Packing, Battery Service Hole Cover
58450A	Packing, Battery Service Hole Cover
58451B	Cover, Air Cleaner Service Hole
58458C	Knob, Battery Service Hole Cover
58465B	Packing, Transmission Service Hole Cover
58466E	Silencer, Transmission Service Hole Cover, NO.1
58475B	Packing, Inspection Hole Cover
58546B	Silencer, Header, NO.1
58797	Bracket, Jack Clamp Band
58893A	Retainer, Rear Seat NO.2, Rear RH
58894C	Retainer, Rear Seat NO.2, Rear LH
59209A	Cover Sub-assy, Inspection Hole
59306A	Retainer Sub-assy, Rear Seat, NO.1 A
59361B	Retainer, Rear Seat, NO.1 A
59362A	Retainer, Rear Seat, NO.1 B
59362B	Retainer, Rear Seat, NO.1 B
59362D	Retainer, Rear Seat, NO.1 B
59363	Retainer, Rear Seat, NO.1 C
59363B	Retainer, Rear Seat, NO.1 C
59364	Retainer, Rear Seat, NO.1 D
59364A	Retainer, Rear Seat, NO.1 D
59366	Retainer, Rear Seat, NO.2
59367	Retainer, Rear Seat, NO.2 C
59368	Retainer, Rear Seat, NO.2 D
59371	Retainer, Rear Seat, NO.3
59374	Retainer, Seat Belt Anchor, NO.3
65557	Retainer, Rope Hook
65557B	Retainer, Rope Hook
66311	Hook, Rope
74732A	Bracket, Tool Bag Set Band
75024A	Lid Sub-assy, Tool Box, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
