Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10

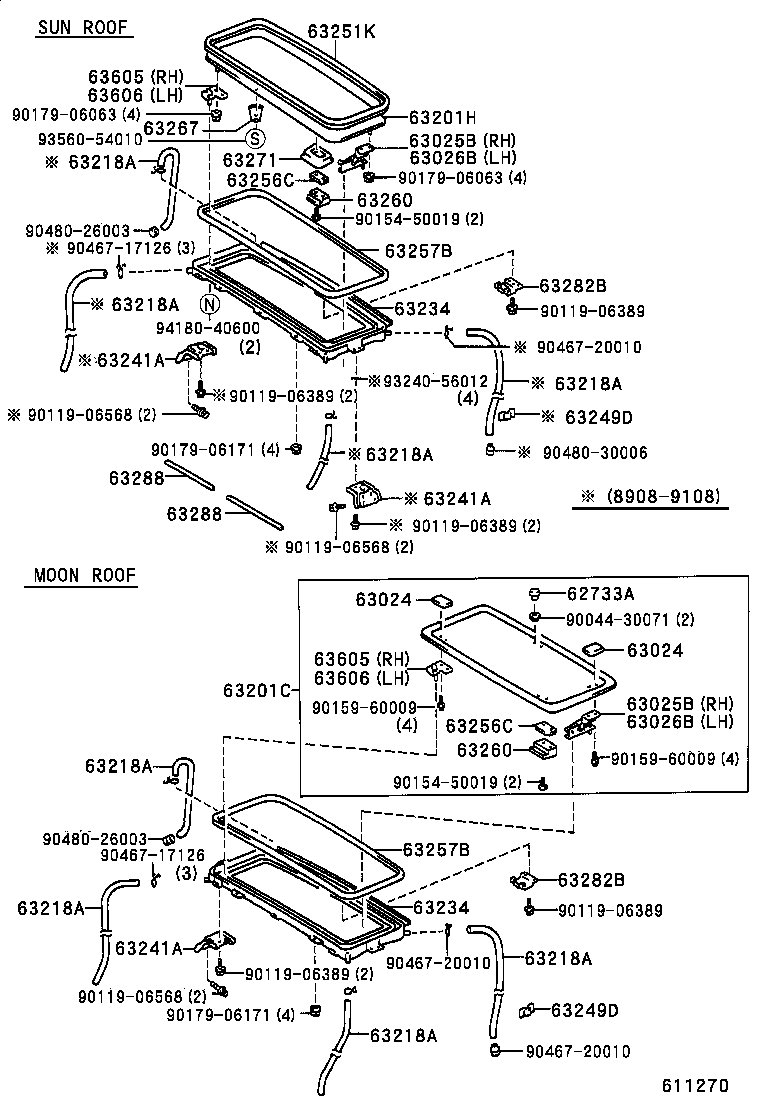

Roof Panel & Back Panel

39 part groups · 4 illustrations

PNC	Description
62733A	Retainer, Quarter Window Hinge
63024	Seal Sub-assy, Roof Window Hinge, NO.1
63025B	Link Sub-assy, Tilt Roof, RH
63026B	Link Sub-assy, Tilt Roof, LH
63071	Frame Sub-assy, Back Door Opening, Upper
63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63104D	Reinforcement Sub-assy, Roof Panel, NO.2
63105E	Reinforcement Sub-assy, Roof Panel, NO.3
63105F	Reinforcement Sub-assy, Roof Panel, NO.3
63106	Reinforcement Sub-assy, Roof Panel, NO.4
63106B	Reinforcement Sub-assy, Roof Panel, NO.4
63111	Panel, Roof
63112A	Panel, Roof, NO.2
63113A	Panel, Roof, NO.3
63122A	Reinforcement, Roof Panel, Front
63141G	Reinforcement, Roof Panel, NO.1
63142	Reinforcement, Roof Panel, NO.2
63146A	Bracket, Roof Panel Reinforcement, NO.1
63201C	Glass Sub-assy, Tilt Roof
63201H	Panel Sub-assy, Slide Roof
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63231	Bracket, Room Lamp
63234	Protector, Slide Roof Housing
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63249D	Support, Slide Roof Rain Channel Hose
63251K	Weatherstrip, Tilt Roof
63256C	Seal, Tilt Roof Glass
63257B	Seal, Sliding Roof
63260	Handle Assy, Removable Roof Lock
63267	Protector, Sliding Roof Weatherstrip
63271	Garnish, Removable Roof Lock
63282B	Striker, Tilt Roof Lock
63288	Cover, Tilt Roof Housing
63605	Hinge Sub-assy, Tilt Roof, RH
63606	Hinge Sub-assy, Tilt Roof, LH
63669	Cushion, Roof Protector
63713	Bracket, Roof Panel Reinforcement, NO.3
63714	Bracket, Roof Panel Reinforcement, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
