Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

53 part groups · 7 illustrations

Illustrations

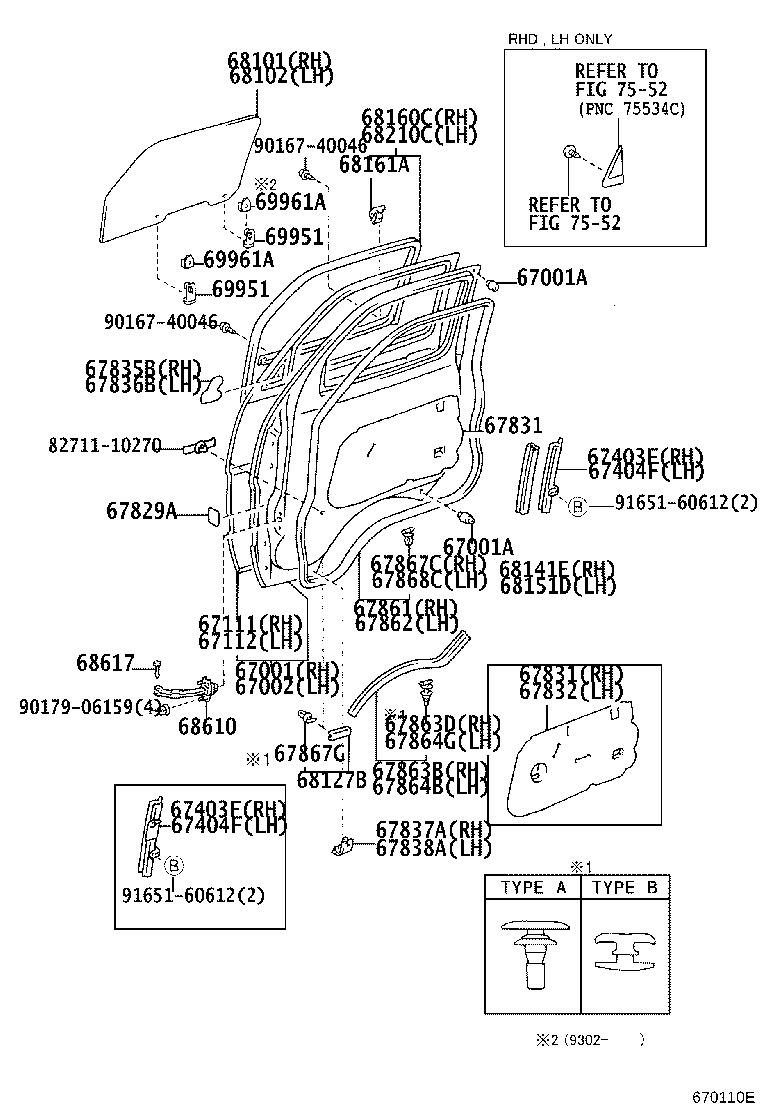

Figure 670186D 670186D 1989-08 → — Figure 670110E 670110E 1989-08 → — Figure 672125 672125 1993-08 → 1996-08 Figure 672126 672126 1995-08 → 1996-08 Figure 672127 672127 1996-08 → 1998-08 Figure 672128A 672128A 1998-08 → 1999-07 Figure 672262 672262 1999-07 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67060 Board Assy, Front Door Trim, Lower RH
67070 Board Assy, Front Door Trim, Lower LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491E Retainer, Door Trim
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67601G Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67615C Base, Front Door Trim, RH
67616C Base, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67651 Board, Front Door Trim, Lower RH
67652 Board, Front Door Trim, Lower LH
67772E Cap, Front Door Trim Retainer
67829A Seal, Front Door Wire Hole
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67835B Cover, Front Door Service Hole Sub
67836B Cover, Front Door Service Hole Sub, LH
67837A Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67863B Weatherstrip, Front Door, NO.2 RH
67863D Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864B Weatherstrip, Front Door, NO.2 LH
67864G Retainer, Door Weatherstrip, RH
67867C Retainer, Front Door Weatherstrip, RH
67867G Retainer, Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68127B Shutter, Front Door, Lower RH
68141E Run, Front Door Glass, RH
68151D Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68170A Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610 Check Assy, Front Door
68617 Pin, Front Door Check
69951 Bracket, Front Door Glass
69961A Retainer, Front Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
