Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

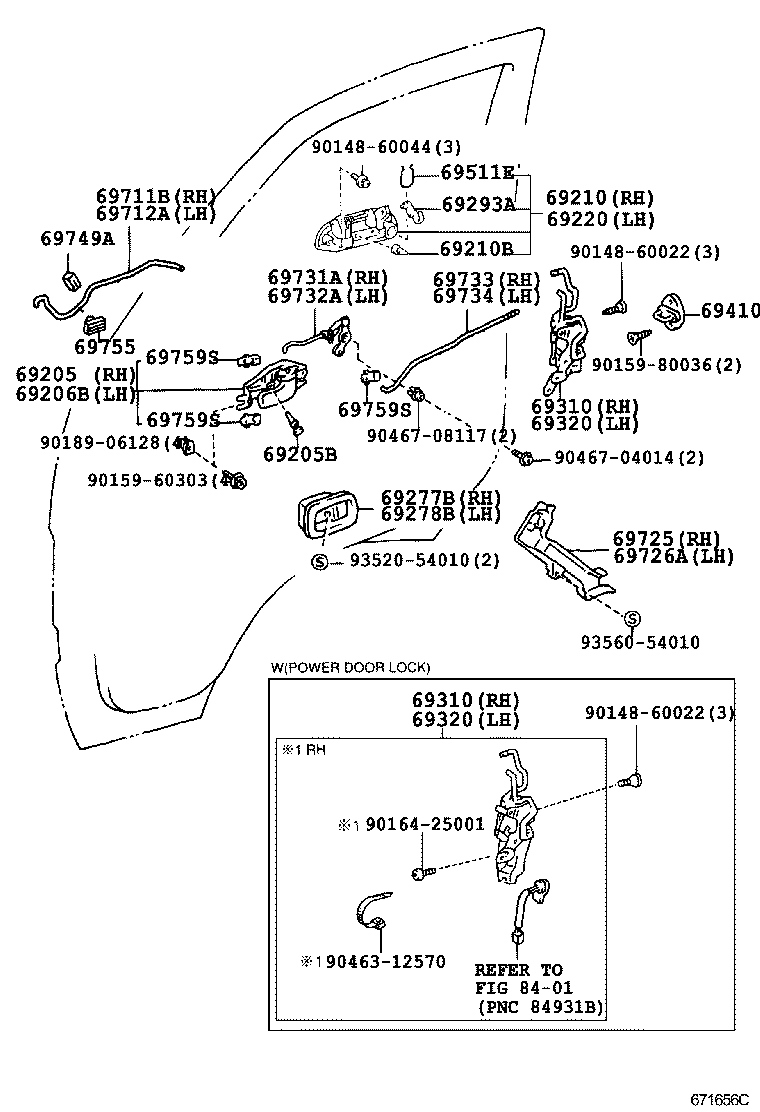

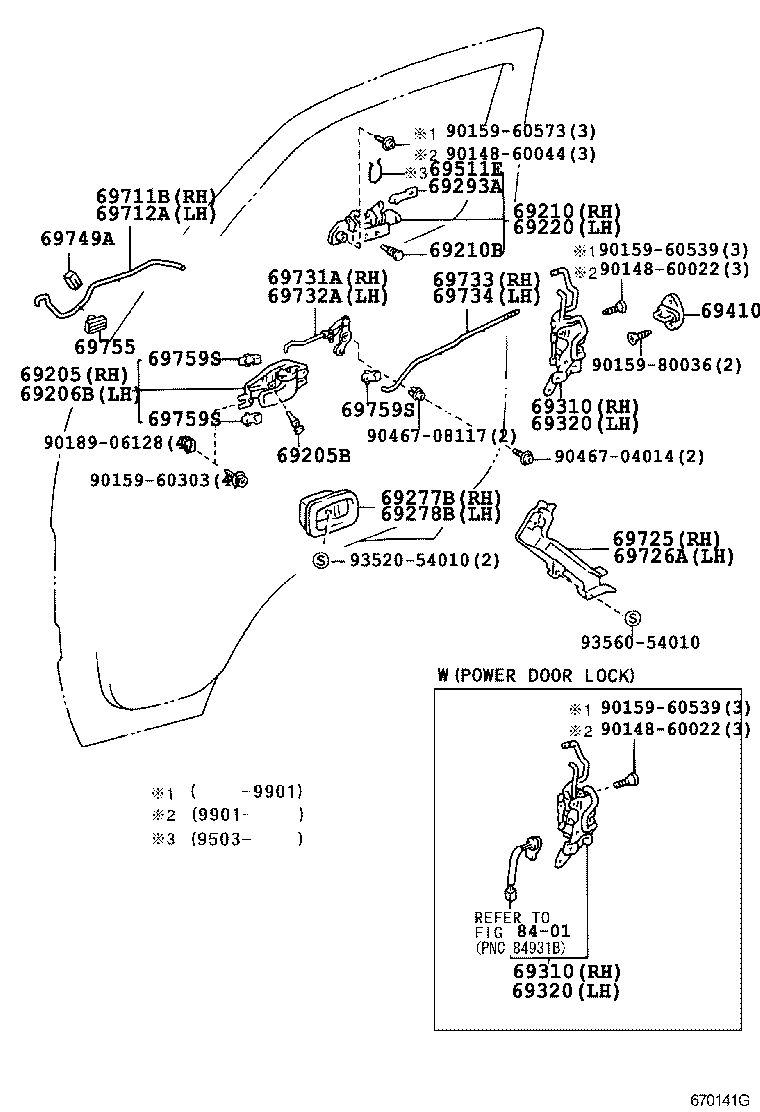

Front Door Lock & Handle
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69205 | Handle Sub-assy, Front Door Inside, RH |
| 69205B | Cushion(FOR FRONT DOOR INSIDE HANDLE) |
| 69206B | Handle Sub-assy, Front Door Inside, LH |
| 69210 | Handle Assy, Front Door, Outside RH |
| 69210B | Cushion(FOR FRONT DOOR OUTSIDE HANDLE) |
| 69220 | Handle Assy, Front Door Outside, LH |
| 69277B | Bezel, Front Door Inside Handle, RH |
| 69278B | Bezel, Front Door Inside Handle, LH |
| 69293A | Snap, Front Door Outside Handle |
| 69310 | Lock Assy, Front Door, RH |
| 69320 | Lock Assy, Front Door, LH |
| 69410 | Plate Assy, Front Door Lock Striker |
| 69511E | Retainer, Front Door Lock Cylinder |
| 69711B | Link, Front Door Lock Remote Control, RH |
| 69712A | Link, Front Door Lock Remote Control, LH |
| 69725 | Protector, Front Door Inside Locking Link, RH |
| 69726A | Protecter, Front Door Inside Locking Link, LH |
| 69731A | Link, Front Door Inside Locking, NO.1 RH |
| 69732A | Link, Front Door Inside Locking, NO.1 LH |
| 69733 | Link, Front Door Inside Locking, RH |
| 69734 | Link, Front Door Inside Locking, LH |
| 69749A | Clamp, Front Door Lock Link, NO.1 |
| 69750B | Link Assy, Front Door Inside Locking, RH |
| 69755 | Silencer, Front Door Lock Link |
| 69759S | Snap, Front Door Inside Handle |
| 69760A | Link Assy, Front Door Inside Locking, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
