Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

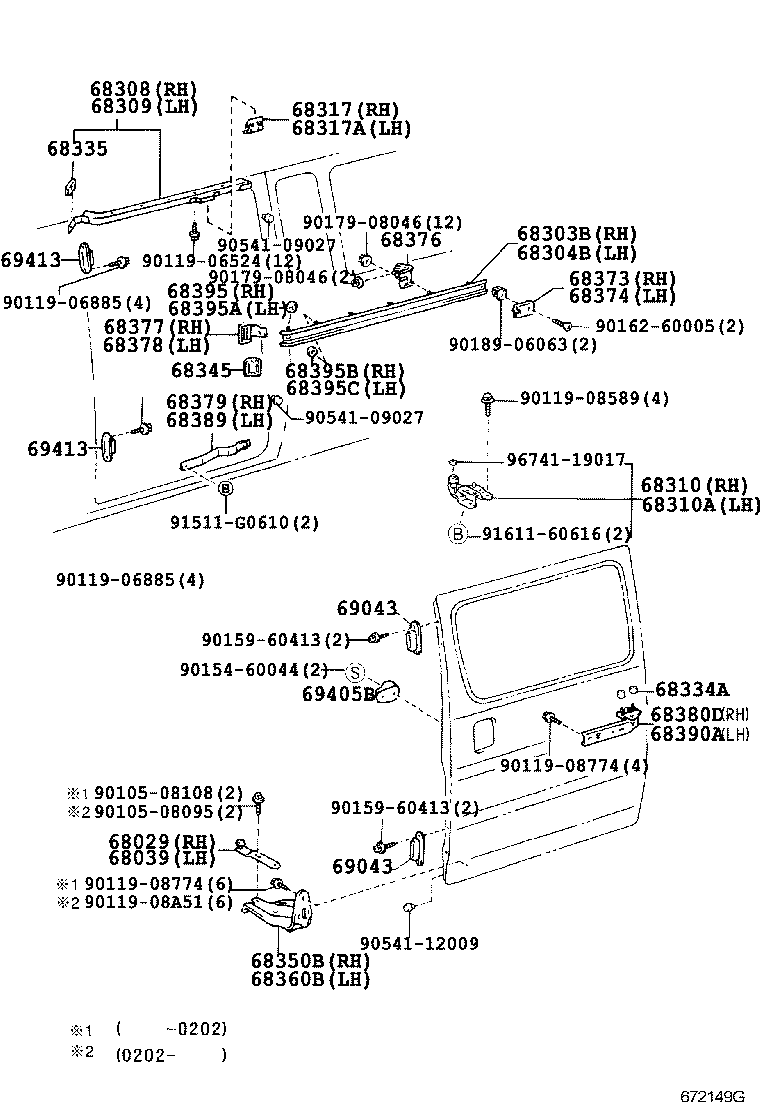

Slide Roller & Rail
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68029 | Base Sub-assy, Slide Door Lower Roller |
| 68039 | Base Sub-assy, Slide Door Lower Roller, LH |
| 68303B | Rail Sub-assy, Slide Door, Center RH |
| 68304B | Rail Sub-assy, Slide Door, Center LH |
| 68308 | Rail Sub-assy, Slide Door, Upper RH |
| 68309 | Rail Sub-assy, Slide Door, Upper LH |
| 68310 | Roller Assy, Slide Door, Upper |
| 68310A | Roller Assy, Slide Door, Upper, LH |
| 68317 | Stopper, Slide Door Upper Rail, RH |
| 68317A | Stopper, Slide Door Upper Rail |
| 68334A | Roller, Front Slide Door Center Guide |
| 68335 | Pad, Slide Door Upper Rail |
| 68345 | Cover, Slide Door Center Rail |
| 68350B | Roller Assy, Slide Door, Lower RH |
| 68360B | Roller Assy, Slide Door, Lower LH |
| 68373 | Moulding, Slide Rail End, RH |
| 68374 | Moulding, Slide Rail End, LH |
| 68376 | Bracket, Slide Door Center Rail |
| 68377 | Pad, Slide Door Center Rail, Front |
| 68378 | Pad, Slide Door Rail |
| 68379 | Spring, Slide Door Catch, RH |
| 68380D | Hinge Assy, Slide Door, Center RH |
| 68389 | Spring, Slide Door Catch, LH |
| 68390A | Hinge Assy, Slide Door, Center LH |
| 68395 | Packing, Slide Door Center Rail |
| 68395A | Packing, Slide Door Center Rail |
| 68395B | Packing, Slide Door Center Rail |
| 68395C | Packing, Slide Door Center Rail |
| 69043 | Stopper Sub-assy, Slide Door Down Female |
| 69405B | Stop Sub-assy, Slide Door Open |
| 69413 | Stop, Slide Door Down Male |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
