Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

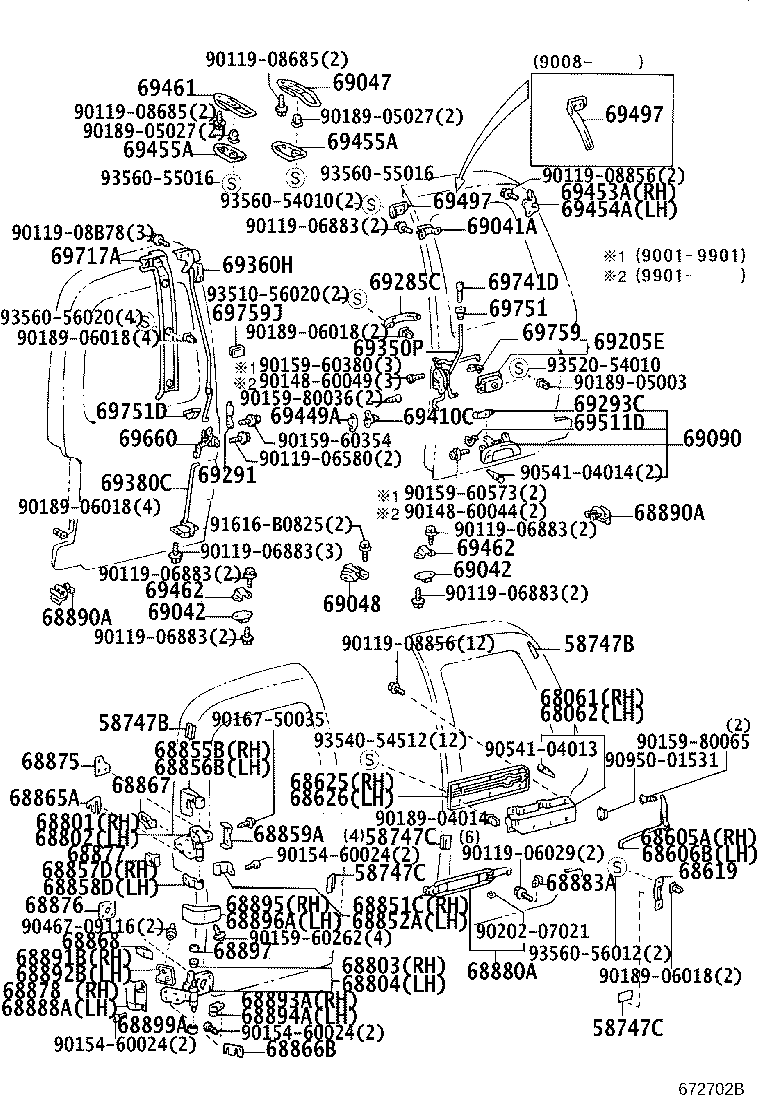

Back Door Lock & Hinge
92 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58747B | Protector, Quarter Panel, Rear |
| 58747C | Protector, Quarter Panel, Rear |
| 67206A | Bracket Sub-assy, Back Door Stopper |
| 67207A | Stopper Sub-assy, Back Door, RH |
| 67961A | Strap, Back Door Pull |
| 68061 | Guide Sub-assy, Back Door Check, RH |
| 68062 | Guide Sub-assy, Back Door Check, LH |
| 68605A | Arm Sub-assy, Back Door Check, RH |
| 68606B | Arm Sub-assy, Back Door Check, LH |
| 68619 | Holder, Back Door Check Arm |
| 68625 | Cover, Back Door Check Guide, RH |
| 68626 | Cover, Back Door Check Guide, LH |
| 68801 | Hinge Sub-assy, Back Door, Upper RH |
| 68802 | Hinge Sub-assy, Back Door, Upper LH |
| 68803 | Hinge Assy, Back Door, Lower RH |
| 68804 | Hinge Assy, Back Door, Lower LH |
| 68810D | Hinge Assy, Back Door, RH |
| 68820C | Hinge Assy, Back Door, LH |
| 68825 | Plate, Back Door Hinge |
| 68851C | Cover, Back Door Hinge, RH |
| 68852A | Cover, Back Door Hinge, LH |
| 68855B | Cover, Back Door Upper Hinge Female, NO.1 RH |
| 68856B | Cover, Back Door Upper Hinge Female, NO.1 LH |
| 68857D | Cover, Back Door Upper Hinge Female, NO.2 RH |
| 68858D | Cover, Back Door Upper Hinge Female, NO.2 LH |
| 68859A | Spacer, Back Door Hinge Cover |
| 68865A | Spacer, Back Door Upper Hinge Door Side |
| 68866B | Spacer, Back Door Lower Hinge Door Side |
| 68867 | Cushion, Back Door Hinge Male, Upper |
| 68868 | Seal, Back Door Hinge |
| 68875 | Spacer, Back Door Upper Hinge |
| 68876 | Spacer, Back Door Lower Hinge |
| 68877 | Cushion, Back Door Hinge Female, Upper |
| 68878 | Cushion, Back Door Hinge Female, Lower RH |
| 68880A | Band Assy, Back Door Open Stopper |
| 68883A | Holder, Back Door Open Stopper |
| 68888A | Cushion, Back Door Hinge Female, Lower LH |
| 68890A | Bracket Assy, Back Door Open Stopper |
| 68891B | Cover, Back Door Lower Hinge Male, NO.1 RH |
| 68892B | Cover, Back Door Lower Hinge Male, NO.1 LH |
| 68893A | Cover, Back Door Lower Hinge Male, NO.2 RH |
| 68894A | Cover, Back Door Lower Hinge Male, NO.2 LH |
| 68895 | Cover, Back Door Lower Hinge Female, NO.1 RH |
| 68896A | Cover, Back Door Lower Hinge Female, NO.1 LH |
| 68897 | Cover, Back Door Lower Hinge Female, NO.2 |
| 68899A | Cover, Back Door Lower Hinge Female, NO.3 |
| 68907 | Stay Sub-assy, Back Door Damper, RH |
| 68908 | Stay Sub-assy, Back Door Damper, LH |
| 69035 | Guide Sub-assy, Back Door Side Stopper, RH |
| 69036 | Guide Sub-assy, Back Door Side Stopper, LH |
| 69041A | Stopper Sub-assy, Back Door, Upper |
| 69042 | Stopper Sub-assy, Back Door, Lower |
| 69047 | Striker Sub-assy, Back Door Upper Lock |
| 69048 | Striker Sub-assy, Back Door Lower Lock |
| 69090 | Handle Assy, Back Door, Outside |
| 69150 | Actuator Assy, Back Door Lock |
| 69205E | Handle Sub-assy, Back Door Inside, RH |
| 69211C | Handle, Back Door Outside |
| 69285C | Handle, Pull |
| 69290F | Handle Assy, Back Door Inside |
| 69291 | Handle Assy, Back Door Inside |
| 69293C | Snap, Back Door Handle |
| 69298 | Cover, Back Door Inside Handle |
| 69350P | Lock Assy, Back Door, W/Courtesy Lamp Switch |
| 69358 | Protector, Back Door Lock |
| 69359 | Cushion, Back Door Lock |
| 69360H | Lock Assy, Back Door, Upper LH |
| 69380C | Lock Assy, Back Door, Lower |
| 69403A | Stopper Sub-assy, Back Door Side Female, RH |
| 69404A | Stopper Sub-assy, Back Door Side Female, LH |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430C | Striker Assy, Back Door Lock |
| 69449A | Shim, Back Door Lock Striker |
| 69453A | Stopper, Back Door Upper Side, RH |
| 69454A | Stopper, Back Door Upper Side, LH |
| 69455A | Cover, Back Door Upper Lock Striker |
| 69461 | Stopper, Back Door Side Male, RH |
| 69461A | Stopper, Back Door Side Male |
| 69462 | Stopper, Back Door Side Male, LH |
| 69497 | Cushion, Back Door Upper Stopper, NO.2 |
| 69511D | Retainer, Back Door Lock Cylinder |
| 69660 | Control Assy, Back Door Lock Remote, LH |
| 69690 | Control Assy, Back Door Remote |
| 69706A | Rod Sub-assy, Back Door Lock Remote Control |
| 69717A | Cover, Back Door Lock Control Link |
| 69741D | Knob, Door Lock Control(FOR BACK DOOR) |
| 69749E | Clamp, Back Door Lock Link |
| 69751 | Holder, Door Lock Control Knob |
| 69751D | Holder, Door Lock Control Knob(FOR BACK DOOR) |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69759J | Silencer, Door Lock Link |
| 69783B | Bezel, Back Door Inside Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
