Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

49 part groups · 19 illustrations

Illustrations

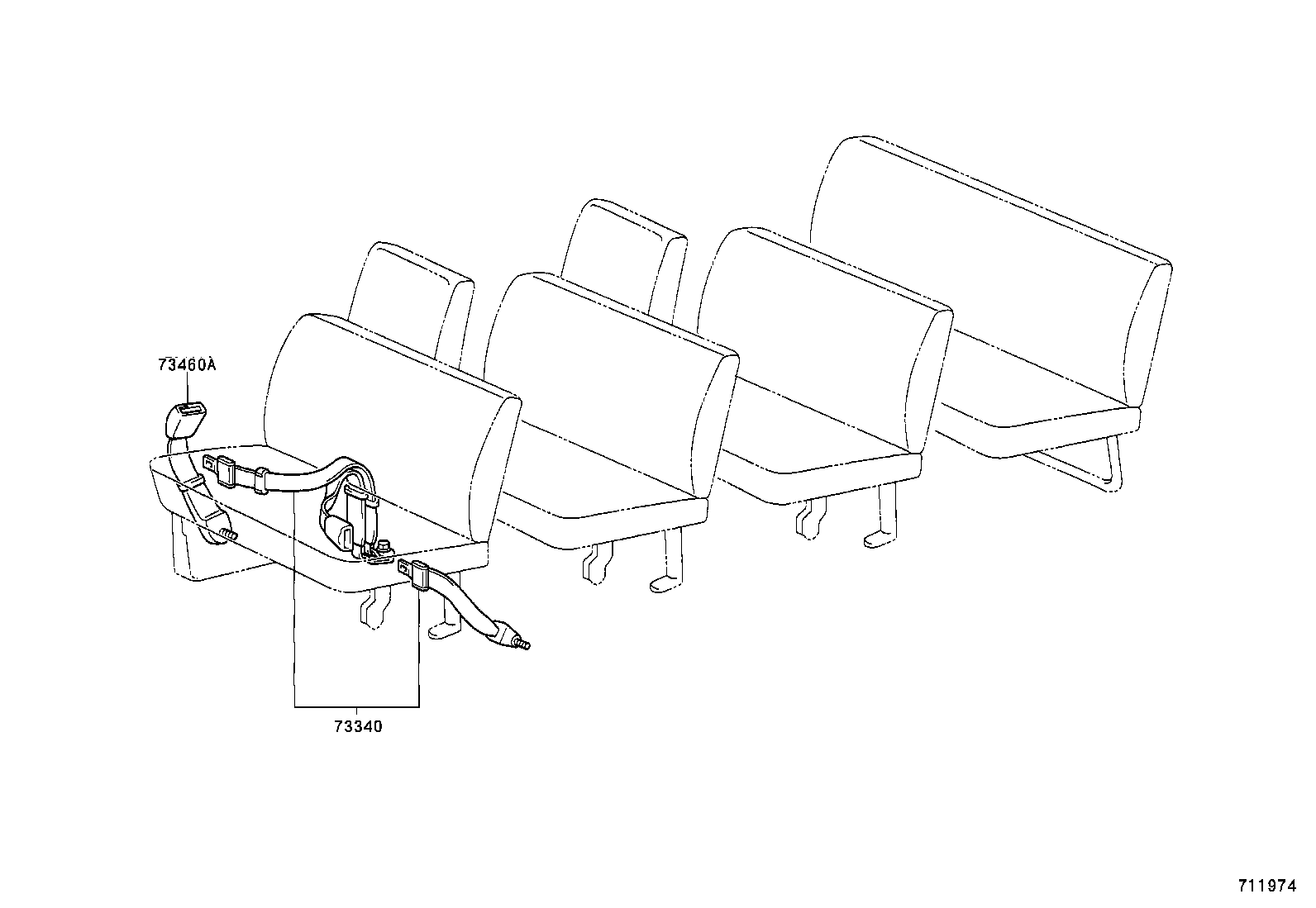

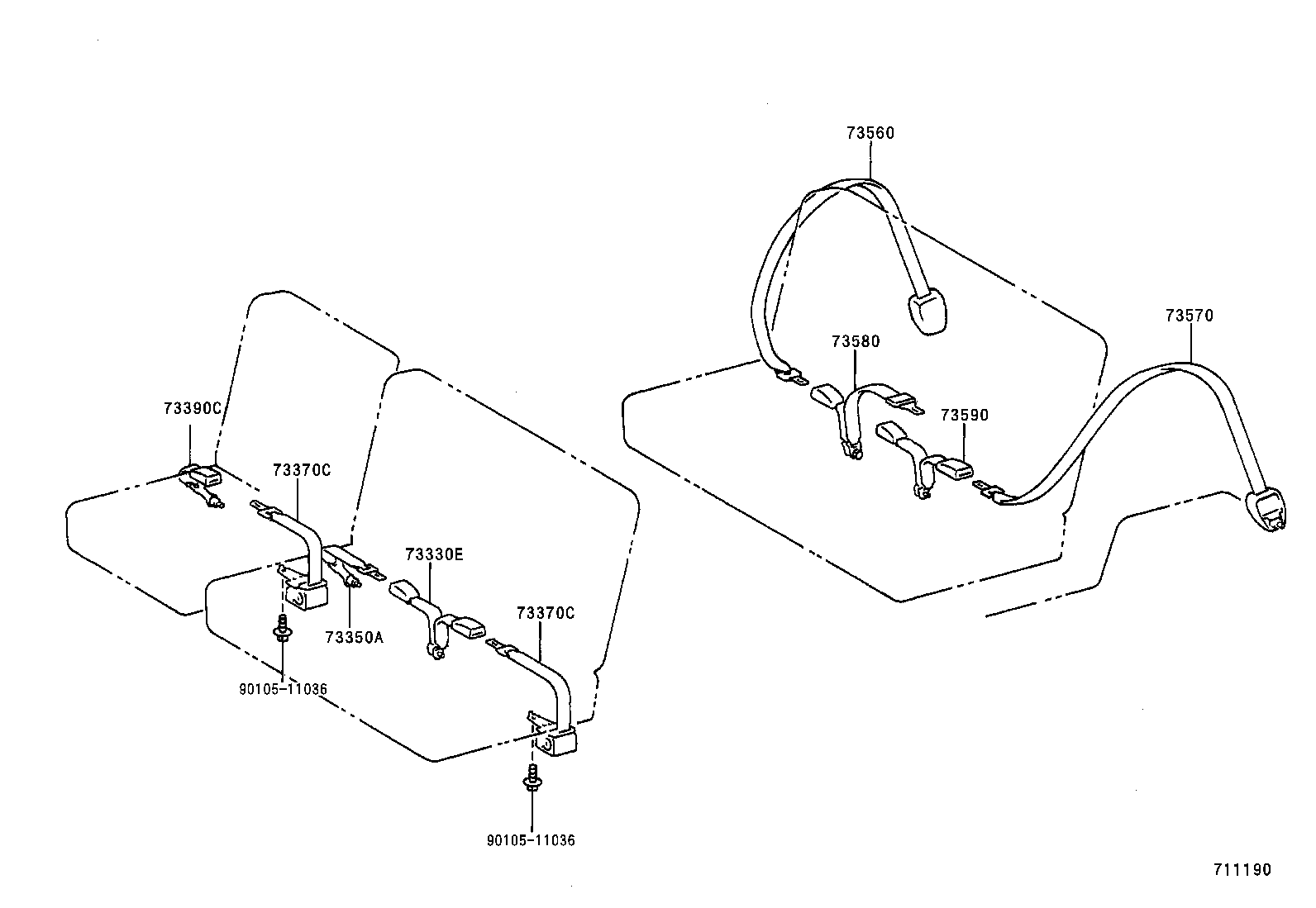

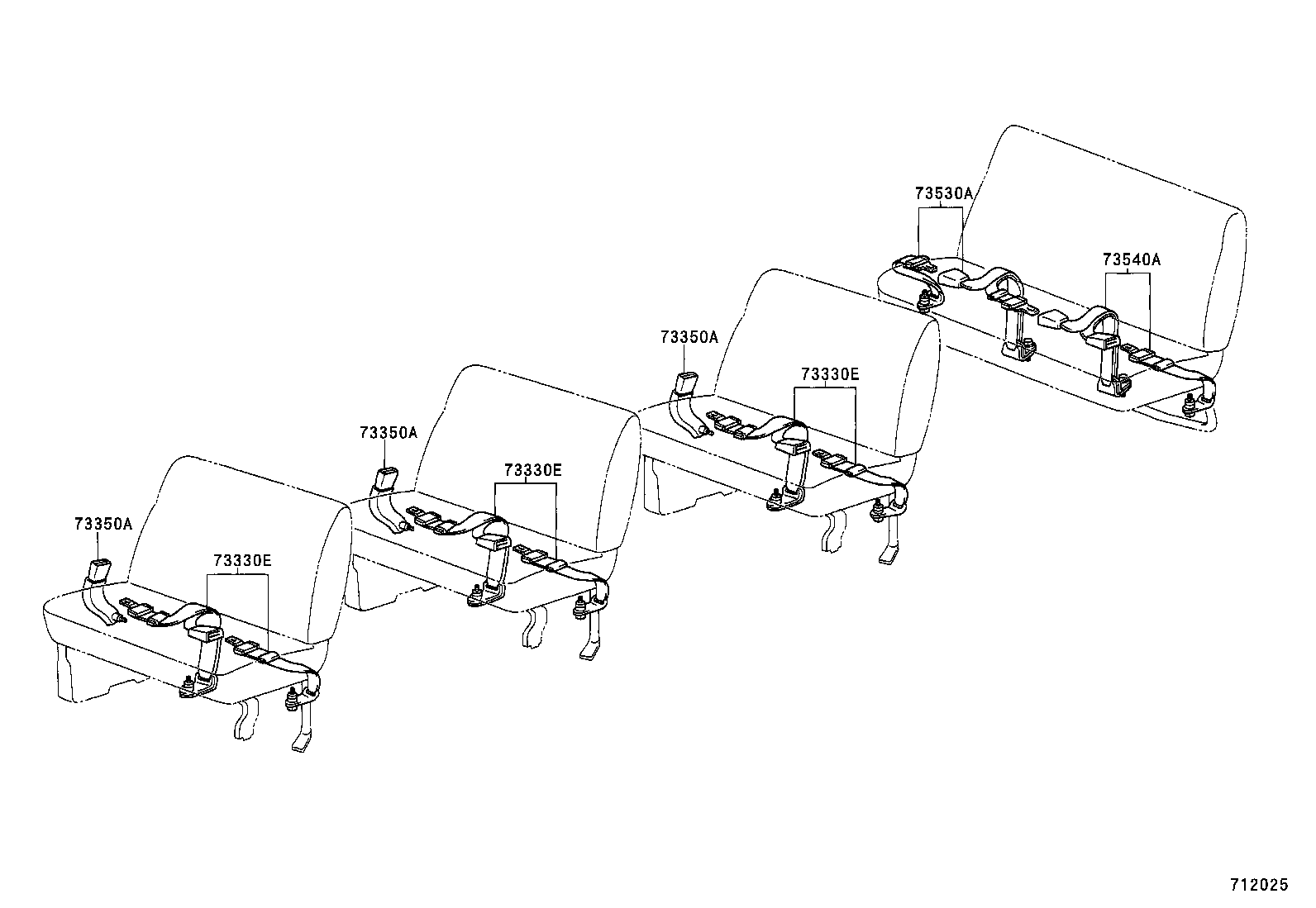

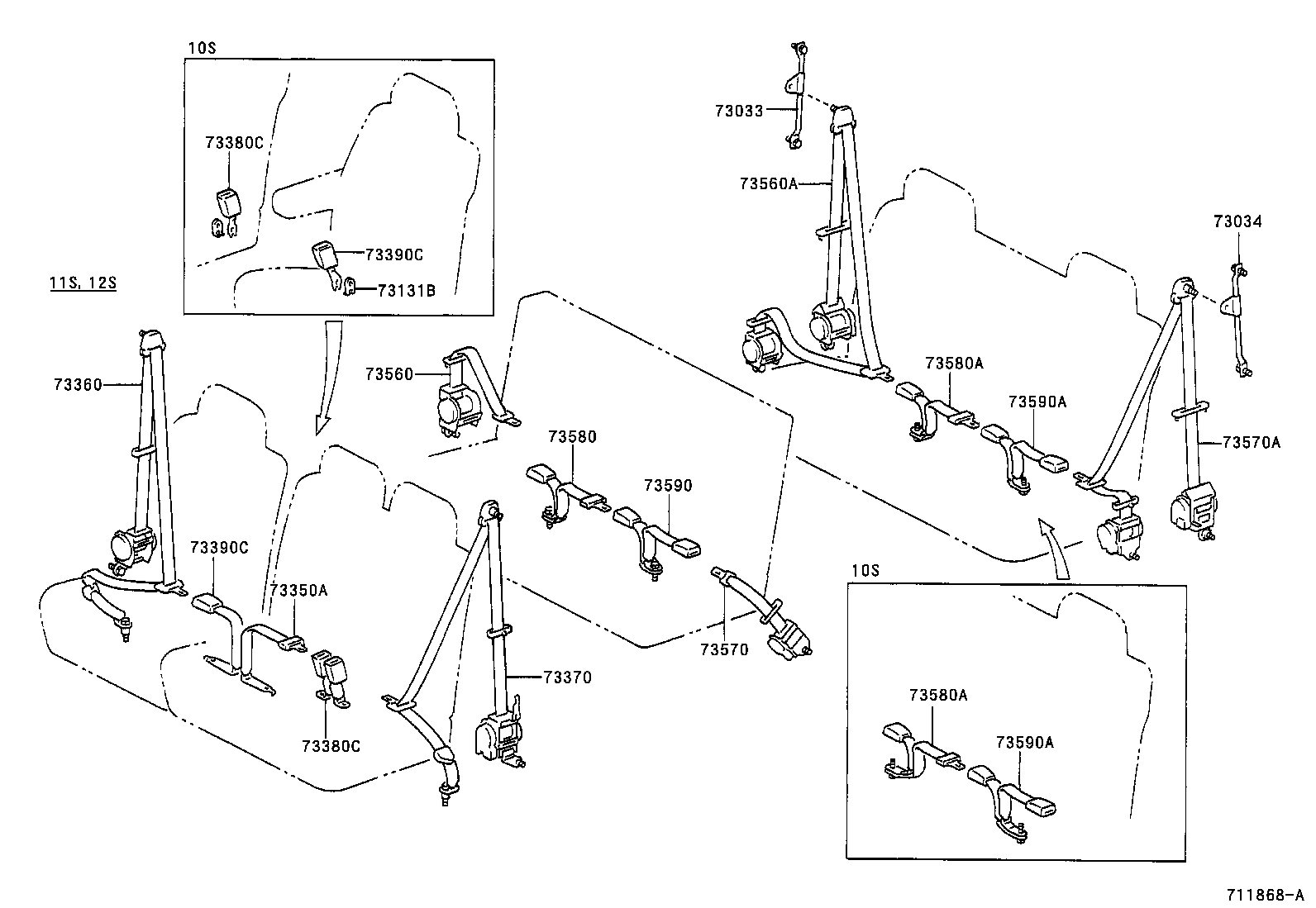

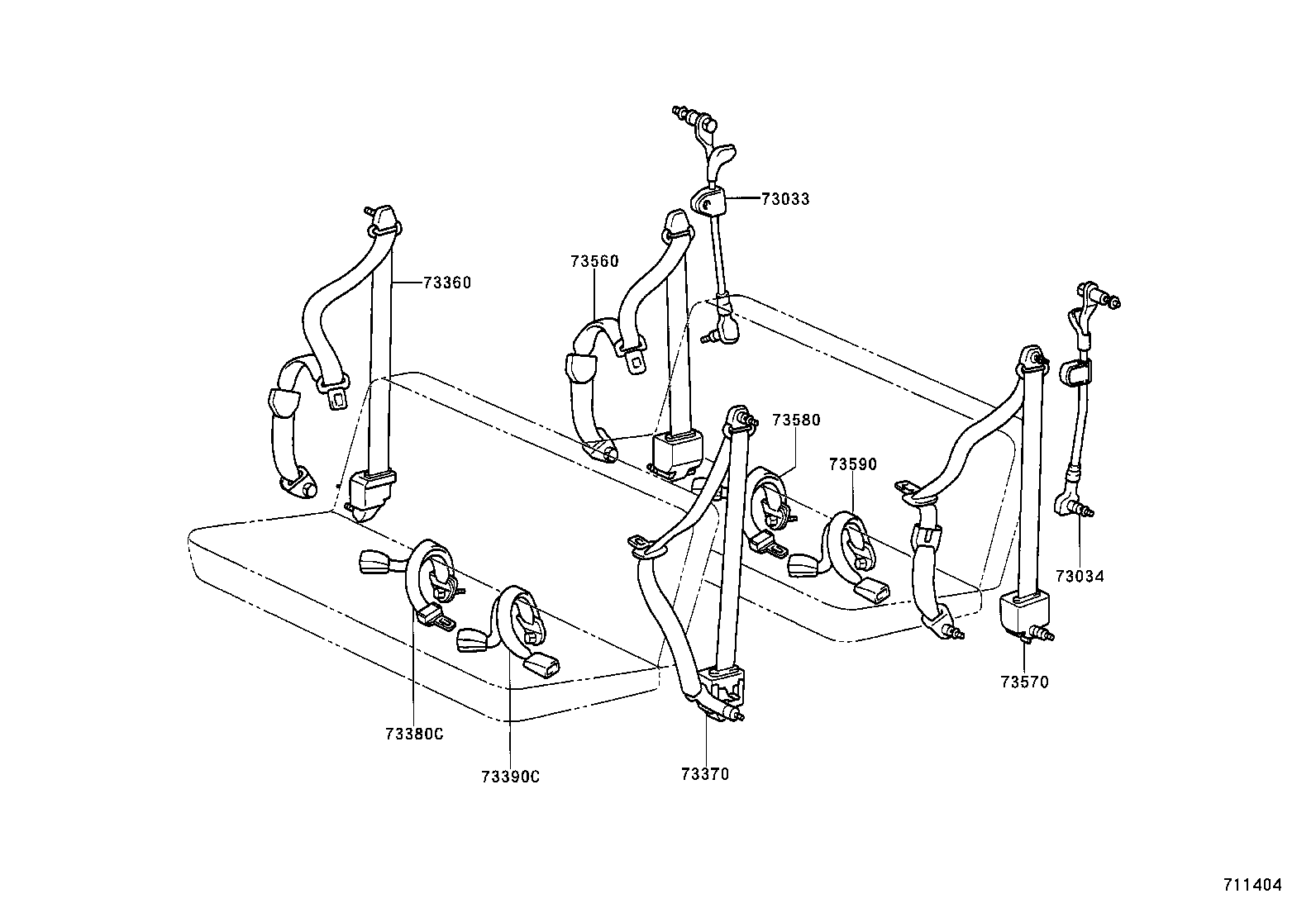

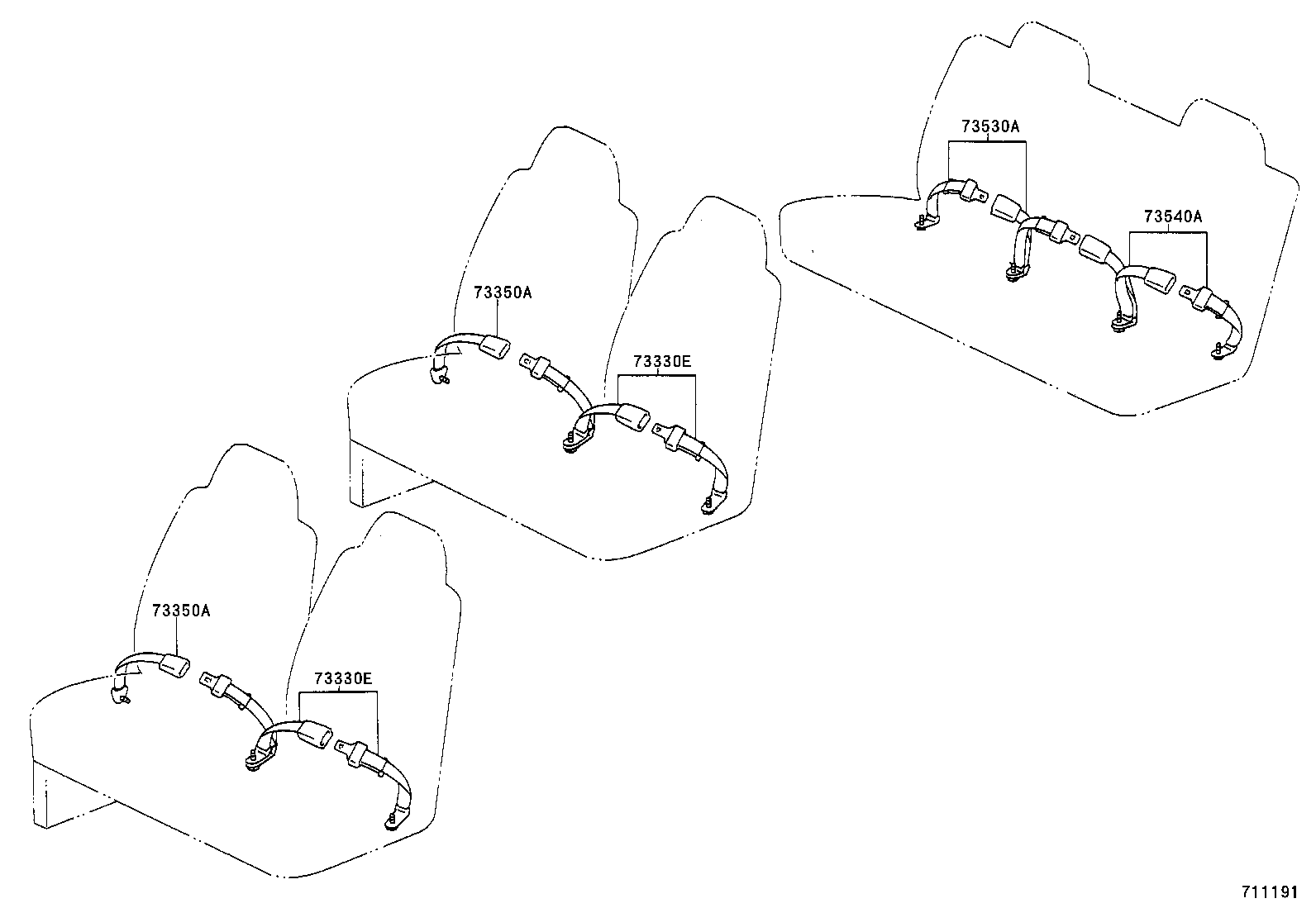

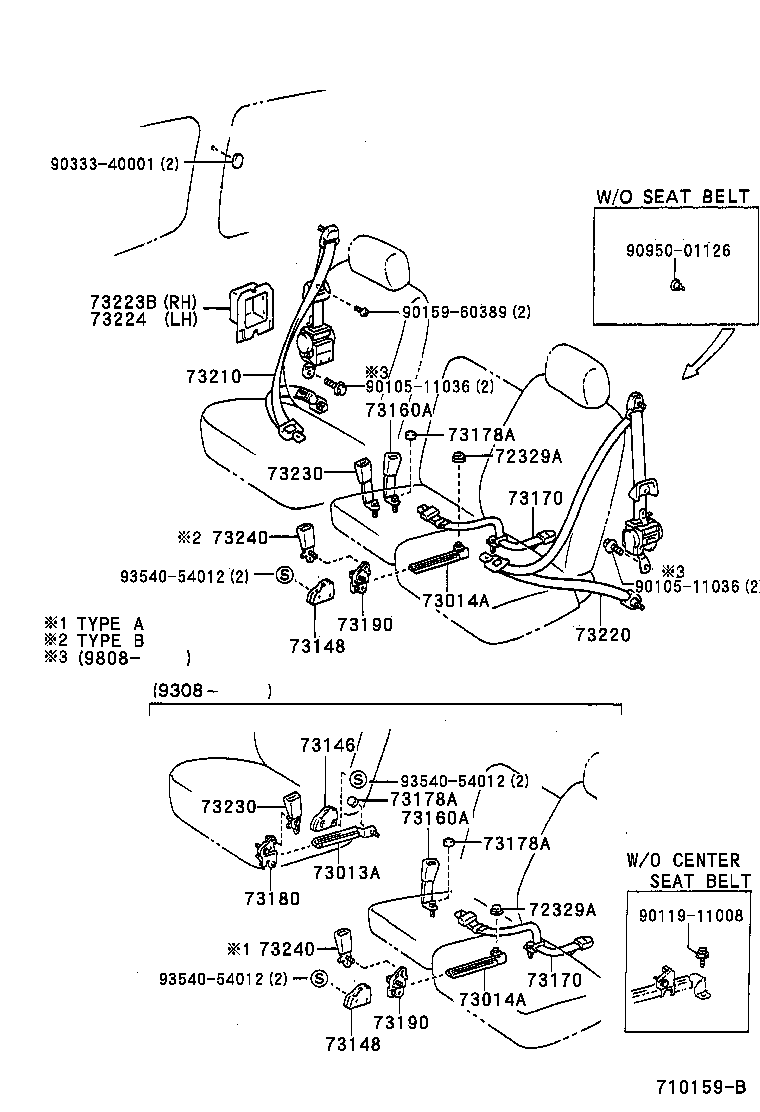

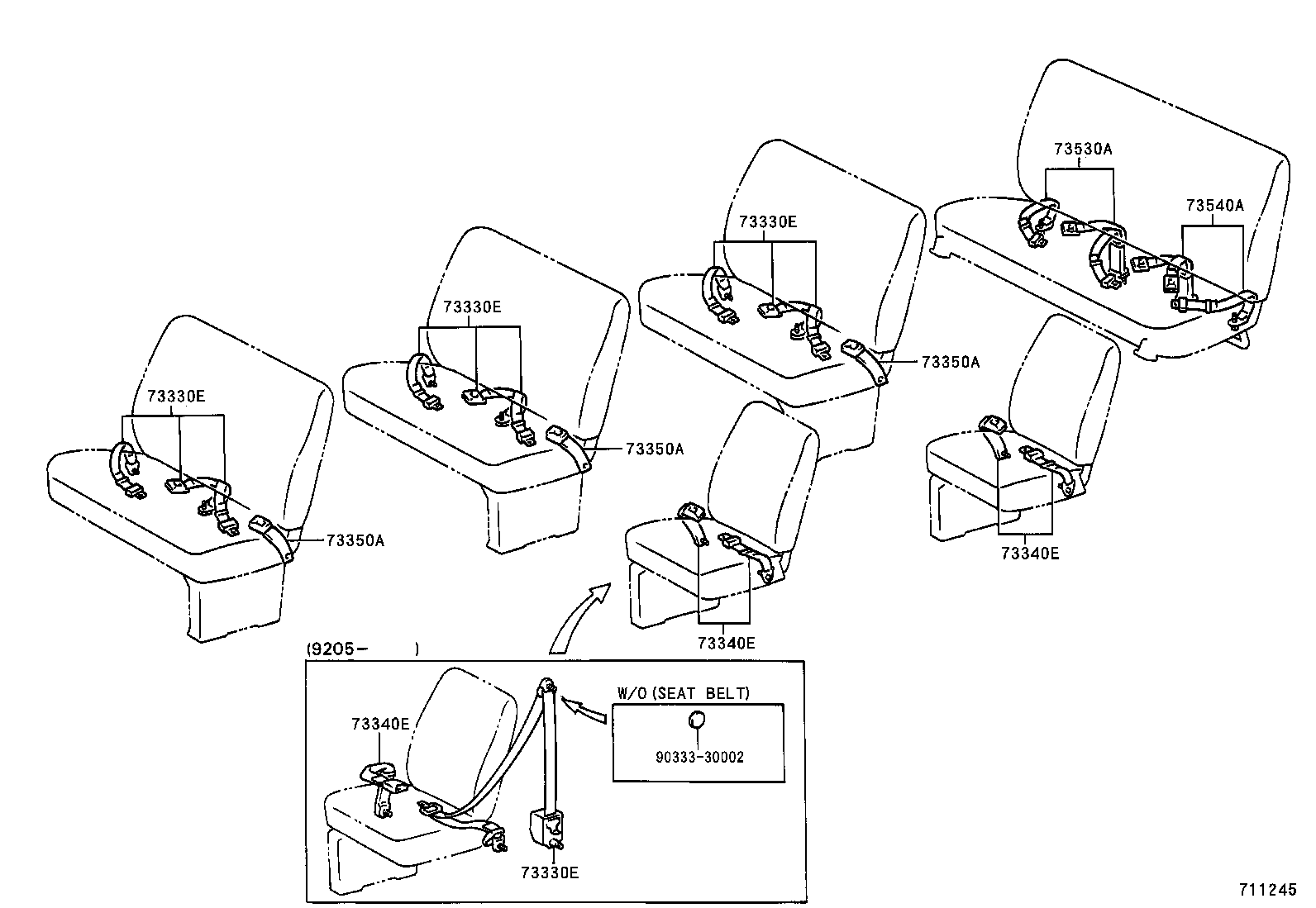

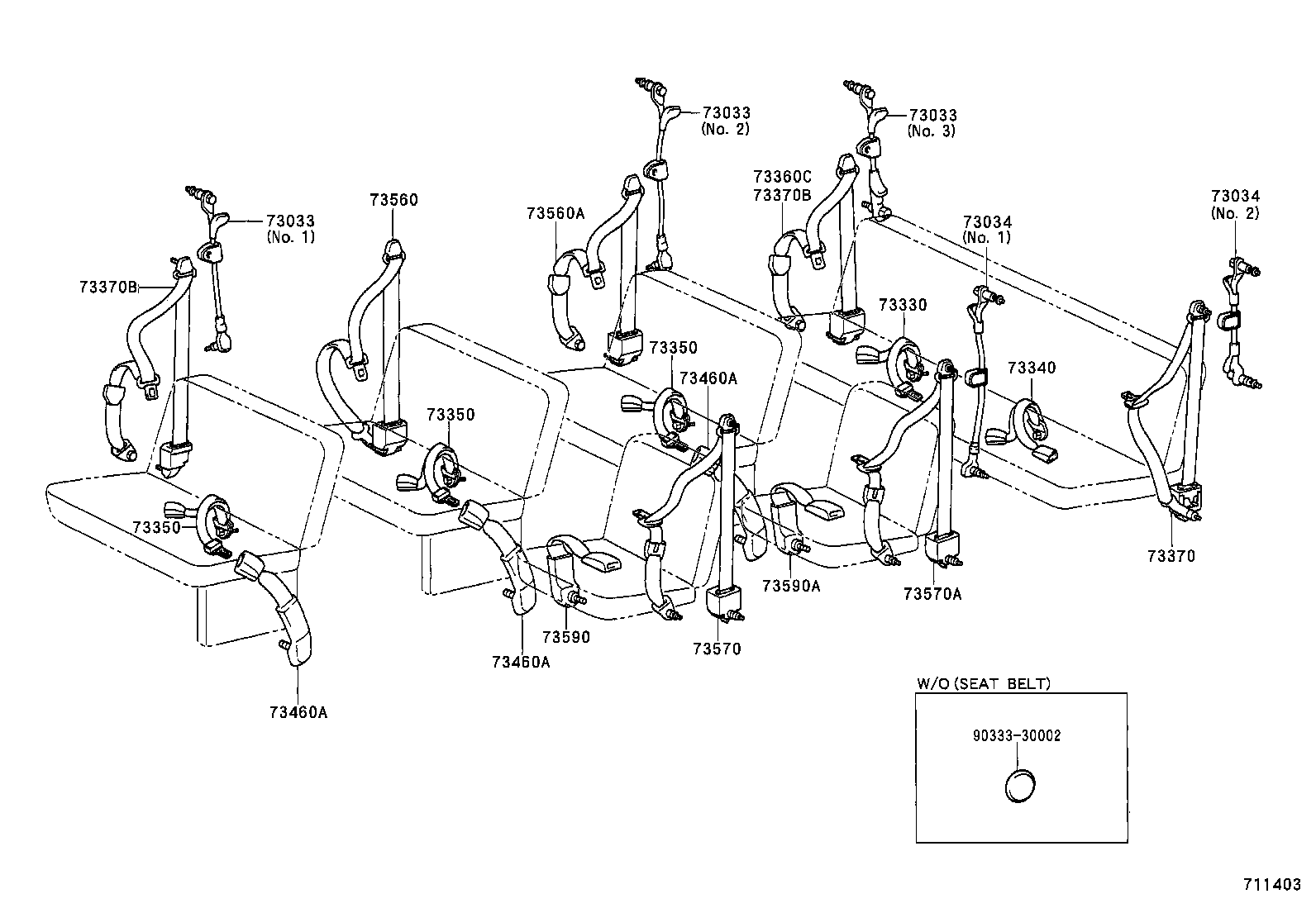

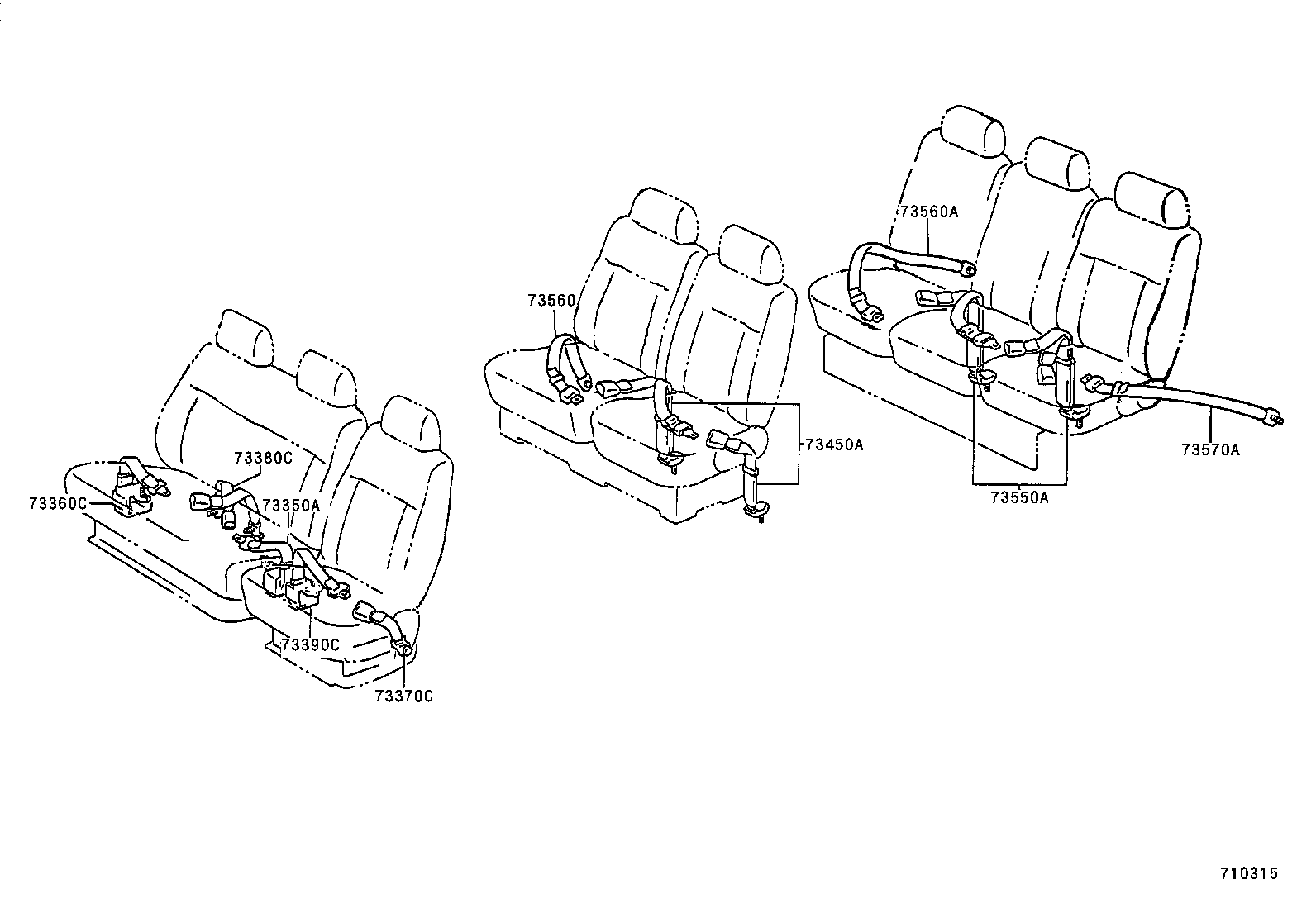

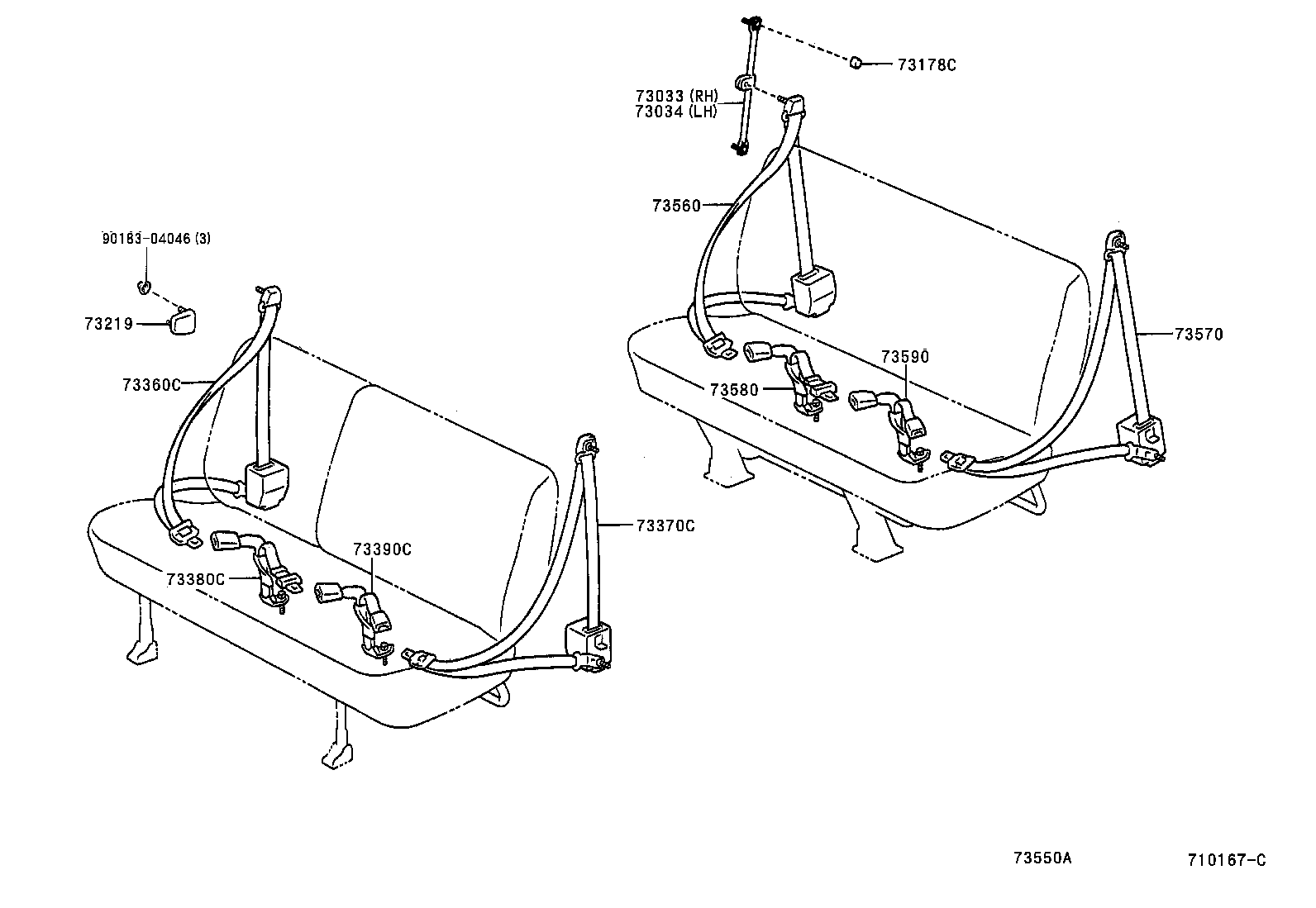

Figure 710158B 710158B 1989-08 → — Figure 710159B 710159B 1989-08 → — Figure 711245 711245 1989-08 → 1999-07 Figure 711258 711258 1989-08 → 1991-08 Figure 711258 711258 1998-08 → 2000-08 Figure 710167C 710167C 1994-05 → — Figure 711403 711403 1999-07 → — Figure 710315 710315 1996-11 → — Figure 711190 711190 1998-08 → — Figure 711191 711191 1998-08 → — Figure 711404 711404 1999-07 → — Figure 711763 711763 2000-08 → — Figure 711974 711974 2000-03 → — Figure 711868A 711868A 2000-08 → — Figure 711869A 711869A 2000-08 → — Figure 711869A 711869A 2003-08 → — Figure 712025 712025 2001-01 → — Figure 712025 712025 2002-08 → — Figure 712025 712025 2002-11 → —

Part groups

PNCDescription
72329A Cover, Seat Adjuster Bolt
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73014A Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73131B Bracket, Seat Belt
73146 Cover, Front Seat Belt Inner Anchor Bracket, RH
73148 Cover, Front Seat Belt Inner Anchor Bracket, LH
73160A Seat Belt Assy, Front Center, RH
73170 Belt Assy, Front Center, LH
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73330 Belt Assy, Rear Seat Lap Type, RH
73330E Belt Assy, Rear NO.1 Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73340E Belt Assy, Rear NO.1 Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370B Belt Assy, Rear Seat, Outer
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73450A Belt Assy, NO.2 Seat Lap Type, Center
73460A Belt Assy, Rear Seat Center, Inner
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550A Belt Assy, NO.3 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73560A Belt Assy, NO.3 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570A Belt Assy, NO.3 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73590A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
