Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

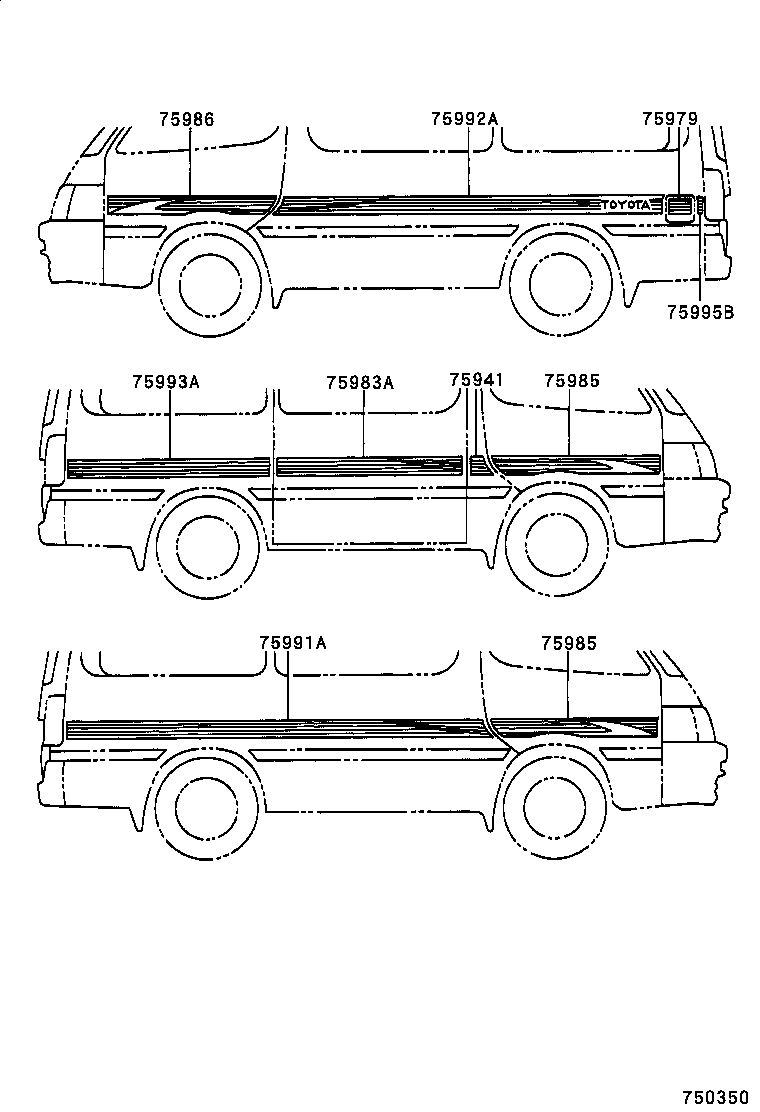

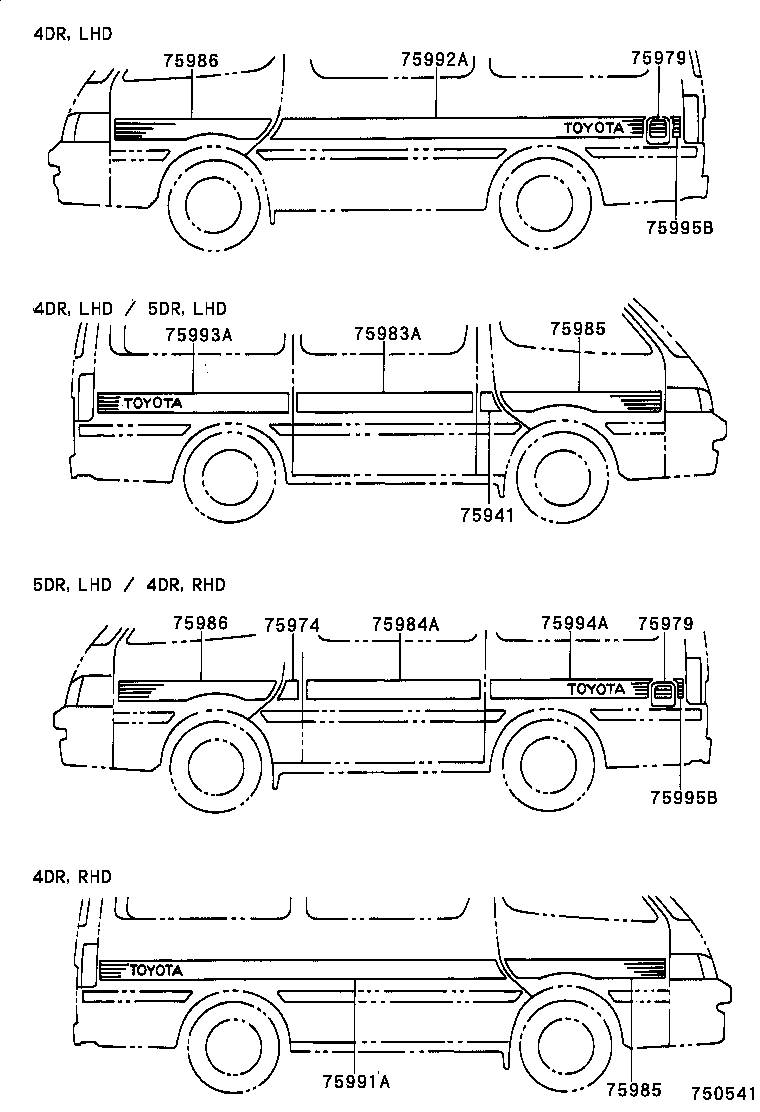

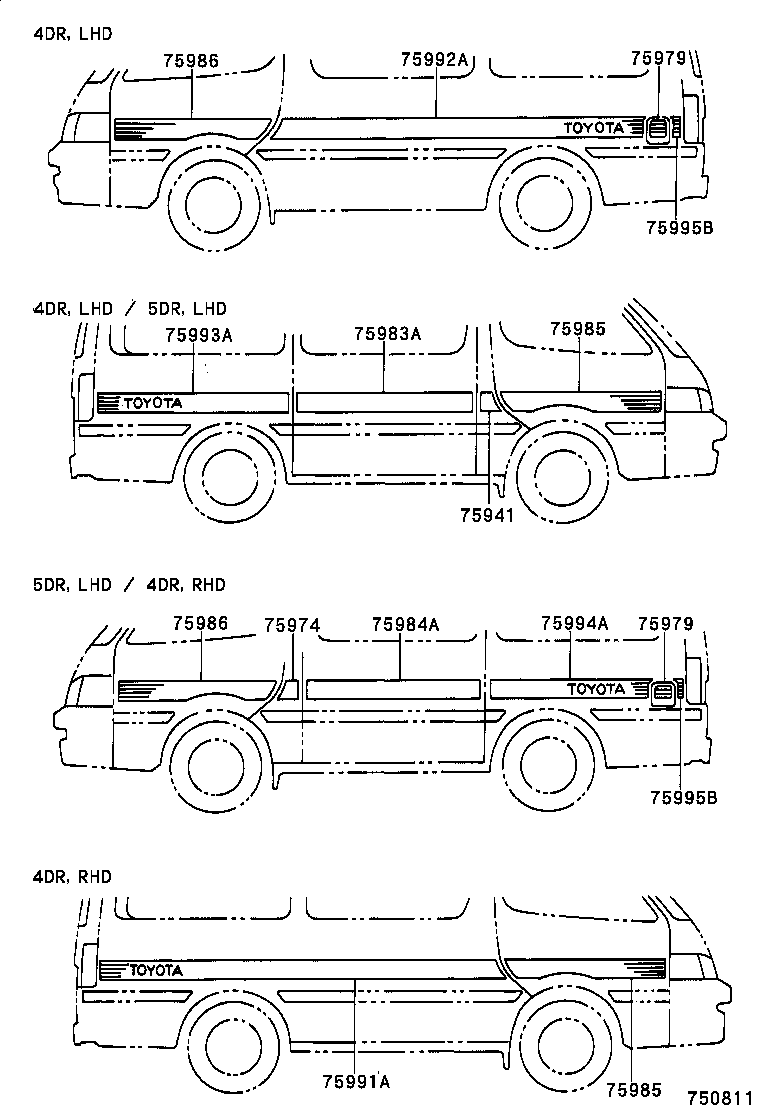

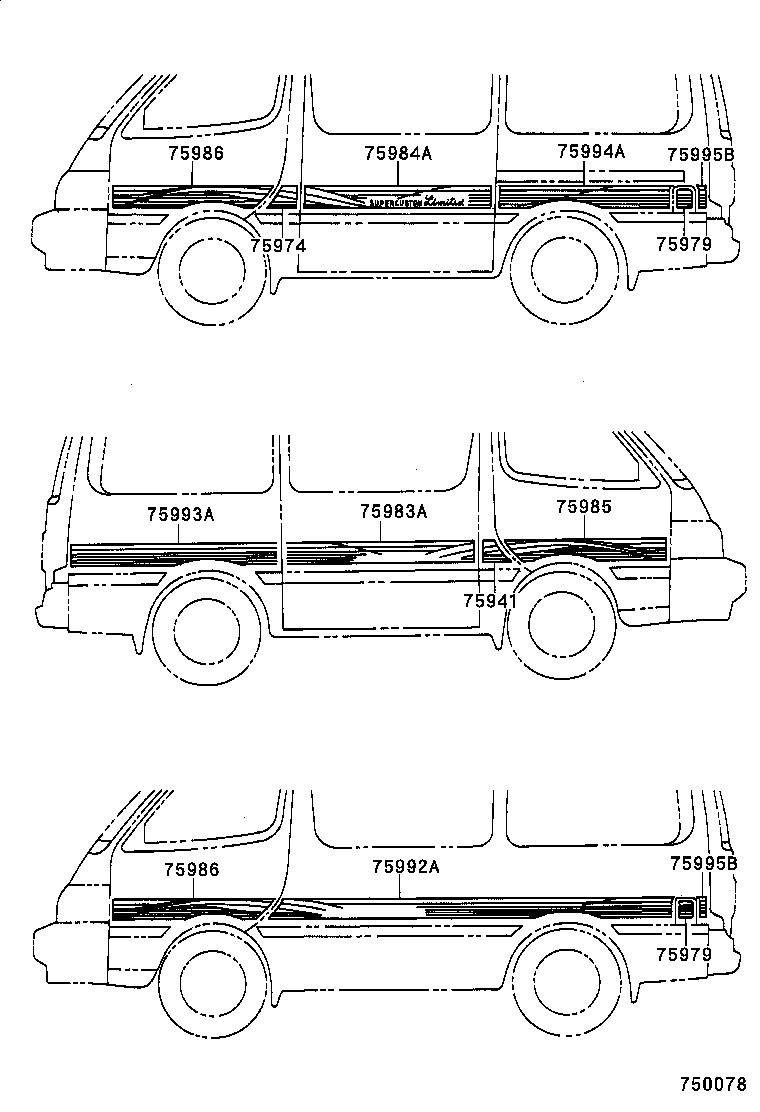

Body Stripe
14 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 75941 | Stripe, Center Pillar, RH |
| 75946 | Stripe, Back Door, RH |
| 75947 | Stripe, Back Door, LH |
| 75974 | Stripe, Center Pillar, LH NO.2 |
| 75979 | Stripe, Fuel Filler Opening Lid |
| 75983A | Stripe, Slide Door |
| 75984A | Stripe, Slide Door |
| 75985 | Stripe, Front Door, RH |
| 75986 | Stripe, Front Door, LH |
| 75991A | Stripe, Quarter, RH |
| 75992A | Stripe, Quarter, LH |
| 75993A | Stripe, Quarter, Rear RH |
| 75994A | Stripe, Quarter Extension |
| 75995B | Stripe, Quarter Rear End |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
