Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

57 part groups · 9 illustrations

Illustrations

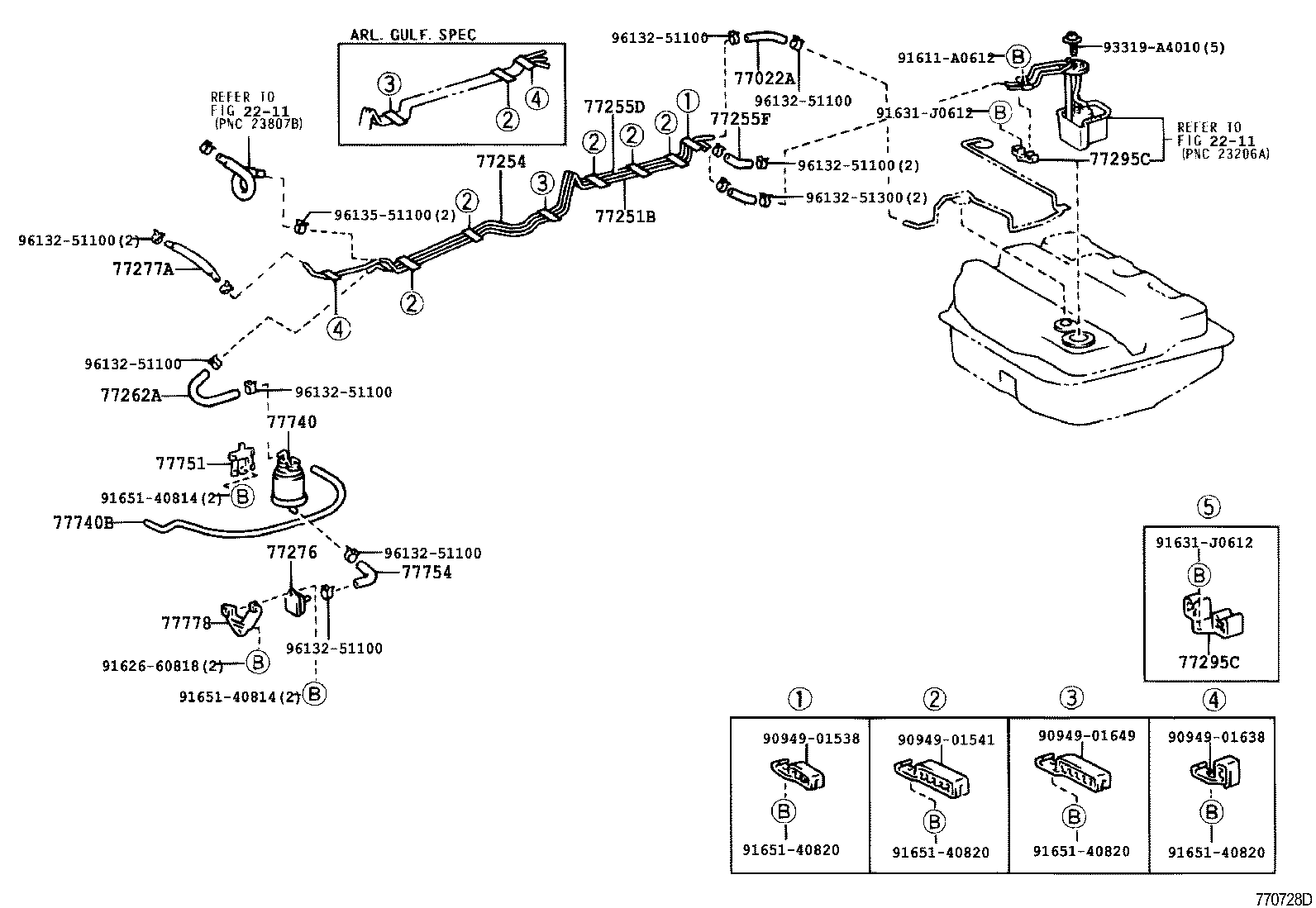

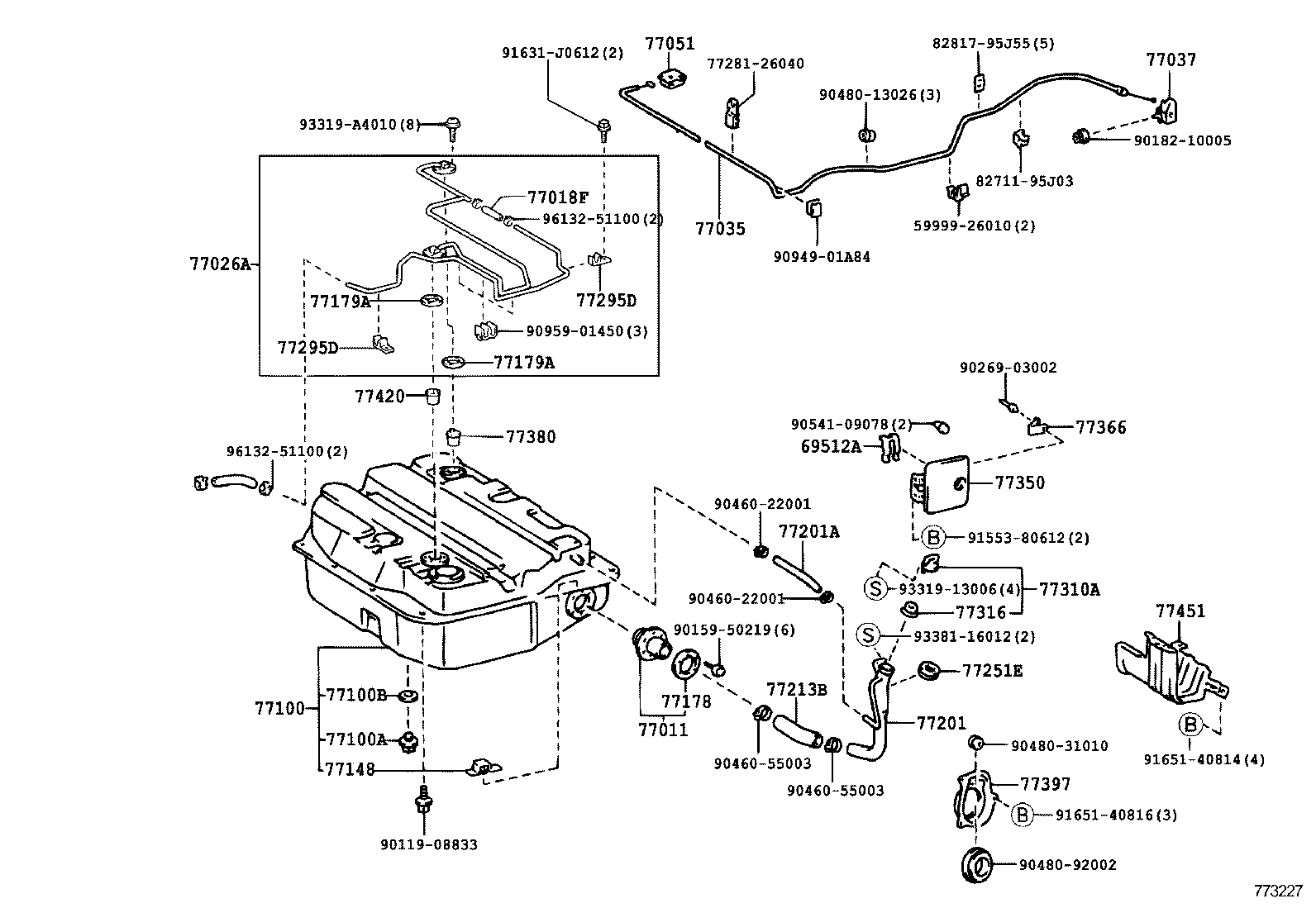

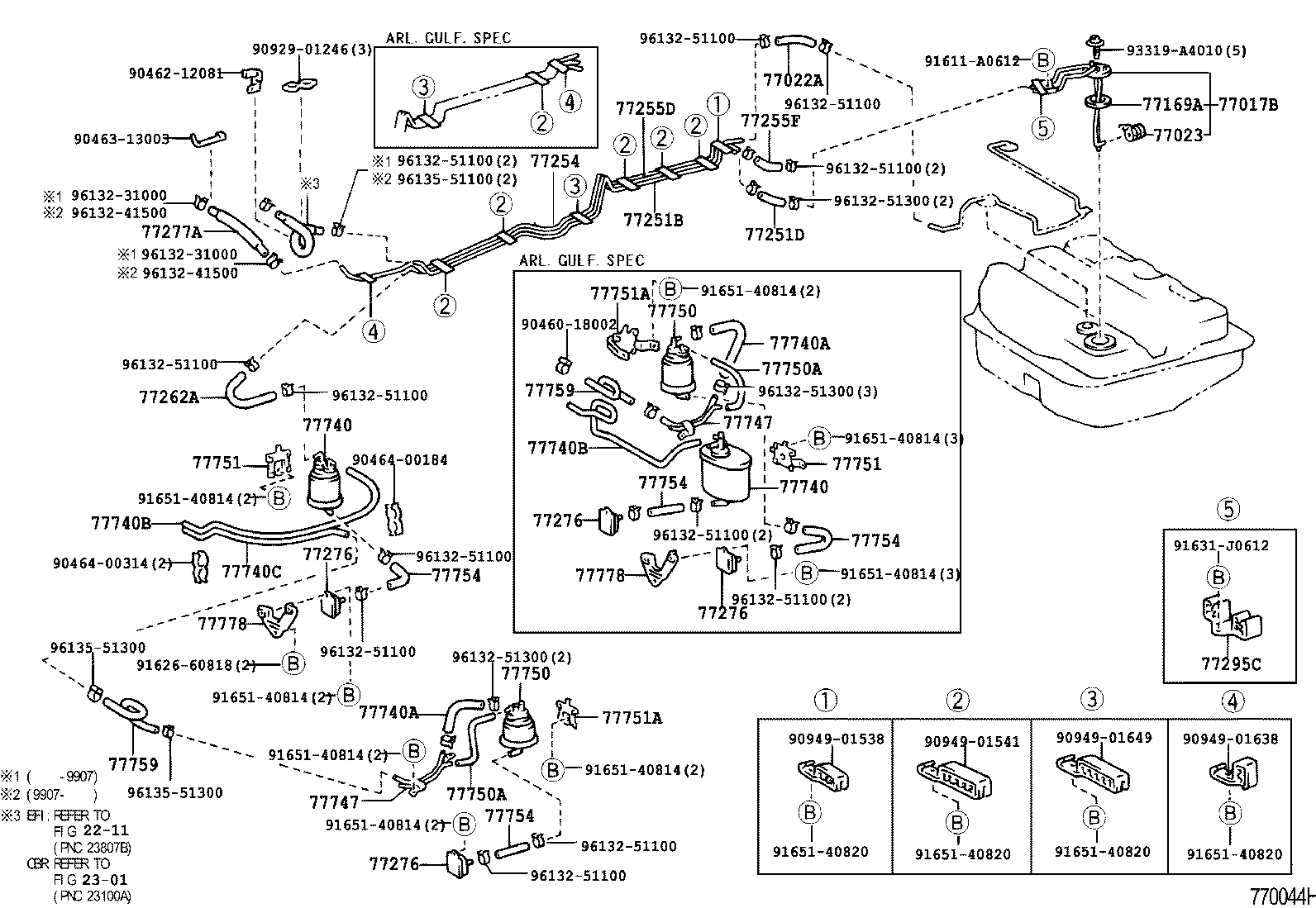

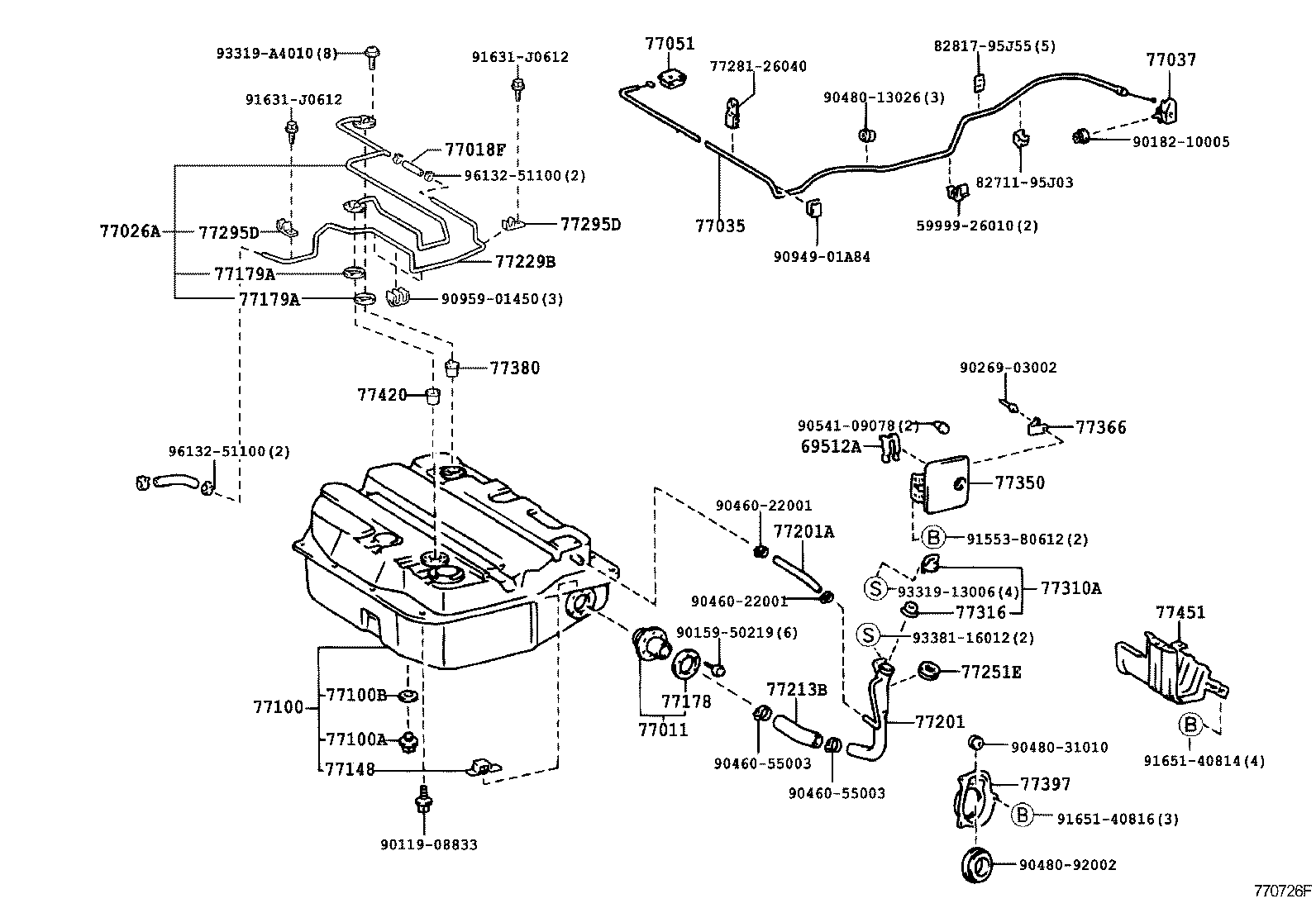

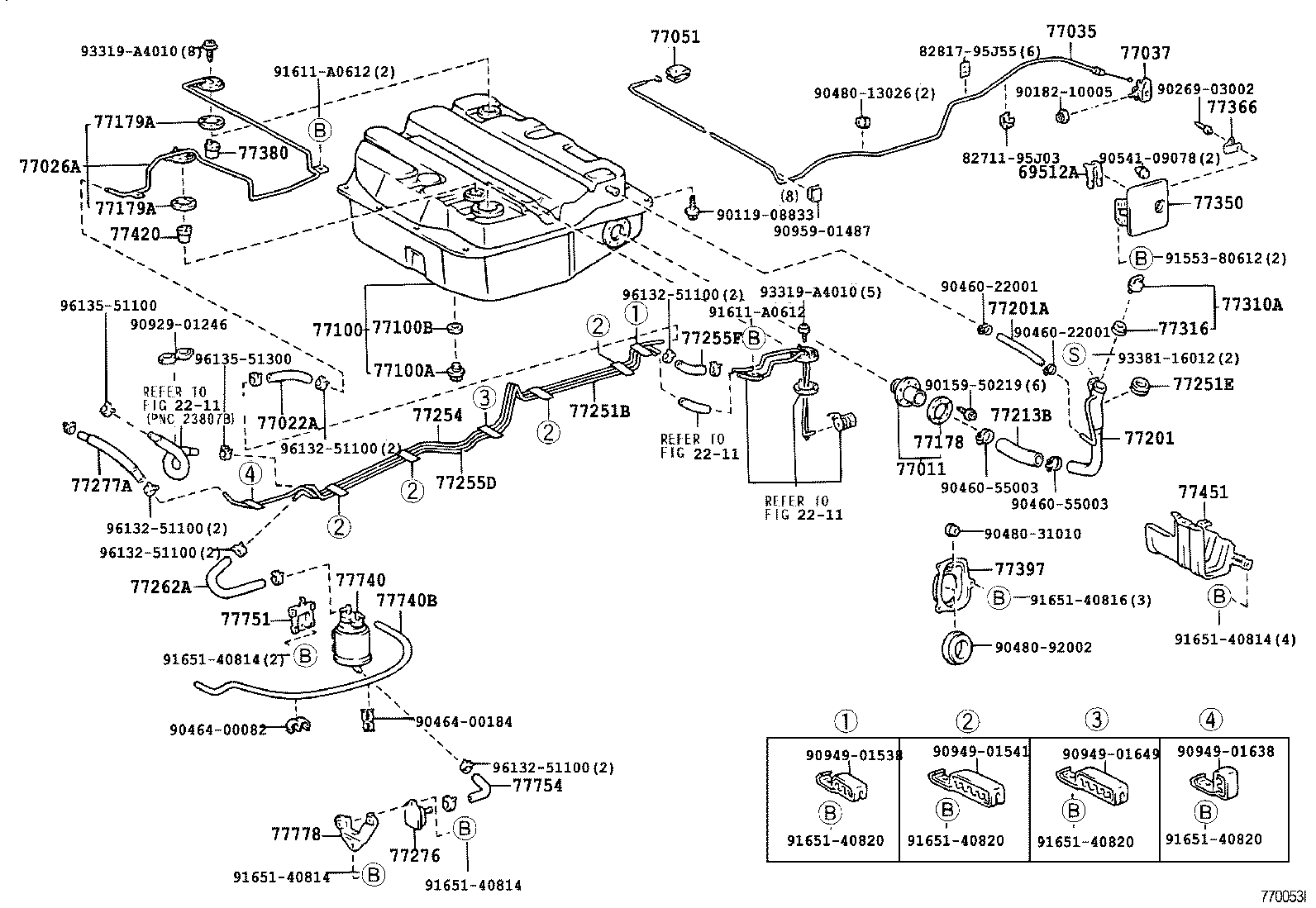

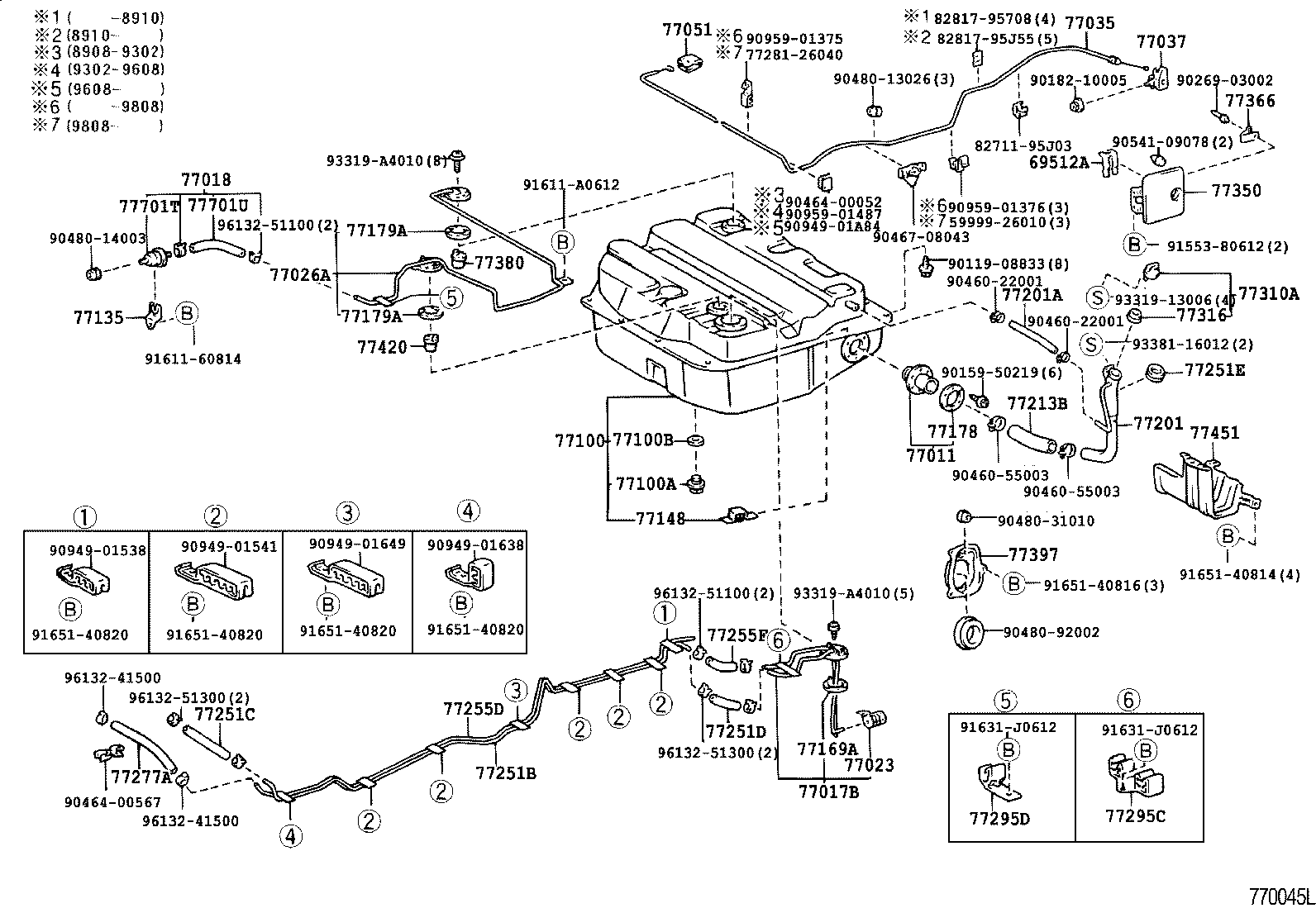

Figure 770043L 770043L 1989-08 → 1999-07 Figure 770043L 770043L 1999-07 → — Figure 770044H 770044H 1989-08 → 1999-07 Figure 770044H 770044H 1999-07 → — Figure 770045L 770045L 1989-08 → — Figure 770053I 770053I 1994-05 → — Figure 770726F 770726F 1999-07 → 2003-08 Figure 773227 773227 2003-08 → — Figure 770728D 770728D 1999-07 → —

Part groups

PNCDescription
69512A Retainer, Rear Door Lock Cylinder
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017B Tube Sub-assy, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77018F Hose, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77148 Bracket, Fuel Tube TO Tank
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77213B Hose, Fuel Tank TO Filler Pipe
77229B Tube, Fuel Tank Evaporation Vent, NO.3
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77251E Shield, Fuel Tank Inlet Pipe
77254 Tube, Fuel Emission, NO.1
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77262A Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77380 Valve Assy, Fuel Cut Off
77397 Plate, Fuel Inlet Pipe Seal
77420 Valve Assy, Fuel Cut Off, NO.2
77451 Protector, Fuel Inlet Hose
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77747 Pipe, Charcoal Canister, NO.1
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77751A Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77778 Bracket, Fuel Hose Protector
