Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

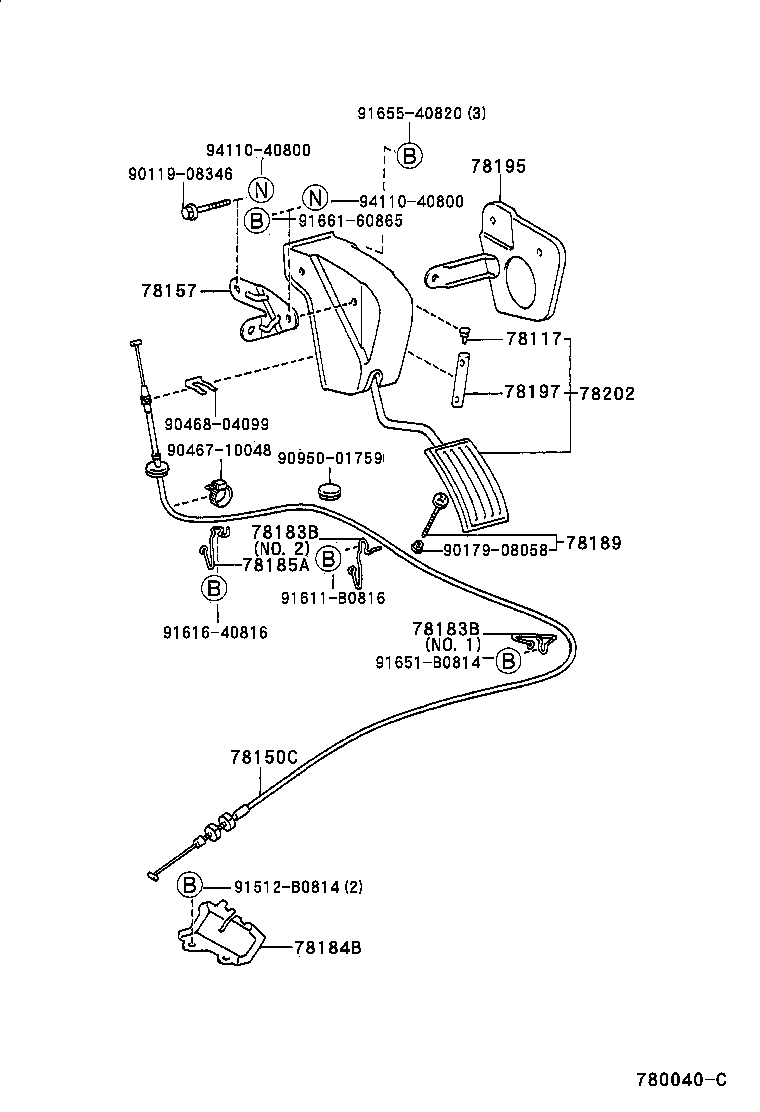

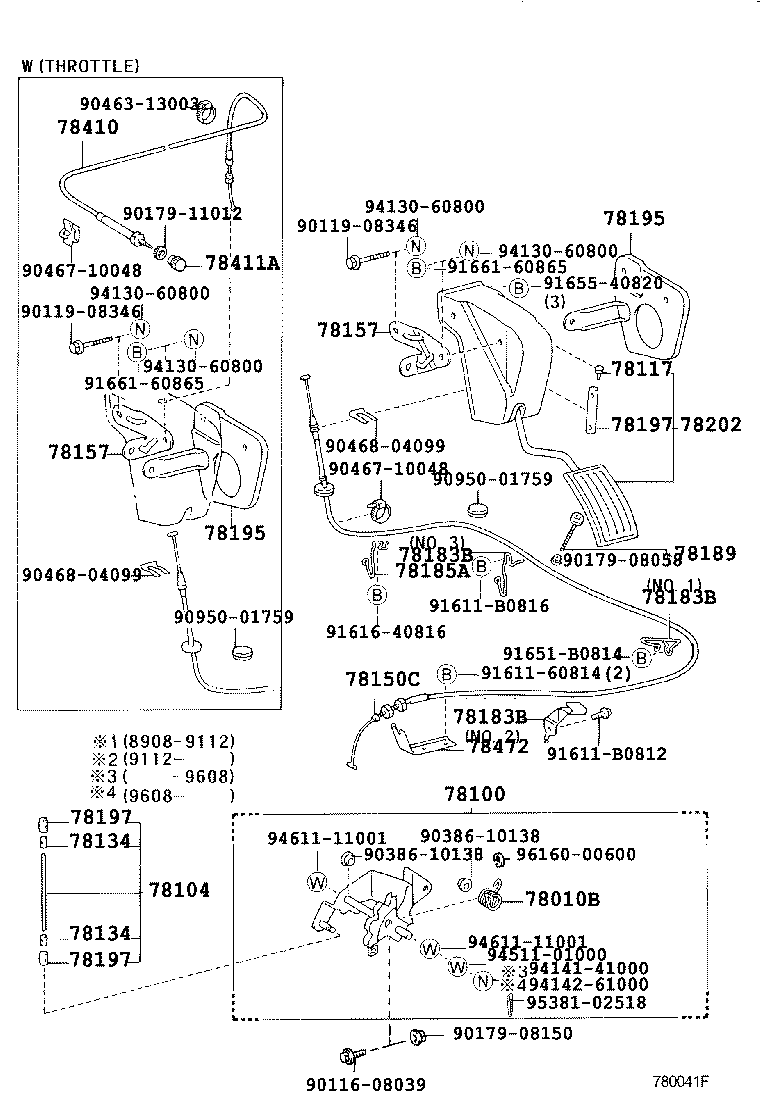

Accelerator Link
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78105 | Rod Sub-assy, Accelerator Connecting, NO.3 |
| 78111 | Pedal, Accelerator |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78117 | Cushion (FOR ACCELERATOR ROD) |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78120G | Rod Assy, Accelerator Pedal |
| 78129B | Seal, Accelerator Pedal Arm |
| 78134 | End, Accelerator Connecting Rod |
| 78150C | Wire Assy, Accelerator Flexible |
| 78157 | Ball, Accelerator Joint |
| 78180E | Grommet (FOR ACCELERATOR WIRE) |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78185A | Clamp, Accelerator Control Cable, NO.2 |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78195 | Bracket, Accelerator Link |
| 78197 | Clip, Accelerator Joint Ball |
| 78202 | Link Sub-assy, Accelerator |
| 78215 | Case, Accelerator Link |
| 78410 | Cable Assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
