Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

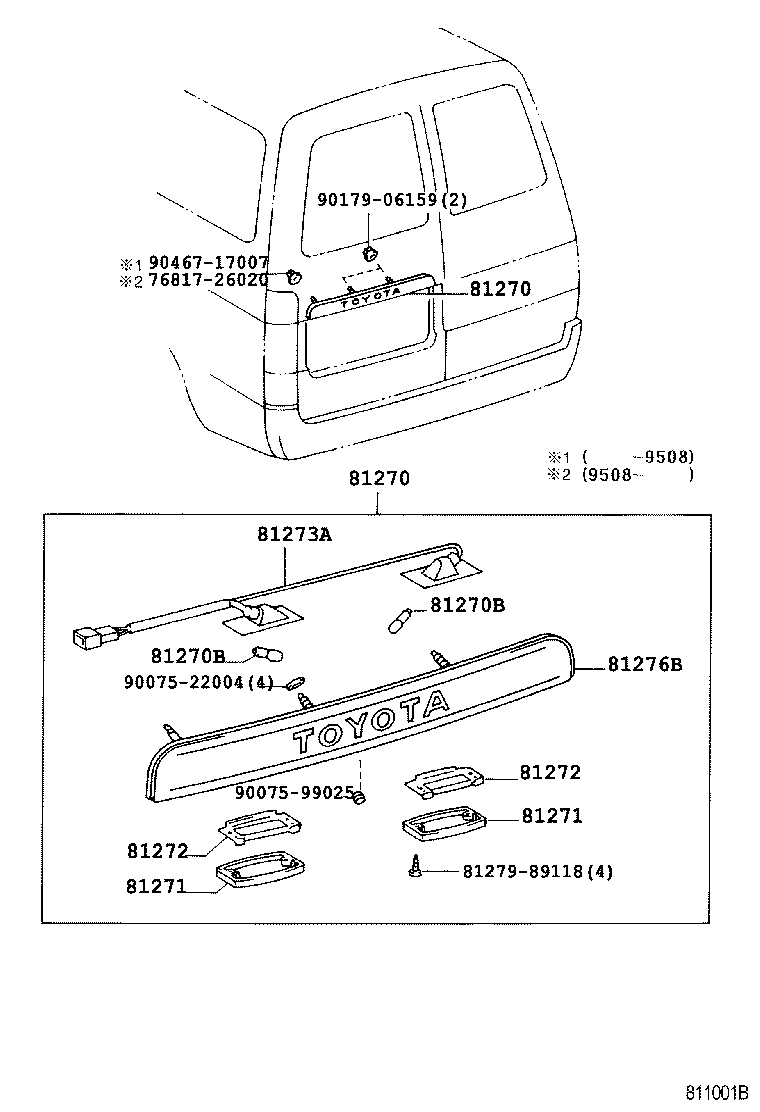

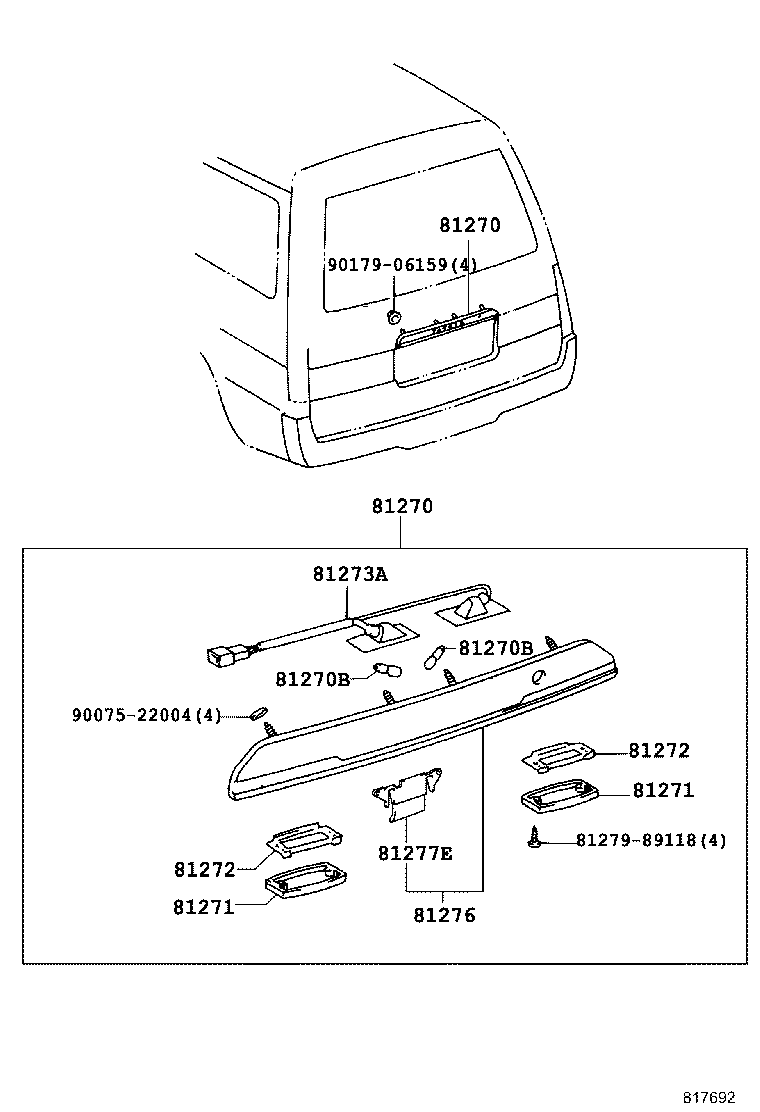

Rear License Plate Lamp
8 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81273A | Body, License Plate Lamp |
| 81276 | Rim, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
| 81277E | Handle, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
