Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

6 part groups · 5 illustrations

Illustrations

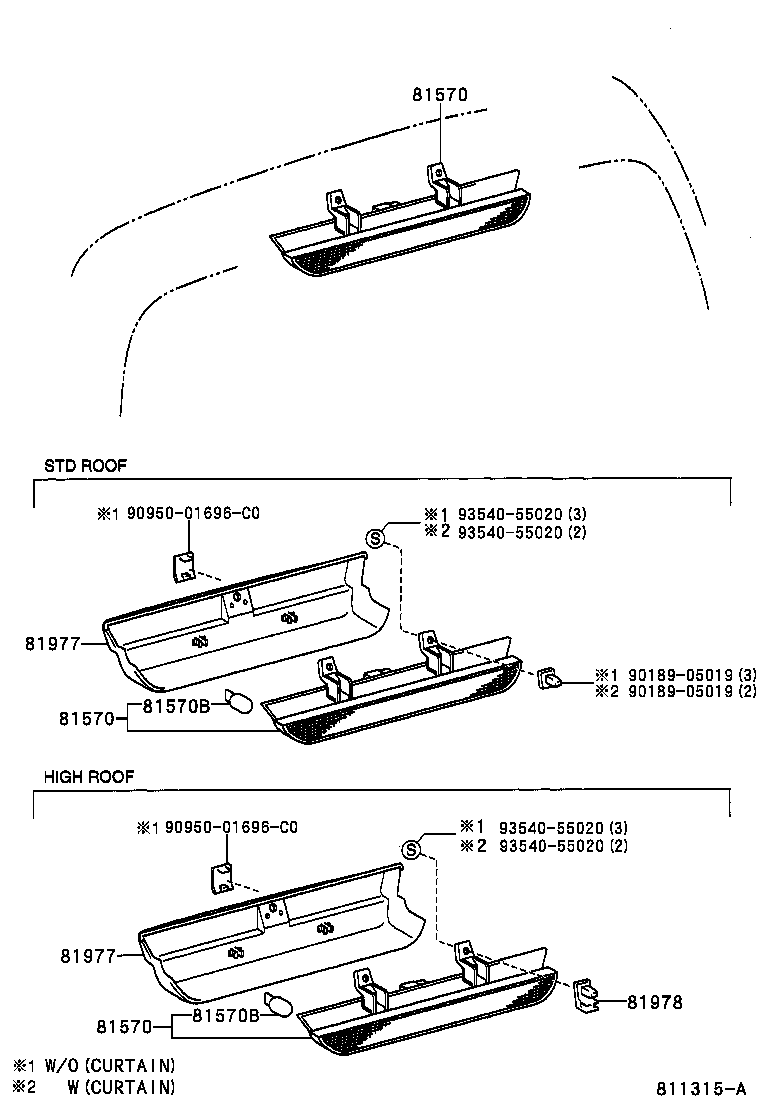

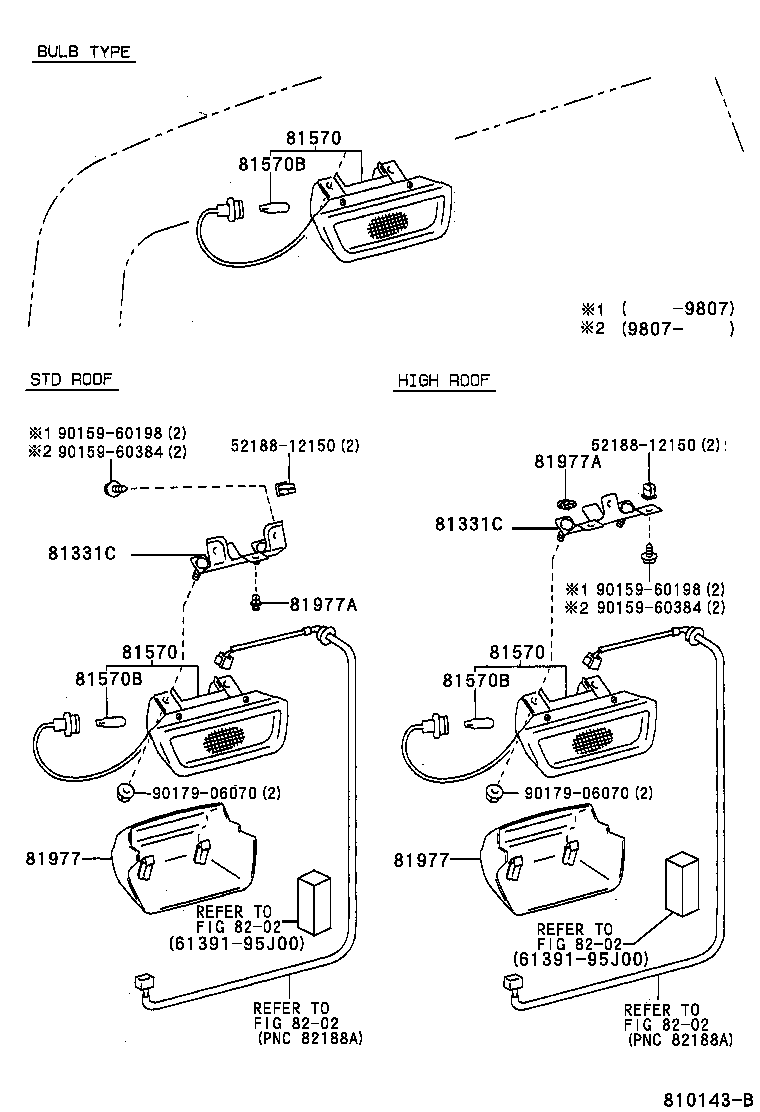

Figure 811003 811003 1992-05 → — Figure 810143B 810143B 1996-08 → — Figure 810224B 810224B 1996-11 → — Figure 811315A 811315A 1999-07 → — Figure 811316A 811316A 1999-07 → —

Part groups

PNCDescription
81331C Bracket, Center Stop Lamp Holder, NO.1
81570 Lamp Assy, Center Stop
81570B Bulb (FOR CENTER STOP LAMP)
81977 Cover, Center Stop Lamp
81977A Clip (FOR CENTER STOP LAMP)
81978 Bracket, Stop Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
