Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

151 part groups · 20 illustrations

Illustrations

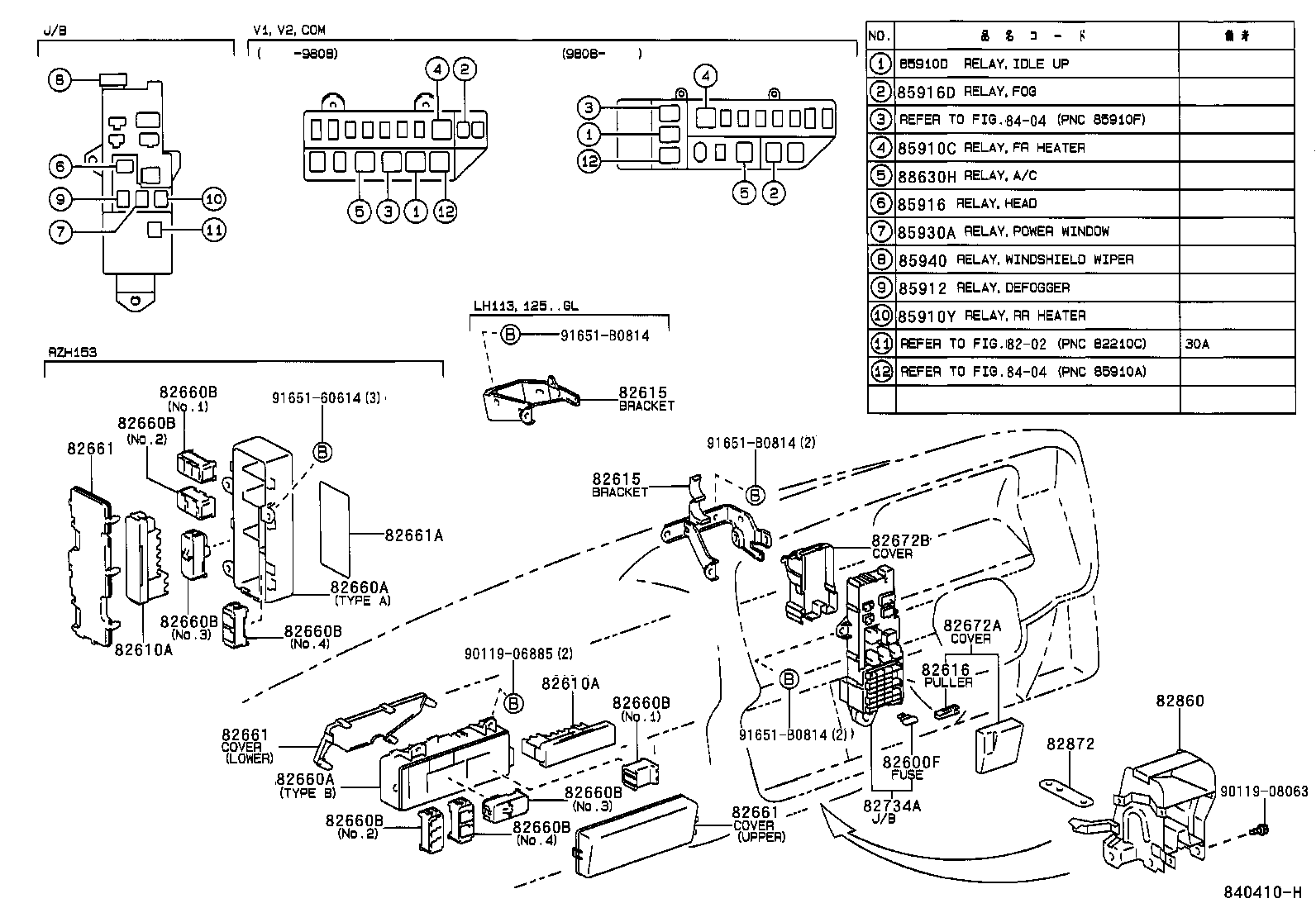

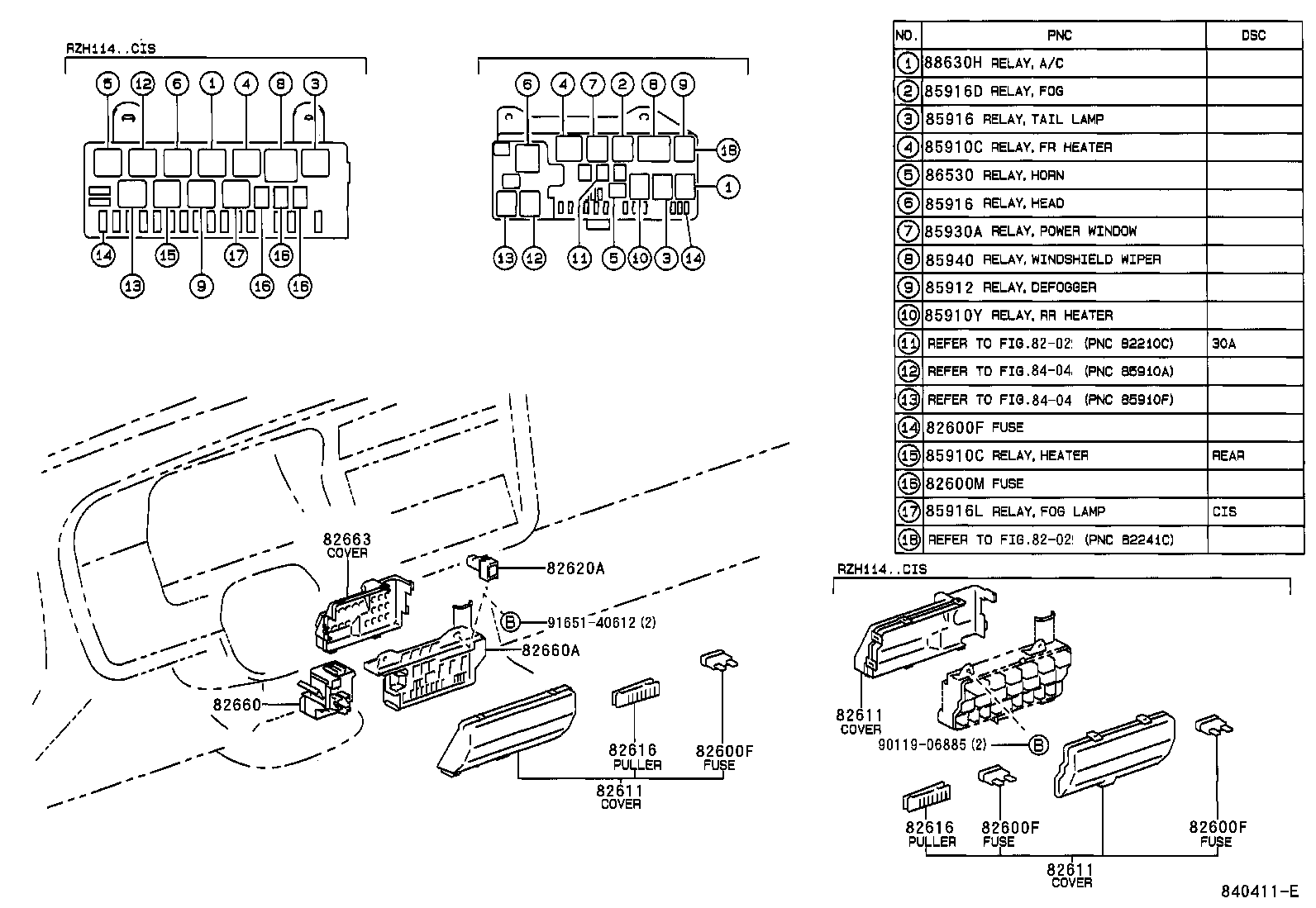

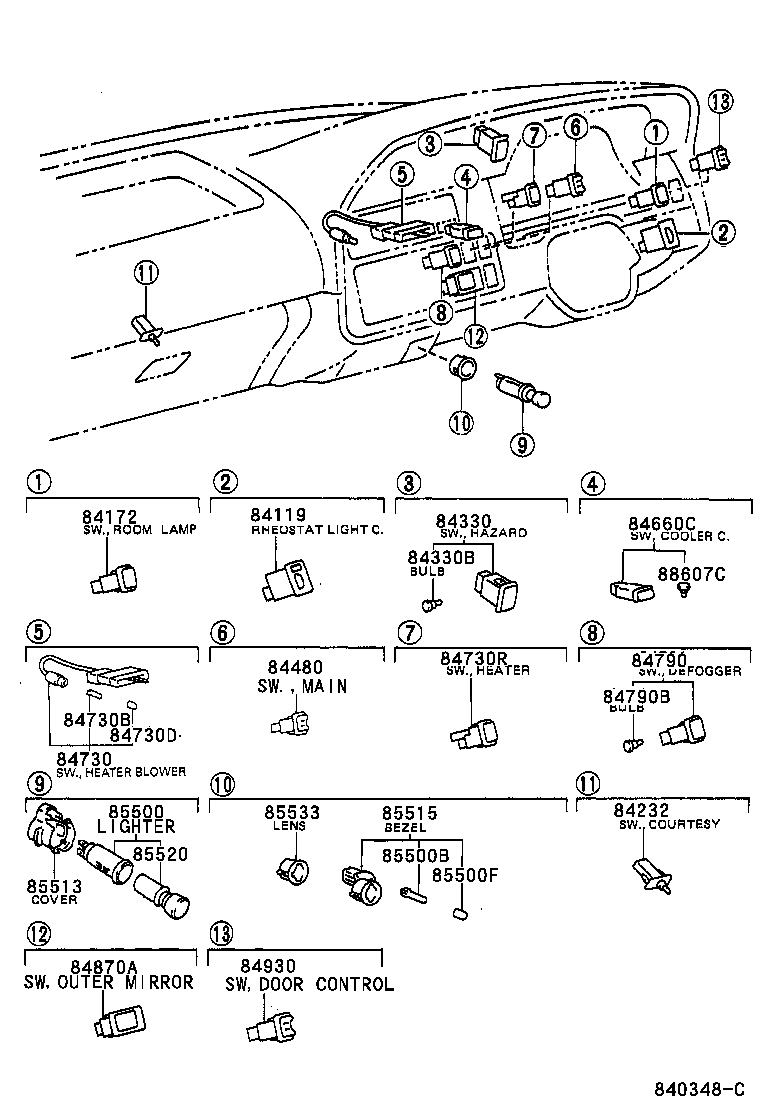

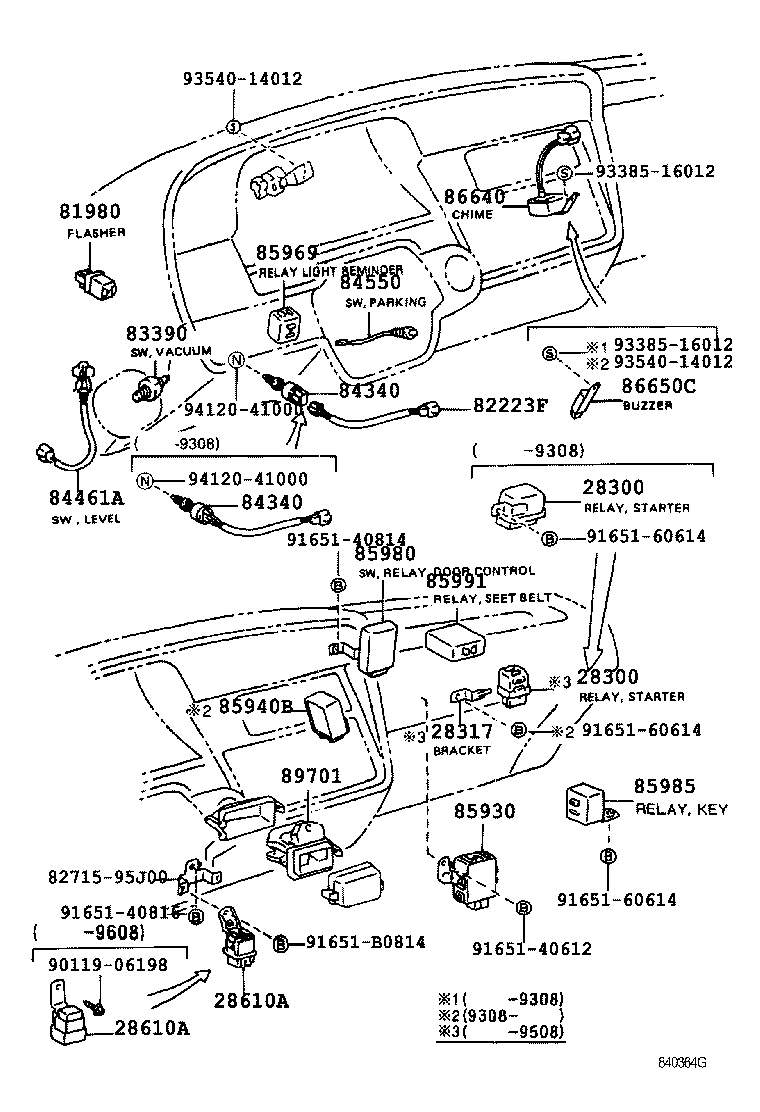

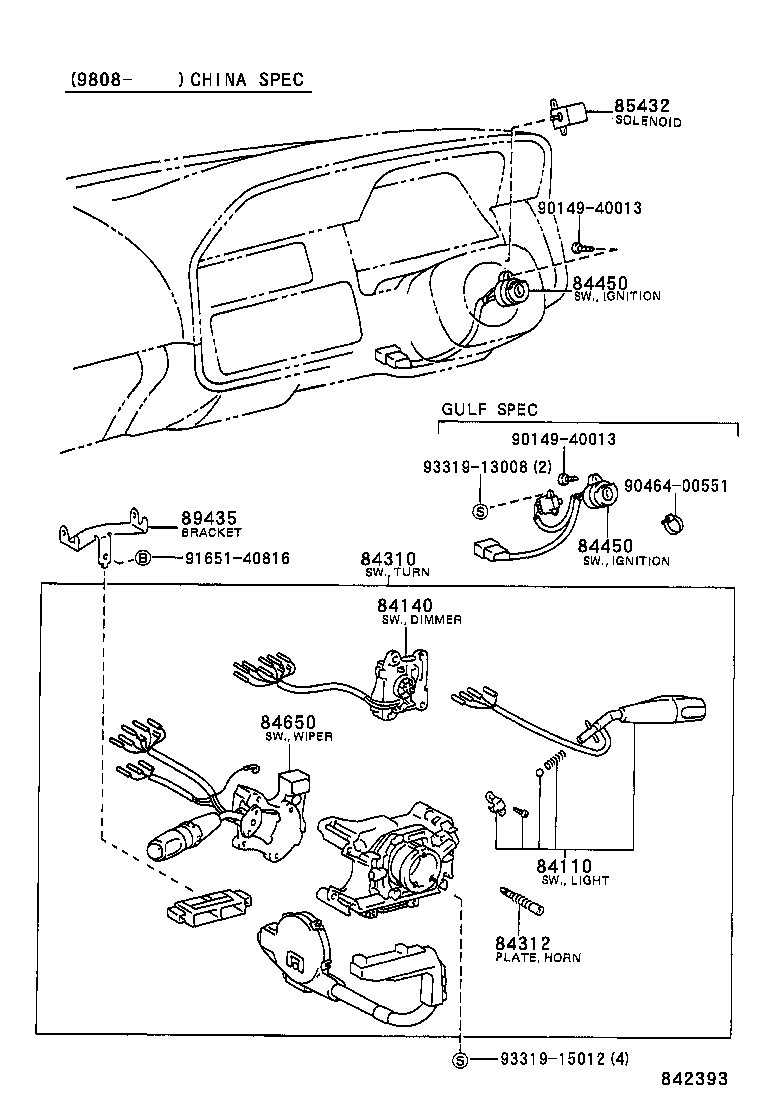

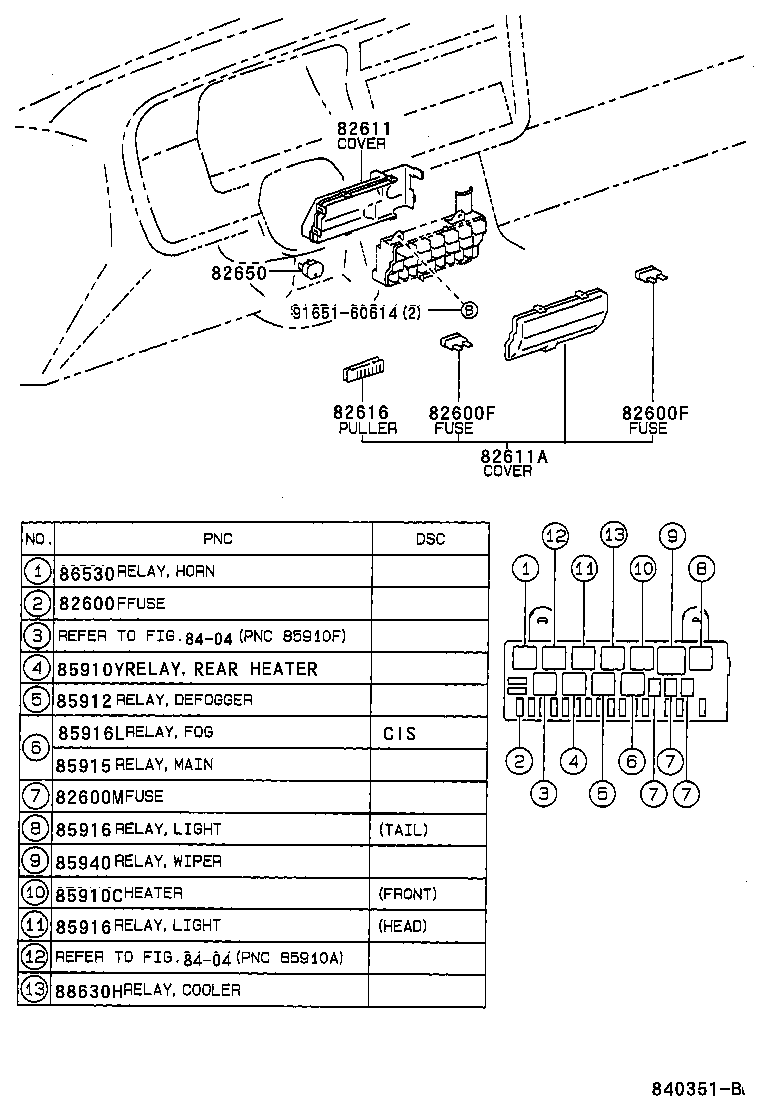

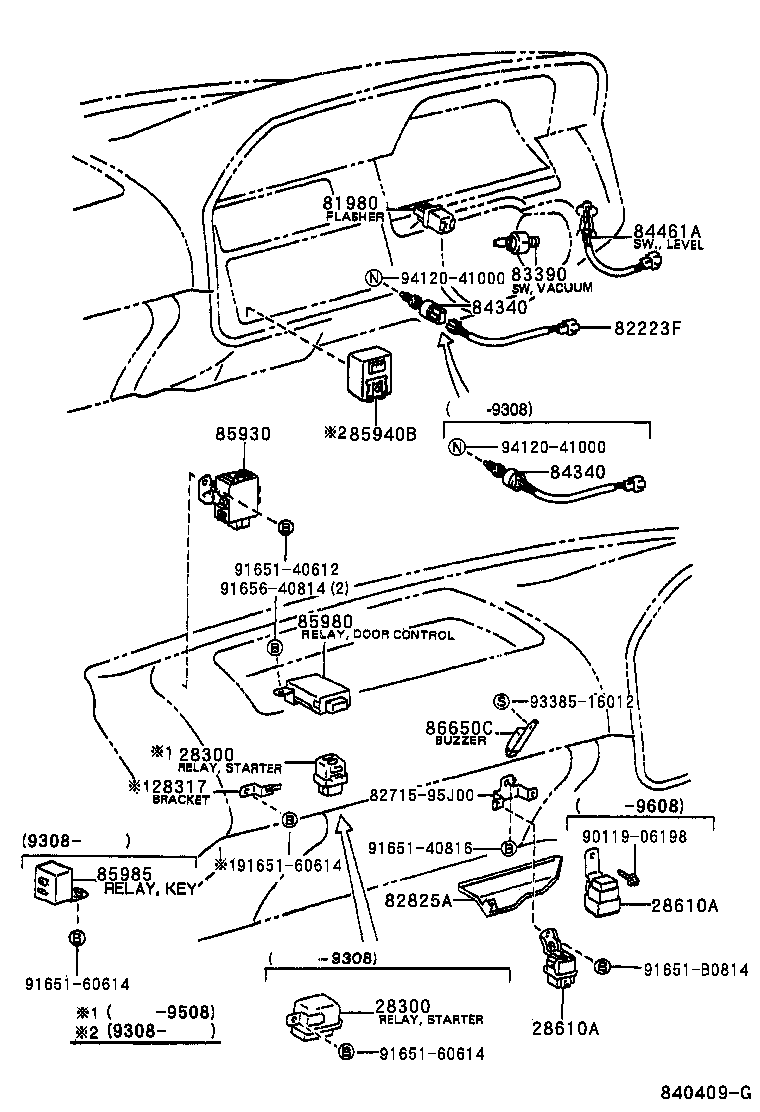

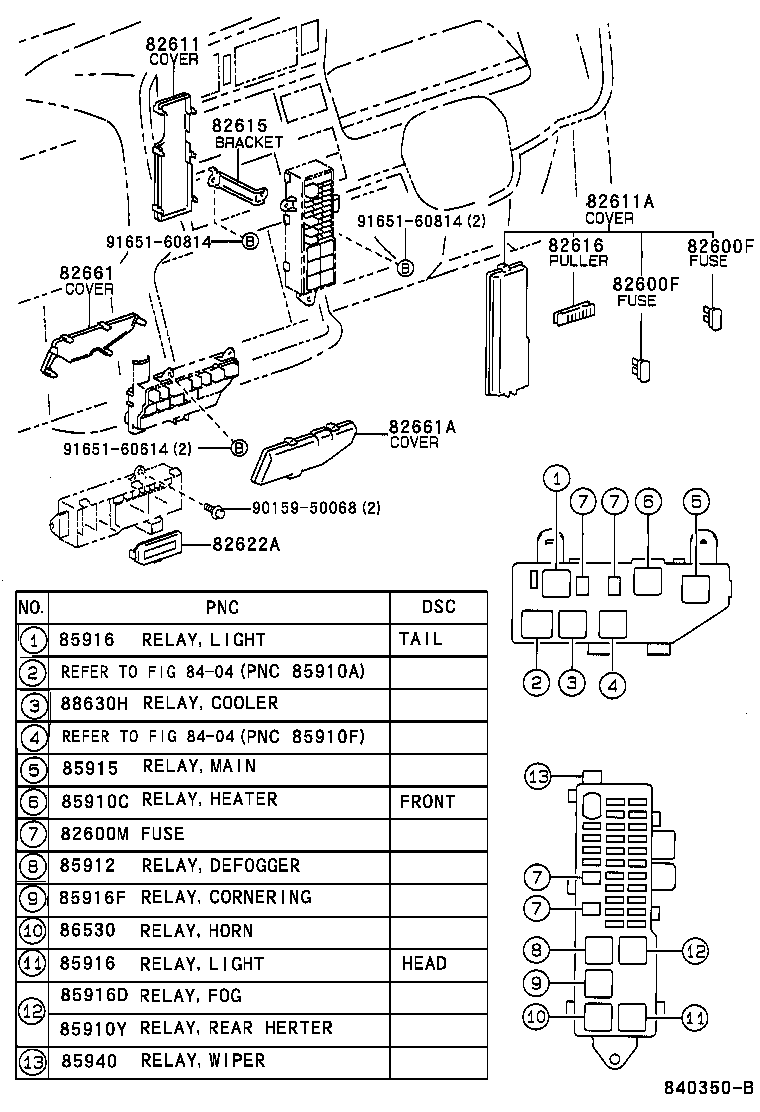

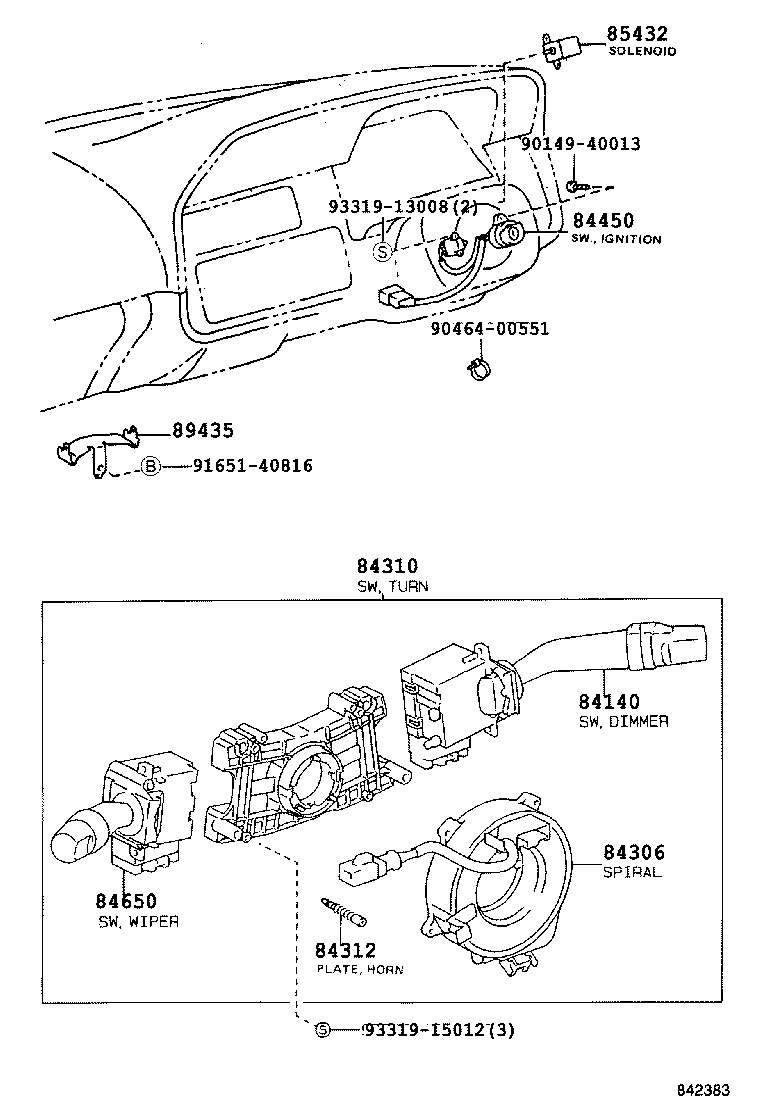

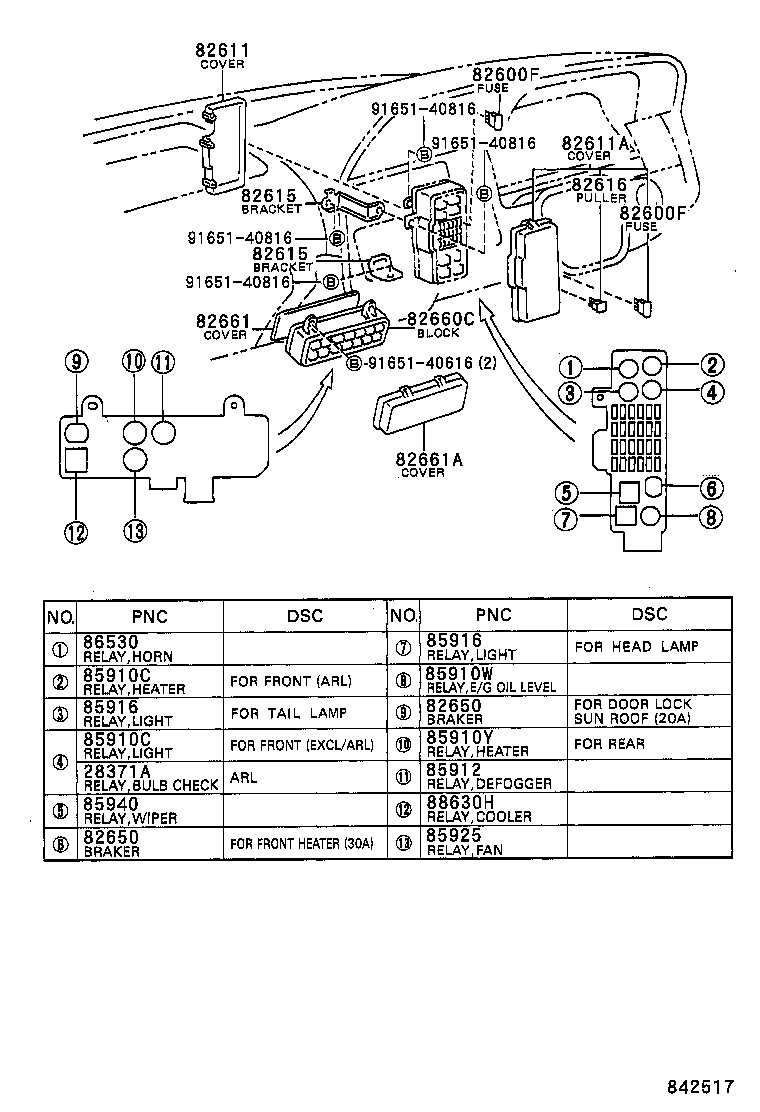

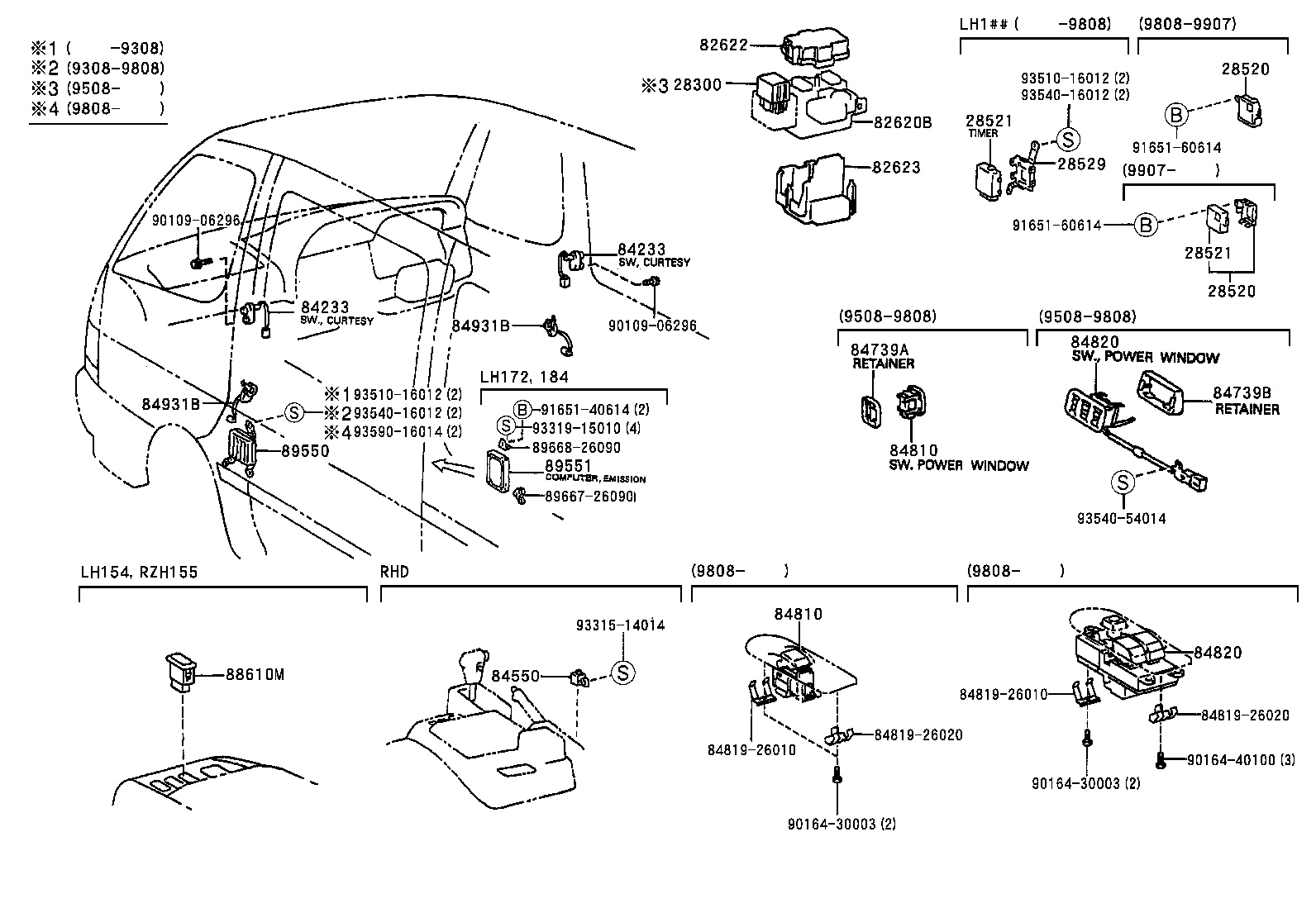

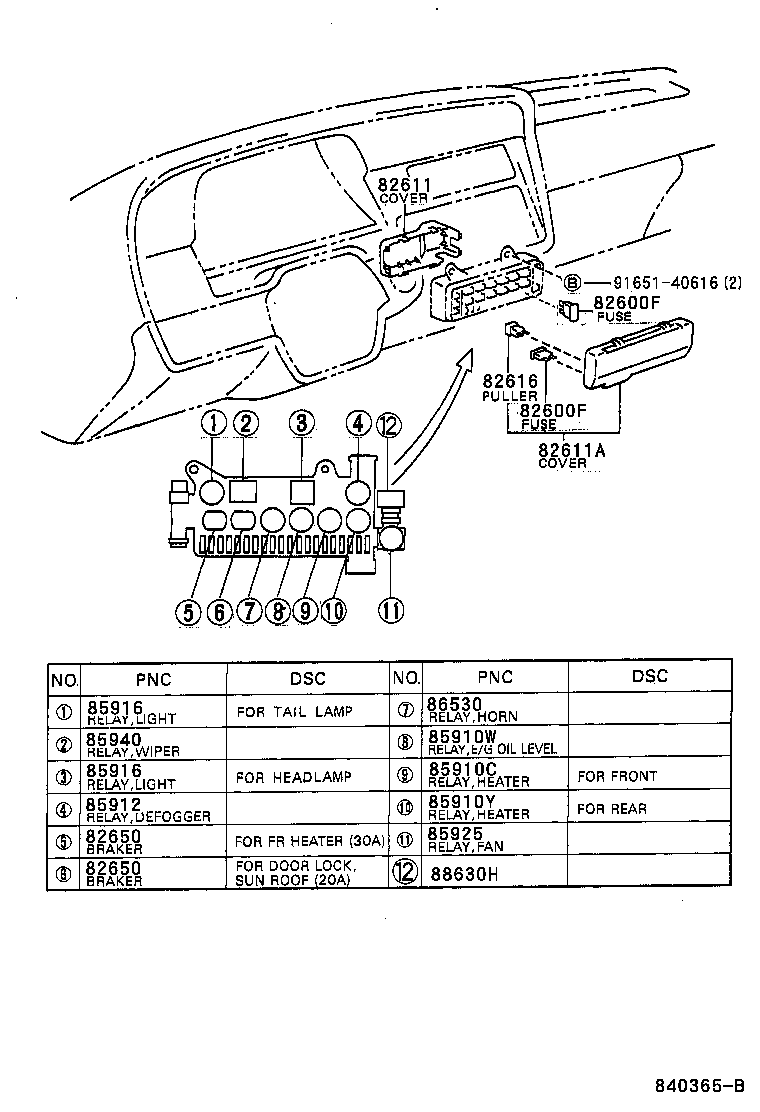

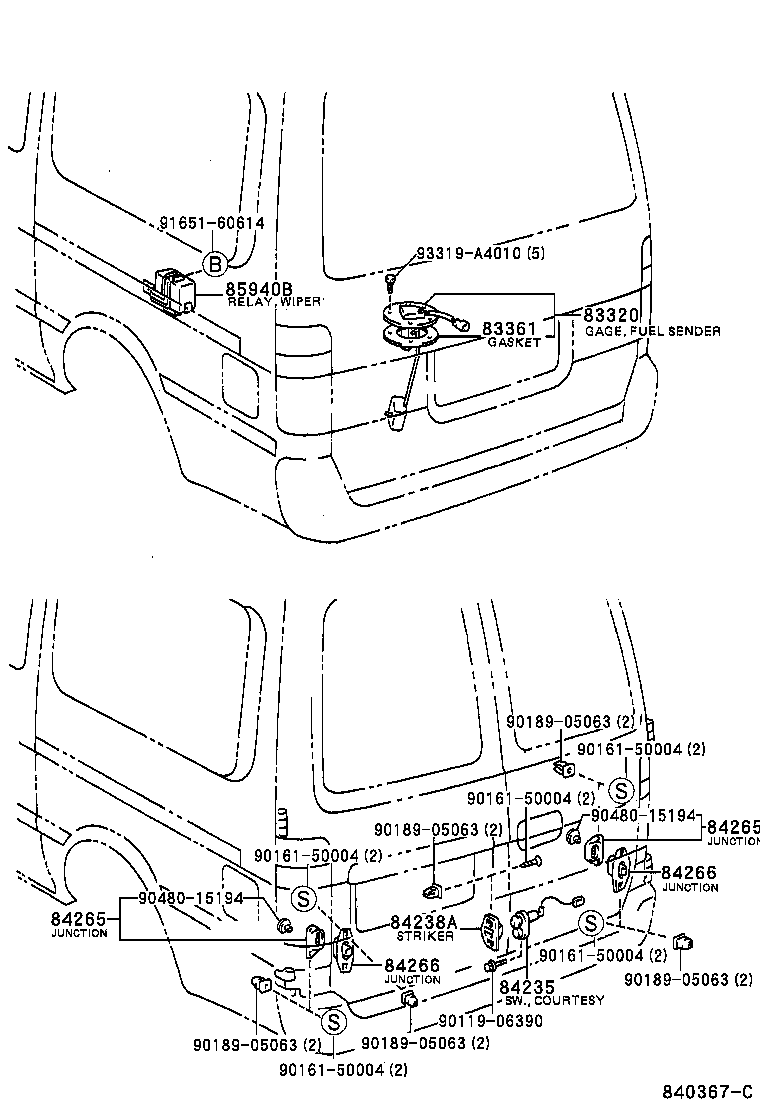

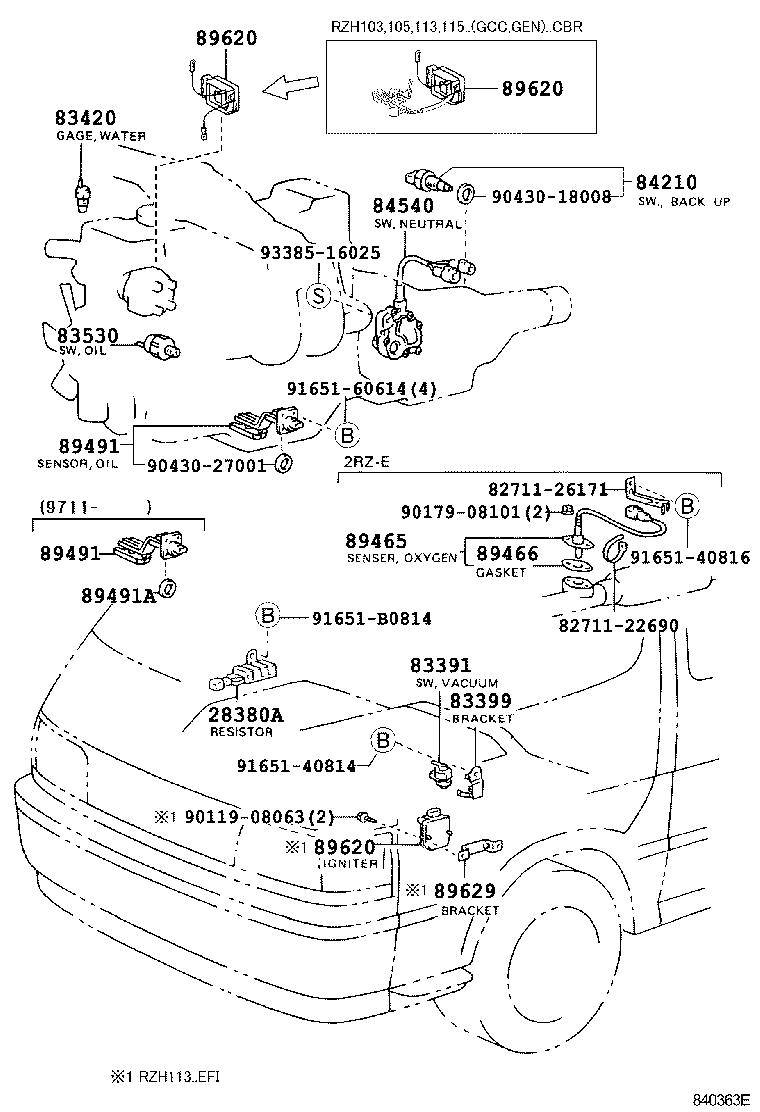

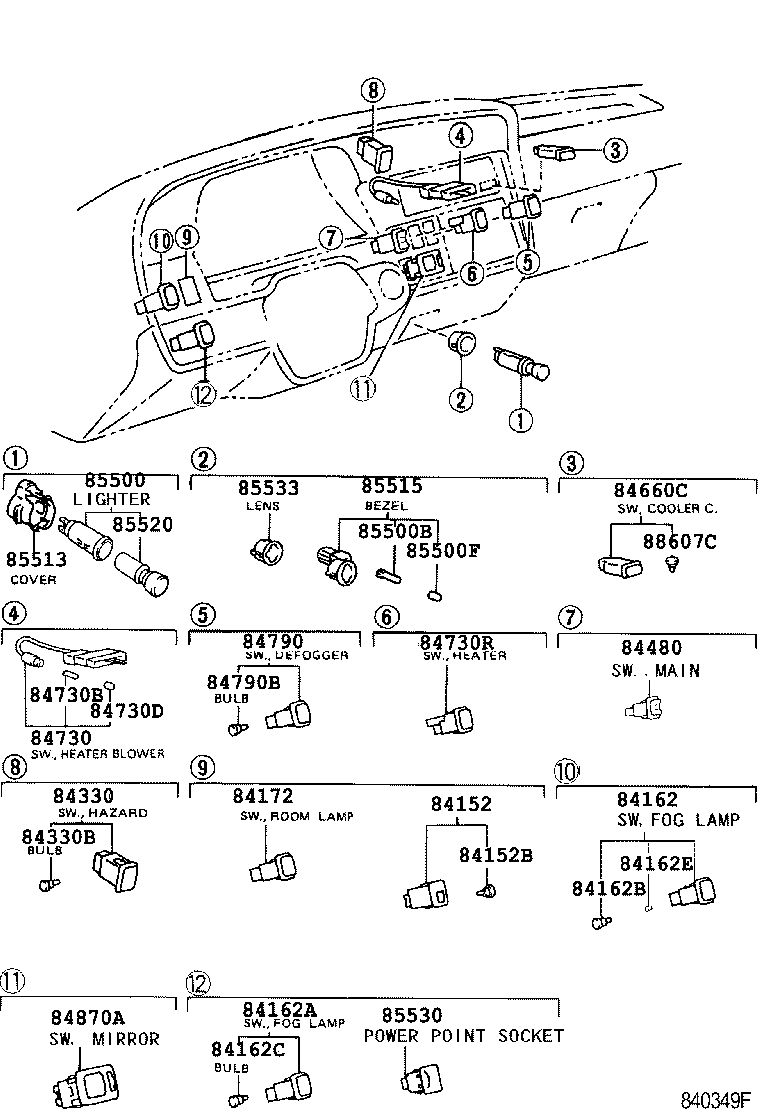

Figure 842278D 842278D 1989-08 → — Figure 840363E 840363E 1989-08 → — Figure 840348C 840348C 1989-08 → — Figure 840349F 840349F 1989-08 → — Figure 840409G 840409G 1989-08 → — Figure 840364I 840364I 1989-08 → — Figure 842517 842517 1989-08 → 1993-08 Figure 840350B 840350B 1993-08 → 1996-08 Figure 840410H 840410H 1996-08 → — Figure 840365B 840365B 1989-08 → 1993-08 Figure 840351B 840351B 1993-08 → 1996-08 Figure 840411E 840411E 1996-08 → — Figure 842393 842393 1989-08 → 1998-08 Figure 842393 842393 1998-08 → — Figure 842383 842383 1998-08 → — Figure 842767C 842767C 1989-08 → — Figure 840352E 840352E 1989-08 → — Figure 843769B 843769B 2000-08 → — Figure 840366E 840366E 1989-08 → — Figure 840367C 840367C 1989-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28371A Relay, Bulb Check
28380A Resister, Fuel Pump
28520 Timer Assy, Preheating
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28621 Resistor, Glow Plug
81980 Flasher Assy, Turn Signal
82223F Wire, Switch
82600F Fuse, Fuse Block
82600M Fuse, Medium Current
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82611A Cover, Fuse Block, NO.2
82615 Bracket, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82622 Cover, Fusible Link, Upper
82622A Cover, Fusible Link, Upper, NO.2
82623 Cover, Fusible Link, Lower
82650 Breaker Assy, Wiring Circuit, NO.1
82660 Block Assy, Relay, Engine Room
82660A Block Assy, Relay, Cowl Side
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82663 Cover, Relay Block, Lower
82672A Cover, Junction Block
82672B Cover, Junction Block
82734A Block, Center Junction
82825A Cover, Relay
82860 Bracket Assy, Computer Integration
82872 Guide, Computer Integration Bracket, NO.2
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84162E Cap, Fog Lamp Bulb
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84232 Switch Assy, Courtesy Lamp (FOR GLOVE BOX)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84238A Striker, Courtesy Lamp Switch
84261B Junction, Slide Door Control,Male
84261C Junction, Slide Door Control,Male NO.1
84262B Junction, Slide Door Control, Female
84262C Junction, Slide Door Control, Female, NO.1
84265 Junction, Back Door Male
84266 Junction, Back Door Female
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461A Switch, Brake Reservoir Level Warning
84480 Switch Assy, Main
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84730R Switch Assy, Heater Blower
84732A Switch, Rear Heater Blower
84739A Retainer, Switch
84739B Retainer, Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931A Switch, Automatic Door Control
84931B Switch, Door Control
85336 Switch Assy, Reserve Tank Level Warning
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910W Relay, Oil Level
85910Y Relay, Rear Heater
85912 Relay, Defogger
85915 Relay, Main
85916 Relay, Light Control
85916D Relay, Fog Lamp
85916F Relay, Cornering Lamp
85916L Relay, Rear Fog Lamp
85918A Relay, Door Control
85925 Relay, Radiator Fan
85930 Relay Assy, Power Window
85930A Relay Assy, Power Window, NO.1
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85959A Holder, Relay
85969 Relay, Light Reminder
85975 Relay, Slide Door Closer
85980 Relay Assy, Door Control
85985 Relay, Key Reminder
85991 Relay, Seat Belt Warning
86530 Relay Assy, Horn
86640 Chime Assy
86650C Buzzer Assy, Sedimenter Warning
88607C Lamp Sub-assy, Indicator
88610M Switch Assy, Cooler Control
88630H Relay Assy, Cooler
89420F Sensor Assy, Vacuum
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89435 Bracket, Connector Cover
89437 Cover, Sensor
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89701 Block Sub-assy, Abs Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
