Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

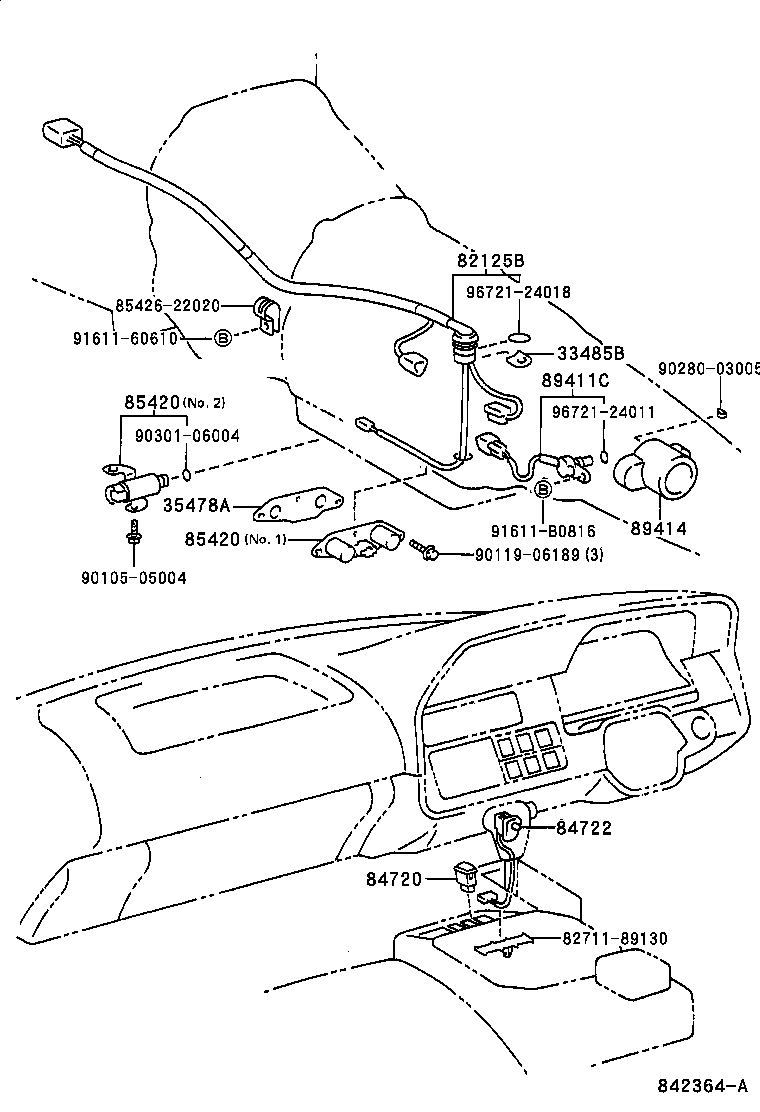

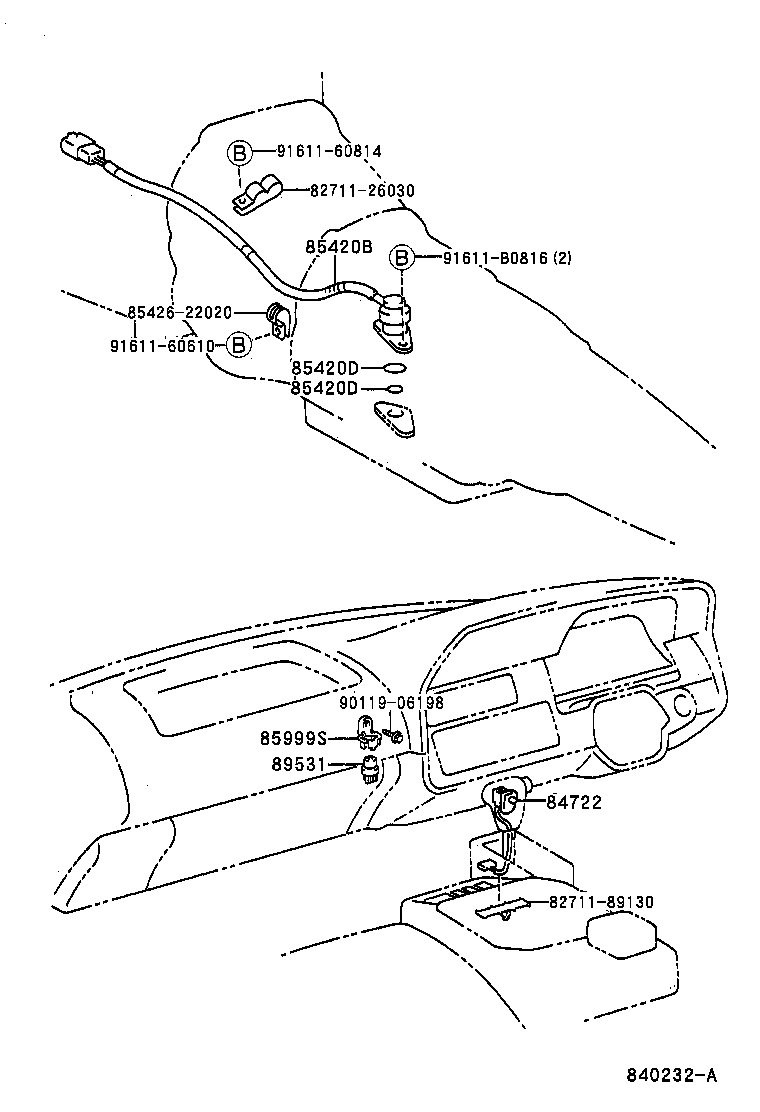

Overdrive & Electronic Controlled Transmission
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33485B | Plate, Transmission Wire |
| 35478A | Gasket, Shift Control Solenoid |
| 82125B | Wire, Transmission |
| 84220A | Switch Assy, Transmission Position Indicator |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85999S | Bracket, Relay |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89530A | Computer Assy, Transmission Control |
| 89531 | Relay, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
