Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10
Abs & Vsc
8 part groups · 2 illustrations
Part groups

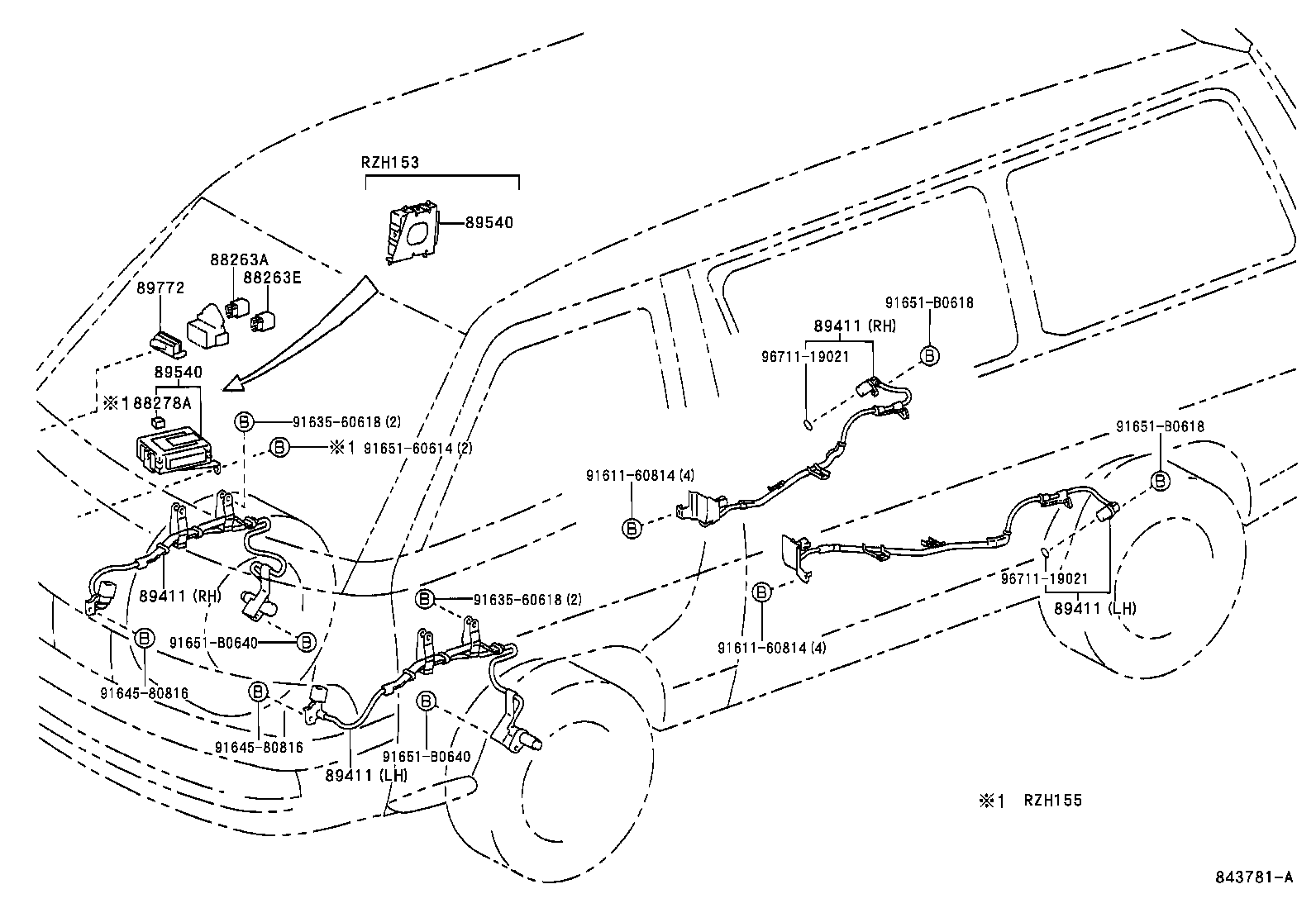

| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88278A | Cushion, Skid Control Computer |
| 89411 | Sensor, Speed |
| 89411A | Ring, O (FOR SPEED SENSOR) |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89772 | Cover, Abs Relay Block, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
