Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

17 part groups · 2 illustrations

Illustrations

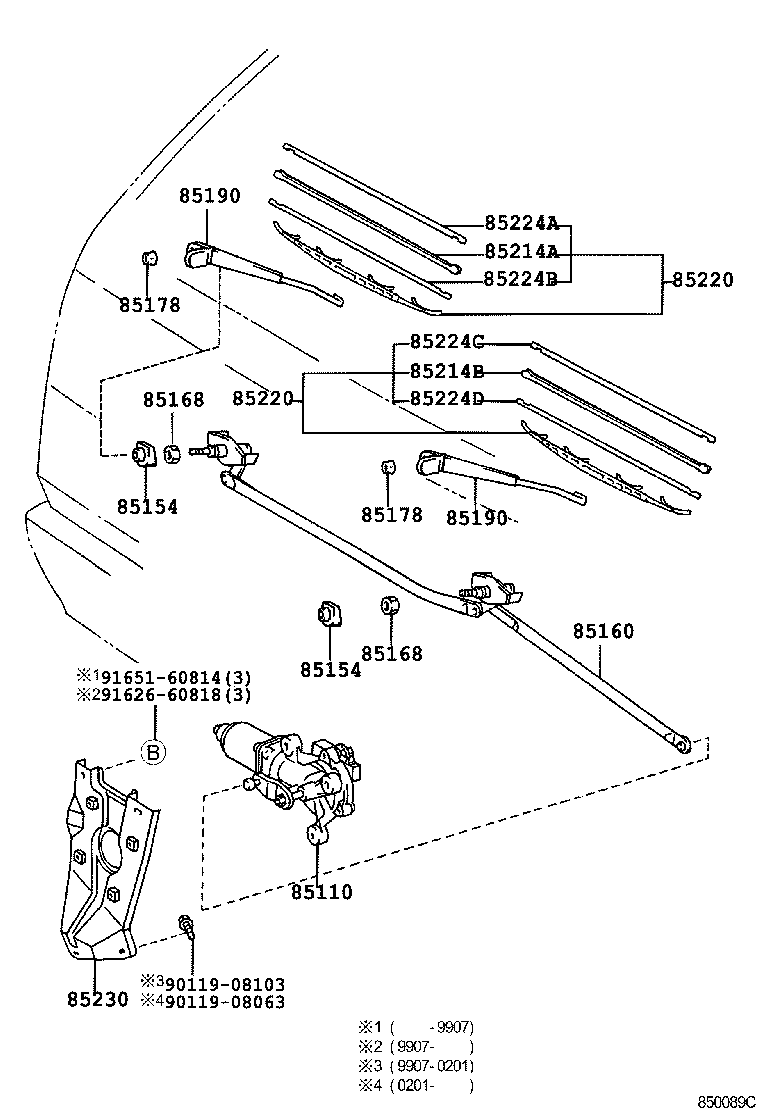

Figure MEN569A MEN569A 1989-08 → 1996-08 Figure 850089C 850089C 1996-08 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85154 Packing, Front Wiper Shaft
85160 Link Assy, Windshield Wiper
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
85230 Bracket Assy, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
