Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

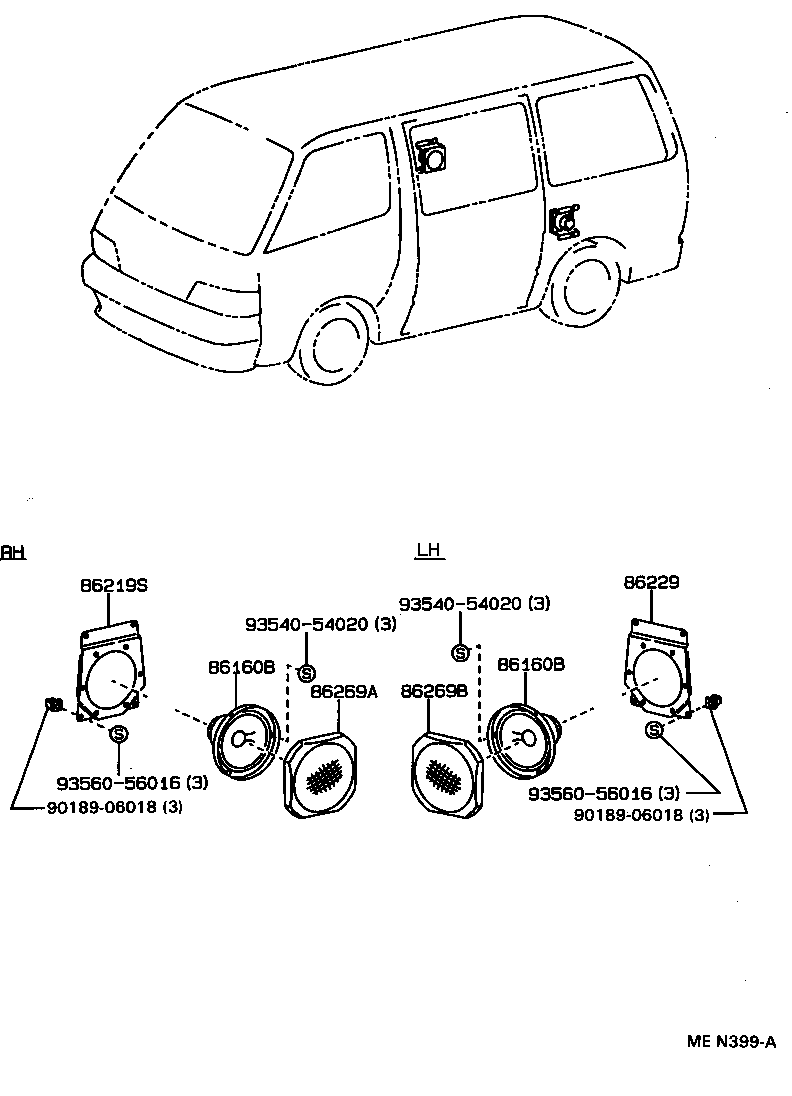

Speaker
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86161 | Bracket, Speaker, Front NO.1 |
| 86161D | Bracket, Speaker Mounting, NO.1 |
| 86163 | Bracket, Speaker, NO.2 |
| 86219S | Bracket, Stereo Speaker, RH |
| 86229 | Bracket, Stereo Speaker, LH |
| 86269A | Grille, Speaker |
| 86269B | Grille, Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
