Heating & Air Conditioning - Control & Air Duct

45 part groups · 14 illustrations

Illustrations

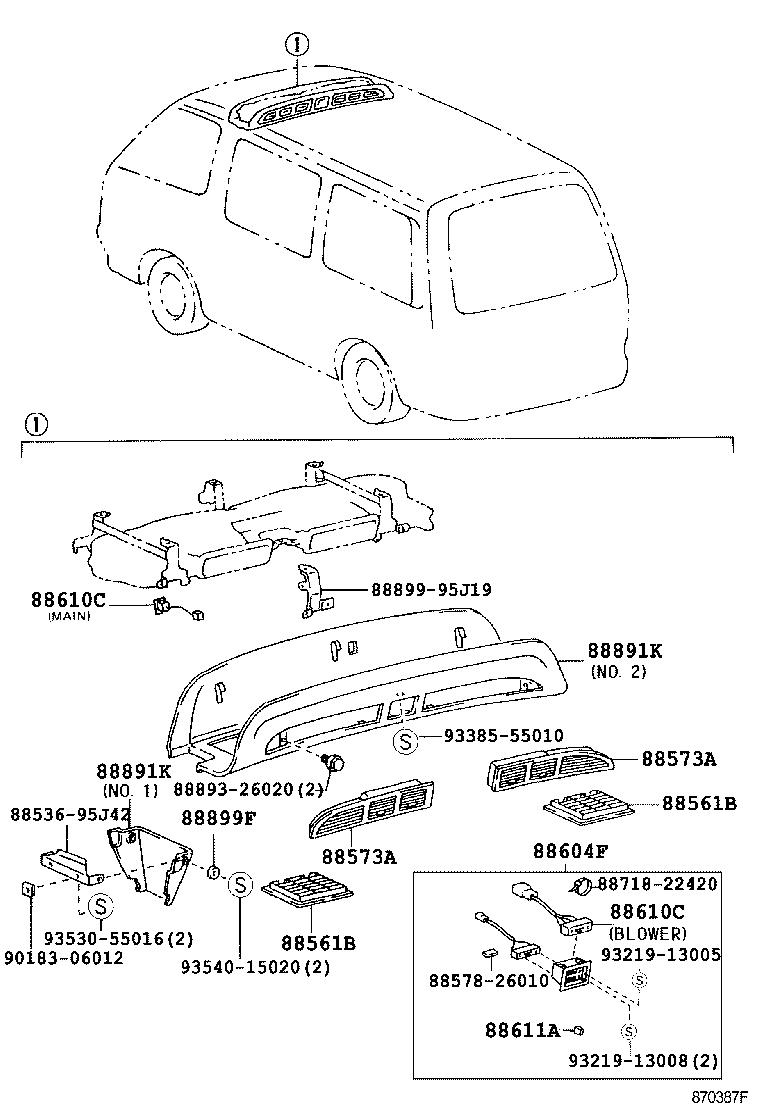

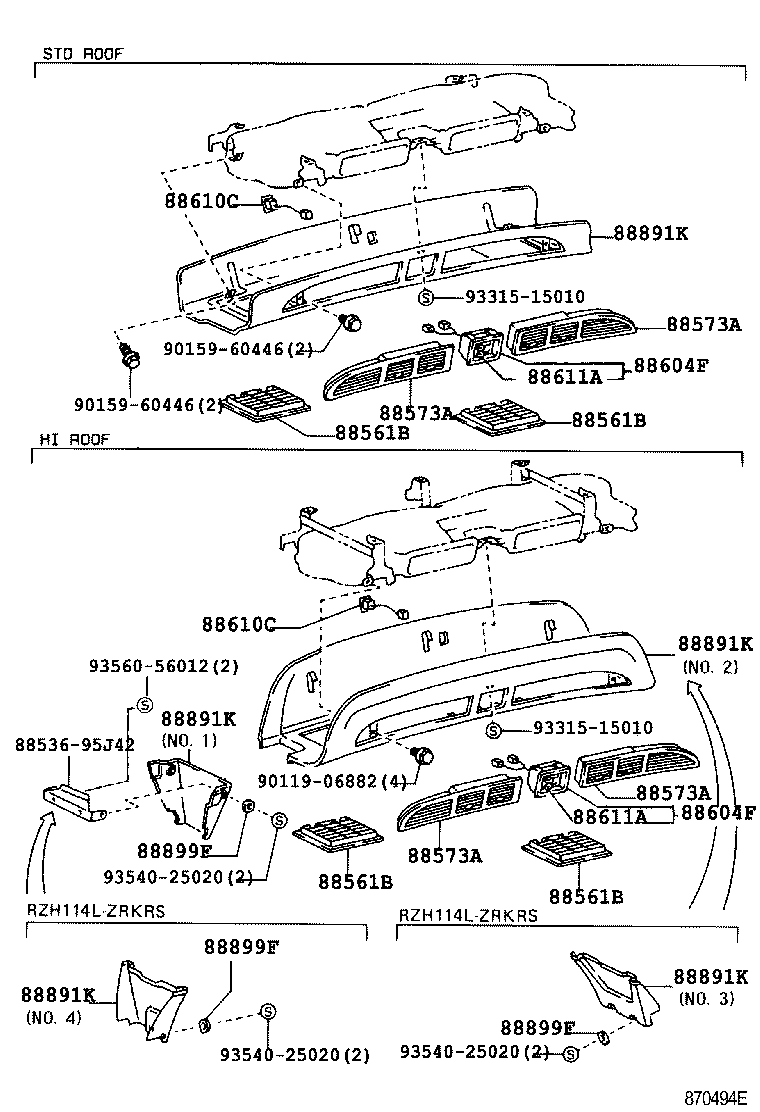

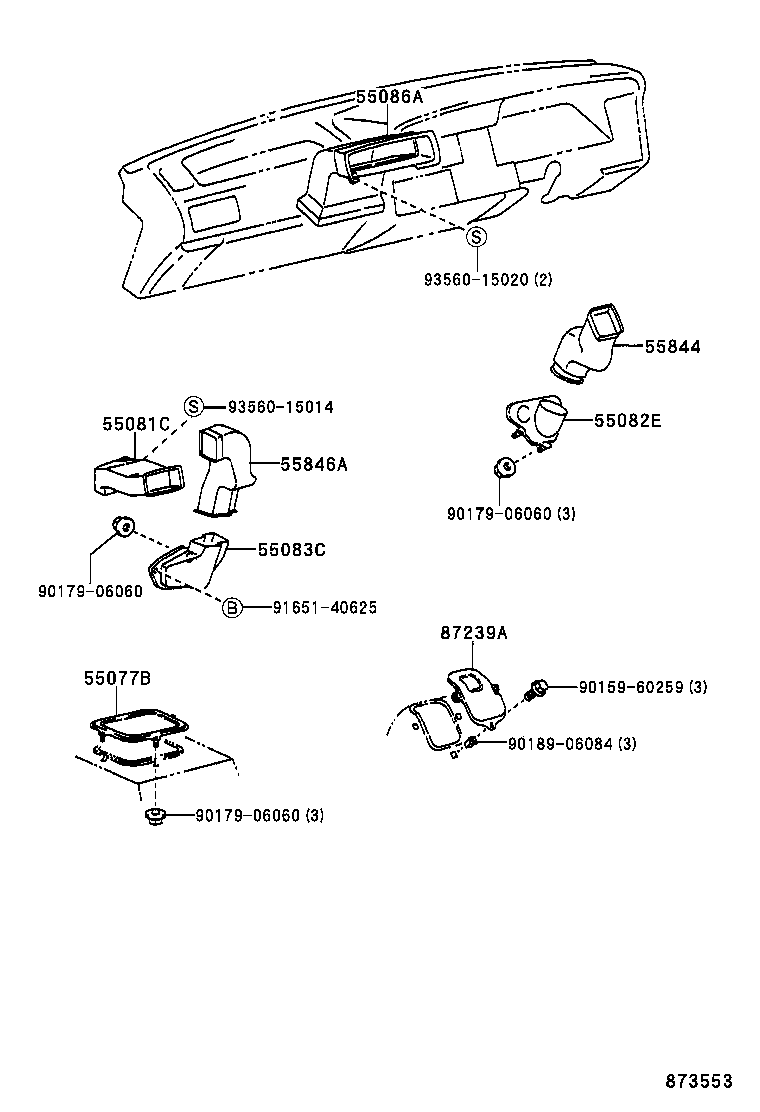

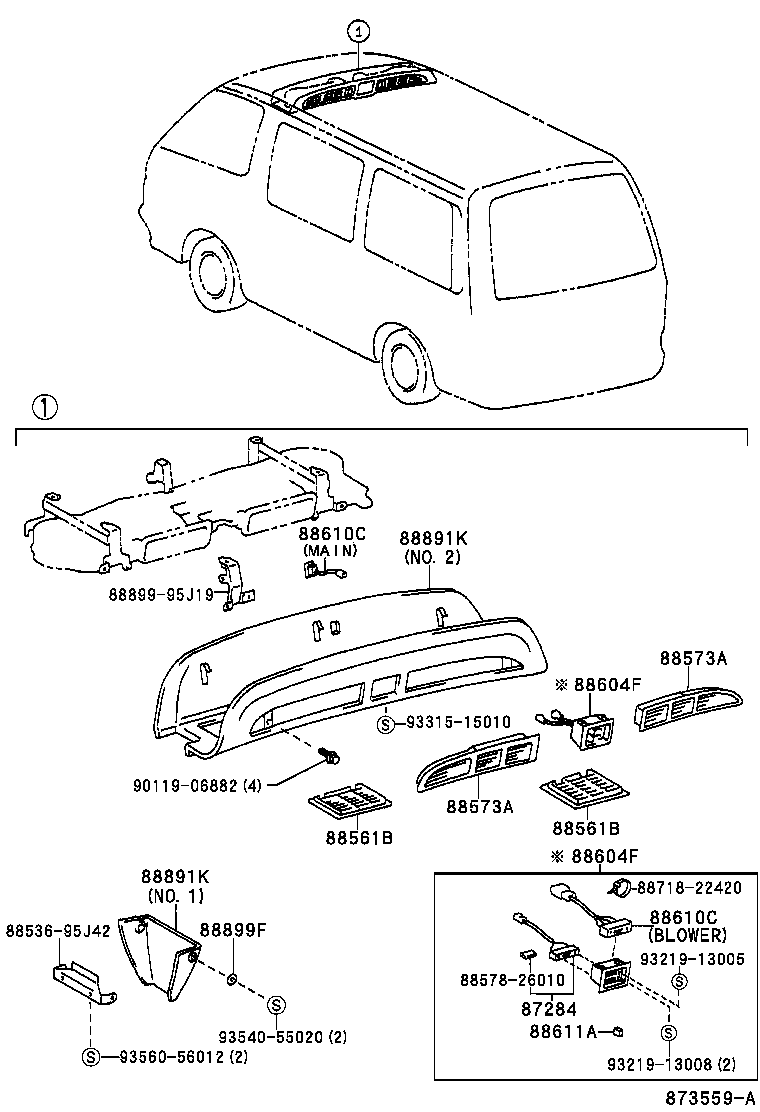

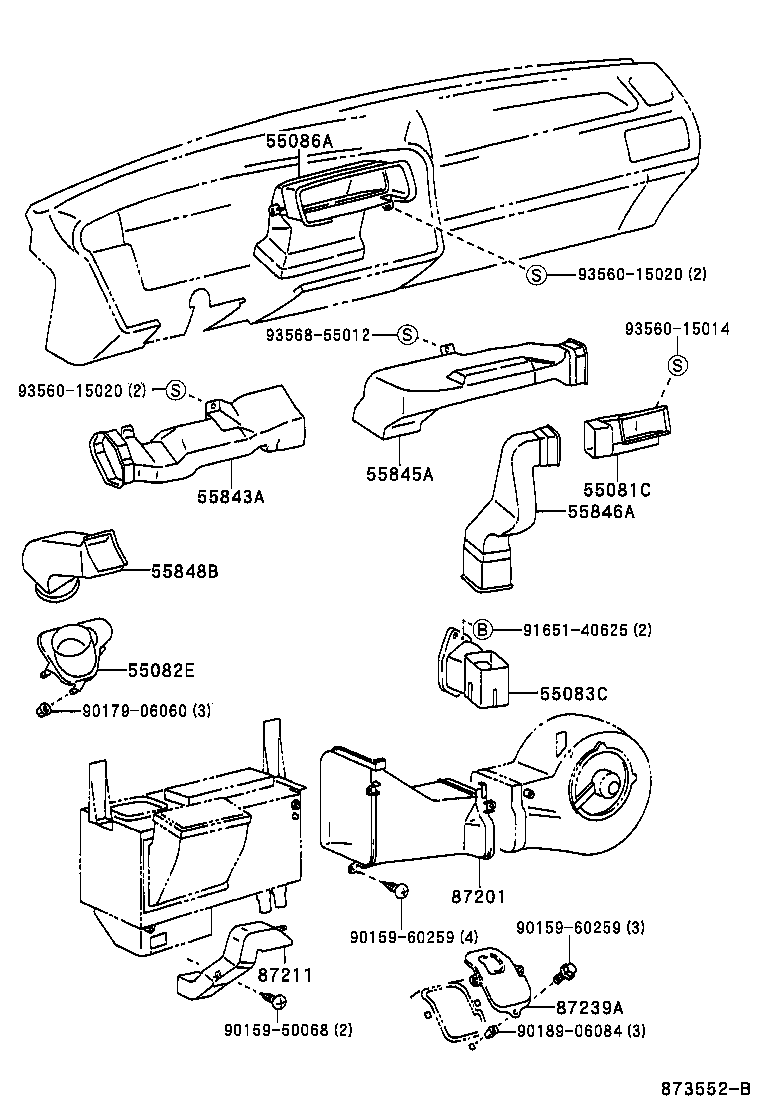

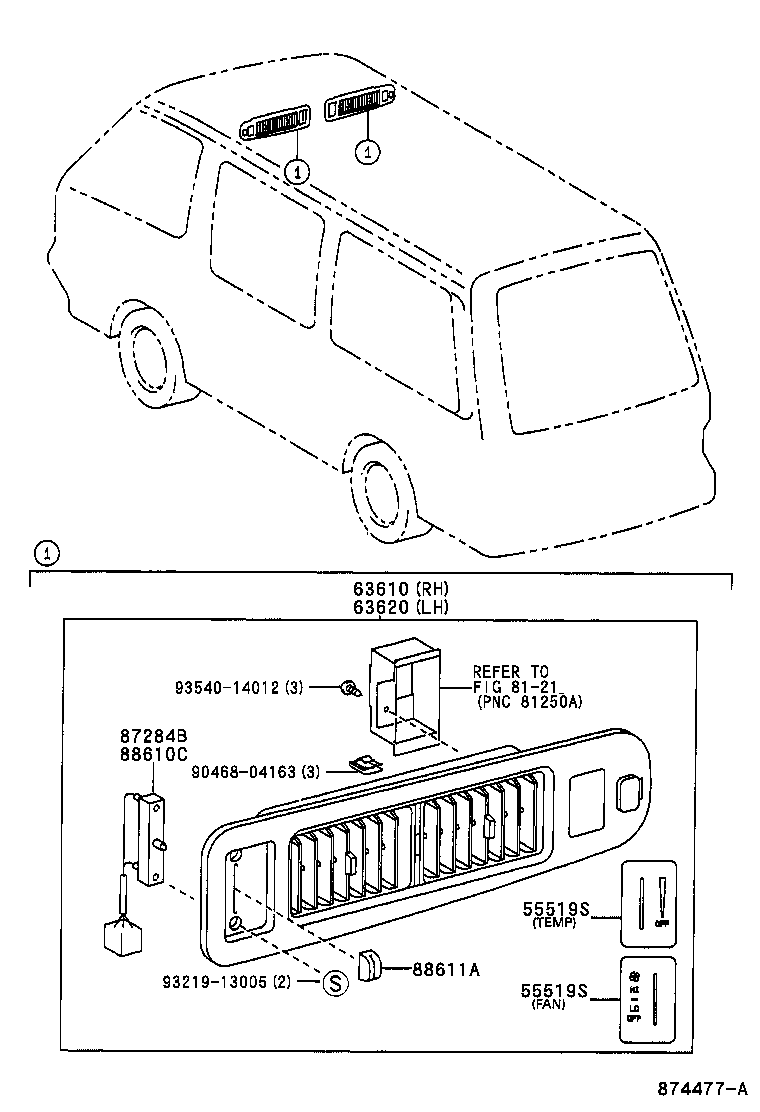

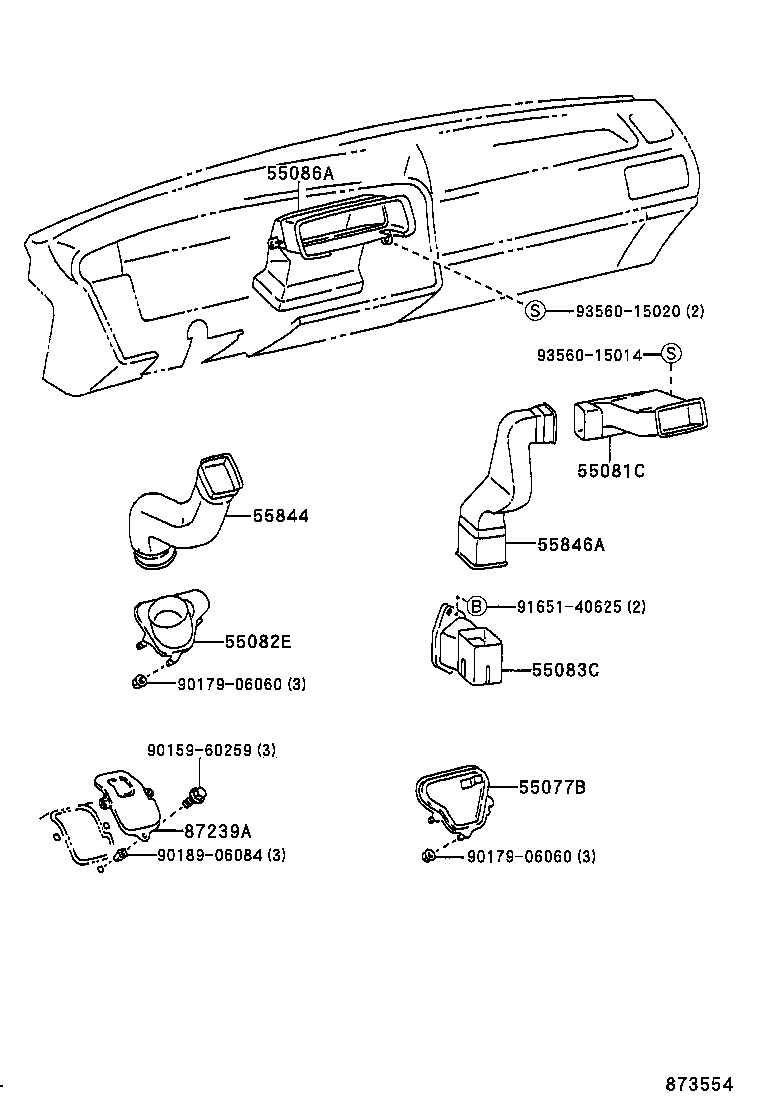

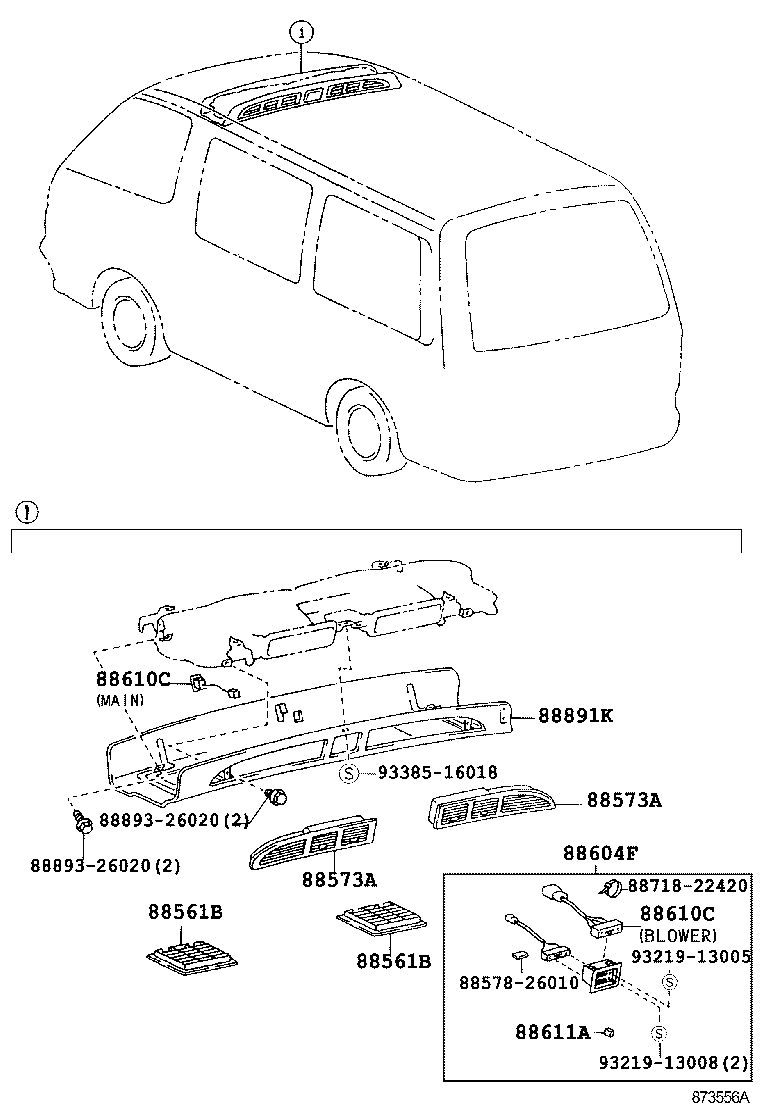

Figure 873550B 873550B 1989-08 → — Figure 870498B 870498B 1989-08 → — Figure 874478 874478 2000-08 → — Figure 873551B 873551B 1989-08 → — Figure 873552B 873552B 1989-08 → — Figure 873553 873553 1989-08 → — Figure 873554 873554 1989-08 → — Figure 873555B 873555B 1994-05 → — Figure 873556A 873556A 1989-08 → — Figure 873556A 873556A 1989-08 → — Figure 870387F 870387F 1989-08 → — Figure 870494E 870494E 1989-08 → — Figure 873559A 873559A 1999-07 → — Figure 874477B 874477B 2000-08 → —

Part groups

PNCDescription
55077B Cover Sub-assy, Heater Air Duct Hole
55081C Duct Sub-assy, Cowl TO Register, NO.1
55082E Duct Sub-assy, Cowl TO Register, NO.2
55083C Duct Sub-assy, Front Ventilator
55086A Duct Sub-assy, Heater TO Register, Center
55519R Plate, Heater Control Name
55519S Label, Rear Cooler Control Information
55538A Cover, Cooler Switch Hole

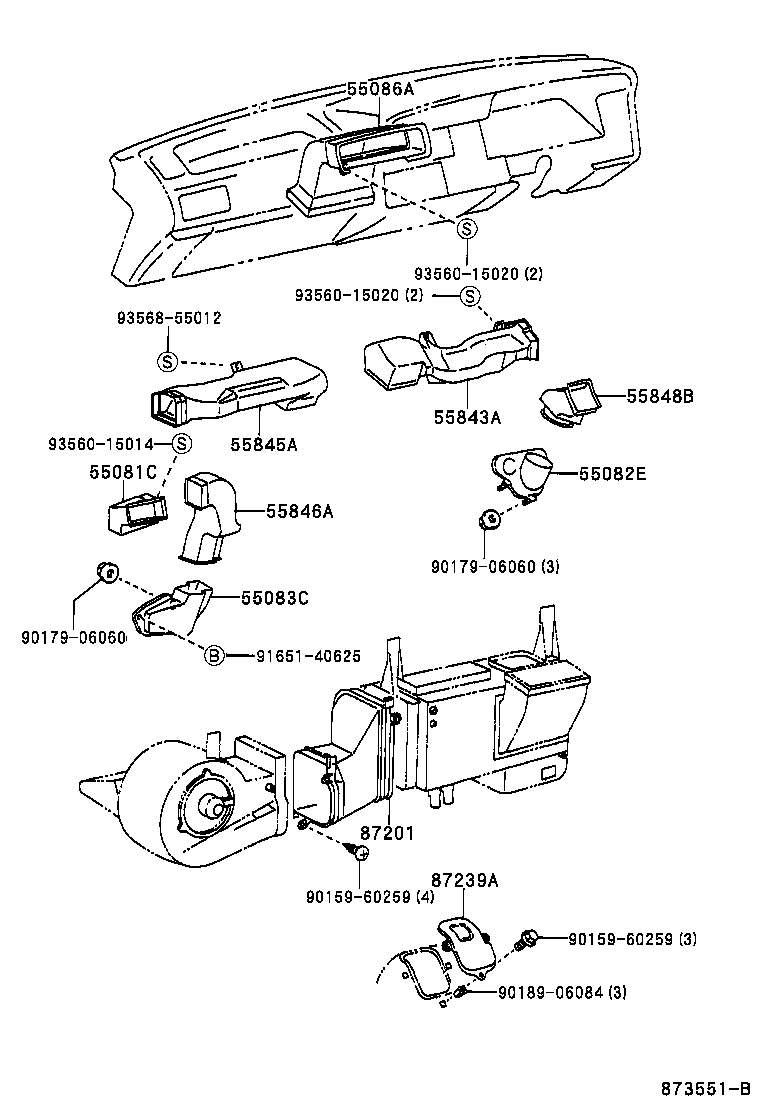

55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55848B Duct, Heater TO Register, NO.6
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907R Cable Sub-assy, Temperature Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
55910D Plug, Hole(FOR HEATER CONTROL CABLE HOLE)

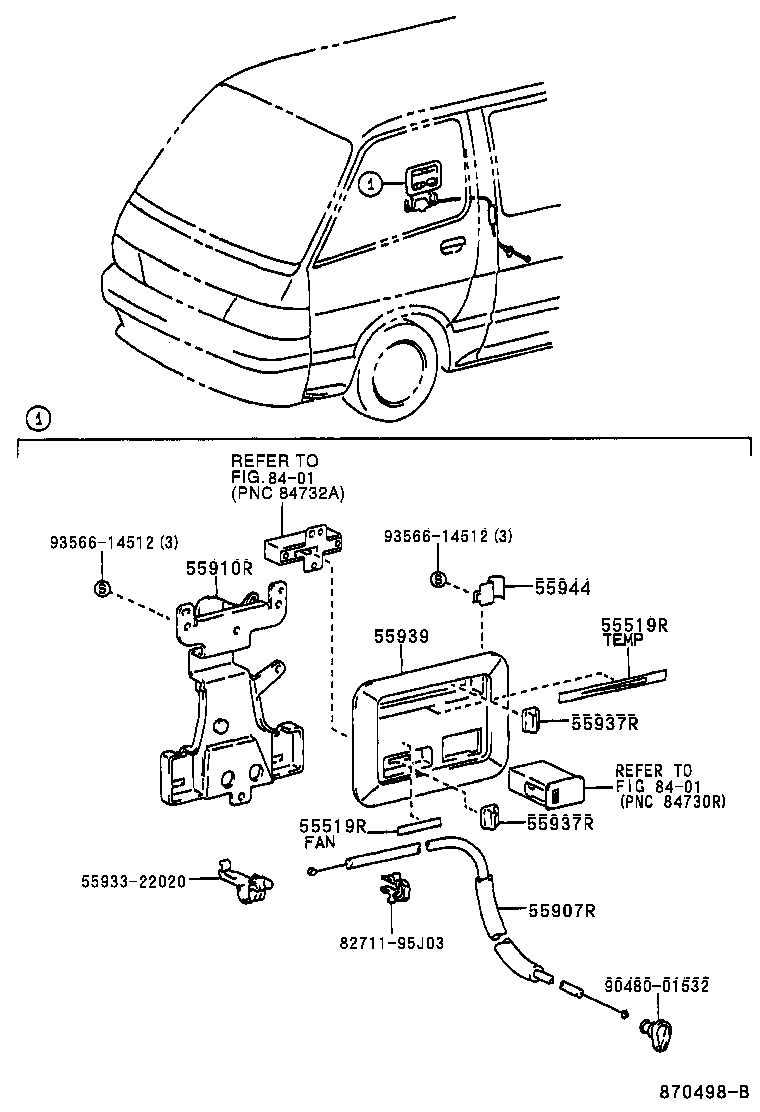

55910R Control Assy, Heater
55922 Bracket, Heater Control Base
55937R Knob, Heater Control Lever
55939 Ornament, Heater Control
55944 Plate, Heater Control Support
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87239A Cover, Heater Inlet Hole
87284 Resistor Sub-assy, Variable
87284B Resister Set, Air Conditioner Variable
88561B Grille, Cooler Air Inlet
88571B Grille, Air Outlet
88573A Base, Grille
88604F Panel Sub-assy, Cooler Control
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88891K Cover, Cooler
88899F Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
