Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

11 part groups · 13 illustrations

Illustrations

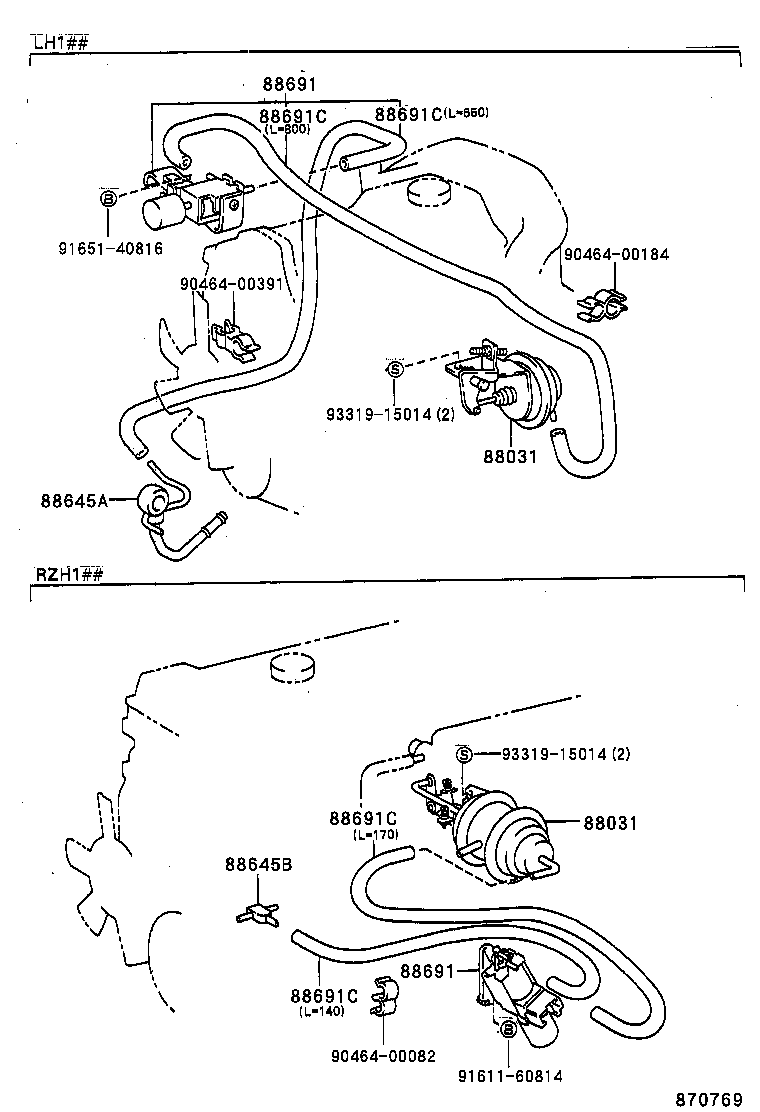

Figure 870343A 870343A 1989-08 → — Figure 870343A 870343A 1989-08 → — Figure 870343A 870343A 1989-08 → — Figure 870769 870769 1989-08 → — Figure 870769 870769 1989-08 → — Figure 870769 870769 1989-08 → — Figure 870344B 870344B 1994-05 → — Figure 873526A 873526A 1998-08 → — Figure 873526A 873526A 1998-08 → — Figure 873526A 873526A 1998-08 → — Figure 873526A 873526A 1998-08 → — Figure 873526A 873526A 2000-08 → 2002-08 Figure 876299A 876299A 2002-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645M Joint, Vacuum
88688P Bracket (FOR MAGNET VALVE)
88689 Hose, Damper Control Diaphragm Vacuum
88689A Hose, Cooler Vacuum NO.1
88689B Hose, Cooler Vacuum NO.2
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
