Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

46 part groups · 54 illustrations

Illustrations

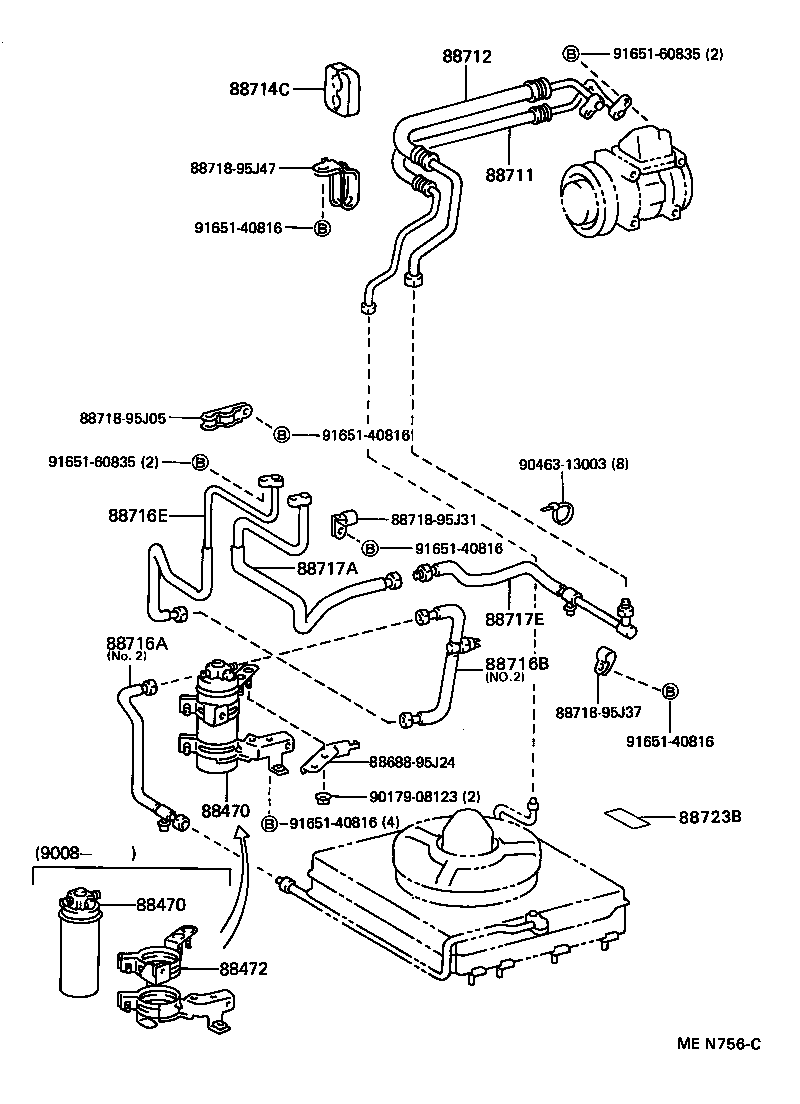

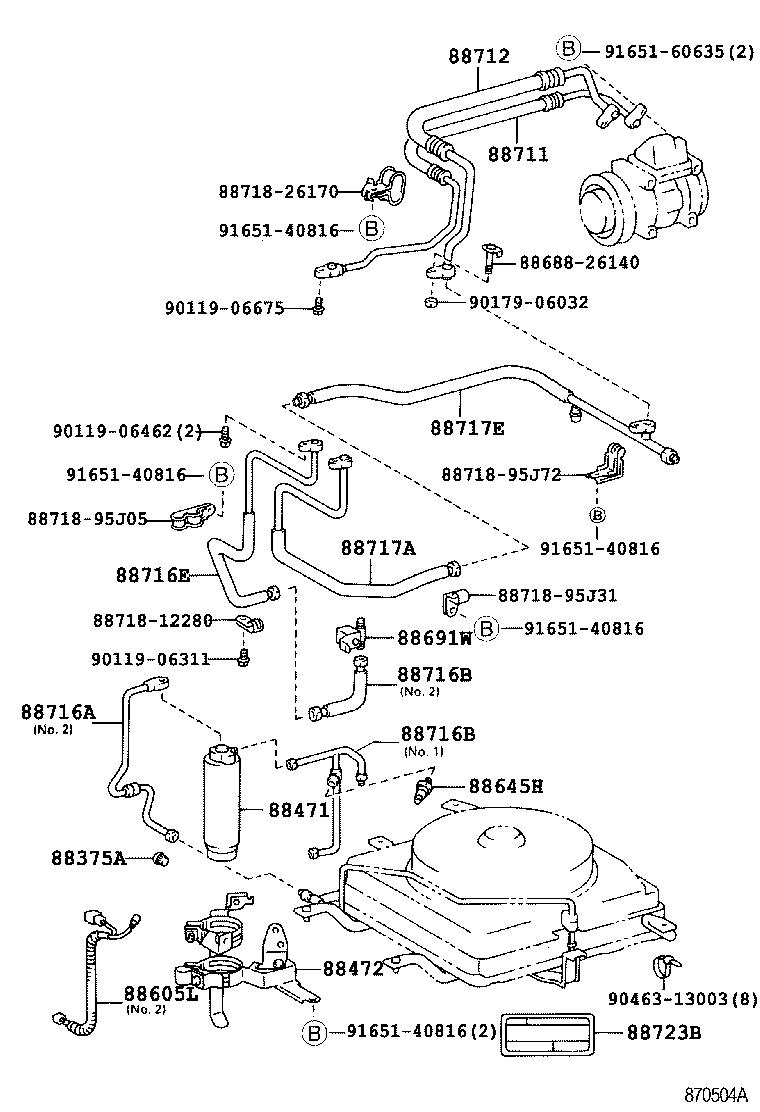

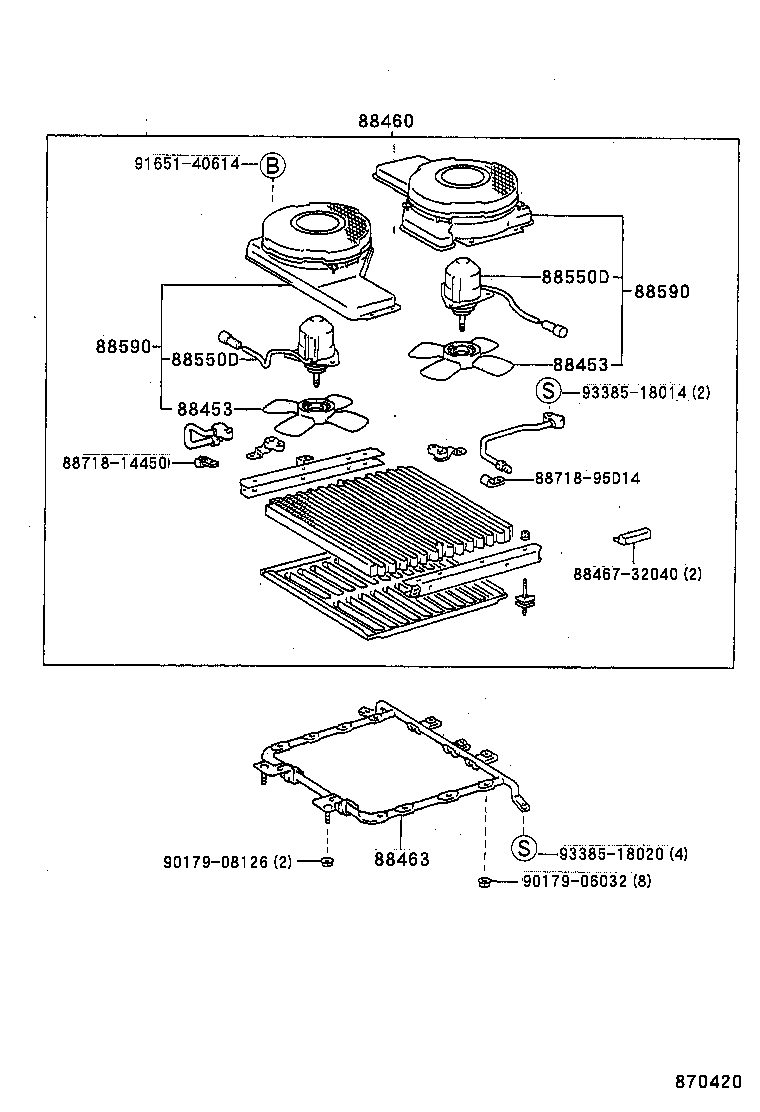

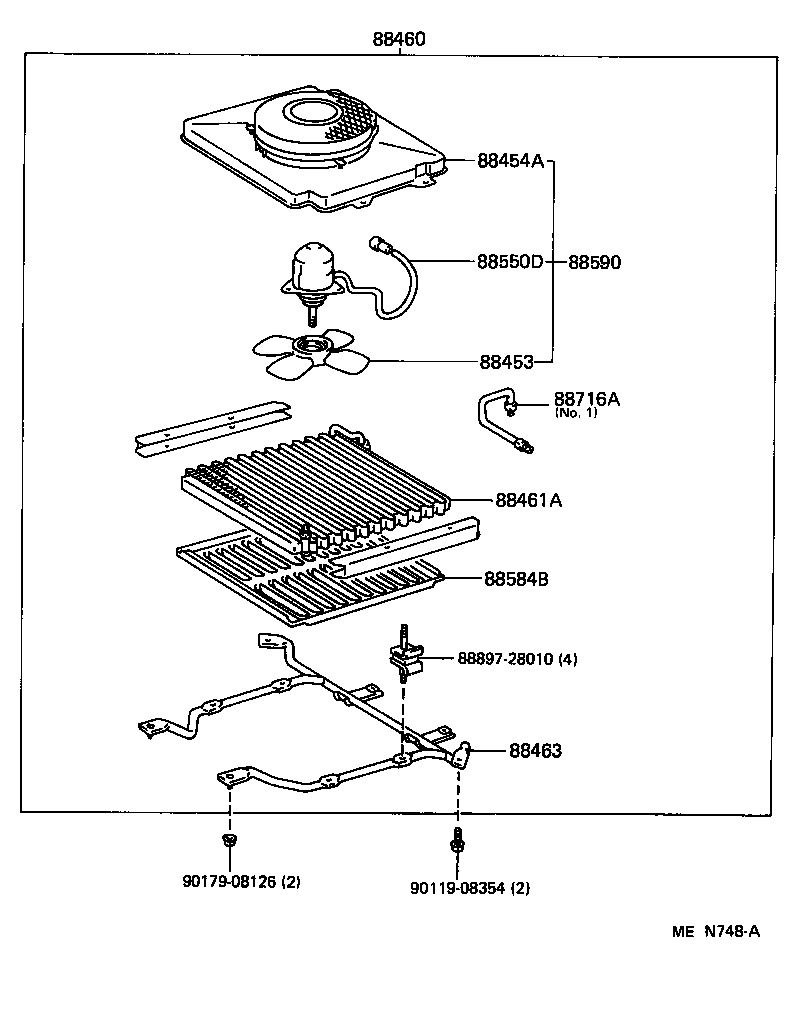

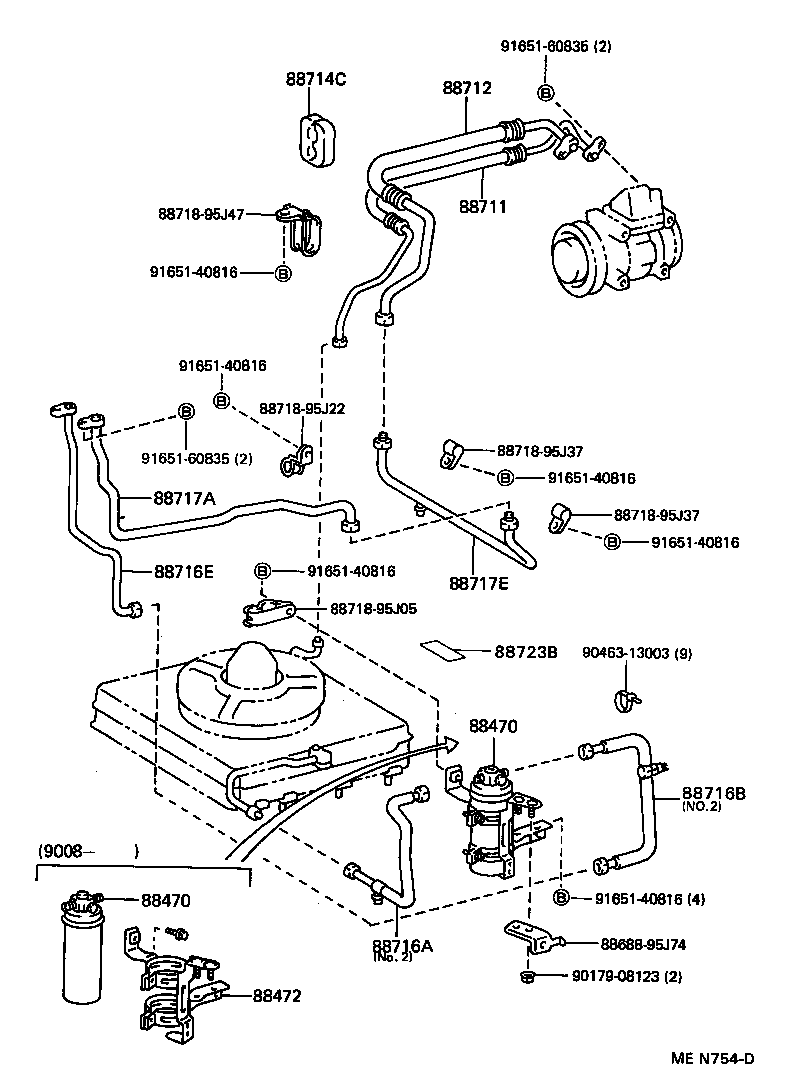

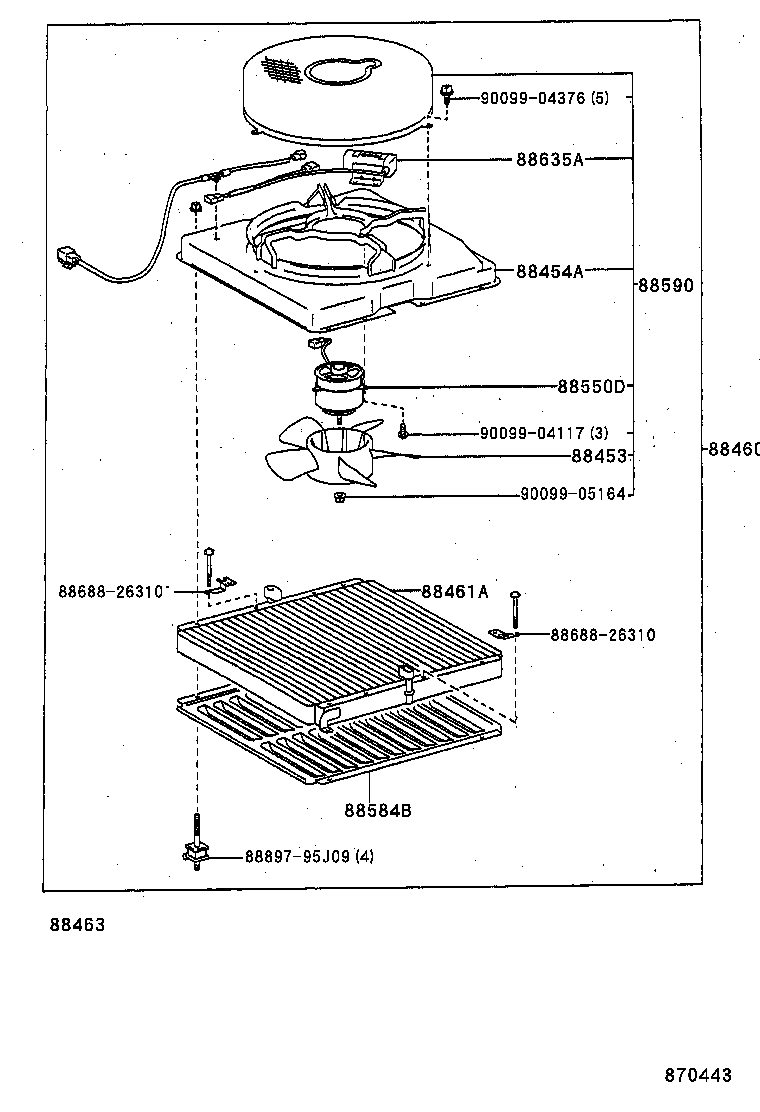

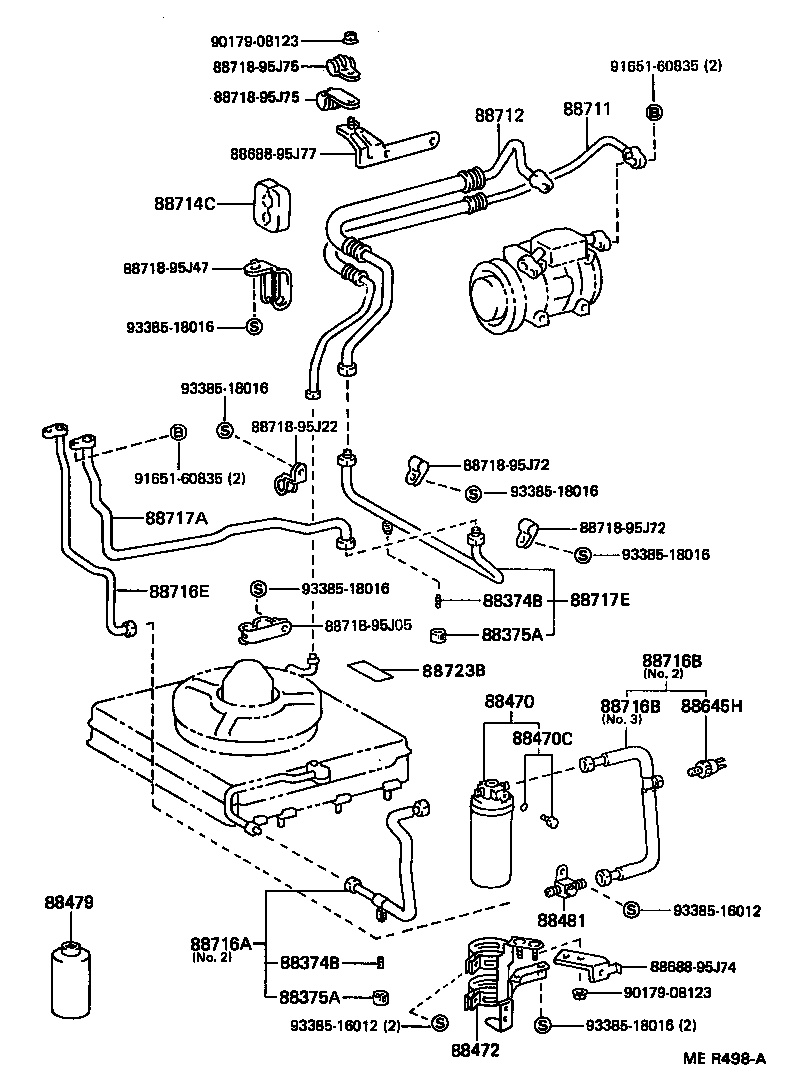

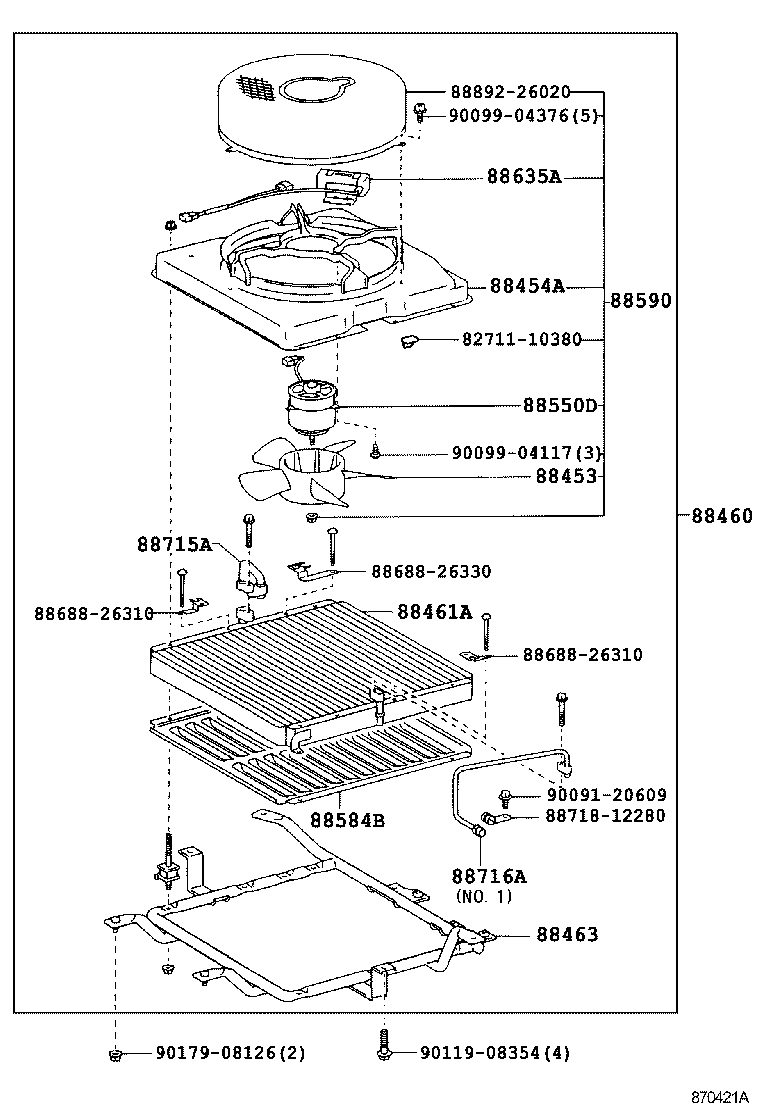

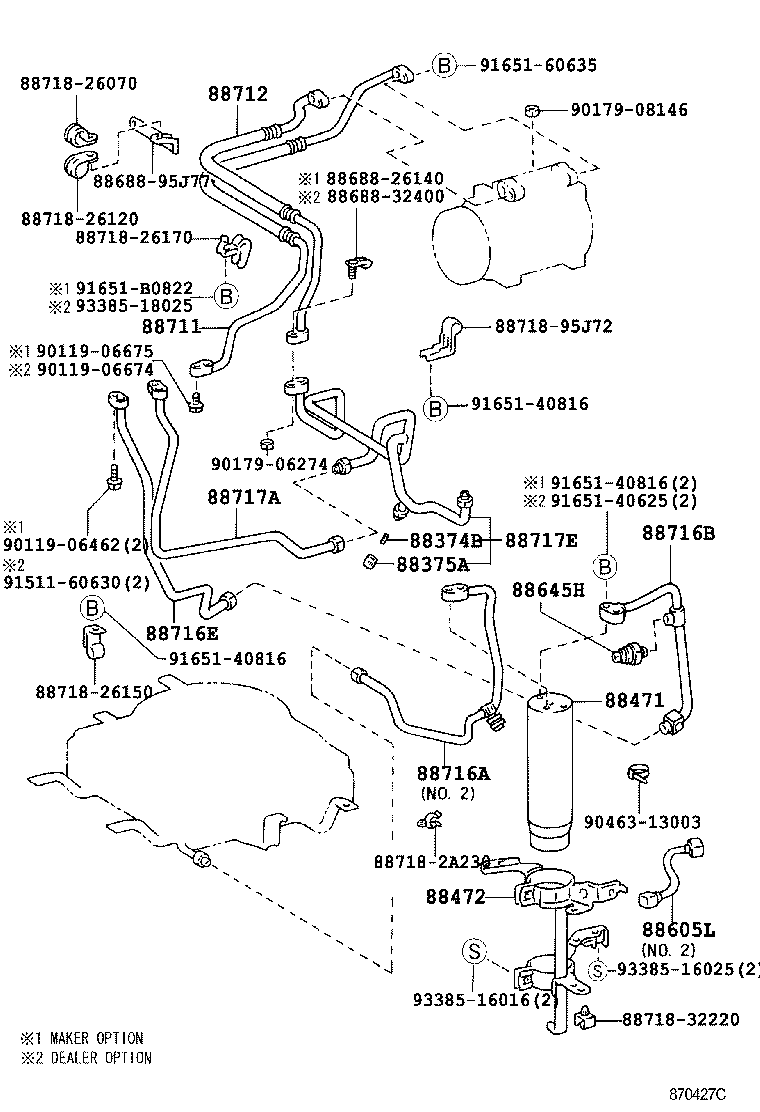

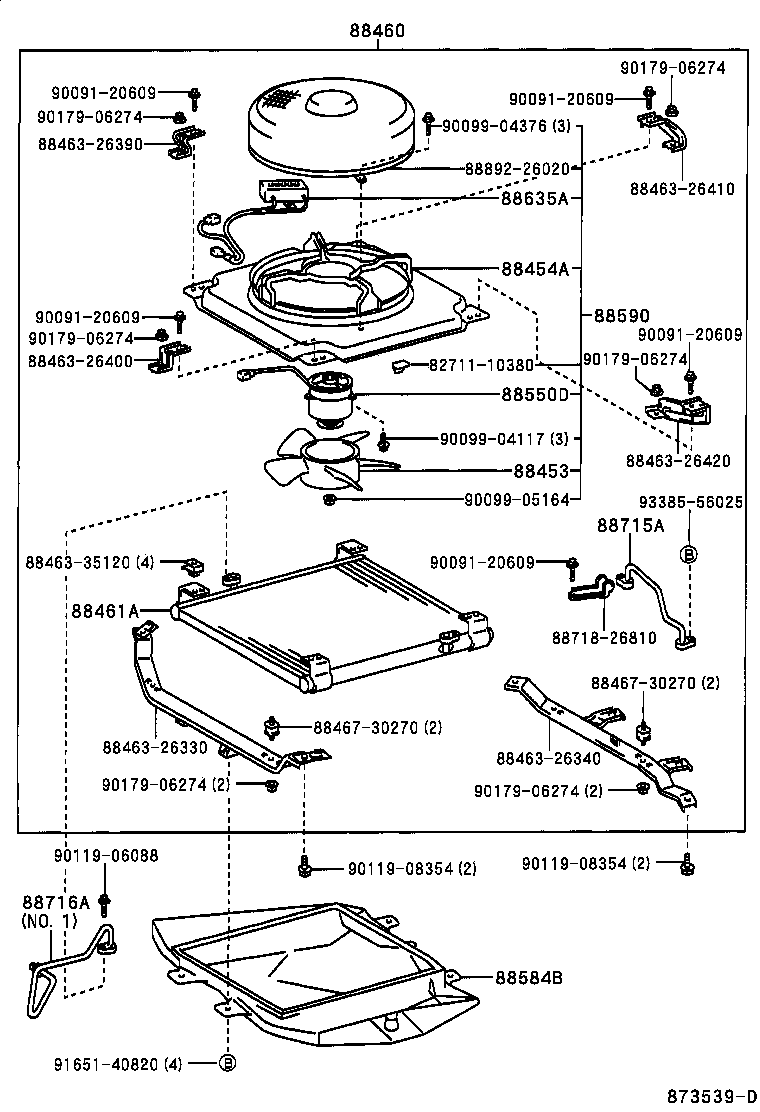

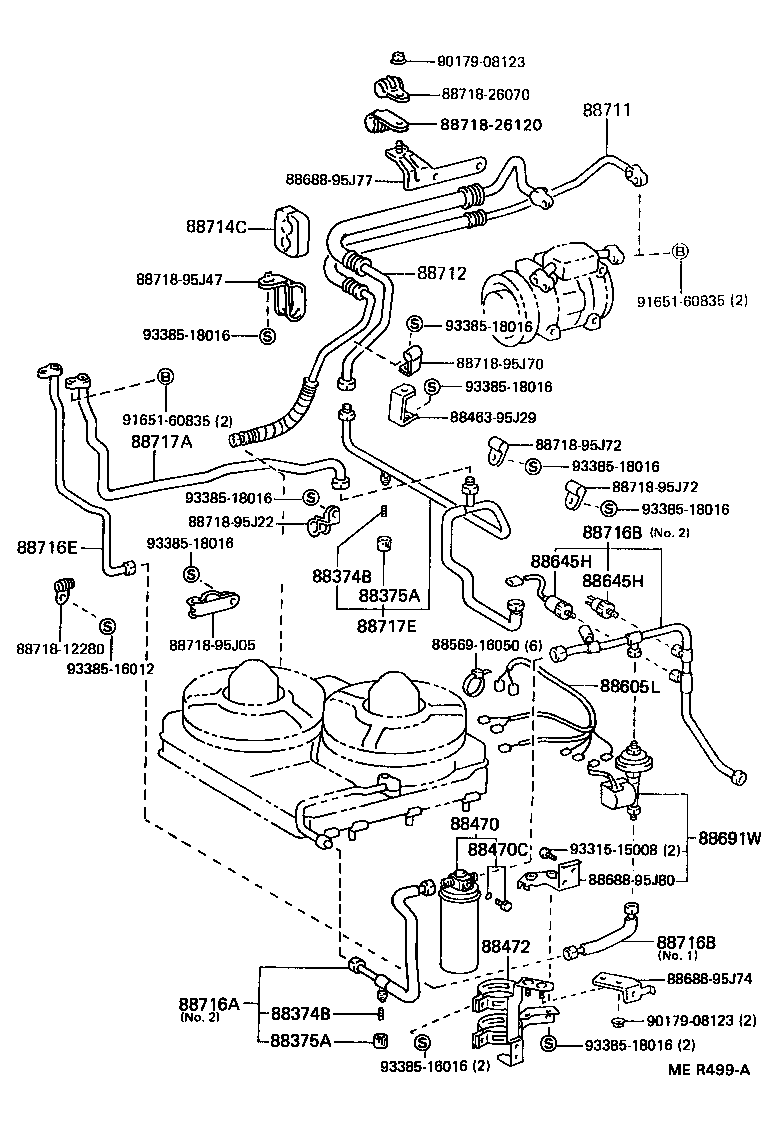

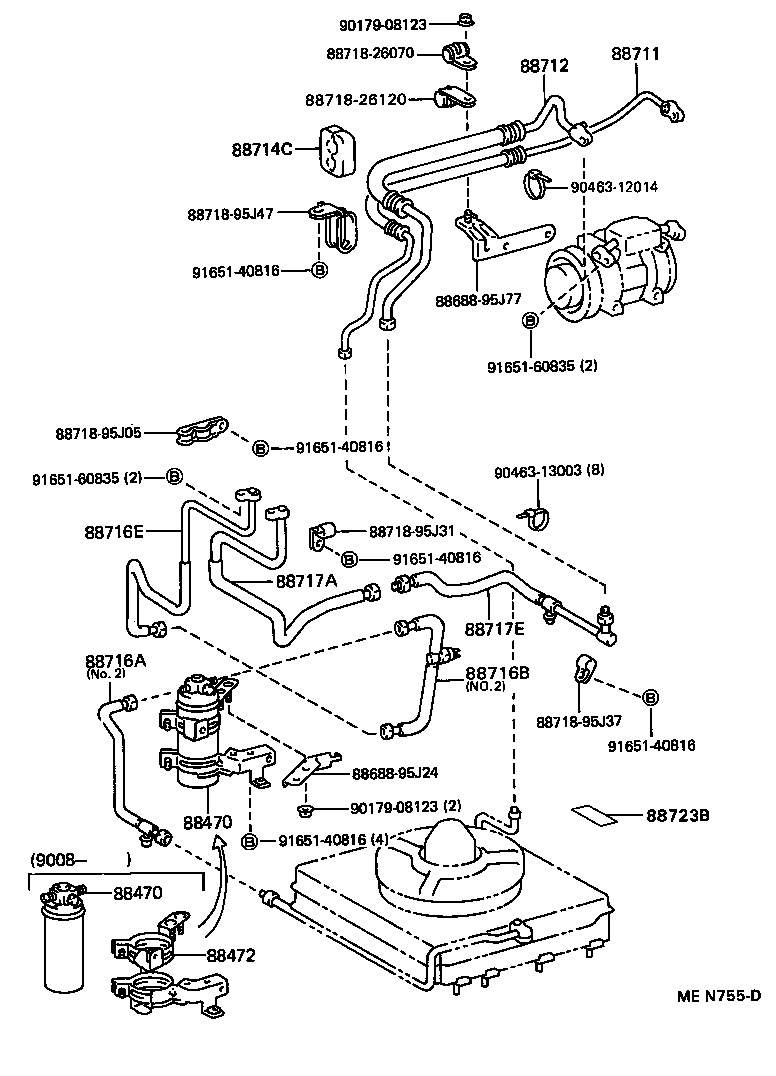

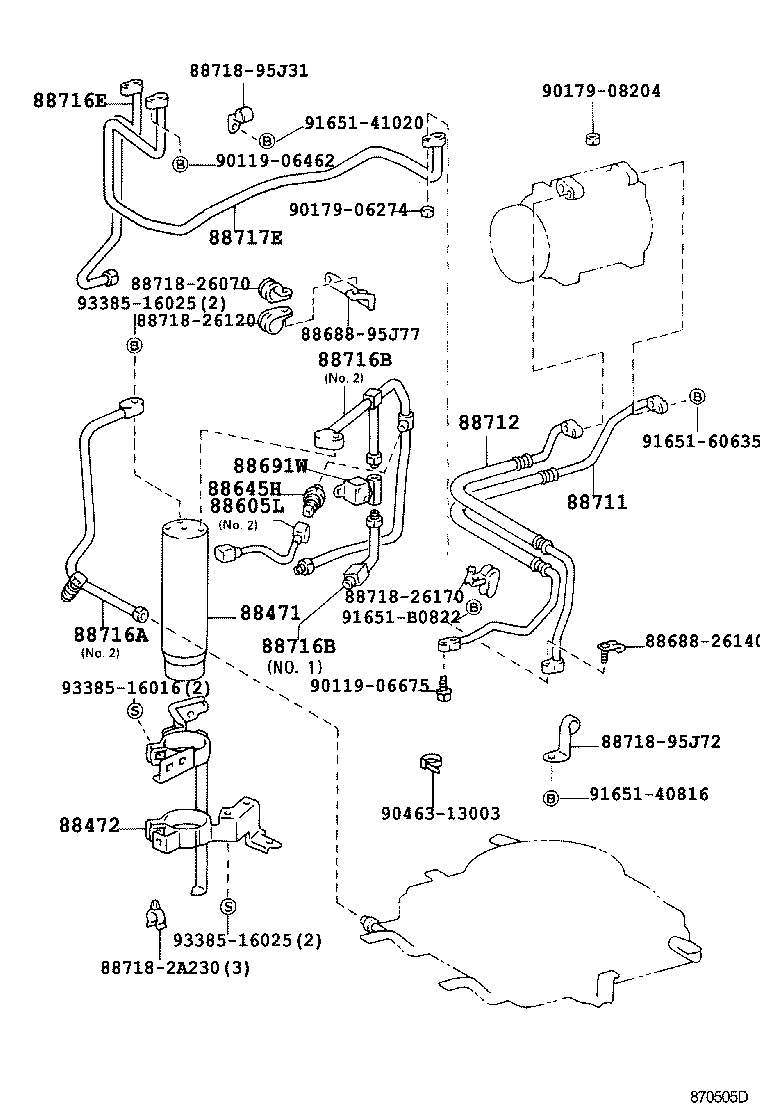

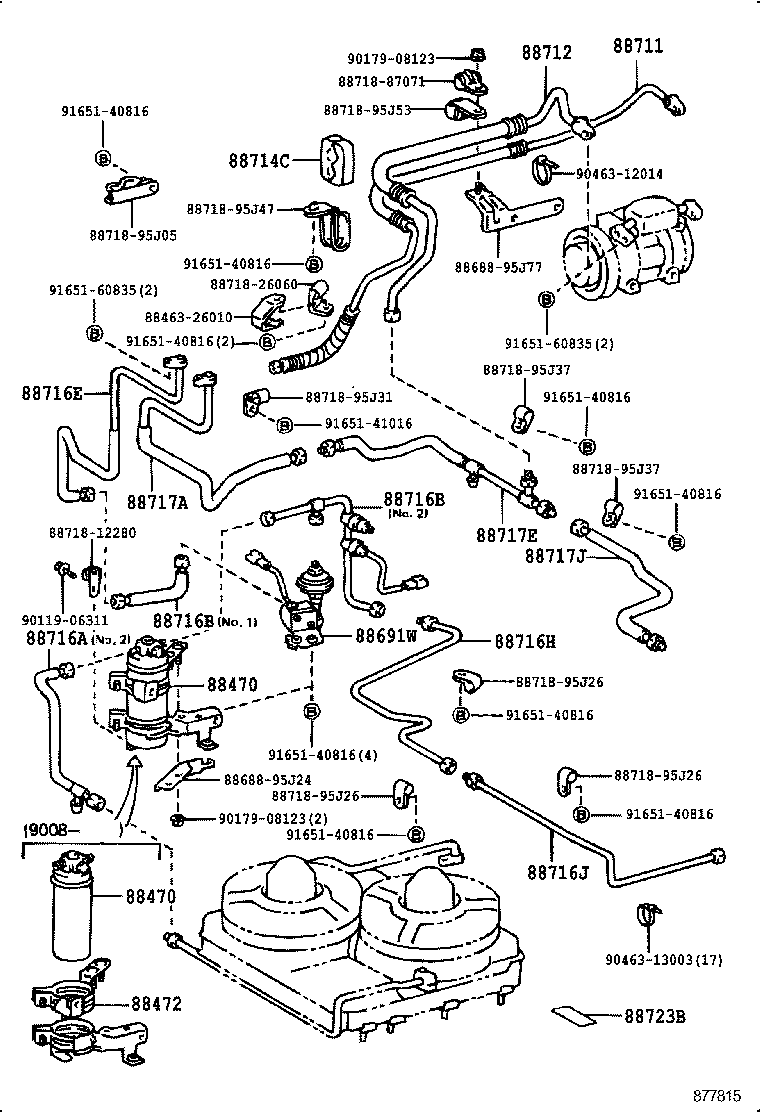

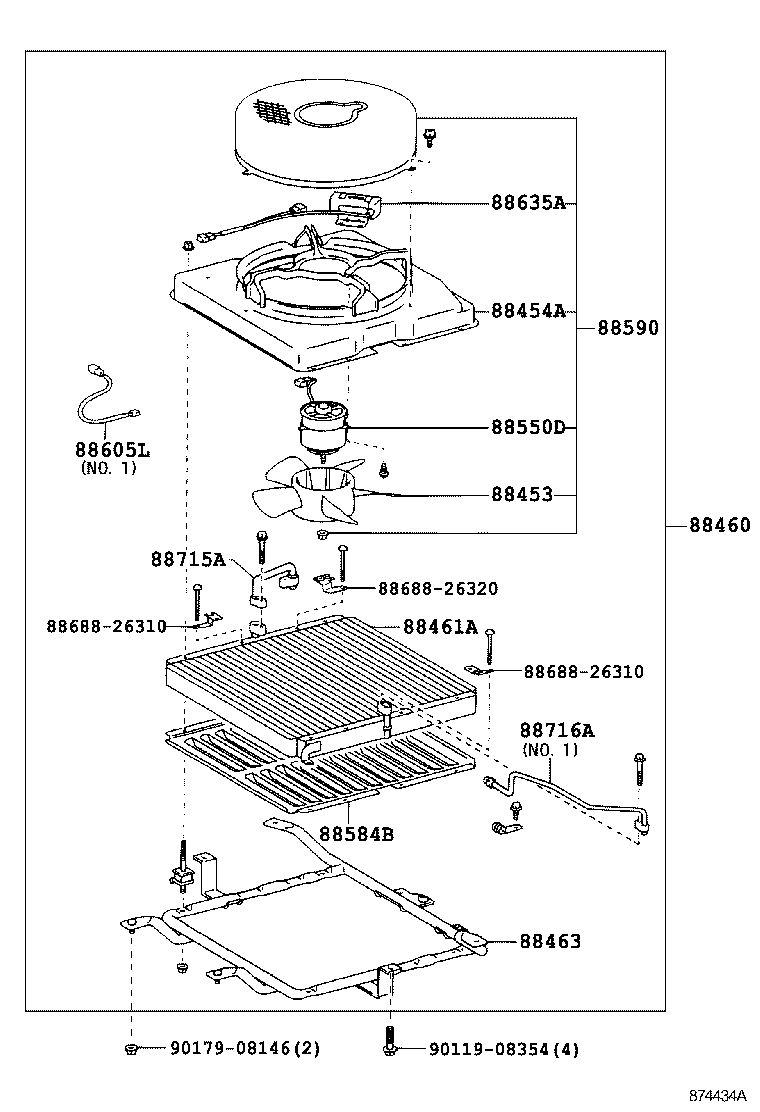

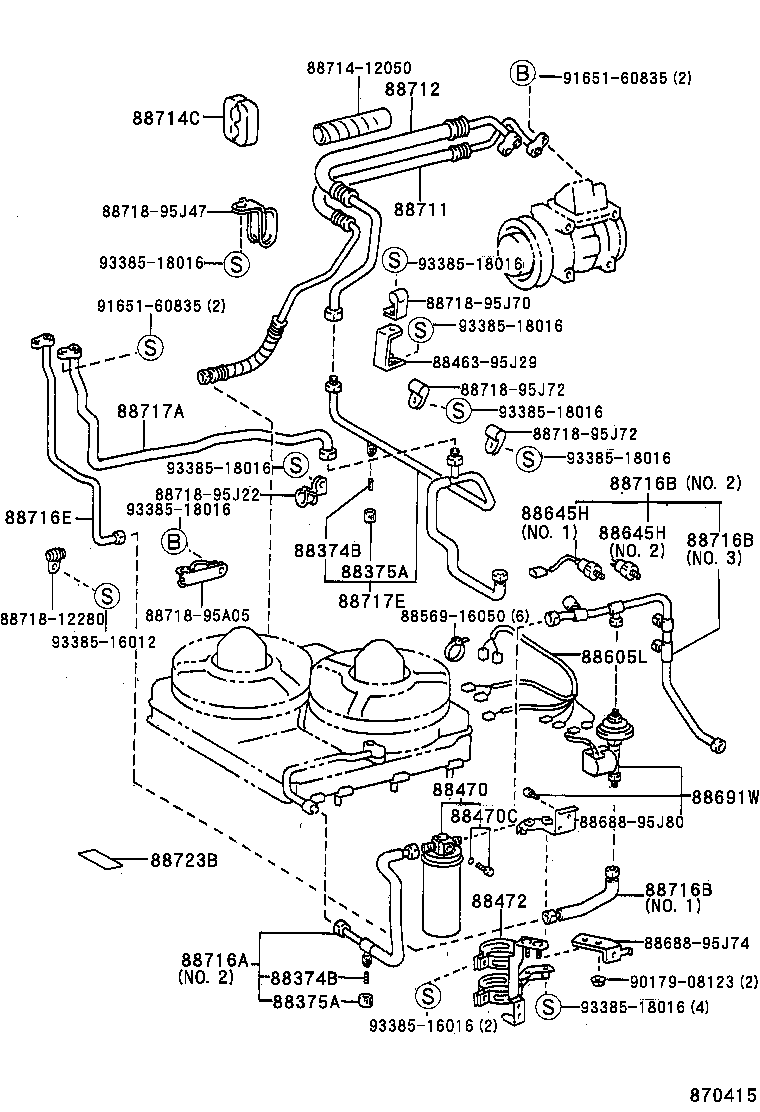

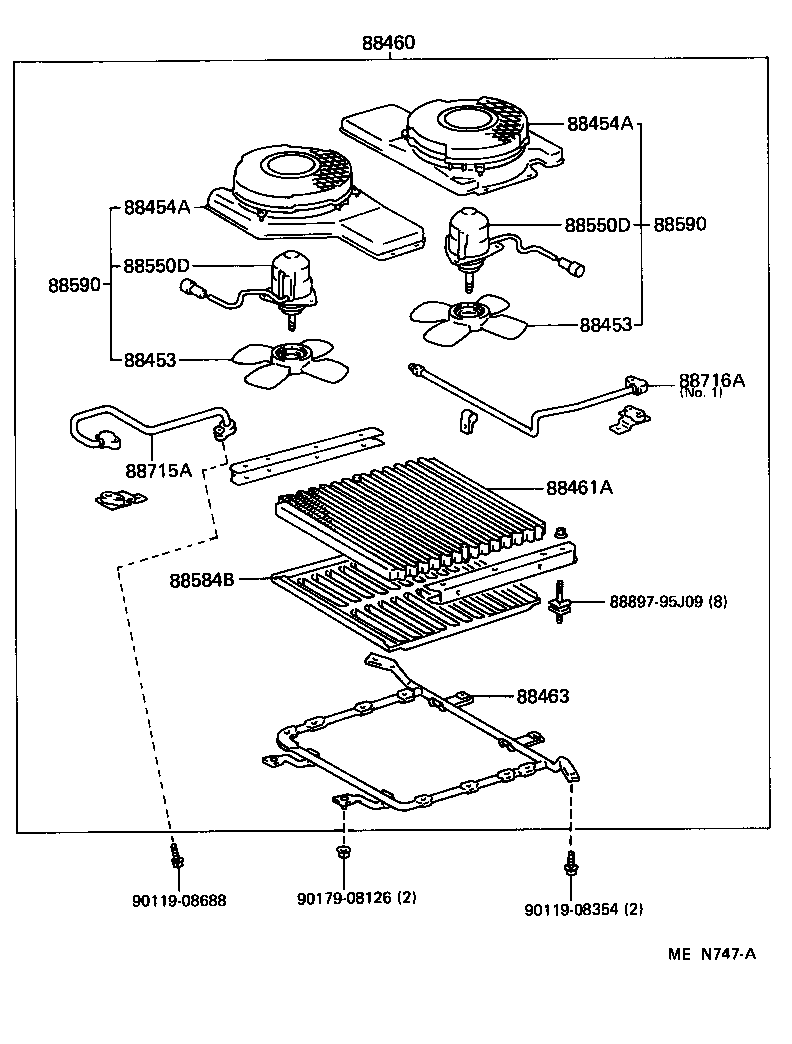

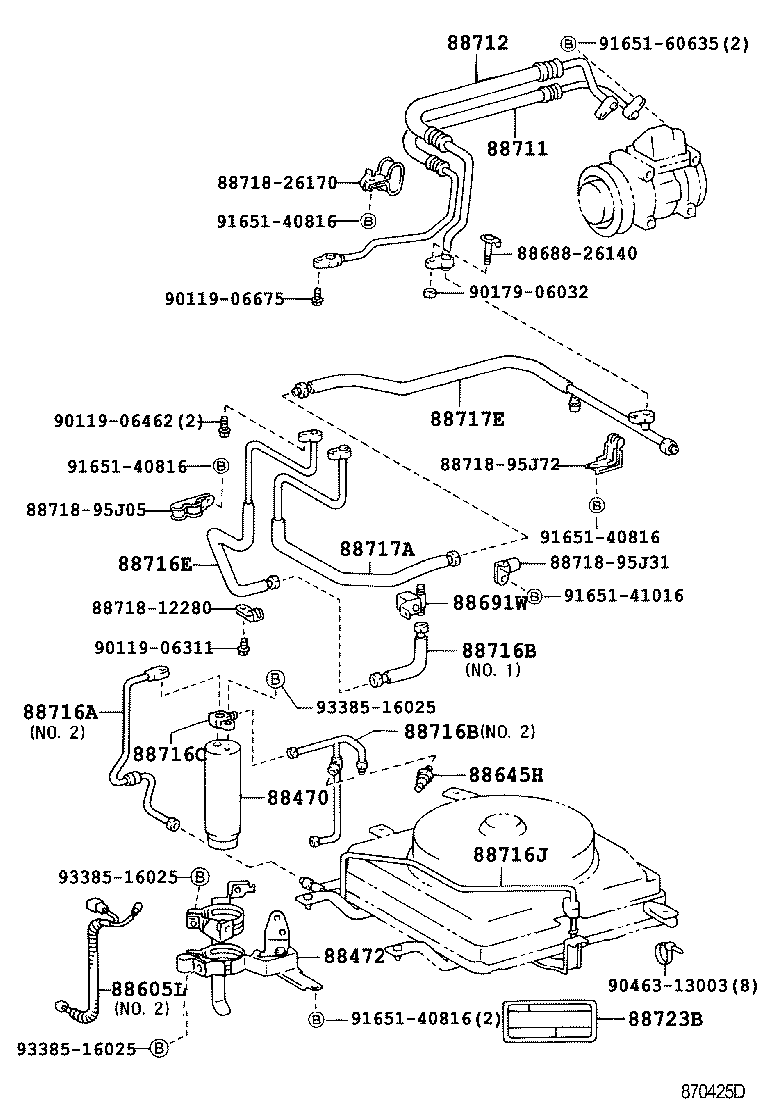

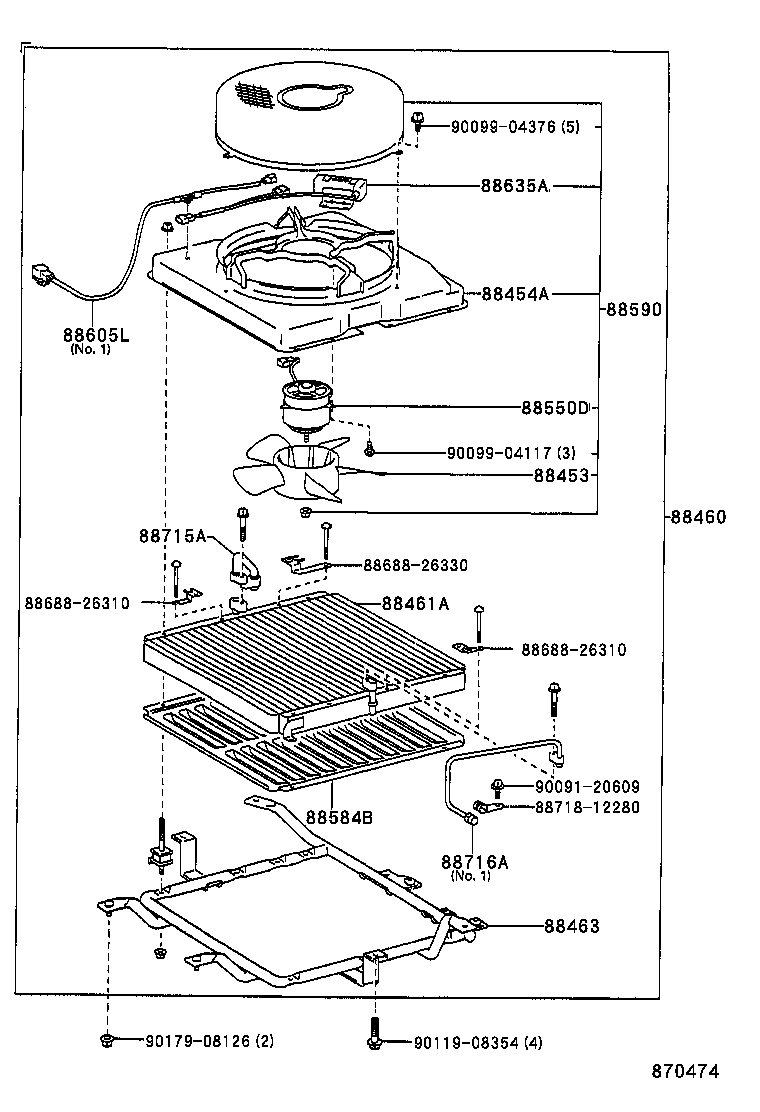

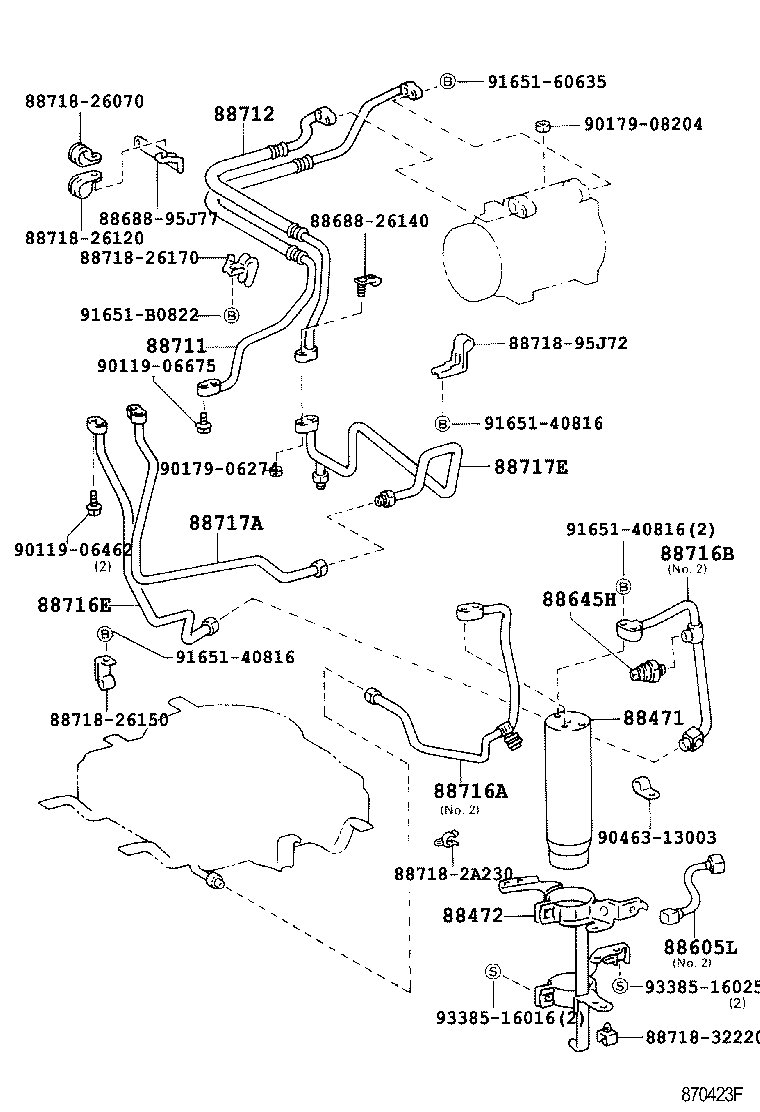

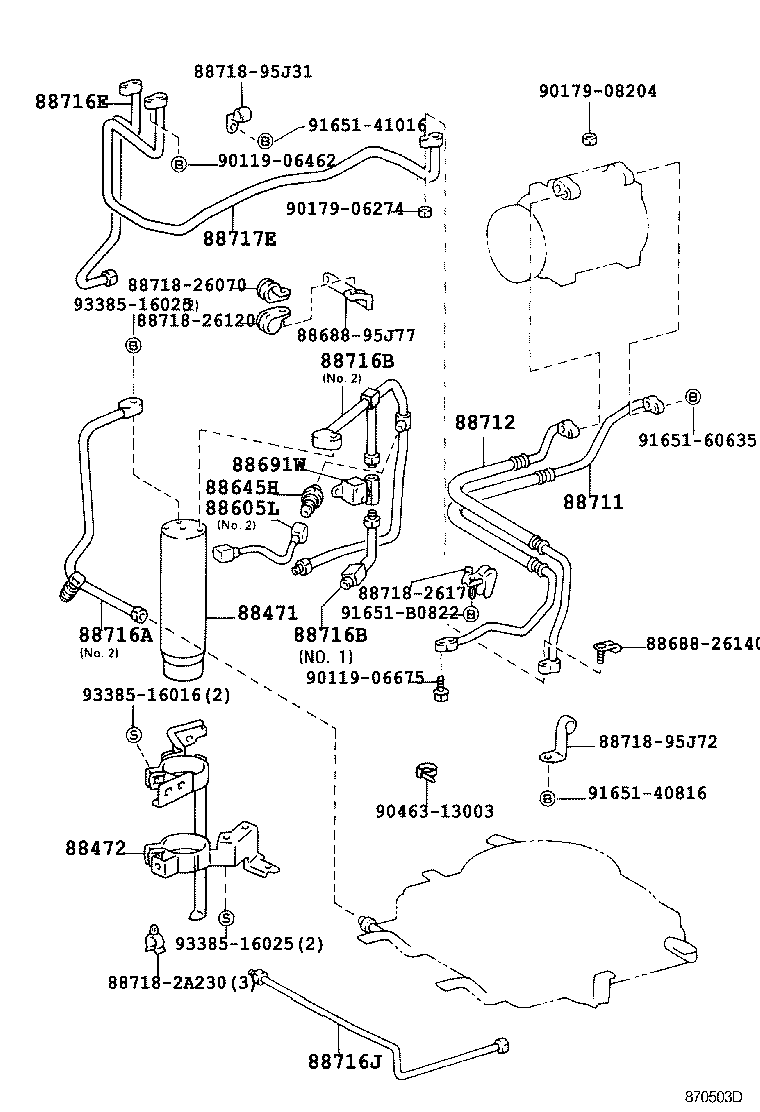

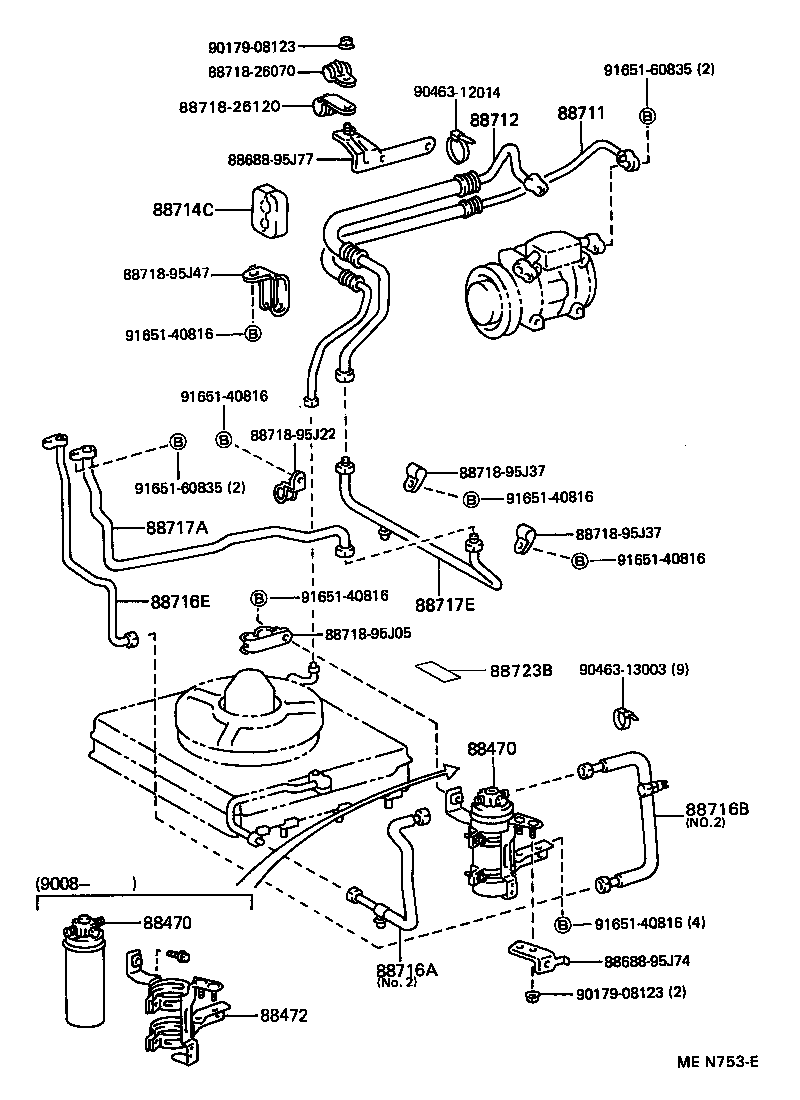

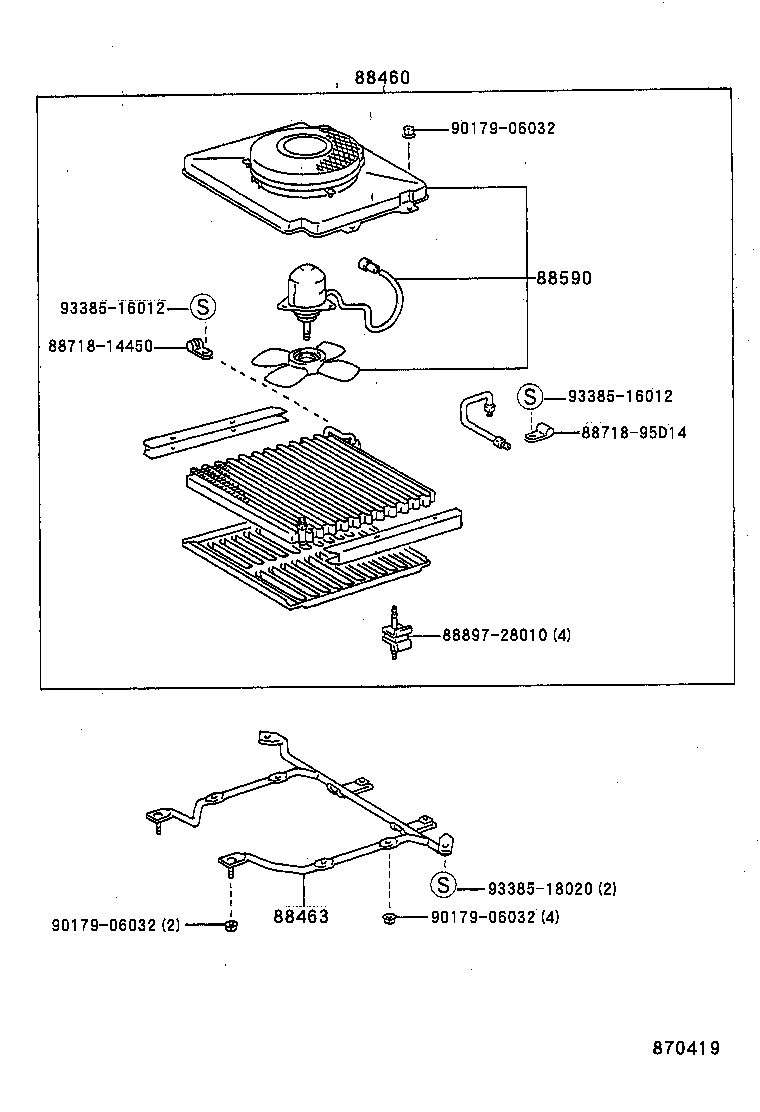

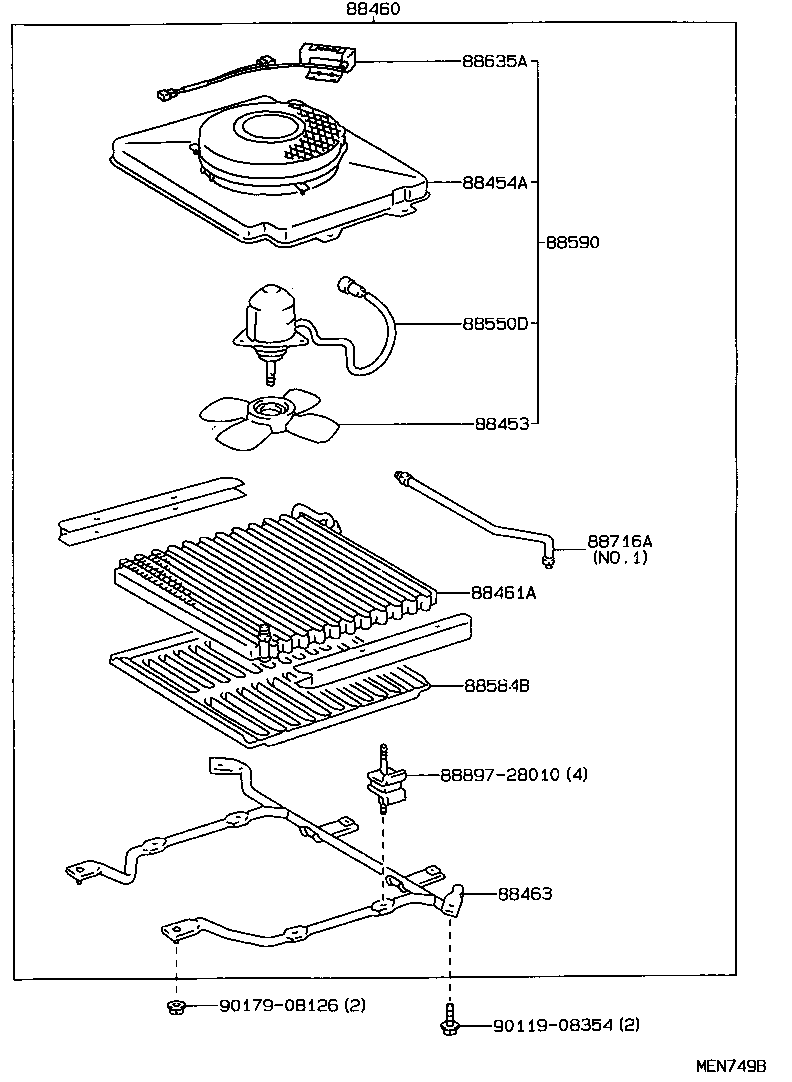

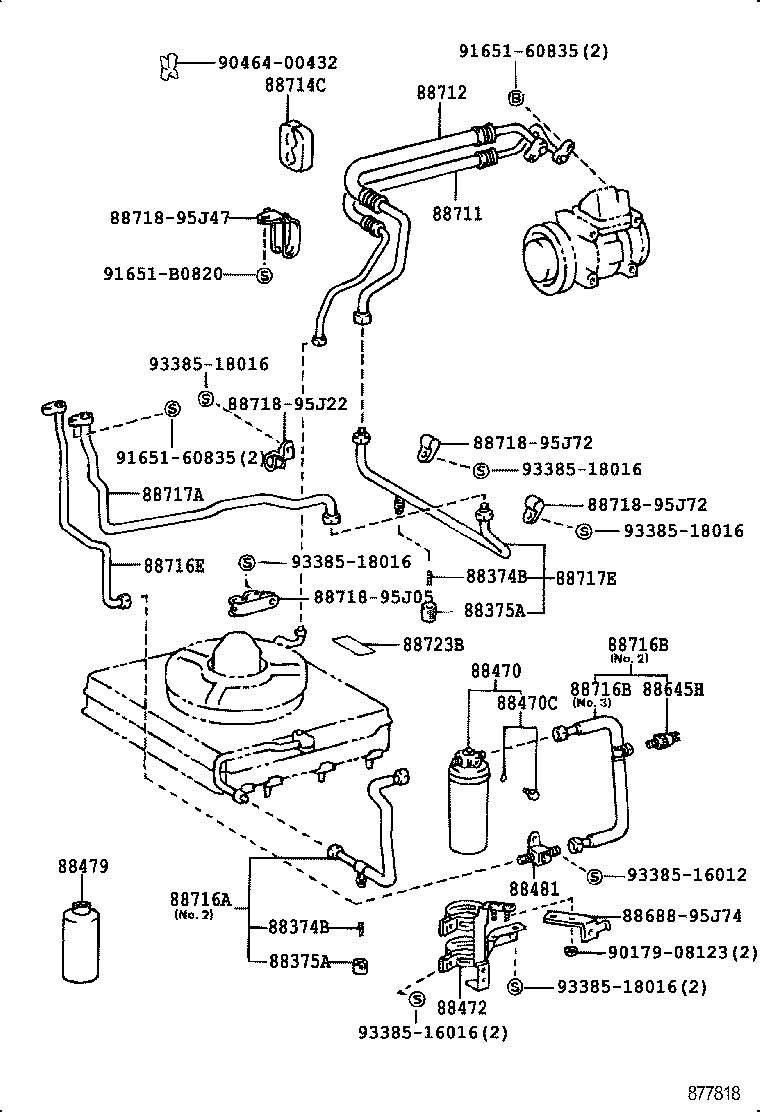

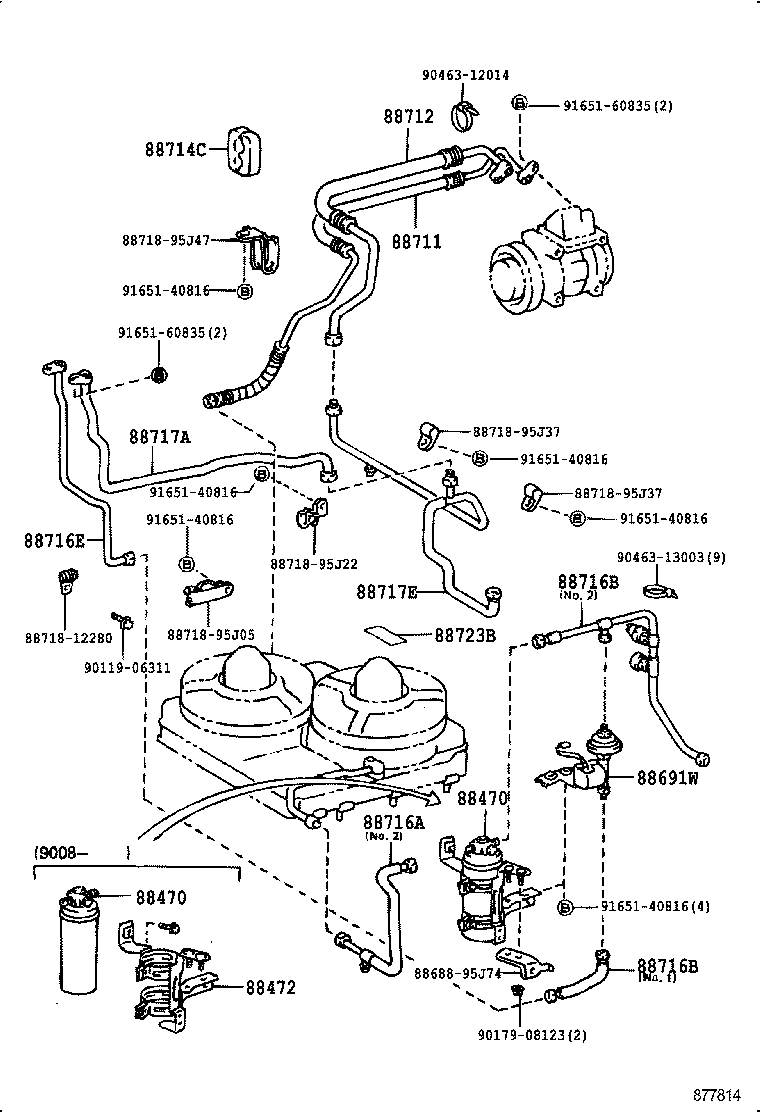

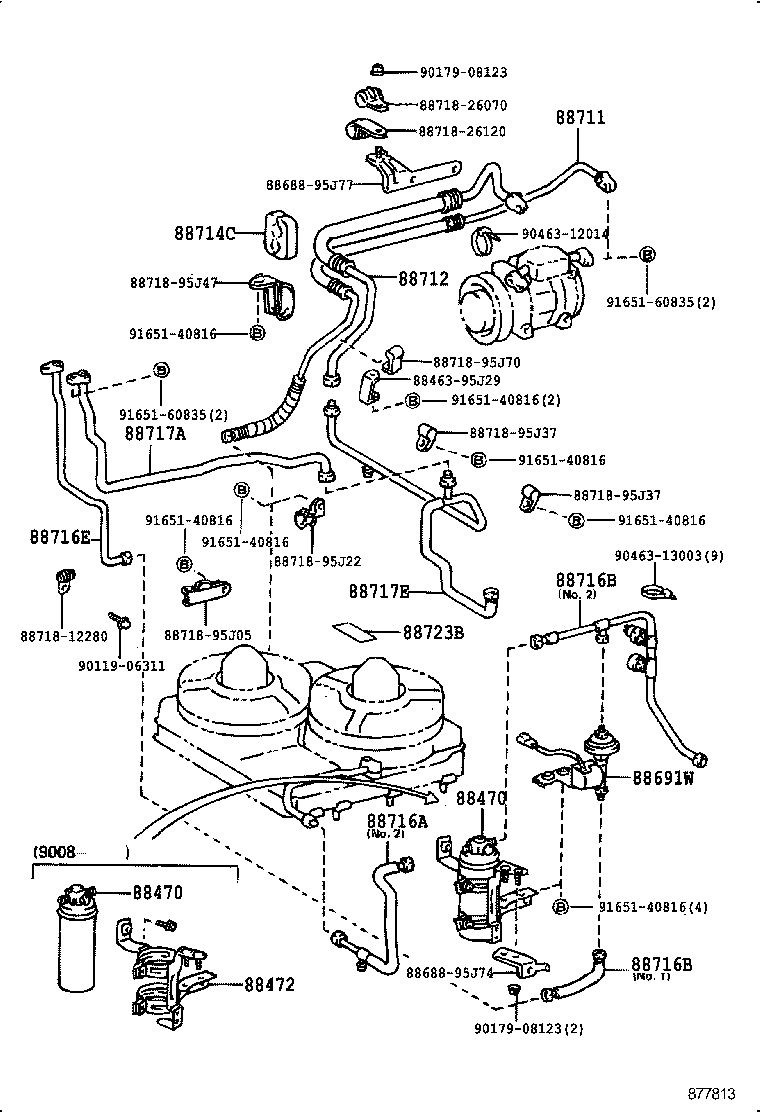

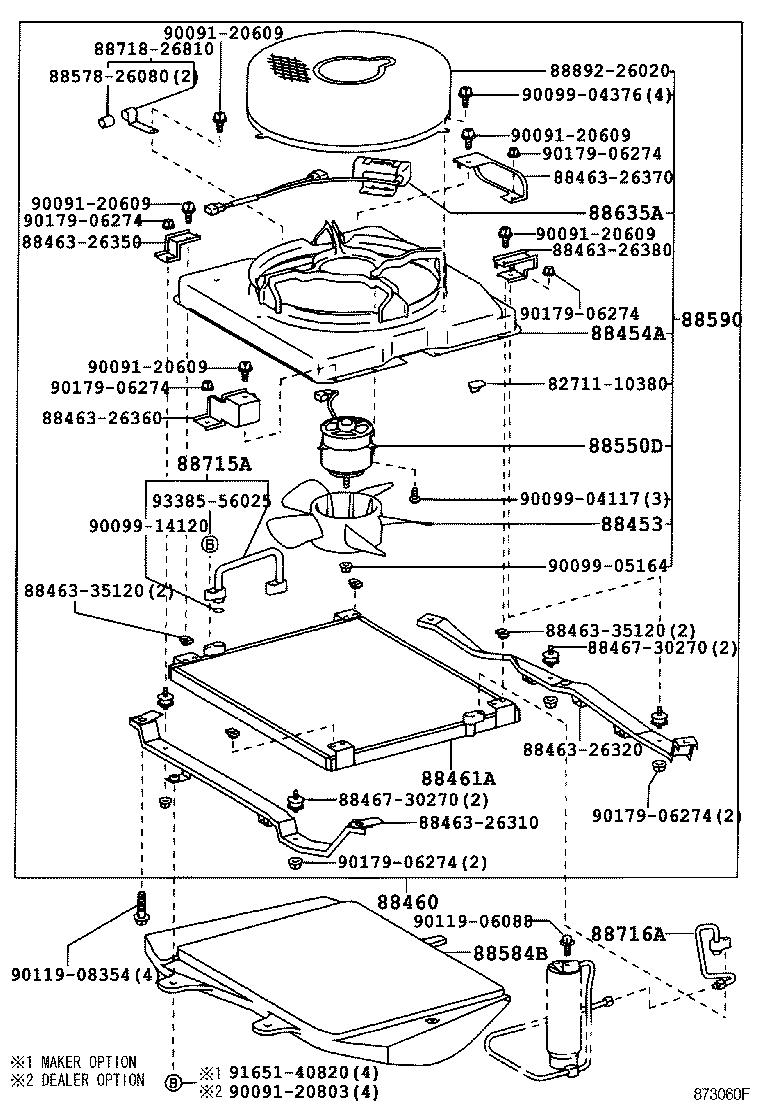

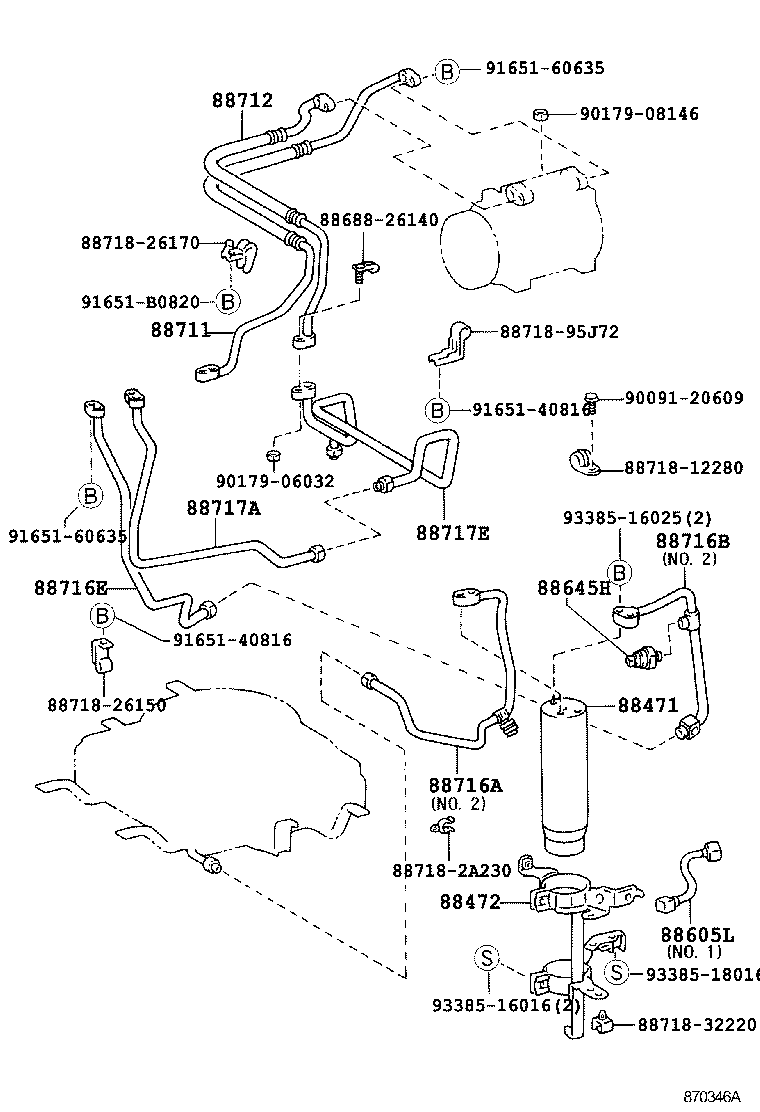

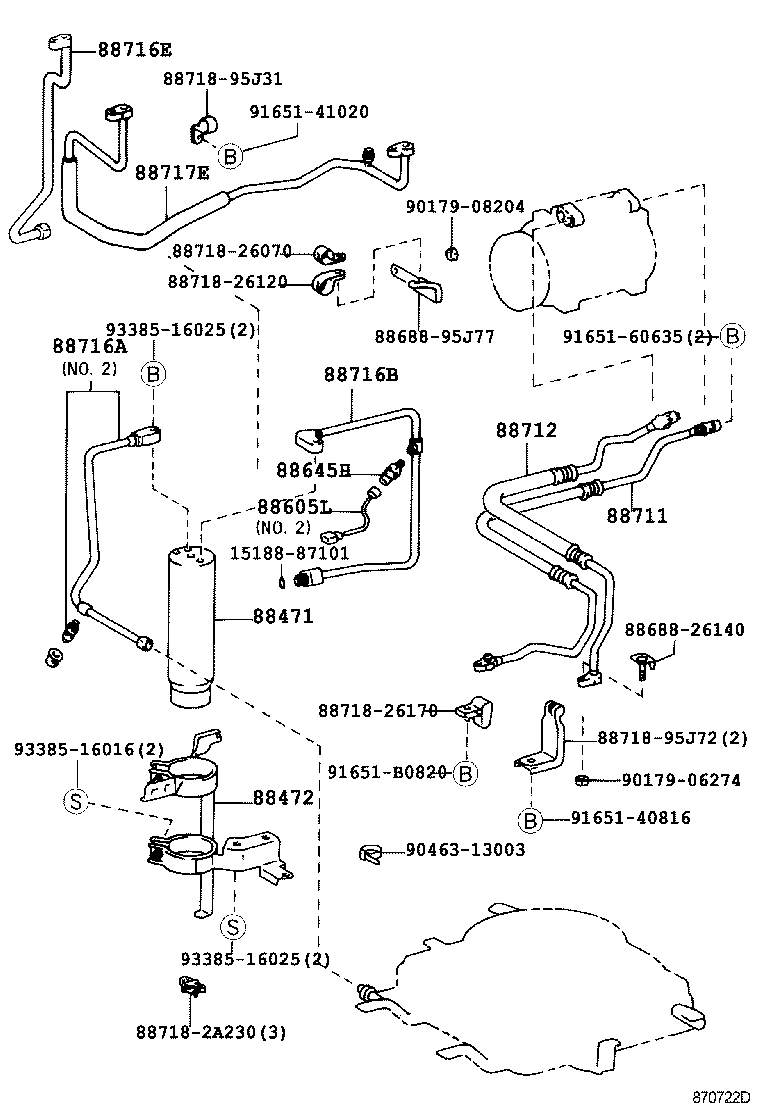

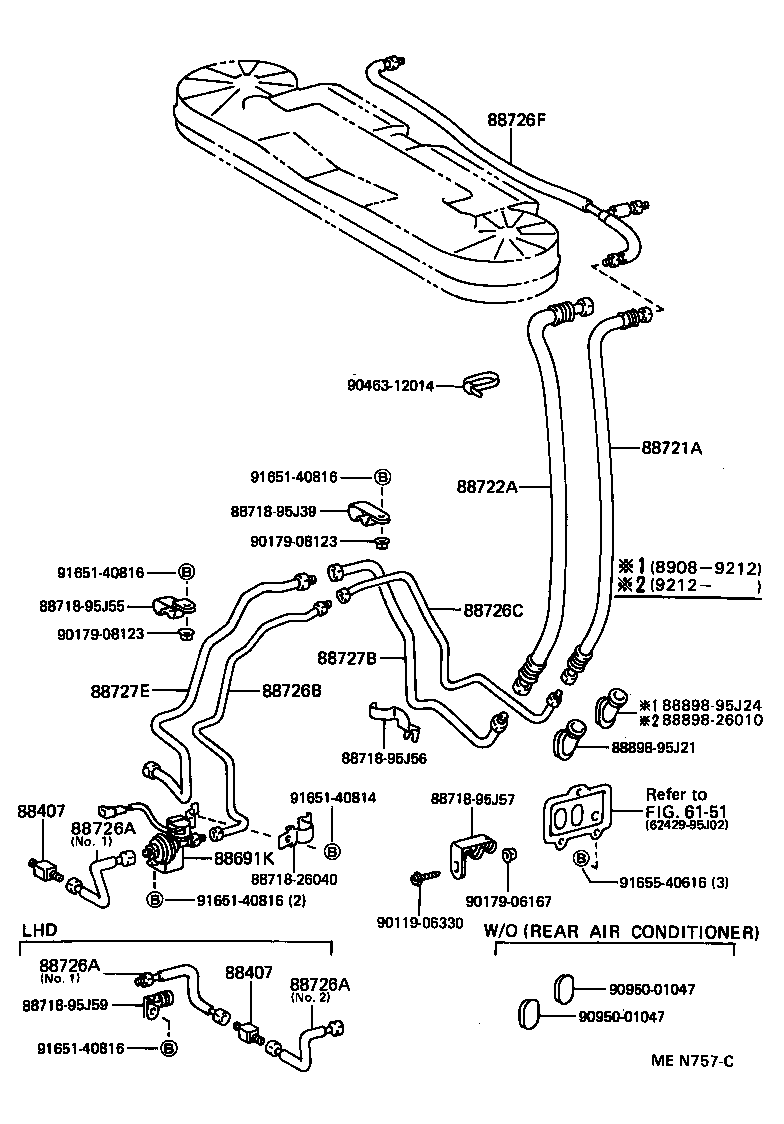

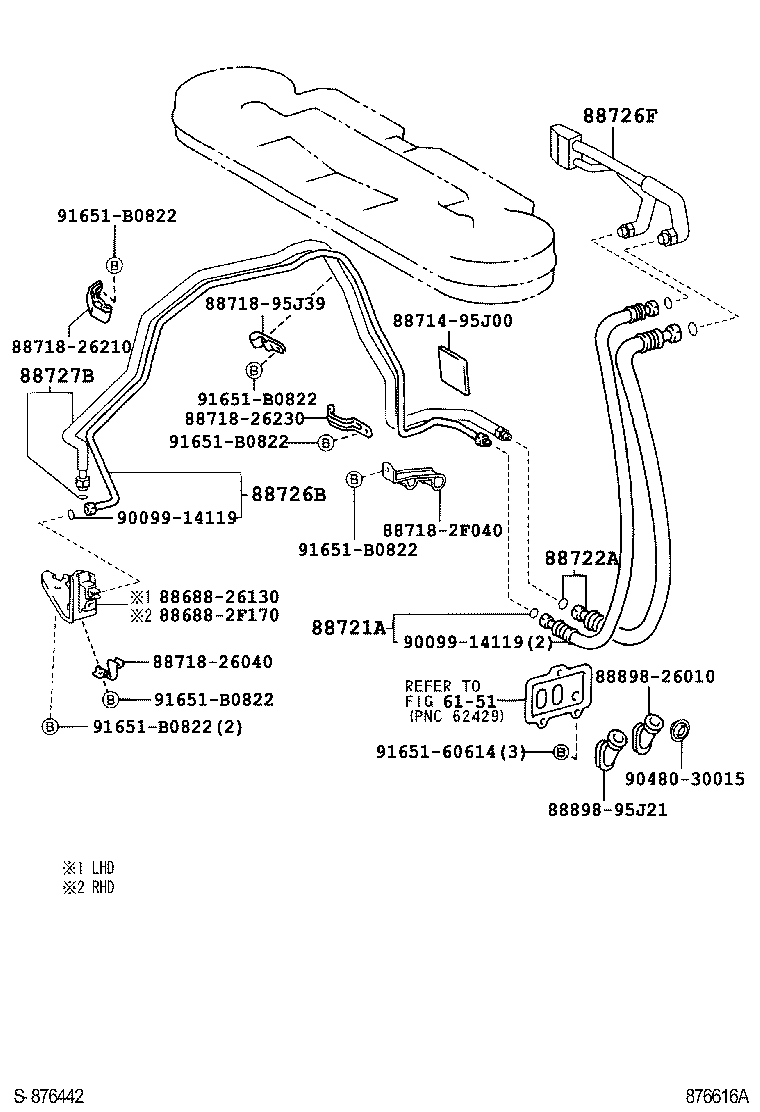

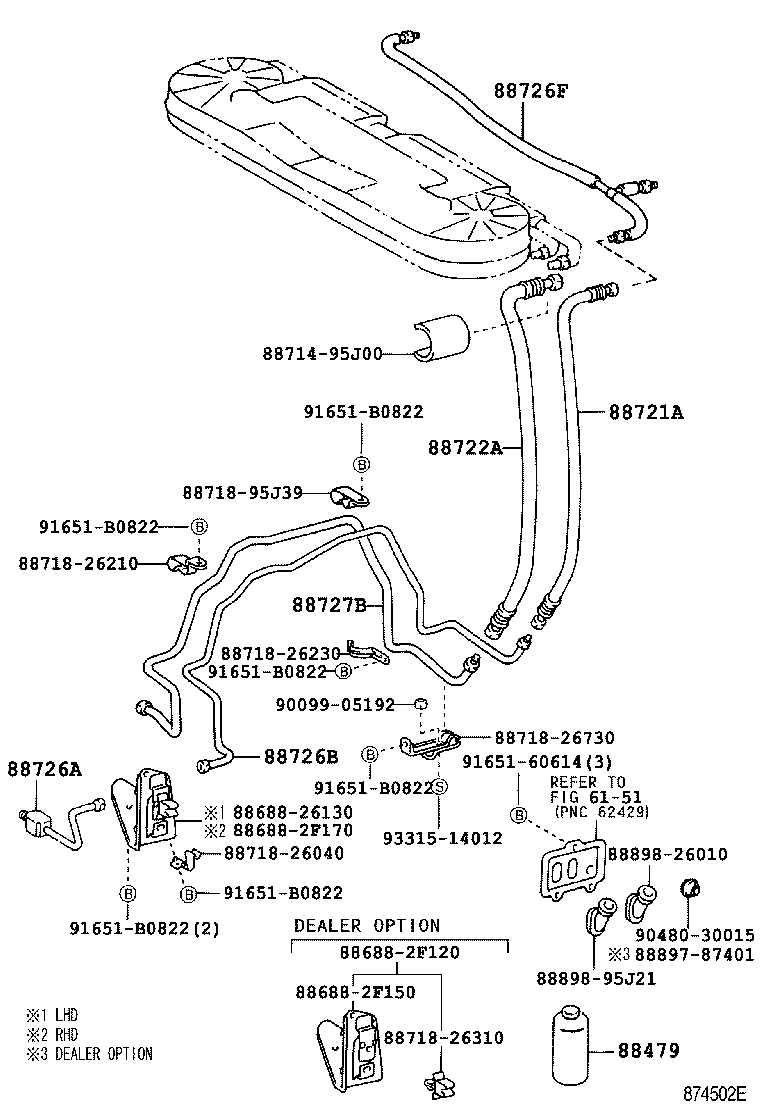

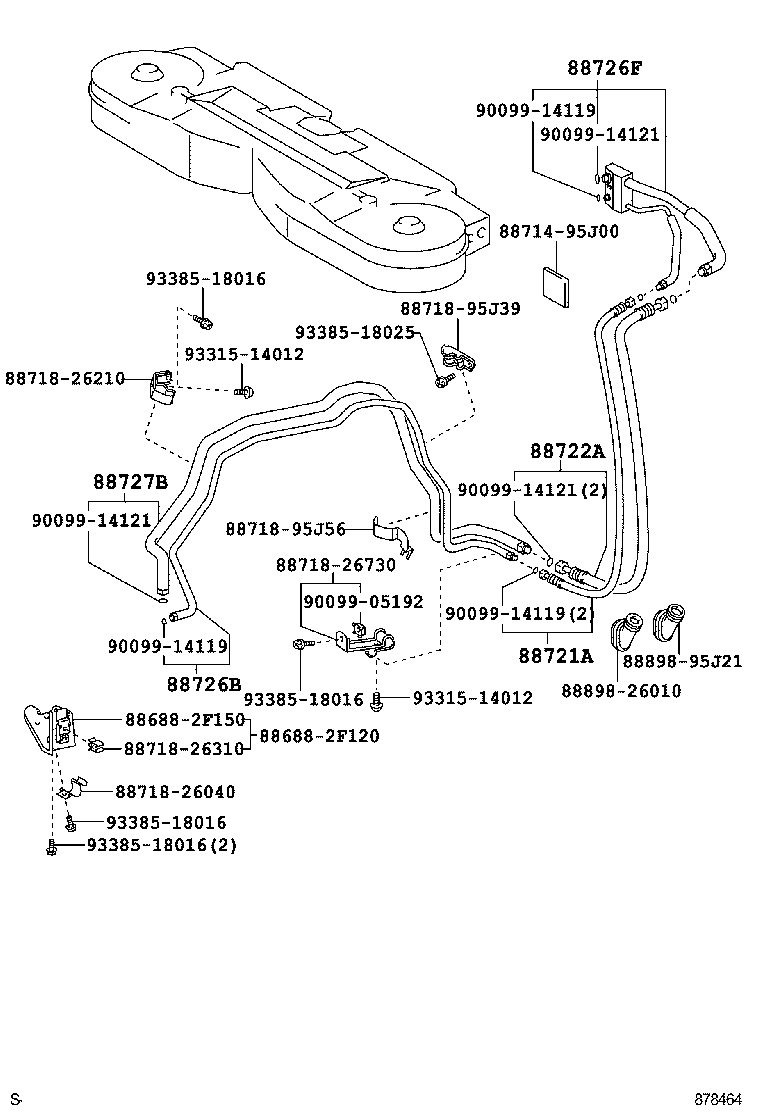

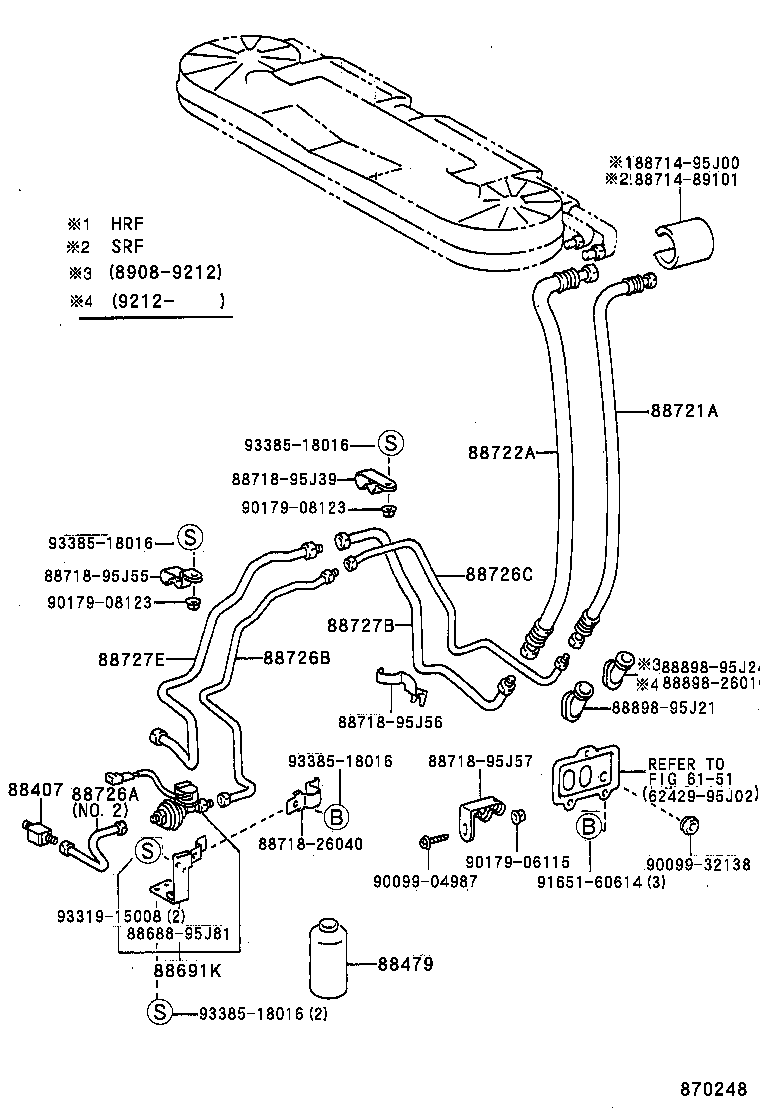

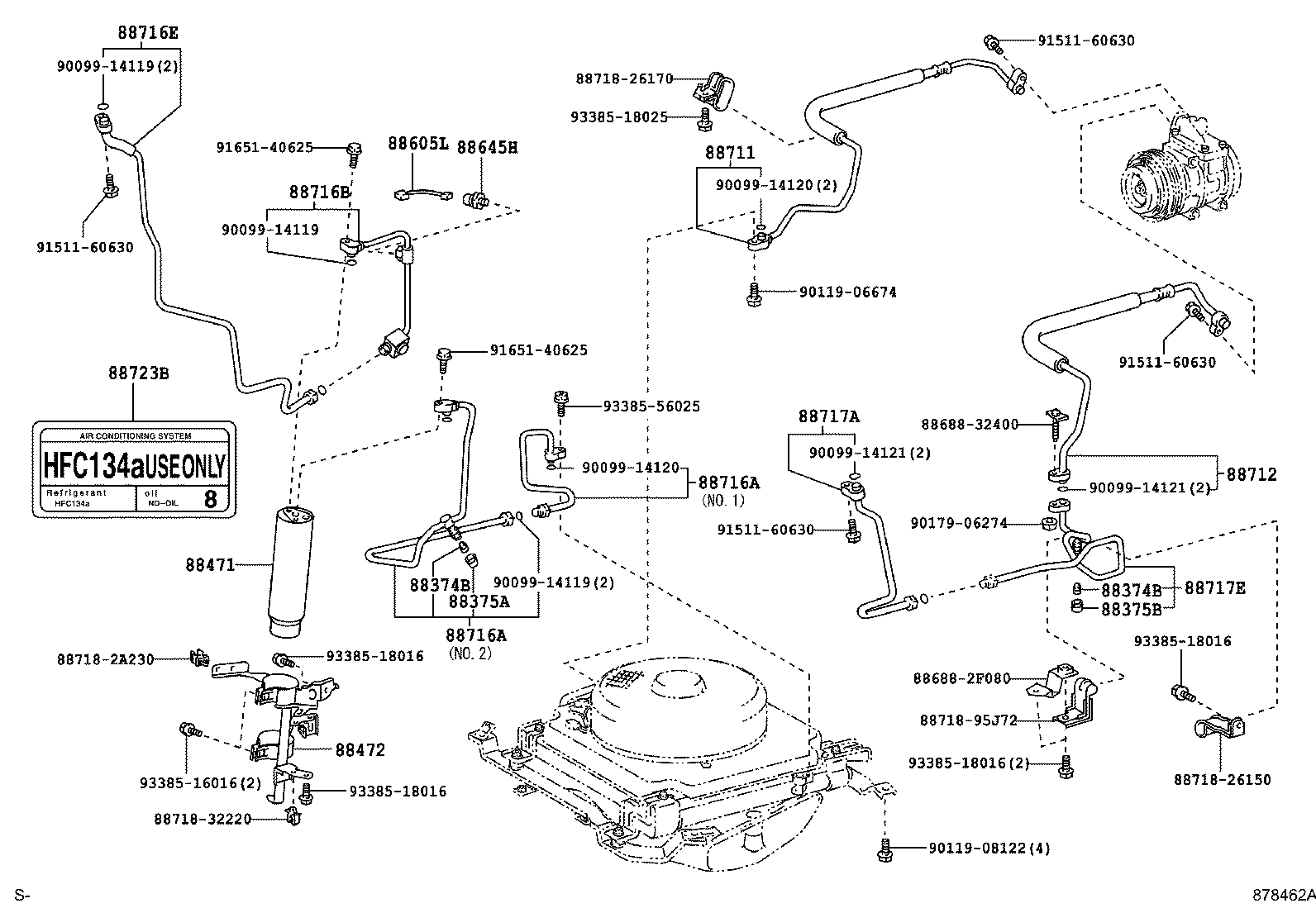

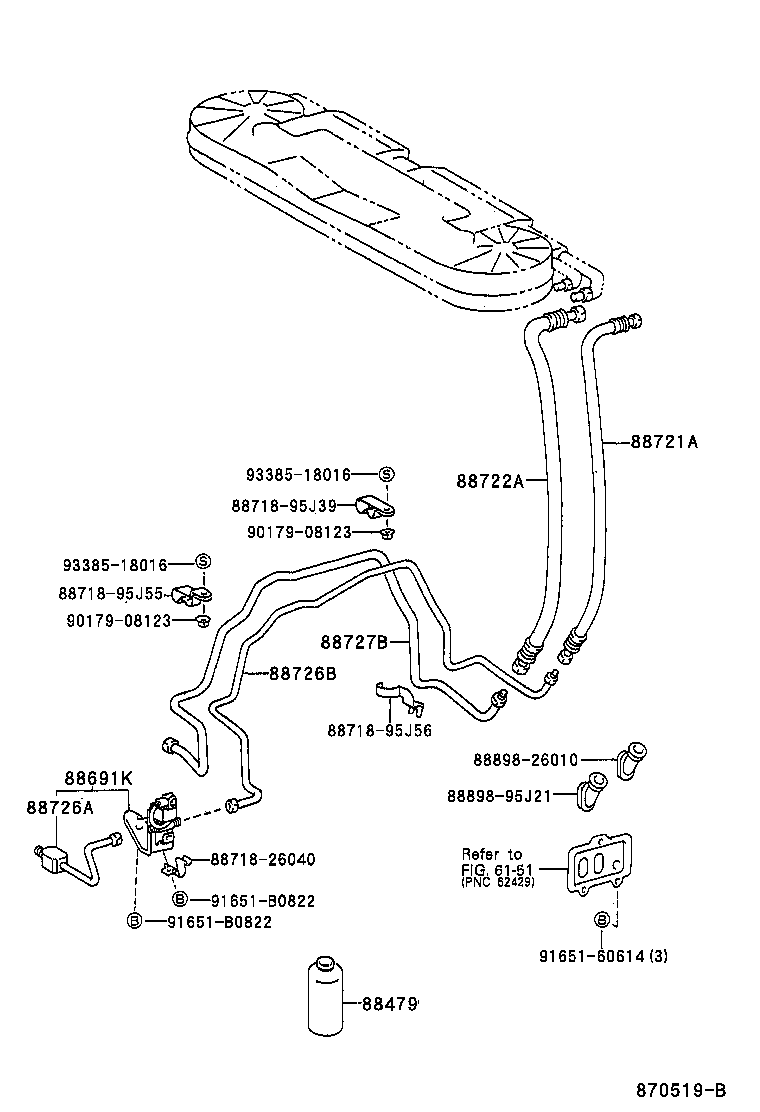

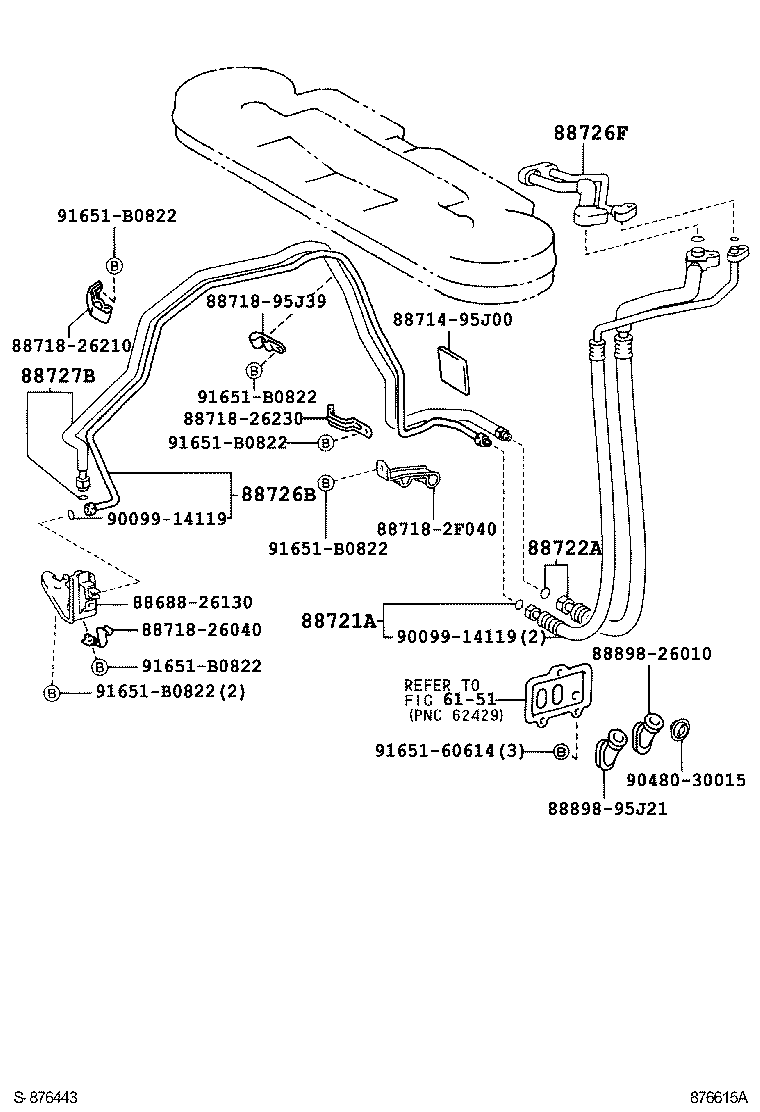

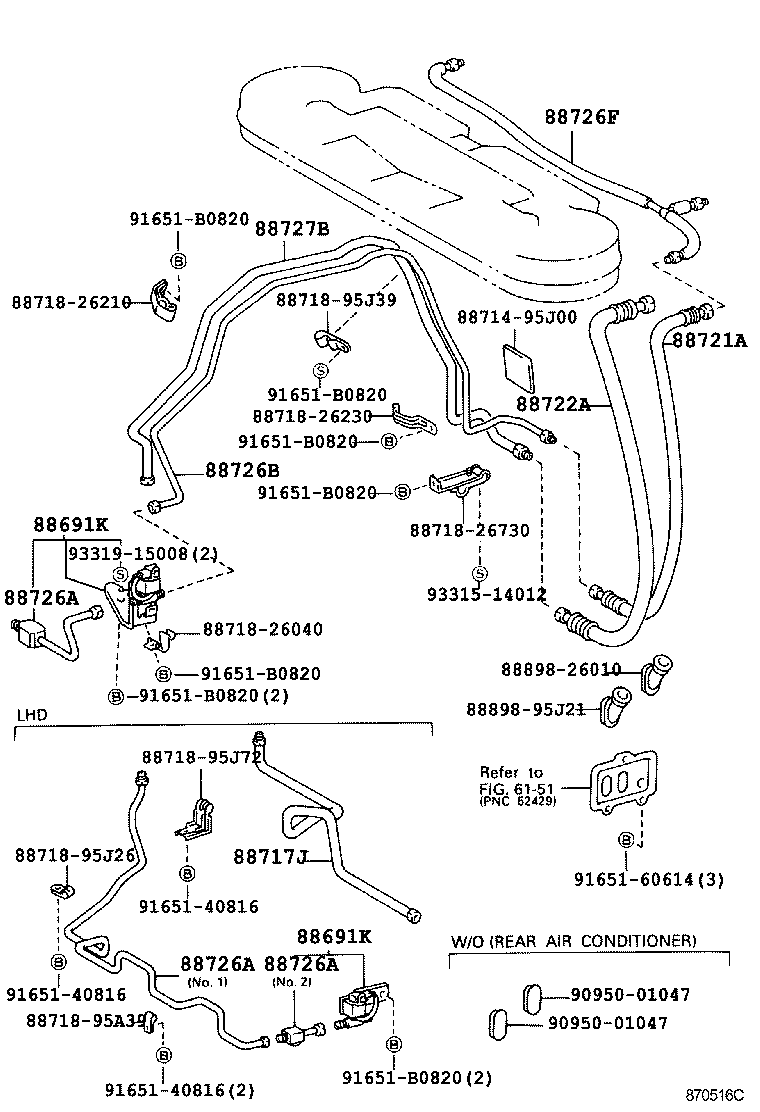

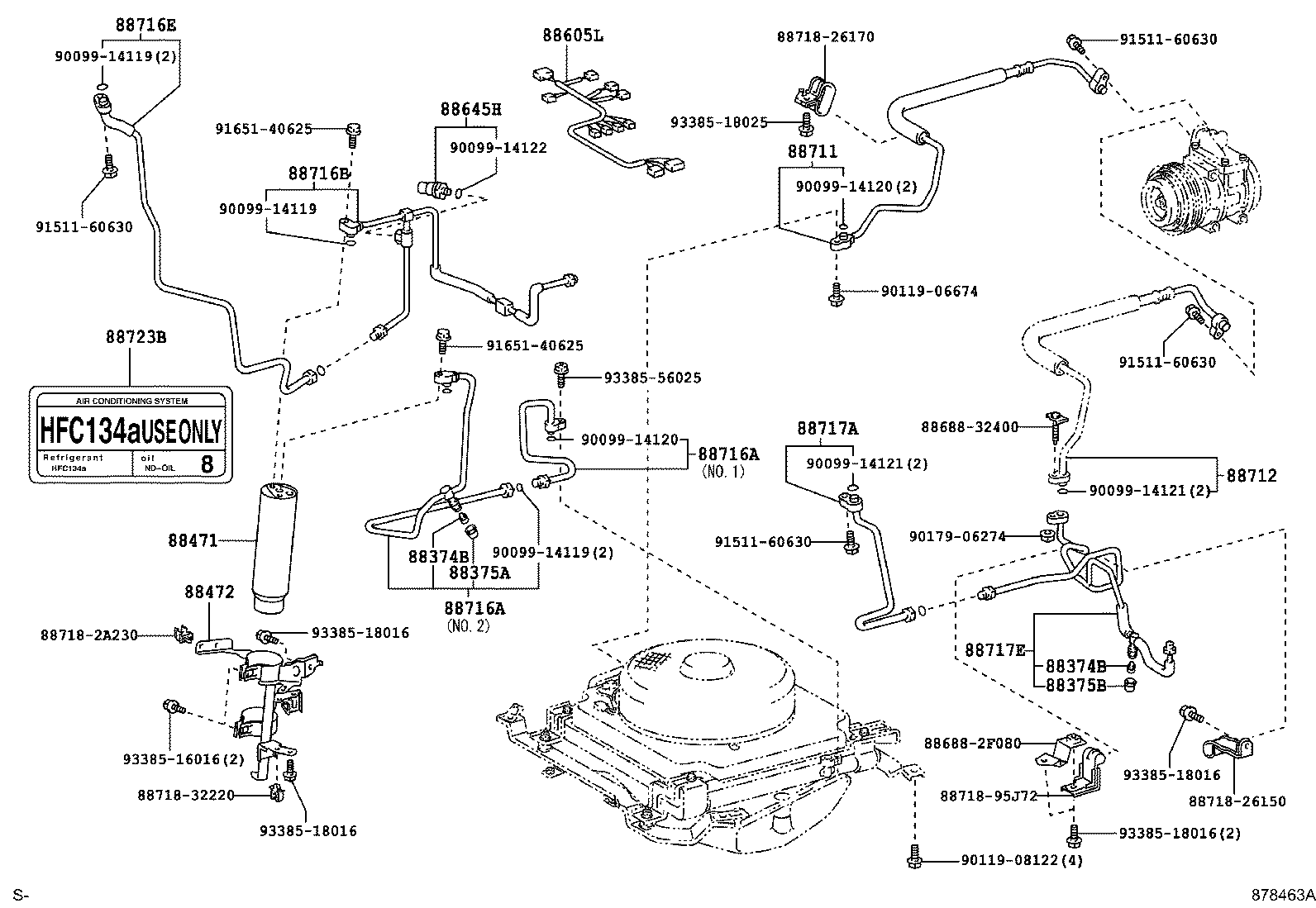

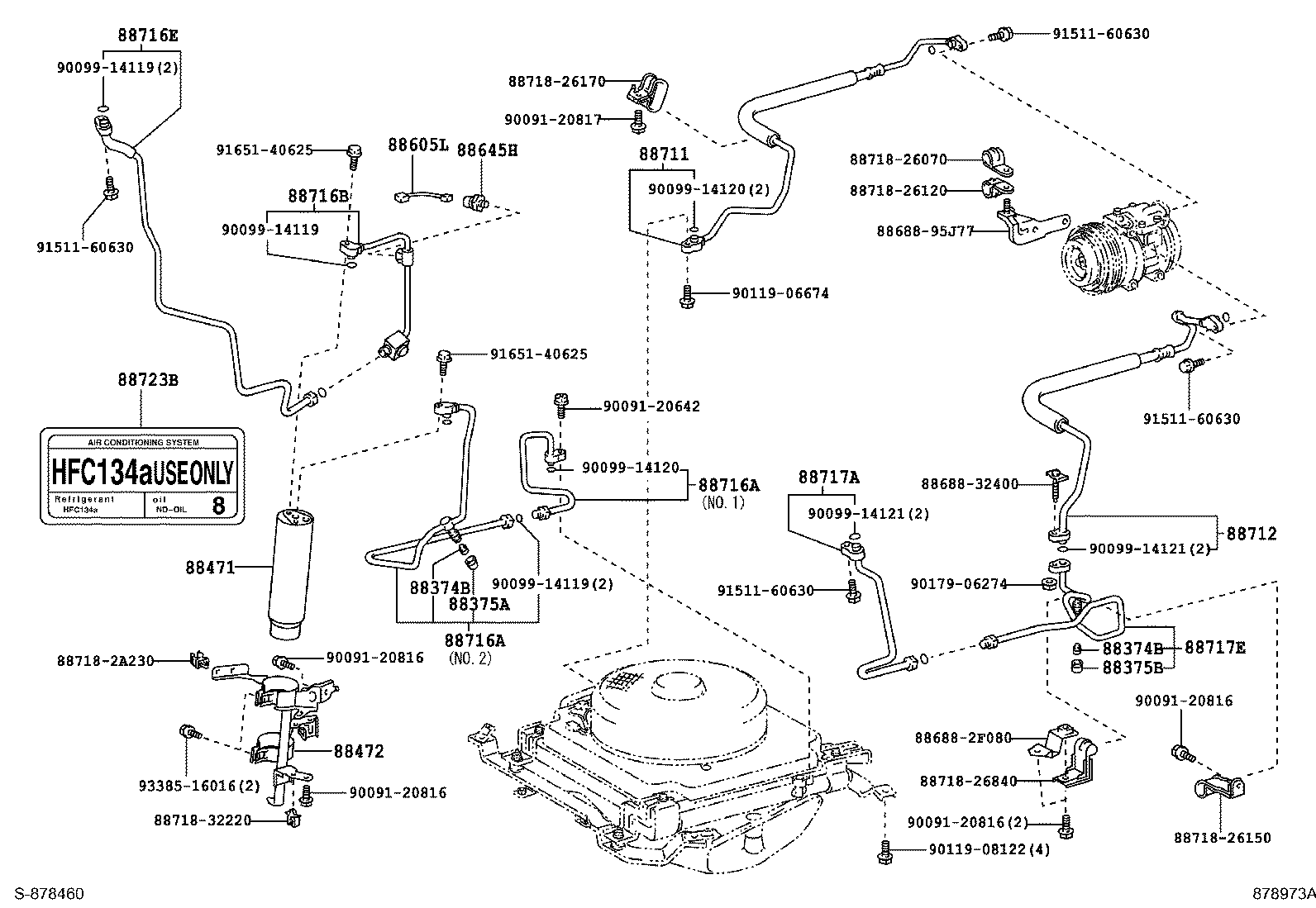

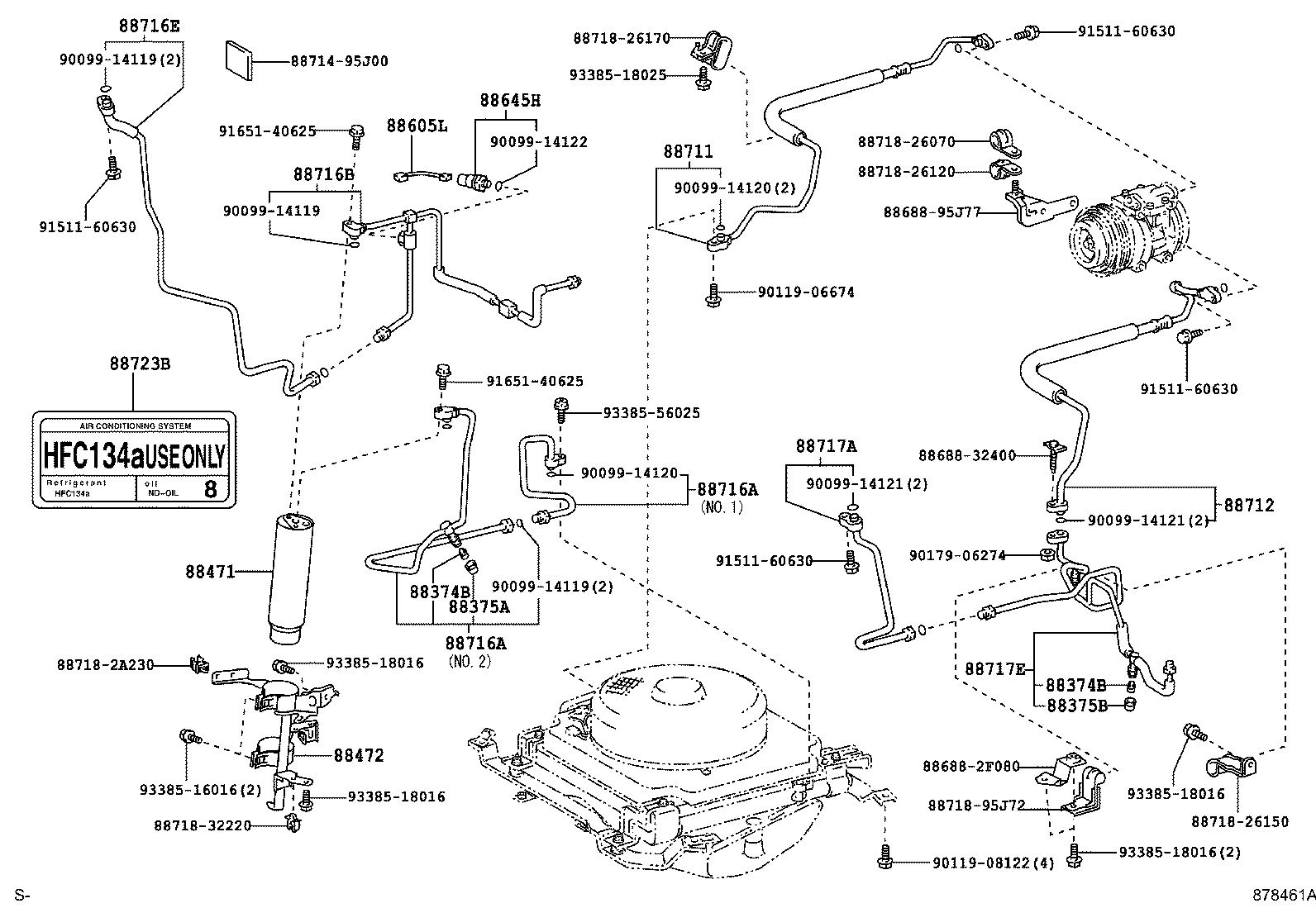

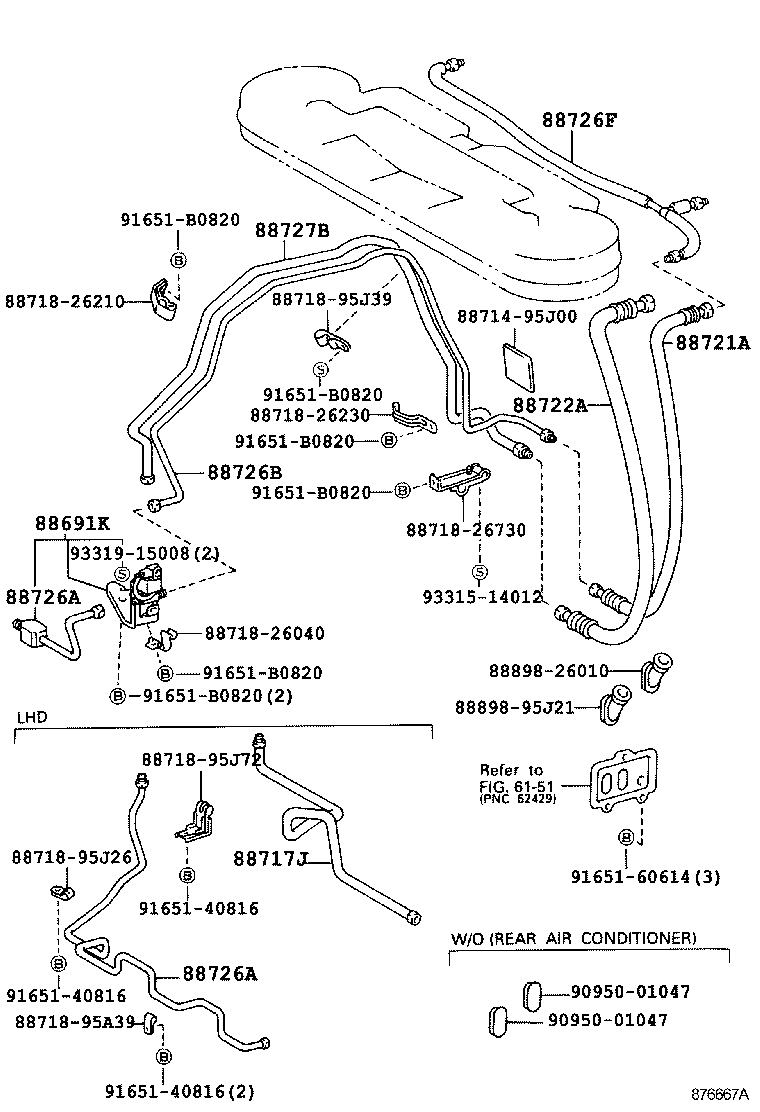

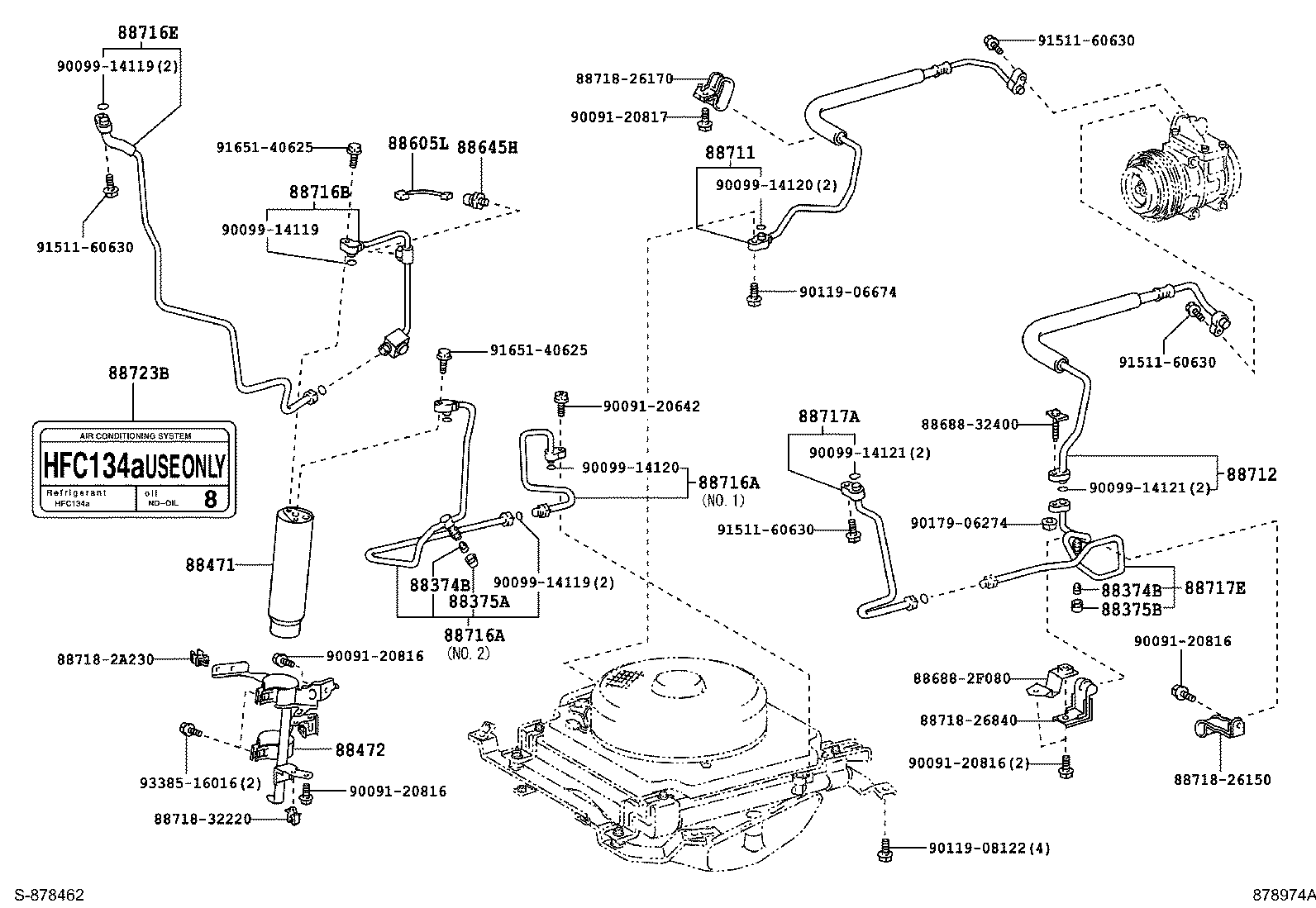

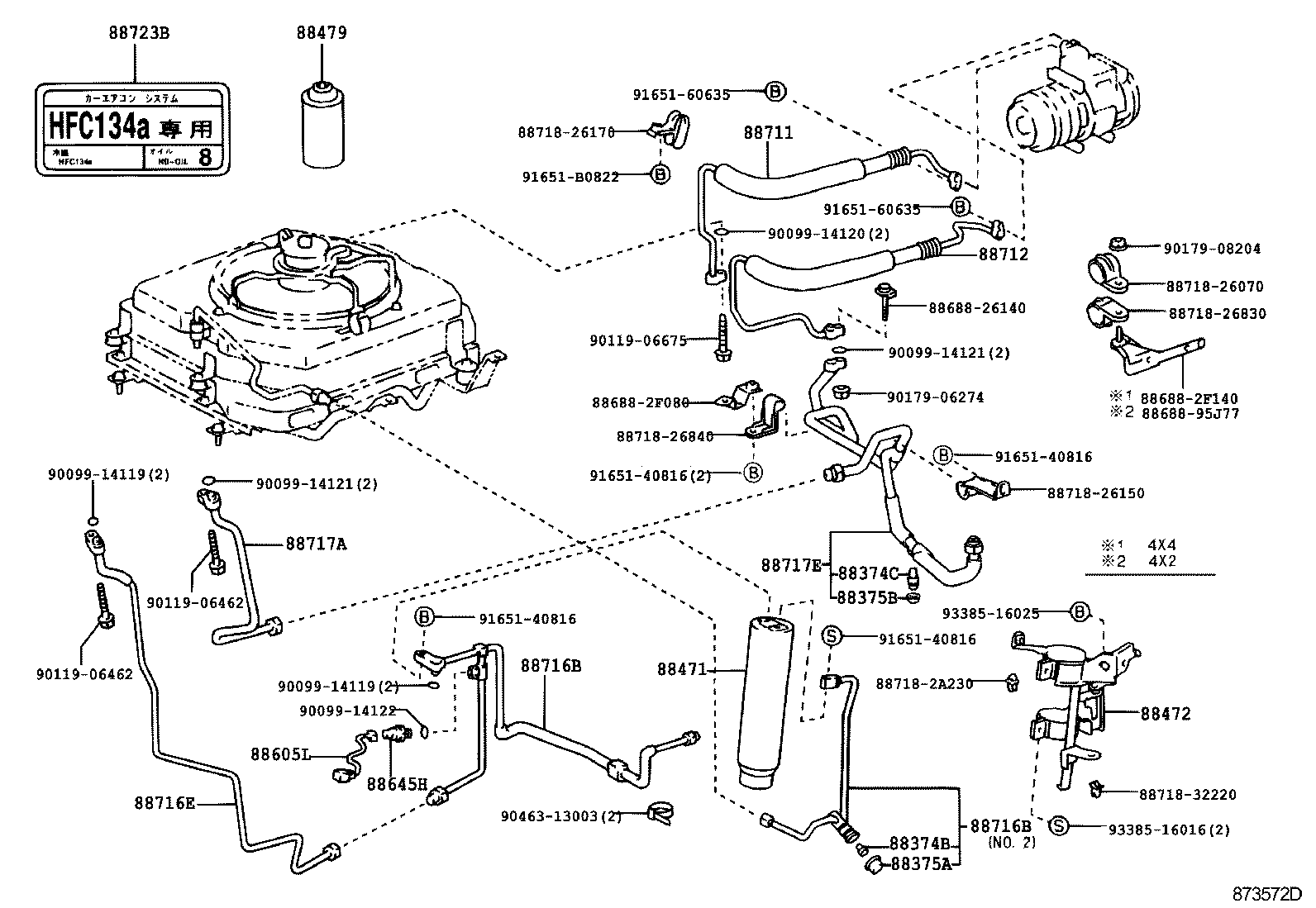

Figure MEU348A MEU348A 1989-08 → 1993-08 Figure MEN748A MEN748A 1989-08 → 1993-08 Figure 870419 870419 1989-08 → 1993-08 Figure 870420 870420 1989-08 → 1993-08 Figure 870443 870443 1989-08 → 1998-08 Figure 870474 870474 1993-08 → 1998-08 Figure 870421A 870421A 1993-08 → 1998-08 Figure 873060F 873060F 1998-08 → — Figure MEN747A MEN747A 1989-08 → 1993-08 Figure MEN749B MEN749B 1989-08 → 1993-08 Figure 874434A 874434A 1993-08 → 1998-08 Figure 873539D 873539D 1998-08 → — Figure MER498A MER498A 1989-08 → 1993-08 Figure 877813 877813 1989-08 → 1993-08 Figure 877818 877818 1989-08 → 1993-08 Figure 870346A 870346A 1993-08 → 1995-08 Figure 870423F 870423F 1995-08 → — Figure 877814 877814 1989-08 → 1993-08 Figure 870504A 870504A 1993-08 → 1995-08 Figure 870505D 870505D 1995-08 → — Figure MEN753E MEN753E 1989-08 → 1993-08 Figure MEN754D MEN754D 1989-08 → 1993-08 Figure MER499A MER499A 1989-08 → 1993-08 Figure 870415 870415 1989-08 → 1993-08 Figure 870427C 870427C 1993-08 → 1998-08 Figure MEN755D MEN755D 1989-08 → 1993-08 Figure MEN756C MEN756C 1989-08 → 1993-08 Figure 870722D 870722D 1993-08 → — Figure 877815 877815 1989-08 → 1993-08 Figure 870425D 870425D 1993-08 → 1995-08 Figure 870503D 870503D 1995-08 → — Figure 873572D 873572D 1998-08 → — Figure 878460A 878460A 1998-08 → 2000-08 Figure 878460A 878460A 2000-08 → 2002-08 Figure 878460A 878460A 2002-08 → 2003-08 Figure 878973A 878973A 2003-08 → 2005-01 Figure 878461A 878461A 1998-08 → 2000-08 Figure 878461A 878461A 2000-08 → — Figure 878462A 878462A 1998-08 → 2003-08 Figure 878974A 878974A 2003-08 → 2005-01 Figure 878463A 878463A 1998-08 → — Figure MEN757C MEN757C 1989-08 → 1993-08 Figure 870428 870428 1989-08 → 1993-08 Figure 870516C 870516C 1993-08 → 1995-08 Figure 870519B 870519B 1993-08 → — Figure 876667A 876667A 1995-08 → — Figure 874502E 874502E 1998-08 → — Figure 878464 878464 1998-08 → 2000-08 Figure 878464 878464 1998-08 → — Figure 878464 878464 2000-08 → — Figure 876615A 876615A 2003-08 → — Figure 876616A 876616A 2003-08 → — Figure 870502A 870502A 1989-08 → — Figure 874869 874869 1993-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88407 Glass Sub-assy, Sight
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550D Motor Assy, Blower
88584B Guide, Cooler Air
88590 Blower Assy, W/Shroud
88605L Harness Sub-assy, Wiring Air Conditioner
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88691K Valve Assy, Magnet
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88717A Pipe, Cooler Refrigerant Suction, A
88717E Pipe, Cooler Refrigerant Suction, E
88717J Pipe, Cooler Refrigerant Suction, J
88721A Hose, Liquid, A
88722A Hose, Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726F Pipe, Cooler Refrigerant Liquid, F
88727B Pipe, Cooler Refrigerant Suction, B
88727E Pipe, Cooler Refrigerant Suction, E
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
