Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

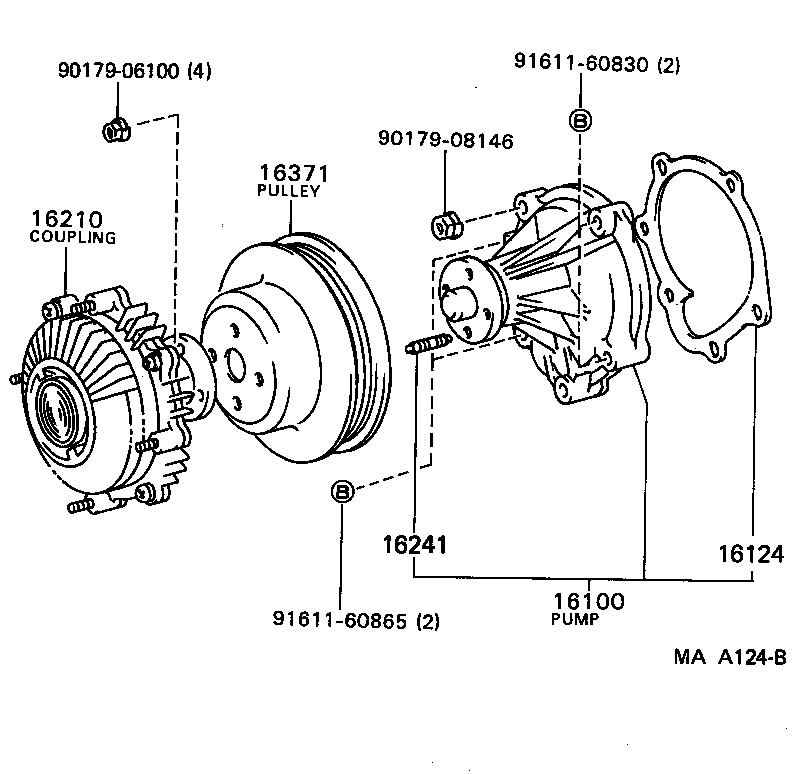

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-59137 |
Pump Assy, Engine Water
1987-08 → 1989-08
ended
|
2L LH5#,6# | — | |
| 16100-79036 |
Pump Assy, Engine Water
1987-08 → 1989-08
ended
|
3Y,4Y YH5#,6# | — | |
| 16124 — Gasket, Water Pump Cover | ||||
| 16124-71010 |
Gasket, Water Pump Cover
1987-08 → 1989-08
ended
|
3Y,4Y YH5#,6# | — | |
| 16210 — Coupling Assy, Fluid | ||||
| 16210-54070 |
Coupling Assy, Fluid
1987-08 → 1989-08
ended
|
2L LH5#,6# | — | |
| 16210-72010 |
Coupling Assy, Fluid
1987-08 → 1989-08
ended
|
3Y,4Y YH5#,6# | — | |
| 16241 — Bolt, Stud(FOR WATER PUMP COUPLING) | ||||
| 16193-13020 |
Bolt, Stud(FOR WATER PUMP COUPLING)
1987-08 → 1989-08
ended
|
2L LH5#,6# | — | |
| 16193-71010 |
Bolt, Stud(FOR WATER PUMP COUPLING)
1987-08 → 1989-08
ended
|
3Y,4Y YH5#,6# | — | |
| 16371 — Pulley, Fan | ||||
| 16371-54020 |
Pulley, Fan
1987-08 → 1989-08
ended
|
2L LH5#,6# | — | |
| 16371-71010 |
Pulley, Fan
1987-08 → 1989-08
ended
|
3Y,4Y YH5#,6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
