Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

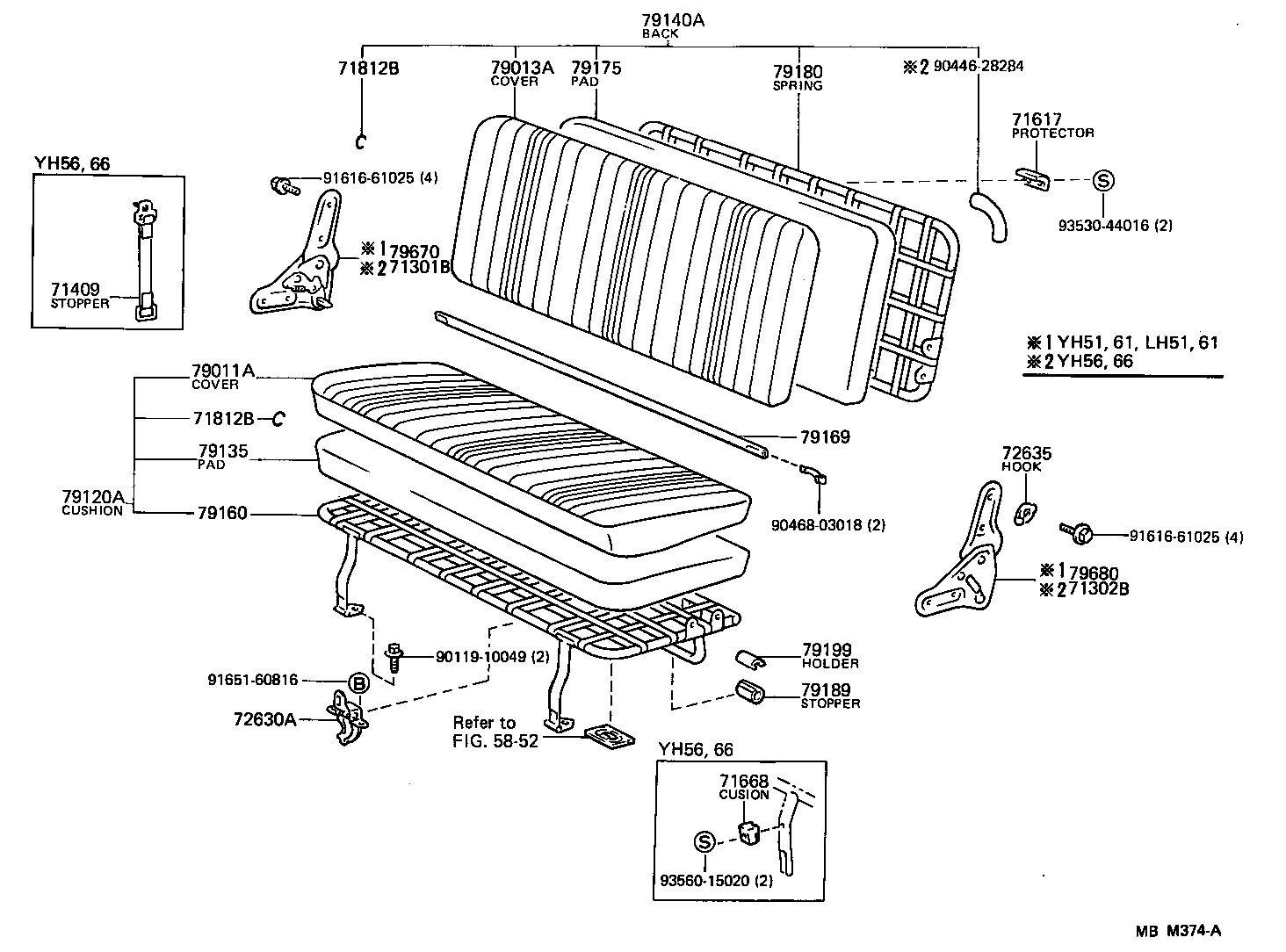

Exploded illustration MBM374A 79140A — BACK ASSY, NO.1 SEAT (17 parts) 9044628284 — not listed in this catalogue 79013A — COVER SUB-ASSY, NO.1 SEATBACK (15 parts) 79175 — PAD, NO.1 SEATBACK (13 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (11 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (9 parts) 71617 — PROTECTOR, REAR SEATBACK (1 parts) 9161661025 — not listed in this catalogue 9353044016 — not listed in this catalogue 79670 — HINGE ASSY, NO.1 SEAT, RH (3 parts) 71301B — HINGE SUB-ASSY, REAR NO.1 SEAT, RH (1 parts) 71409 — STOPPER SUB-ASSY, REAR SEATBACK (1 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (12 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (11 parts) 79169 — ROD, REAR SEAT HINGE CONNECTOR (10 parts) 79135 — PAD, NO.1 SEAT CUSHION (6 parts) 72635 — HOOK, REAR SEATBACK LOCK (1 parts) 79120A — CUSHION ASSY, NO.1 SEAT (12 parts) 79160 — SPRING ASSY, NO.1 SEAT CUSHION (7 parts) 9046803018 — not listed in this catalogue 9161661025 — not listed in this catalogue 79680 — HINGE ASSY, NO.1 SEAT, LH (3 parts) 71302B — HINGE SUB-ASSY, REAR NO.1 SEAT, LH (1 parts) 79199 — HOLDER, NO.1 SEAT LEG STOPPER (1 parts) 9011910049 — not listed in this catalogue 9165160816 — not listed in this catalogue 79189 — STOPPER, NO.1 SEAT LEG (1 parts) 72630A — LOCK ASSY, REAR NO.1 SEAT (2 parts) 5852 — not listed in this catalogue 71668 — CUSHION, REAR NO.3 SEAT (2 parts) 9356015020 — not listed in this catalogue
MBM374A · 22 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
71301B — Hinge Sub-assy, Rear NO.1 Seat, RH
71330-95J01-06 note Hinge Sub-assy, Rear NO.1 Seat, RH
1987-08 → 1989-08 ended
YH56,66 R —
71302B — Hinge Sub-assy, Rear NO.1 Seat, LH
71340-95J01-06 note Hinge Sub-assy, Rear NO.1 Seat, LH
1987-08 → 1989-08 ended
YH56,66 R —
71409 — Stopper Sub-assy, Rear Seatback
71409-95J00 Stopper Sub-assy, Rear Seatback
1987-08 → 1989-08 ended
YH56,66 R —
71617 — Protector, Rear Seatback
71617-95A03-06 note Protector, Rear Seatback
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
71668 — Cushion, Rear NO.3 Seat
71668-95700 Cushion, Rear NO.3 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
71668-95700 Cushion, Rear NO.3 Seat
1987-08 → 1989-08 ended
YH56,66 R —
71812B — Clip(FOR REAR SEAT CUSHION COVER)
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
YH61 V4D 5H R —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08 ended
LH61 U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08 ended
LH61 U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-09 → 1989-08 ended
YH51 U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
YH61 V4D 5H R —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05 ended
LH61 U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05 ended
LH61 U —
72630A — Lock Assy, Rear NO.1 Seat
72630-95J00 Lock Assy, Rear NO.1 Seat
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
72630-95J00 note Lock Assy, Rear NO.1 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
72635 — Hook, Rear Seatback Lock
72635-95J04 Hook, Rear Seatback Lock
1987-08 → 1989-08 ended
YH56,66 R —
79011A — Cover Sub-assy, NO.1 Seat Cushion
79011-95J36-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1988-05 → 1989-08 ended
LH61 U —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,YH5# U —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-05 ended
LH61 U —
79011-95J53-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79011-95J67-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH56,66 R —
79011-95J70-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79011-95J85-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79011-95J87-04 note Cover Sub-assy, NO.1 Seat Cushion
1987-10 → 1989-08 ended
YH51 U —
79031-95J23-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79031-95J38-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79013A — Cover Sub-assy, NO.1 Seatback
79013-95J27-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79013-95J46-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-08 ended
YH61 15S —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79013-95J78-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05 ended
YH51 J;LH6#,YH6# J,U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79013-95J82-04 note Cover Sub-assy, NO.1 Seatback
1987-10 → 1989-08 ended
YH51 U —
79033-95J21-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79033-95J35-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79033-95J36-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79120A — Cushion Assy, NO.1 Seat
79120-95J37-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79120-95J49-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1988-05 ended
LH61 U —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79120-95J60-06 note Cushion Assy, NO.1 Seat
1987-08 → 1988-08 ended
YH61 15S —
79120-95J71-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH56,66 R —
79120-95N04-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79120-95N06-04 note Cushion Assy, NO.1 Seat
1987-10 → 1989-08 ended
YH51 U —
79320-95J23-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79320-95J48-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79135 — Pad, NO.1 Seat Cushion
79015-90C00 Pad, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79135-95J03 Pad, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79135-95J06 Pad, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-09 → 1989-08 ended
YH51 U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-08 → 1987-09 ended
LH51,YH51 U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-09 → 1989-08 ended
LH51 U —
79140A — Back Assy, NO.1 Seat
79140-95J33-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79140-95J43-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1988-05 ended
LH61 U —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79140-95J58-16 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79140-95J73-06 note Back Assy, NO.1 Seat
1987-08 → 1988-08 ended
YH61 15S —
79140-95J78-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH56,66 R —
79140-95N03-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79140-95N04-06 note Back Assy, NO.1 Seat
1987-08 → 1988-05 ended
YH51 J;LH6#,YH6# J,U —
79140-95N04-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79140-95N04-06 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79140-95N04-06 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79140-95N07-04 note Back Assy, NO.1 Seat
1987-10 → 1989-08 ended
YH51 U —
79340-95J25-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79340-95J39-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79340-95J40-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79160 — Spring Assy, NO.1 Seat Cushion
79160-95J15 Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79160-95J16 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79160-95J17 Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79160-95J23-01 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH56,66 R —
79160-95J30 Spring Assy, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79160-95J35 note Spring Assy, NO.1 Seat Cushion
1987-09 → 1989-08 ended
YH51 U —
79360-95J07 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79169 — Rod, Rear Seat Hinge Connector
79169-95J02 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79169-95J02 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
YH56,66 R —
79169-95J04 Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79169-95J04 note Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79169-95J04 note Rod, Rear Seat Hinge Connector
1987-08 → 1988-05 ended
LH61 U —
79169-95J04 note Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79169-95J05 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH51,YH51 U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1987-08 → 1988-05 ended
LH61 U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79175 — Pad, NO.1 Seatback
79175-90C01 Pad, NO.1 Seatback
1987-08 → 1988-08 ended
YH61 15S —
79175-95J02 Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79175-95J02 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79175-95J04 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79175-95J10 Pad, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79175-95J10 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79175-95J10 Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79175-95J10 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79175-95J10 Pad, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79175-95J13 note Pad, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79175-95J13 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79375-95J06 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79375-95J06 note Pad, NO.1 Seatback
1987-09 → 1989-08 ended
YH51 U —
79180 — Spring Assy, NO.1 Seatback
79180-95J03 Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79180-95J08 Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79180-95J10 note Spring Assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79180-95J13 note Spring Assy, NO.1 Seatback
1987-09 → 1989-08 ended
YH51 U —
79380-95J11 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79380-95J12 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79189 — Stopper, NO.1 Seat Leg
79189-95J00 Stopper, NO.1 Seat Leg
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
79199 — Holder, NO.1 Seat Leg Stopper
79199-95J00 Holder, NO.1 Seat Leg Stopper
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
79670 — Hinge Assy, NO.1 Seat, RH
79670-95J00-06 note Hinge Assy, NO.1 Seat, RH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79670-95J03-06 note Hinge Assy, NO.1 Seat, RH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79670-95J05-06 note Hinge Assy, NO.1 Seat, RH
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79680 — Hinge Assy, NO.1 Seat, LH
79680-95J01-06 note Hinge Assy, NO.1 Seat, LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79680-95J03-06 note Hinge Assy, NO.1 Seat, LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79680-95J05-06 note Hinge Assy, NO.1 Seat, LH
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
