Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

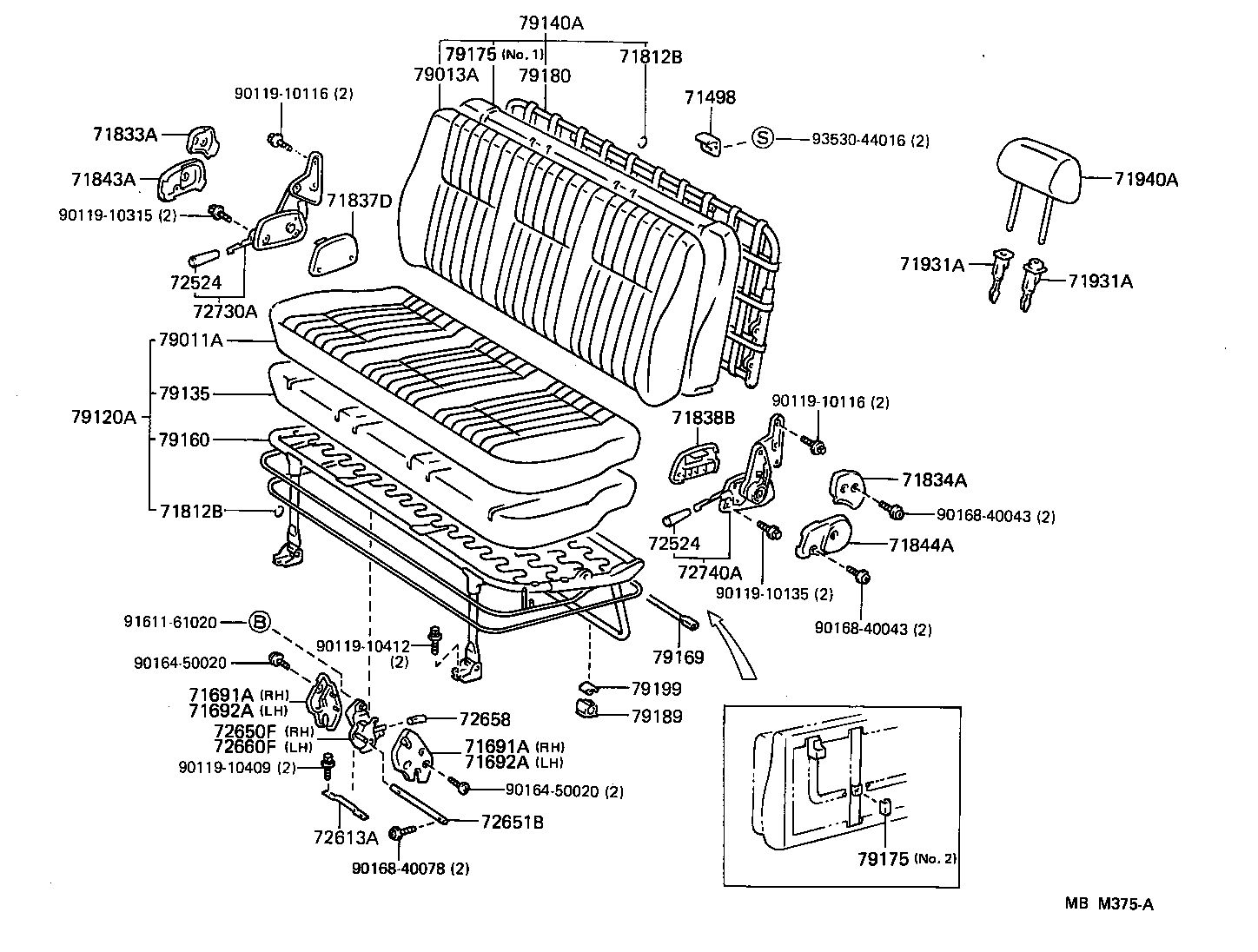

Exploded illustration MBM375A 79140A — BACK ASSY, NO.1 SEAT (17 parts) 79175 — PAD, NO.1 SEATBACK (13 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (11 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (15 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (9 parts) 9011910116 — not listed in this catalogue 71498 — PROTECTOR, REAR SEATBACK (1 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (5 parts) 9353044016 — not listed in this catalogue 71843A — COVER, REAR SEAT RECLINING, NO.2 RH (1 parts) 71940A — HEADREST ASSY, REAR SEAT (6 parts) 71837D — COVER, REAR SEAT RECLINING, INNER RH (7 parts) 9011910315 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 72524 — HANDLE, RECLINING ADJUSTER RELEASE (1 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (7 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (12 parts) 79135 — PAD, NO.1 SEAT CUSHION (6 parts) 9011910116 — not listed in this catalogue 79120A — CUSHION ASSY, NO.1 SEAT (12 parts) 71838B — COVER, REAR SEAT RECLINING, INNER LH (7 parts) 79160 — SPRING ASSY, NO.1 SEAT CUSHION (7 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (1 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (11 parts) 9016840043 — not listed in this catalogue 72524 — HANDLE, RECLINING ADJUSTER RELEASE (1 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (1 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (11 parts) 9011910135 — not listed in this catalogue 9161161020 — not listed in this catalogue 9016840043 — not listed in this catalogue 9011910412 — not listed in this catalogue 79169 — ROD, REAR SEAT HINGE CONNECTOR (10 parts) 9016450020 — not listed in this catalogue 79199 — HOLDER, NO.1 SEAT LEG STOPPER (1 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (2 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (2 parts) 79189 — STOPPER, NO.1 SEAT LEG (1 parts) 72658 — KNOB, REAR SEAT HANDLE (1 parts) 72650F — LOCK ASSY, REAR SEAT, RH (5 parts) 72660F — LOCK ASSY, REAR SEAT, LH (1 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (2 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (2 parts) 9011910409 — not listed in this catalogue 9016450020 — not listed in this catalogue 72651B — ROD, REAR SEAT LOCK (1 parts) 72613A — STRIKER, FRONT SEAT LOCK (1 parts) 79175 — PAD, NO.1 SEATBACK (13 parts) 9016840078 — not listed in this catalogue
MBM375A · 37 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
193 parts on this figure
Part number Description Fitment Price
71498 — Protector, Rear Seatback
71498-95703-06 note Protector, Rear Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71691A — Cover, Rear NO.3 Seat Lock, RH
71691-95703-16 note Cover, Rear NO.3 Seat Lock, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71691-95J00-06 note Cover, Rear NO.3 Seat Lock, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71692A — Cover, Rear NO.3 Seat Lock, LH
71692-95702-16 note Cover, Rear NO.3 Seat Lock, LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71692-95J00-06 note Cover, Rear NO.3 Seat Lock, LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71812B — Clip(FOR REAR SEAT CUSHION COVER)
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
YH61 V4D 5H R —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08 ended
LH61 U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08 ended
LH61 U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-09 → 1989-08 ended
YH51 U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
90468-18071 note Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
YH61 V4D 5H R —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05 ended
LH61 U —
90468-18071 Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05 ended
LH61 U —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-95701-06 note Cover, Rear Seat Reclining, NO.1 RH
1987-08 → 1988-05 ended
LH61 U —
71833-95701-06 note Cover, Rear Seat Reclining, NO.1 RH
1988-05 → 1989-08 ended
LH61 U —
71833-95702-06 note Cover, Rear Seat Reclining, NO.1 RH
1988-05 → 1989-08 ended
LH61 U —
71833-95702-06 note Cover, Rear Seat Reclining, NO.1 RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71833-95702-06 note Cover, Rear Seat Reclining, NO.1 RH
1987-08 → 1988-05 ended
LH61 U —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-95701-06 note Cover, Rear Seat Reclining, NO.1 LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71837D — Cover, Rear Seat Reclining, Inner RH
71837-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1987-08 → 1988-05 ended
LH61 U —
71837-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1988-05 → 1989-08 ended
LH61 U —
71837-95J01 note Cover, Rear Seat Reclining, Inner RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72708-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1987-08 → 1988-05 ended
LH61 U —
72708-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72708-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1987-08 → 1989-08 ended
LH51,YH51 U —
72708-95J00-16 note Cover, Rear Seat Reclining, Inner RH
1988-05 → 1989-08 ended
LH61 U —
71838B — Cover, Rear Seat Reclining, Inner LH
71838-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1987-08 → 1988-05 ended
LH61 U —
71838-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71838-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1988-05 → 1989-08 ended
LH61 U —
72709-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1987-08 → 1988-05 ended
LH61 U —
72709-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1988-05 → 1989-08 ended
LH61 U —
72709-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72709-95J00-16 note Cover, Rear Seat Reclining, Inner LH
1987-08 → 1989-08 ended
LH51,YH51 U —
71843A — Cover, Rear Seat Reclining, NO.2 RH
71843-95700-06 note Cover, Rear Seat Reclining, NO.2 RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-95700-06 note Cover, Rear Seat Reclining, NO.2 LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
71931A — Support, Rear Seat Headrest
71956-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71956-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71956-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71956-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
YH51 J;LH6#,YH6# J,U —
71956-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
LH5#,YH5# U —
71956-30020-16 note Support, Rear Seat Headrest
1988-05 → 1989-08 ended
LH61 U —
71956-30020-16 note Support, Rear Seat Headrest
1987-08 → 1988-05 ended
LH61 U —
71956-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
LH51,YH51 U —
71956-30020-16 note Support, Rear Seat Headrest
1987-09 → 1989-08 ended
YH51 U —
71990-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71990-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71990-30020-04 note Support, Rear Seat Headrest
1987-10 → 1989-08 ended
YH51 U —
71990-30020-16 note Support, Rear Seat Headrest
1987-09 → 1989-08 ended
YH51 U —
71990-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
YH51 J;LH6#,YH6# J,U —
71990-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
LH5#,YH5# U —
71990-30020-16 note Support, Rear Seat Headrest
1987-08 → 1988-05 ended
LH61 U —
71990-30020-16 note Support, Rear Seat Headrest
1987-08 → 1989-08 ended
LH51,YH51 U —
71990-30020-16 note Support, Rear Seat Headrest
1988-05 → 1989-08 ended
LH61 U —
71940A — Headrest Assy, Rear Seat
71910-95J14-06 note Headrest Assy, Rear Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
71910-95J14-06 note Headrest Assy, Rear Seat
1988-05 → 1989-08 ended
LH61 U —
71910-95J14-06 note Headrest Assy, Rear Seat
1987-08 → 1989-08 ended
YH51 J;LH6#,YH6# J,U —
71910-95J14-06 note Headrest Assy, Rear Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
71910-95J14-06 note Headrest Assy, Rear Seat
1987-08 → 1988-05 ended
LH61 U —
71940-95J14-04 note Headrest Assy, Rear Seat
1987-10 → 1989-08 ended
YH51 U —
72524 — Handle, Reclining Adjuster Release
72525-95J00-16 note Handle, Reclining Adjuster Release
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72613A — Striker, Front Seat Lock
72613-95J00 Striker, Front Seat Lock
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72650F — Lock Assy, Rear Seat, RH
72650-95J02 note Lock Assy, Rear Seat, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72650-95J03 note Lock Assy, Rear Seat, RH
1987-08 → 1988-05 ended
LH61 U —
72650-95J03 Lock Assy, Rear Seat, RH
1987-08 → 1989-08 ended
LH51,YH51 U —
72650-95J03 note Lock Assy, Rear Seat, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72650-95J03 note Lock Assy, Rear Seat, RH
1988-05 → 1989-08 ended
LH61 U —
72651B — Rod, Rear Seat Lock
72651-95J00 Rod, Rear Seat Lock
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72658 — Knob, Rear Seat Handle
72658-95701-06 note Knob, Rear Seat Handle
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72660F — Lock Assy, Rear Seat, LH
72660-95J02 Lock Assy, Rear Seat, LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-95705 note Adjuster Assy, Rear Seat Reclining, RH
1987-08 → 1988-05 ended
LH61 U —
72730-95705 note Adjuster Assy, Rear Seat Reclining, RH
1988-05 → 1989-08 ended
LH61 U —
72730-95J03 note Adjuster Assy, Rear Seat Reclining, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72730-95J05-06 note Adjuster Assy, Rear Seat Reclining, RH
1987-08 → 1988-05 ended
LH61 U —
72730-95J05-06 note Adjuster Assy, Rear Seat Reclining, RH
1987-08 → 1989-08 ended
LH51,YH51 U —
72730-95J05-06 note Adjuster Assy, Rear Seat Reclining, RH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72730-95J05-06 note Adjuster Assy, Rear Seat Reclining, RH
1988-05 → 1989-08 ended
LH61 U —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-95J03-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1988-05 ended
LH61 U —
72740-95J03-06 note Adjuster Assy, Rear Seat Reclining, LH
1988-05 → 1989-08 ended
LH61 U —
72740-95J03-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72740-95J06-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
72740-95J06-06 note Adjuster Assy, Rear Seat Reclining, LH
1988-05 → 1989-08 ended
LH61 U —
72740-95J06-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1989-08 ended
LH5#,YH5# U —
72740-95J06-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1988-05 ended
LH61 U —
72740-95J08-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
72740-95J08-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1989-08 ended
LH51,YH51 U —
72740-95J08-06 note Adjuster Assy, Rear Seat Reclining, LH
1987-08 → 1988-05 ended
LH61 U —
72740-95J08-06 note Adjuster Assy, Rear Seat Reclining, LH
1988-05 → 1989-08 ended
LH61 U —
79011A — Cover Sub-assy, NO.1 Seat Cushion
79011-95J36-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-05 ended
LH61 U —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,YH5# U —
79011-95J50-16 note Cover Sub-assy, NO.1 Seat Cushion
1988-05 → 1989-08 ended
LH61 U —
79011-95J53-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79011-95J67-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH56,66 R —
79011-95J70-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79011-95J85-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79011-95J87-04 note Cover Sub-assy, NO.1 Seat Cushion
1987-10 → 1989-08 ended
YH51 U —
79031-95J23-16 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79031-95J38-06 note Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79013A — Cover Sub-assy, NO.1 Seatback
79013-95J27-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79013-95J46-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-08 ended
YH61 15S —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79013-95J53-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79013-95J78-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05 ended
YH51 J;LH6#,YH6# J,U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79013-95J79-06 note Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79013-95J82-04 note Cover Sub-assy, NO.1 Seatback
1987-10 → 1989-08 ended
YH51 U —
79033-95J21-16 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79033-95J35-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79033-95J36-06 note Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79120A — Cushion Assy, NO.1 Seat
79120-95J37-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79120-95J49-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1988-05 ended
LH61 U —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79120-95J51-16 note Cushion Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79120-95J60-06 note Cushion Assy, NO.1 Seat
1987-08 → 1988-08 ended
YH61 15S —
79120-95J71-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH56,66 R —
79120-95N04-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79120-95N06-04 note Cushion Assy, NO.1 Seat
1987-10 → 1989-08 ended
YH51 U —
79320-95J23-16 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79320-95J48-06 note Cushion Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79135 — Pad, NO.1 Seat Cushion
79015-90C00 Pad, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79135-95J03 Pad, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79135-95J06 Pad, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-08 → 1987-09 ended
LH51,YH51 U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-09 → 1989-08 ended
LH51 U —
79335-95J05 note Pad, NO.1 Seat Cushion
1987-09 → 1989-08 ended
YH51 U —
79140A — Back Assy, NO.1 Seat
79140-95J33-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79140-95J43-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1988-05 ended
LH61 U —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79140-95J58-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79140-95J58-16 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79140-95J73-06 note Back Assy, NO.1 Seat
1987-08 → 1988-08 ended
YH61 15S —
79140-95J78-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
YH56,66 R —
79140-95N03-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79140-95N04-06 note Back Assy, NO.1 Seat
1987-08 → 1988-05 ended
YH51 J;LH6#,YH6# J,U —
79140-95N04-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH5#,YH5# U —
79140-95N04-06 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79140-95N04-06 note Back Assy, NO.1 Seat
1988-05 → 1989-08 ended
LH61 U —
79140-95N07-04 note Back Assy, NO.1 Seat
1987-10 → 1989-08 ended
YH51 U —
79340-95J25-16 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79340-95J39-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79340-95J40-06 note Back Assy, NO.1 Seat
1987-08 → 1989-08 ended
LH51,YH51 U —
79160 — Spring Assy, NO.1 Seat Cushion
79160-95J15 Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,61,YH51,61 R —
79160-95J16 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79160-95J17 Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79160-95J23-01 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
YH56,66 R —
79160-95J30 Spring Assy, NO.1 Seat Cushion
1987-08 → 1988-08 ended
YH61 15S —
79160-95J35 note Spring Assy, NO.1 Seat Cushion
1987-09 → 1989-08 ended
YH51 U —
79360-95J07 note Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08 ended
LH51,YH51 U —
79169 — Rod, Rear Seat Hinge Connector
79169-95J02 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
YH56,66 R —
79169-95J02 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79169-95J04 note Rod, Rear Seat Hinge Connector
1987-08 → 1988-05 ended
LH61 U —
79169-95J04 note Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79169-95J04 Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79169-95J04 note Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1987-08 → 1988-05 ended
LH61 U —
79169-95J05 Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH51,YH51 U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79169-95J05 note Rod, Rear Seat Hinge Connector
1988-05 → 1989-08 ended
LH61 U —
79175 — Pad, NO.1 Seatback
79175-90C01 Pad, NO.1 Seatback
1987-08 → 1988-08 ended
YH61 15S —
79175-95J02 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79175-95J02 Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79175-95J04 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 V4D 5H R —
79175-95J10 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79175-95J10 Pad, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79175-95J10 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79175-95J10 Pad, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79175-95J10 Pad, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79175-95J13 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79175-95J13 note Pad, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79375-95J06 note Pad, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79375-95J06 note Pad, NO.1 Seatback
1987-09 → 1989-08 ended
YH51 U —
79180 — Spring Assy, NO.1 Seatback
79180-95J03 Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,61,YH5#,6# R —
79180-95J08 Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,U —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1988-05 ended
LH61 U —
79180-95J10 note Spring Assy, NO.1 Seatback
1988-05 → 1989-08 ended
LH61 U —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
YH61 J,U;LH6#,YH51,66 J —
79180-95J10 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH5#,YH5# U —
79180-95J13 note Spring Assy, NO.1 Seatback
1987-09 → 1989-08 ended
YH51 U —
79380-95J11 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79380-95J12 note Spring Assy, NO.1 Seatback
1987-08 → 1989-08 ended
LH51,YH51 U —
79189 — Stopper, NO.1 Seat Leg
79189-95J00 Stopper, NO.1 Seat Leg
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
79199 — Holder, NO.1 Seat Leg Stopper
79199-95J00 Holder, NO.1 Seat Leg Stopper
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# J,R,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
