Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

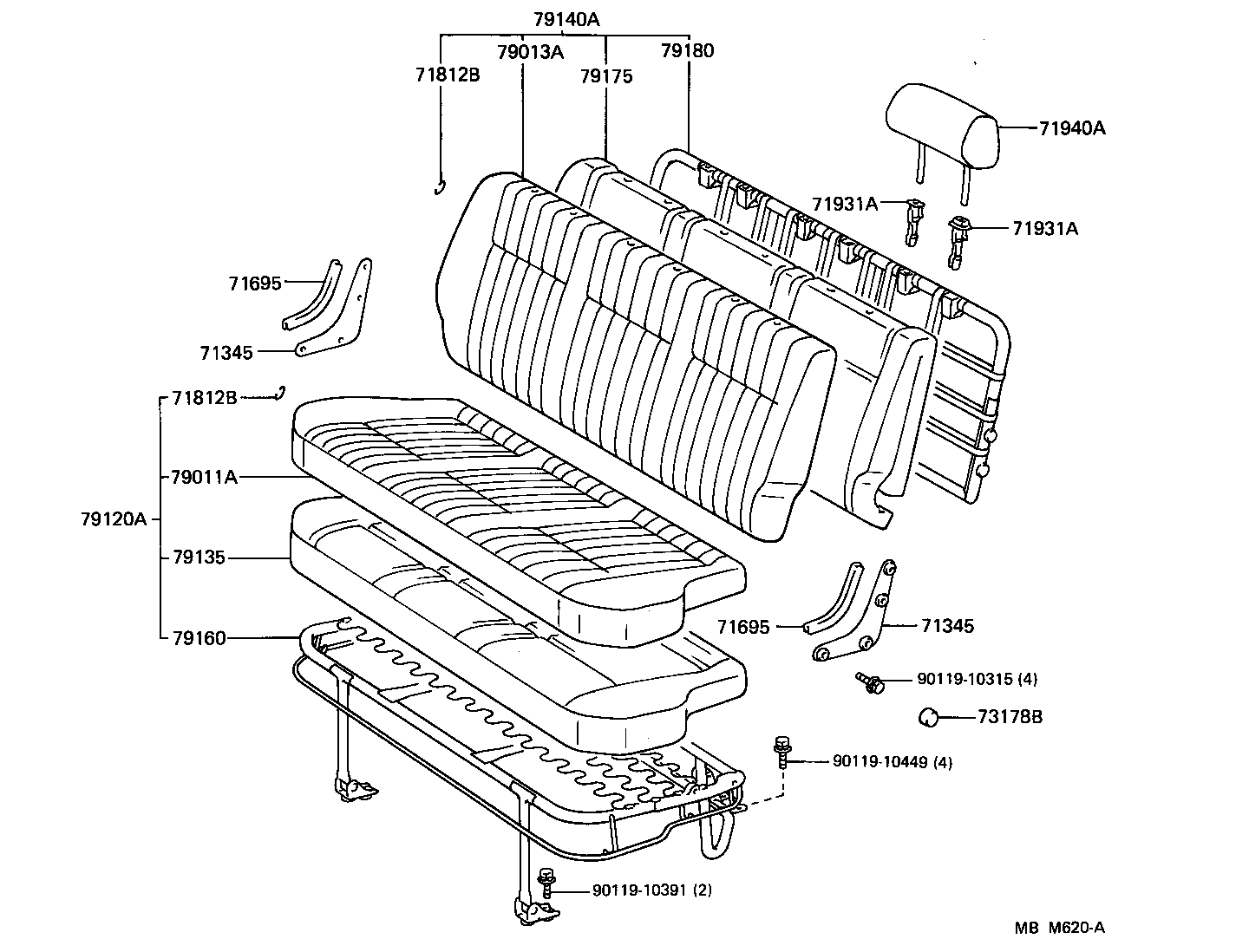

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71345 — Hinge, Rear Seatback | ||||
| 71345-95J01 note |
Hinge, Rear Seatback
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 71345-95J02 note |
Hinge, Rear Seatback
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 71695 — Protector, Rear Seatback | ||||
| 71695-95J01 note |
Protector, Rear Seatback
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 71812B — Clip(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 90468-18071 note |
Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 90468-18071 note |
Clip(FOR REAR SEAT CUSHION COVER)
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 90468-18071 note |
Clip(FOR REAR SEAT CUSHION COVER)
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 90468-18071 note |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 90468-18071 note |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,R,U | — | |
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1989-08
ended
|
LH51,61,YH5#,6# R | — | |
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 90468-18071 |
Clip(FOR REAR SEAT CUSHION COVER)
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 71931A — Support, Rear Seat Headrest | ||||
| 71956-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71956-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71956-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
YH51 J;LH6#,YH6# J,U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 71956-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 71990-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71990-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71990-30020-04 note |
Support, Rear Seat Headrest
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 71990-30020-16 note |
Support, Rear Seat Headrest
1987-08 → 1989-08
ended
|
YH51 J;LH6#,YH6# J,U | — | |
| 71940A — Headrest Assy, Rear Seat | ||||
| 71910-95J14-06 note |
Headrest Assy, Rear Seat
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 71910-95J14-06 note |
Headrest Assy, Rear Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 71910-95J14-06 note |
Headrest Assy, Rear Seat
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 71910-95J14-06 note |
Headrest Assy, Rear Seat
1987-08 → 1989-08
ended
|
YH51 J;LH6#,YH6# J,U | — | |
| 71910-95J14-06 note |
Headrest Assy, Rear Seat
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 71940-95J14-04 note |
Headrest Assy, Rear Seat
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 73178B — Cap, Seat Belt Anchor Cover | ||||
| 73178-95J00 note |
Cap, Seat Belt Anchor Cover
1987-08 → 1989-08
ended
|
YH51 U | — | |
| 73178-95J00 note |
Cap, Seat Belt Anchor Cover
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 79011A — Cover Sub-assy, NO.1 Seat Cushion | ||||
| 79011-95J36-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79011-95J50-16 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79011-95J50-16 note |
Cover Sub-assy, NO.1 Seat Cushion
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79011-95J50-16 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79011-95J50-16 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79011-95J53-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79011-95J67-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
YH56,66 R | — | |
| 79011-95J70-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 R | — | |
| 79011-95J85-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79011-95J87-04 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 79031-95J23-16 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79031-95J38-06 note |
Cover Sub-assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79013A — Cover Sub-assy, NO.1 Seatback | ||||
| 79013-95J27-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,61,YH5#,6# R | — | |
| 79013-95J46-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79013-95J53-16 note |
Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79013-95J53-16 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79013-95J53-16 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79013-95J53-16 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79013-95J78-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79013-95J79-06 note |
Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79013-95J79-06 note |
Cover Sub-assy, NO.1 Seatback
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79013-95J79-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79013-95J79-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1988-05
ended
|
YH51 J;LH6#,YH6# J,U | — | |
| 79013-95J82-04 note |
Cover Sub-assy, NO.1 Seatback
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 79033-95J21-16 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79033-95J35-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79033-95J36-06 note |
Cover Sub-assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79120A — Cushion Assy, NO.1 Seat | ||||
| 79120-95J37-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 R | — | |
| 79120-95J49-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79120-95J51-16 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79120-95J51-16 note |
Cushion Assy, NO.1 Seat
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79120-95J51-16 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79120-95J51-16 note |
Cushion Assy, NO.1 Seat
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79120-95J60-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79120-95J71-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH56,66 R | — | |
| 79120-95N04-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79120-95N06-04 note |
Cushion Assy, NO.1 Seat
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 79320-95J23-16 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79320-95J48-06 note |
Cushion Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79135 — Pad, NO.1 Seat Cushion | ||||
| 79015-90C00 |
Pad, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79135-95J03 |
Pad, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,61,YH5#,6# R | — | |
| 79135-95J06 |
Pad, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79335-95J05 note |
Pad, NO.1 Seat Cushion
1987-09 → 1989-08
ended
|
LH51 U | — | |
| 79335-95J05 note |
Pad, NO.1 Seat Cushion
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 79335-95J05 note |
Pad, NO.1 Seat Cushion
1987-08 → 1987-09
ended
|
LH51,YH51 U | — | |
| 79140A — Back Assy, NO.1 Seat | ||||
| 79140-95J33-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 R | — | |
| 79140-95J43-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79140-95J58-16 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79140-95J58-16 note |
Back Assy, NO.1 Seat
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79140-95J58-16 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79140-95J58-16 note |
Back Assy, NO.1 Seat
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79140-95J73-06 note |
Back Assy, NO.1 Seat
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79140-95J78-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
YH56,66 R | — | |
| 79140-95N03-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79140-95N04-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79140-95N04-06 note |
Back Assy, NO.1 Seat
1987-08 → 1988-05
ended
|
YH51 J;LH6#,YH6# J,U | — | |
| 79140-95N04-06 note |
Back Assy, NO.1 Seat
1988-05 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79140-95N04-06 note |
Back Assy, NO.1 Seat
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79140-95N07-04 note |
Back Assy, NO.1 Seat
1987-10 → 1989-08
ended
|
YH51 U | — | |
| 79340-95J25-16 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79340-95J39-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79340-95J40-06 note |
Back Assy, NO.1 Seat
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79160 — Spring Assy, NO.1 Seat Cushion | ||||
| 79160-95J15 |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 R | — | |
| 79160-95J16 note |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79160-95J17 |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79160-95J23-01 note |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
YH56,66 R | — | |
| 79160-95J30 |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79160-95J35 note |
Spring Assy, NO.1 Seat Cushion
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 79360-95J07 note |
Spring Assy, NO.1 Seat Cushion
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79175 — Pad, NO.1 Seatback | ||||
| 79175-90C01 |
Pad, NO.1 Seatback
1987-08 → 1988-08
ended
|
YH61 15S | — | |
| 79175-95J02 |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,61,YH5#,6# R | — | |
| 79175-95J02 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79175-95J04 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
YH61 V4D 5H R | — | |
| 79175-95J10 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79175-95J10 |
Pad, NO.1 Seatback
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79175-95J10 |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79175-95J10 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79175-95J10 |
Pad, NO.1 Seatback
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79175-95J13 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79175-95J13 note |
Pad, NO.1 Seatback
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79375-95J06 note |
Pad, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79375-95J06 note |
Pad, NO.1 Seatback
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 79180 — Spring Assy, NO.1 Seatback | ||||
| 79180-95J03 |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,61,YH5#,6# R | — | |
| 79180-95J08 |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# J,U | — | |
| 79180-95J10 note |
Spring Assy, NO.1 Seatback
1987-08 → 1988-05
ended
|
LH61 U | — | |
| 79180-95J10 note |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH5#,YH5# U | — | |
| 79180-95J10 note |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
YH61 J,U;LH6#,YH51,66 J | — | |
| 79180-95J10 note |
Spring Assy, NO.1 Seatback
1988-05 → 1989-08
ended
|
LH61 U | — | |
| 79180-95J13 note |
Spring Assy, NO.1 Seatback
1987-09 → 1989-08
ended
|
YH51 U | — | |
| 79380-95J11 note |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
| 79380-95J12 note |
Spring Assy, NO.1 Seatback
1987-08 → 1989-08
ended
|
LH51,YH51 U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
