Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

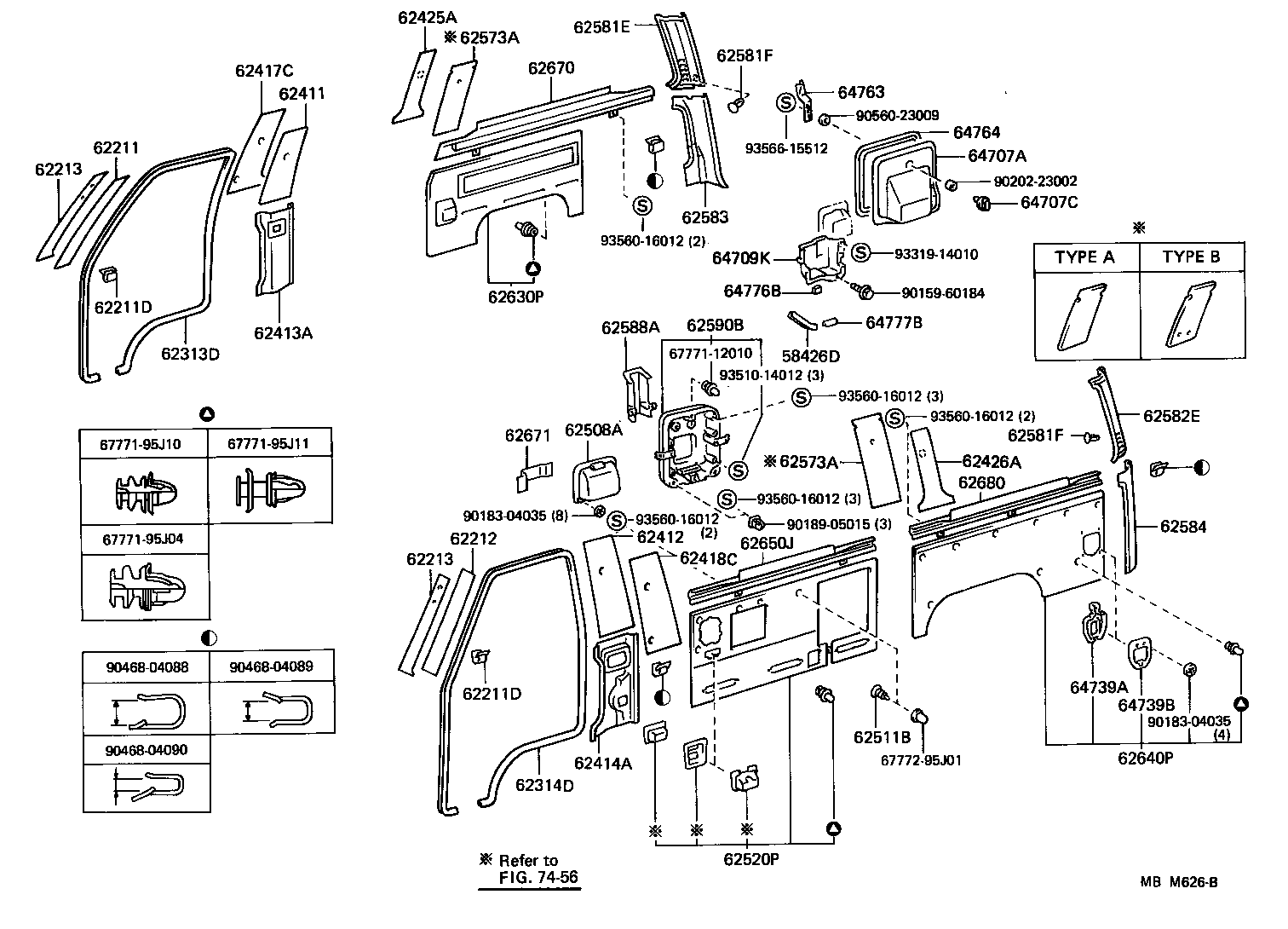

Exploded illustration MBM626B 62425A — PAD, QUARTER LOCK PILLAR, RH (1 parts) 62581E — GARNISH, QUARTER PILLAR, RH (1 parts) 62573A — GARNISH, QUARTER LOCK PILLAR, RH (3 parts) 62581F — CLIP (FOR QUARTER PILLAR GARNISH) (1 parts) 62670 — BASE ASSY, QUARTER TRIM, REAR RH (1 parts) 62417C — PAD, CENTER PILLAR, RH (1 parts) 64763 — STOPPER, TOOL COVER (1 parts) 62411 — GARNISH, CENTER PILLAR, RH (1 parts) 9056023009 — not listed in this catalogue 64764 — PACKING, TOOL COVER (1 parts) 62211 — GARNISH, FRONT PILLAR, RH (1 parts) 9356615512 — not listed in this catalogue 64707A — COVER SUB-ASSY, QUARTER TRIM TOOL (1 parts) 62213 — PAD, FRONT PILLAR GARNISH (1 parts) 9020223002 — not listed in this catalogue 64707C — KNOB, JACK COVER (1 parts) 62583 — GARNISH, QUARTER PILLAR, LOWER RH (1 parts) 9356016012 — not listed in this catalogue 9331914010 — not listed in this catalogue 64709K — CASE SUB-ASSY, TOOL BAG (2 parts) 64776B — SPACER, TOOL BAG CASE, NO.2 (1 parts) 9015960184 — not listed in this catalogue 62630P — PANEL ASSY, QUARTER TRIM, REAR RH (9 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 64777B — PROTECTOR, QUARTER, INNER (1 parts) 62590B — BOARD ASSY, SIDE HEATER COVER, LH (6 parts) 62588A — COVER, SIDE HEATER, LOWER (6 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (1 parts) 62313D — TRIM, FRONT DOOR OPENING, RH (1 parts) 6777112010 — not listed in this catalogue 58426D — PROTECTOR, TOOL BAG CASE (1 parts) 9351014012 — not listed in this catalogue 9356016012 — not listed in this catalogue 62582E — GARNISH, QUARTER PILLAR, LH (1 parts) 9356016012 — not listed in this catalogue 62508A — BOX SUB-ASSY, SIDE TRIM (1 parts) 62671 — BOARD SUB-ASSY, QUARTER TRIM, LOWER (1 parts) 62581F — CLIP (FOR QUARTER PILLAR GARNISH) (1 parts) 6777195J11 — not listed in this catalogue 6777195J10 — not listed in this catalogue 62573A — GARNISH, QUARTER LOCK PILLAR, RH (3 parts) 62426A — PAD, QUARTER LOCK PILLAR, LH (1 parts) 62680 — BASE ASSY, QUARTER TRIM, REAR LH (1 parts) 9356016012 — not listed in this catalogue 9018304035 — not listed in this catalogue 9356016012 — not listed in this catalogue 9018905015 — not listed in this catalogue 62584 — GARNISH, QUARTER PILLAR, LOWER LH (1 parts) 62412 — GARNISH, CENTER PILLAR, LH (1 parts) 62212 — GARNISH, FRONT PILLAR, LH (1 parts) 6777195J04 — not listed in this catalogue 62650J — BASE ASSY, QUARTER TRIM, FRONT (1 parts) 62418C — PAD, CENTER PILLAR, LH (1 parts) 62213 — PAD, FRONT PILLAR GARNISH (1 parts) 9046804089 — not listed in this catalogue 9046804088 — not listed in this catalogue 64739A — COVER, DECK TRIM REAR WASHER (7 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 64739B — BASE, REAR WASHER TANK, SERVICE HOLE COVER (7 parts) 9018304035 — not listed in this catalogue 62511B — CLIP (FOR QUARTER INSIDE TRIM BOARD) (10 parts) 9046804090 — not listed in this catalogue 62640P — PANEL ASSY, QUARTER TRIM, REAR LH (22 parts) 6777295J01 — not listed in this catalogue 62414A — GARNISH, CENTER PILLAR, LOWER LH (1 parts) 62314D — TRIM, FRONT DOOR OPENING, LH (1 parts) 62520P — PANEL ASSY, QUARTER TRIM, FRONT LH (9 parts) 7456 — not listed in this catalogue
MBM626B · 45 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
58426D — Protector, Tool Bag Case
58426-95700 Protector, Tool Bag Case
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
62211 — Garnish, Front Pillar, RH
62211-95J03-03 note Garnish, Front Pillar, RH
1987-10 → 1989-08 ended
YH51 U —
62211D — Clip(FOR FRONT BODY PILLAR GARNISH)
90468-04090 note Clip(FOR FRONT BODY PILLAR GARNISH)
1987-08 → 1989-08 ended
YH51 U —
62212 — Garnish, Front Pillar, LH
62212-95J03-03 note Garnish, Front Pillar, LH
1987-10 → 1989-08 ended
YH51 U —
62213 — Pad, Front Pillar Garnish
62213-95J00 note Pad, Front Pillar Garnish
1987-08 → 1989-08 ended
YH51 U —
62313D — Trim, Front Door Opening, RH
62313-95J00-14 note Trim, Front Door Opening, RH
1987-10 → 1989-08 ended
YH51 U —
62314D — Trim, Front Door Opening, LH
62313-95J00-14 note Trim, Front Door Opening, LH
1987-10 → 1989-08 ended
YH51 U —
62411 — Garnish, Center Pillar, RH
62411-95J16-03 note Garnish, Center Pillar, RH
1987-10 → 1989-08 ended
YH51 U —
62412 — Garnish, Center Pillar, LH
62412-95J16-03 note Garnish, Center Pillar, LH
1987-10 → 1989-08 ended
YH51 U —
62413A — Garnish, Center Pillar, Lower RH
62413-95J01-04 note Garnish, Center Pillar, Lower RH
1987-10 → 1989-08 ended
YH51 U —
62414A — Garnish, Center Pillar, Lower LH
62414-95J03-04 note Garnish, Center Pillar, Lower LH
1987-10 → 1989-08 ended
YH51 U —
62417C — Pad, Center Pillar, RH
62417-95J00 note Pad, Center Pillar, RH
1987-08 → 1989-08 ended
YH51 U —
62418C — Pad, Center Pillar, LH
62418-95J00 note Pad, Center Pillar, LH
1987-08 → 1989-08 ended
YH51 U —
62425A — Pad, Quarter Lock Pillar, RH
62425-95J00 note Pad, Quarter Lock Pillar, RH
1987-08 → 1989-08 ended
YH51 U —
62426A — Pad, Quarter Lock Pillar, LH
62426-95J00 note Pad, Quarter Lock Pillar, LH
1987-08 → 1989-08 ended
YH51 U —
62508A — Box Sub-assy, Side Trim
62508-95700-24 note Box Sub-assy, Side Trim
1987-10 → 1989-08 ended
YH51 U —
62511B — Clip (FOR QUARTER INSIDE TRIM BOARD)
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
LH51,YH51 V5D;LH56,YH5# 02S,R —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
LH61,YH61 V4D 03S —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
LH5#,YH5# U —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
LH51,YH51 V4D 03S —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
YH61 V5D;YH61 V4D R;LH61 +3 —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
LH51,YH51 U —
90467-10034-16 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-08 → 1989-08 ended
YH51 U —
90467-10034-24 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-10 → 1989-08 ended
YH51 U —
90467-10034-24 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-10 → 1989-08 ended
YH51 U —
90467-10034-24 note Clip (FOR QUARTER INSIDE TRIM BOARD)
1987-10 → 1989-08 ended
YH51 U —
62520P — Panel Assy, Quarter Trim, Front LH
62512-95J02 Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
LH5#,YH5# U —
62512-95J02 Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
LH51,61,YH51,61 LHD V4D 03S —
62520-95J03-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1988-08 ended
YH61 15S —
62520-95J04-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
YH61 15S;LH5#,6#,YH5#,6# V4D (J,R,U) —
62520-95J05-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62520-95J05-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
LH66,YH66 J —
62520-95J05-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
YH51 J;LH56,61,YH56,61 J,U —
62520-95J05-06 note Panel Assy, Quarter Trim, Front LH
1987-08 → 1989-08 ended
LH51,YH51 U —
62520-95J07-04 note Panel Assy, Quarter Trim, Front LH
1987-10 → 1989-08 ended
YH51 U —
62573A — Garnish, Quarter Lock Pillar, RH
62573-95J01-03 note Garnish, Quarter Lock Pillar, RH
1988-07 → 1989-08 ended
YH51 U —
62573-95J05-03 note Garnish, Quarter Lock Pillar, RH
1987-10 → 1988-07 ended
YH51 U —
62573-95J06-03 note Garnish, Quarter Lock Pillar, RH
1987-10 → 1988-07 ended
YH51 U —
62581E — Garnish, Quarter Pillar, RH
62581-95J01-03 note Garnish, Quarter Pillar, RH
1987-10 → 1989-08 ended
YH51 U —
62581F — Clip (FOR QUARTER PILLAR GARNISH)
90467-06161-33 note Clip (FOR QUARTER PILLAR GARNISH)
1987-10 → 1989-08 ended
YH51 U —
62582E — Garnish, Quarter Pillar, LH
62582-95J01-03 note Garnish, Quarter Pillar, LH
1987-10 → 1989-08 ended
YH51 U —
62583 — Garnish, Quarter Pillar, Lower RH
62583-95J02-04 note Garnish, Quarter Pillar, Lower RH
1987-10 → 1989-08 ended
YH51 U —
62584 — Garnish, Quarter Pillar, Lower LH
62584-95J02-04 note Garnish, Quarter Pillar, Lower LH
1987-10 → 1989-08 ended
YH51 U —
62588A — Cover, Side Heater, Lower
62588-95J00-14 note Cover, Side Heater, Lower
1987-10 → 1988-11 ended
YH51 U —
62588-95J00-14 note Cover, Side Heater, Lower
1988-11 → 1989-08 ended
YH51 U —
62588-95J00-16 note Cover, Side Heater, Lower
1987-08 → 1988-11 ended
YH51 J;LH51,6#,YH6# J,U —
62588-95J00-16 note Cover, Side Heater, Lower
1988-11 → 1989-08 ended
LH51,6#,YH51,6# J,U —
62588-95J00-16 note Cover, Side Heater, Lower
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62588-95J00-16 note Cover, Side Heater, Lower
1987-08 → 1988-11 ended
YH51 U —
62590B — Board Assy, Side Heater Cover, LH
62590-95J00-04 note Board Assy, Side Heater Cover, LH
1987-10 → 1988-11 ended
YH51 U —
62590-95J00-04 note Board Assy, Side Heater Cover, LH
1988-11 → 1989-08 ended
YH51 U —
62590-95J00-16 note Board Assy, Side Heater Cover, LH
1987-08 → 1988-11 ended
YH51 J;LH51,6#,YH6# J,U —
62590-95J00-16 note Board Assy, Side Heater Cover, LH
1987-08 → 1988-11 ended
YH51 U —
62590-95J00-16 note Board Assy, Side Heater Cover, LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62590-95J00-16 note Board Assy, Side Heater Cover, LH
1988-11 → 1989-08 ended
LH51,6#,YH51,6# J,U —
62630P — Panel Assy, Quarter Trim, Rear RH
62630-95J09-06 note Panel Assy, Quarter Trim, Rear RH
1987-08 → 1988-08 ended
YH61 15S —
62630-95J10-06 note Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62630-95J10-06 note Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH6#,YH6# J,U —
62630-95J11-06 note Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH5#,YH5# J,U —
62630-95J32-04 note Panel Assy, Quarter Trim, Rear RH
1987-10 → 1989-08 ended
YH51 U —
62631-95J04 Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH51,YH51 U —
62631-95J04 Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH56,YH56 U —
62631-95J04 Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH5#,YH5# 02S,03S,R —
62631-95J05 Panel Assy, Quarter Trim, Rear RH
1987-08 → 1989-08 ended
LH6#,YH6# 02S,03S,R —
62640P — Panel Assy, Quarter Trim, Rear LH
62632-95J05 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH51,YH51 U —
62632-95J05 Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH5#,YH5# 02S,03S,R —
62632-95J05 Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH56,YH56 U —
62632-95J06 Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH6#,YH6# 02S,03S,R —
62640-95J07-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1988-08 ended
YH61 15S —
62640-95J09-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1988-08 ended
YH61 15S —
62640-95J10-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH61,YH61 J,U —
62640-95J10-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH66 J —
62640-95J10-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62640-95J12-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH66,YH66 J —
62640-95J12-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH61,YH61 J,U —
62640-95J12-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62640-95J13-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH5#,YH5# J,U —
62640-95J14-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH5#,YH5# J,U —
62640-95J17-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH5#,YH5# 02S,03S,R —
62640-95J17-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH56,YH56 U —
62640-95J17-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
LH51,YH51 U —
62640-95J18-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH61 V4D 5H R —
62640-95J18-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH61 4H,4HC;YH61 5H 03S;LH6#,YH66 +1 —
62640-95J18-06 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1989-08 ended
YH61 V5D 5H R —
62640-95J32 note Panel Assy, Quarter Trim, Rear LH
1987-08 → 1987-09 ended
YH51 U —
62640-95J39-04 note Panel Assy, Quarter Trim, Rear LH
1987-10 → 1989-08 ended
YH51 U —
62650J — Base Assy, Quarter Trim, Front
62650-95J05-04 note Base Assy, Quarter Trim, Front
1987-10 → 1989-08 ended
YH51 U —
62670 — Base Assy, Quarter Trim, Rear RH
62670-95J05-04 note Base Assy, Quarter Trim, Rear RH
1987-10 → 1989-08 ended
YH51 U —
62671 — Board Sub-assy, Quarter Trim, Lower
62603-95J01-04 note Board Sub-assy, Quarter Trim, Lower
1987-10 → 1989-08 ended
YH51 U —
62680 — Base Assy, Quarter Trim, Rear LH
62680-95J05-04 note Base Assy, Quarter Trim, Rear LH
1987-10 → 1989-08 ended
YH51 U —
64707A — Cover Sub-assy, Quarter Trim Tool
64707-95J01 Cover Sub-assy, Quarter Trim Tool
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
64707C — Knob, Jack Cover
64769-13010-01 note Knob, Jack Cover
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
64709K — Case Sub-assy, Tool Bag
64709-95J00 Case Sub-assy, Tool Bag
1987-08 → 1989-08 ended
LH5#,YH5# —
64709-95J01 Case Sub-assy, Tool Bag
1987-08 → 1989-08 ended
LH6#,YH6# —
64739A — Cover, Deck Trim Rear Washer
85365-95J00-24 note Cover, Deck Trim Rear Washer
1987-10 → 1989-08 ended
YH51 U —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-08 → 1989-08 ended
YH61 U;LH5#,61,YH56 J,U;YH51,6# V5D +1 —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-09 → 1989-08 ended
YH61 15S;YH51,61 V5D 4H;LH5#,6#,YH56 +3 —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-09 → 1989-08 ended
YH51 U —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-08 → 1989-08 ended
YH66 R —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-08 → 1989-08 ended
LH66,YH66 J —
85365-95J00-26 note Cover, Deck Trim Rear Washer
1987-08 → 1987-09 ended
YH51 V4D;YH61 15S;YH51,61 V5D +4 —
64739B — Base, Rear Washer Tank, Service Hole Cover
85366-95J00-24 note Base, Rear Washer Tank, Service Hole Cover
1988-08 → 1989-08 ended
YH51 U —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-08 → 1987-09 ended
YH51 V4D;YH61 15S;YH51,61 V5D +4 —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-08 → 1989-08 ended
LH66,YH66 J —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-08 → 1989-08 ended
YH66 R —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-08 → 1989-08 ended
YH61 U;LH5#,61,YH56 J,U;YH51,6# V5D +1 —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-09 → 1989-08 ended
YH51 U —
85366-95J00-26 note Base, Rear Washer Tank, Service Hole Cover
1987-09 → 1989-08 ended
YH61 15S;YH51,61 V5D 4H;LH5#,6#,YH56 +3 —
64763 — Stopper, Tool Cover
64763-95J00 Stopper, Tool Cover
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
64764 — Packing, Tool Cover
64764-95J00 Packing, Tool Cover
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
64776B — Spacer, Tool Bag Case, NO.2
64776-95J00 Spacer, Tool Bag Case, NO.2
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
64777B — Protector, Quarter, Inner
58426-95701 Protector, Quarter, Inner
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
