Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

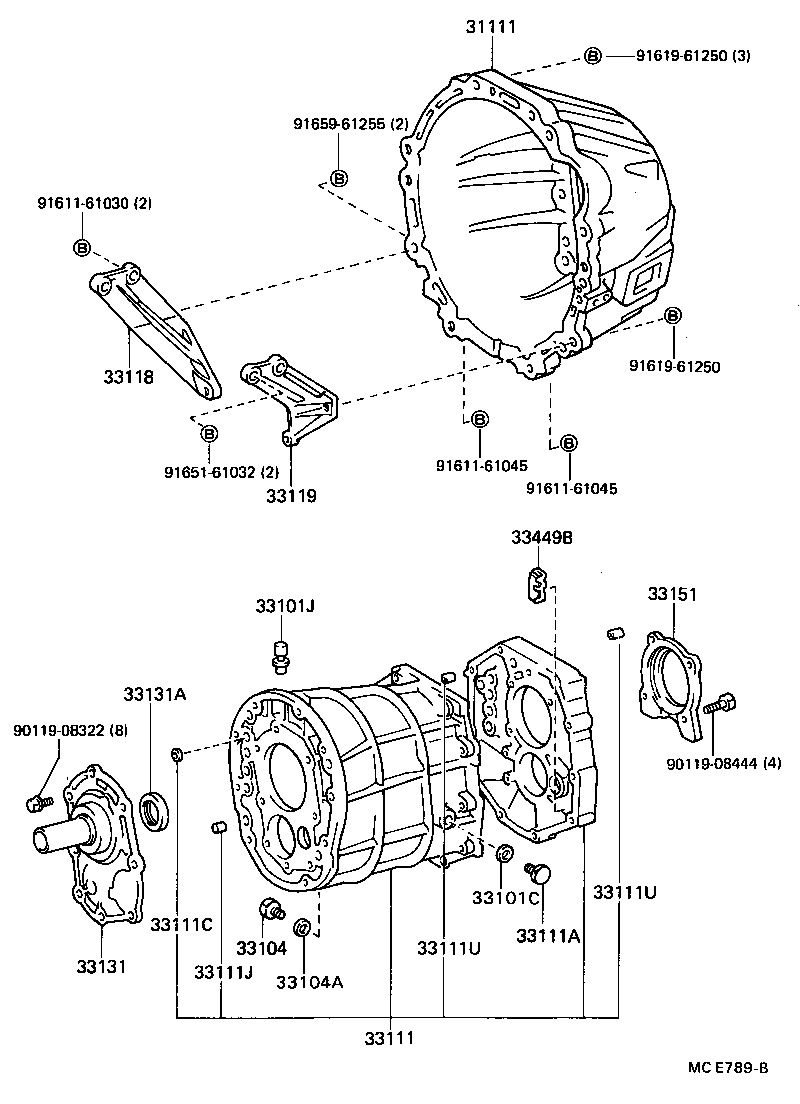

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31111-22111 |
Housing, Clutch
1987-08 → 1988-08
ended
|
LH51,61 5H | — | |
| 31111-22112 |
Housing, Clutch
1988-08 → 1989-08
ended
|
LH51,61 5H | — | |
| 31111-25040 |
Housing, Clutch
1987-08 → 1989-08
ended
|
YH56,66 | — | |
| 31111-26020 |
Housing, Clutch
1987-08 → 1989-08
ended
|
LH56,66 | — | |
| 31111-30190 |
Housing, Clutch
1987-08 → 1989-08
ended
|
YH51,61 MTM | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 33101J — Plug, Breather | ||||
| 90930-03085 |
Plug, Breather
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18006 |
Plug Sub-assy, Drain(MTM)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 90430-18008 |
Gasket, Drain Plug(MTM)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 33111 — Case, Manual Transmission | ||||
| 33101-26030 |
Case, Manual Transmission
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 33101-26900 |
Case, Manual Transmission
1987-08 → 1988-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33101-28020 |
Case, Manual Transmission
1988-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33111A — Plug, Manual Transmission Case | ||||
| 90341-18006 |
Plug, Manual Transmission Case
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 33111C — Plug(FOR TRANSMISSION CASE) | ||||
| 90331-14004 note |
Plug(FOR TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33111U — Pin, Ring(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH5#,6#,YH5#,6# MTM | — | |
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 33118 — Plate, Stiffener, RH(MTM) | ||||
| 33118-25020 |
Plate, Stiffener, RH(MTM)
1987-08 → 1989-08
ended
|
LH5#,6# MTM | — | |
| 33118-36031 |
Plate, Stiffener, RH(MTM)
1987-08 → 1989-08
ended
|
YH5#,6# MTM | — | |
| 33119 — Plate, Stiffener, LH(MTM) | ||||
| 33119-25020 |
Plate, Stiffener, LH(MTM)
1987-08 → 1989-08
ended
|
LH51,61 5H | — | |
| 33119-26010 |
Plate, Stiffener, LH(MTM)
1987-08 → 1989-08
ended
|
LH56,66 | — | |
| 33119-36030 |
Plate, Stiffener, LH(MTM)
1987-08 → 1989-08
ended
|
YH5#,6# MTM | — | |
| 33131 — Retainer, Bearing, Front(MTM) | ||||
| 33131-26020 |
Retainer, Bearing, Front(MTM)
1987-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33131-35030 |
Retainer, Bearing, Front(MTM)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 33131A — Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30010 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1988-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 90311-30115 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1987-08 → 1988-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 90311-32012 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 33151 — Retainer, Output Shaft Rear Bearing(MTM) | ||||
| 33151-28010 |
Retainer, Output Shaft Rear Bearing(MTM)
1987-08 → 1988-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33151-35020 |
Retainer, Output Shaft Rear Bearing(MTM)
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
| 33151-35030 |
Retainer, Output Shaft Rear Bearing(MTM)
1988-08 → 1989-08
ended
|
LH51,61,YH51,61 MTM | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-35010 |
Magnet, Transmission
1987-08 → 1989-08
ended
|
LH56,66,YH56,66 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
