Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

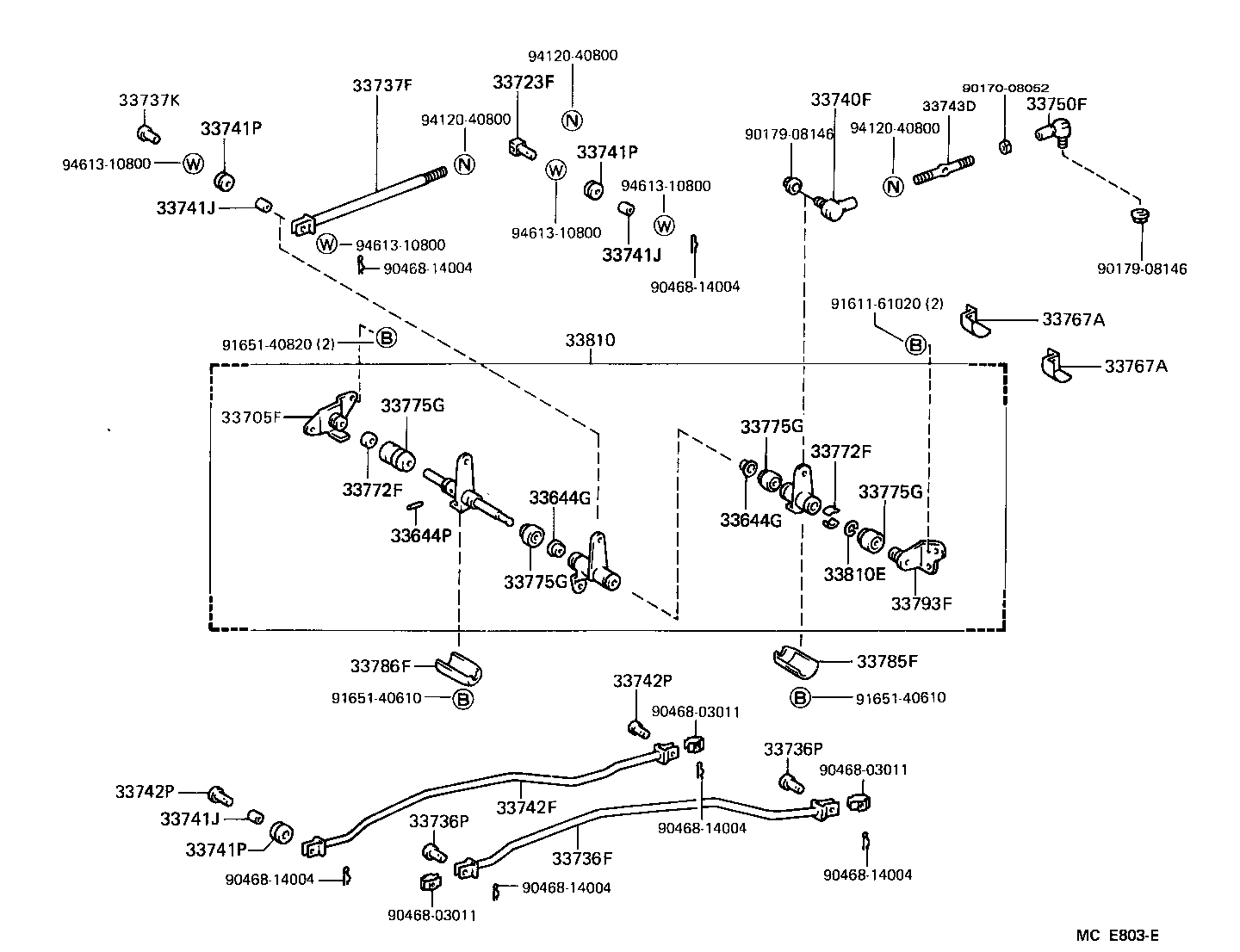

Exploded illustration MCE803E 9412040800 — not listed in this catalogue 33723F — SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) (1 parts) 33737F — ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT) (1 parts) 9017008052 — not listed in this catalogue 33740F — END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) (1 parts) 33737K — PIN, W/HOLE (1 parts) 33750F — END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) (1 parts) 33743D — ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) (1 parts) 9412040800 — not listed in this catalogue 33741P — GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 9412040800 — not listed in this catalogue 9017908146 — not listed in this catalogue 33741P — GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 9461310800 — not listed in this catalogue 9461310800 — not listed in this catalogue 33741J — BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 9461310800 — not listed in this catalogue 9461310800 — not listed in this catalogue 33741J — BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 9046814004 — not listed in this catalogue 9017908146 — not listed in this catalogue 9046814004 — not listed in this catalogue 9161161020 — not listed in this catalogue 33767A — INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) (2 parts) 33810 — SHAFT ASSY, CROSS, NO.2 (1 parts) 9165140820 — not listed in this catalogue 33767A — INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) (2 parts) 33775G — COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) (2 parts) 33705F — SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) (1 parts) 33775G — COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) (2 parts) 33772F — BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) (1 parts) 33772F — BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) (1 parts) 33775G — COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) (2 parts) 33644G — BUSH (FOR GEAR SELECTING SHAFT) (1 parts) 33644G — BUSH (FOR GEAR SELECTING SHAFT) (1 parts) 33644P — PIN (FOR GEAR SELECTING SHAFT) (1 parts) 33810E — RING, SNAP (FOR CROSS SHAFT) (1 parts) 33775G — COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) (2 parts) 33793F — BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) (1 parts) 33785F — INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIFT) (1 parts) 33786F — INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIFT) (1 parts) 33742P — PIN, W/HOLE (2 parts) 9165140610 — not listed in this catalogue 9165140610 — not listed in this catalogue 9046803011 — not listed in this catalogue 33736P — PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) (1 parts) 9046803011 — not listed in this catalogue 33742P — PIN, W/HOLE (2 parts) 33742F — ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) (1 parts) 33741J — BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 33736P — PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) (1 parts) 9046814004 — not listed in this catalogue 33741P — GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) (2 parts) 33736F — ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) (1 parts) 9046814004 — not listed in this catalogue 9046814004 — not listed in this catalogue 9046814004 — not listed in this catalogue 9046803011 — not listed in this catalogue
MCE803E · 35 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
33644G — Bush (FOR GEAR SELECTING SHAFT)
90386-15110 Bush (FOR GEAR SELECTING SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33644P — Pin (FOR GEAR SELECTING SHAFT)
90256-08001 Pin (FOR GEAR SELECTING SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33705F — Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
33705-26080 Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33723F — Swivel, Connecting Rod (FOR FLOOR SHIFT)
33723-10020 Swivel, Connecting Rod (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# MTM —
33736F — Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT)
33736-26180 Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33736P — Pin, W/Hole(FOR GEAR SELECTING NO.2 ROD)
90240-08042 Pin, W/Hole(FOR GEAR SELECTING NO.2 ROD)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33737F — Rod, Gear Selecting, NO.3 (FOR FLOOR SHIFT)
33737-26090 Rod, Gear Selecting, NO.3 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33737K — Pin, W/Hole
90240-08034 Pin, W/Hole
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33740F — End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
33740-26010 End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33741J — Bush, NO.2 (FOR SHIFTING OR SELECTING ROD)
90389-08005 Bush, NO.2 (FOR SHIFTING OR SELECTING ROD)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90389-08005 Bush, NO.2 (FOR SHIFTING OR SELECTING ROD)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33741P — Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD)
90480-17177 Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90480-17177 Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33742F — Rod, Gear Shifting, NO.2(FOR FLOOR SHIFT)
33742-26170 Rod, Gear Shifting, NO.2(FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33742P — Pin, W/Hole
90240-08034 note Pin, W/Hole
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90240-08042 note Pin, W/Hole
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33743D — Rod, Gear Shifting, NO.3 (FOR FLOOR SHIFT)
33743-26120 Rod, Gear Shifting, NO.3 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33750F — End, Connecting Rod, NO.2 (FOR FLOOR SHIFT)
33750-26010 End, Connecting Rod, NO.2 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33767A — Insulator, Connecting Rod Heat (FOR FLOOR SHIFT)
33767-25010 Insulator, Connecting Rod Heat (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66 —
33767-26010 Insulator, Connecting Rod Heat (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
YH56,66 —
33772F — Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT)
33772-36010 note Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33775G — Cover, Cross Shaft Dust, NO.2 (FOR FLOOR SHIFT)
33775-20020 note Cover, Cross Shaft Dust, NO.2 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33775-35030 note Cover, Cross Shaft Dust, NO.2 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33785F — Insulator, Cross Shaft Lever Heat, NO.1 (FOR FLOOR SHIFT)
33785-26040 Insulator, Cross Shaft Lever Heat, NO.1 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66 —
33786F — Insulator, Cross Shaft Lever Heat, NO.2 (FOR FLOOR SHIFT)
33786-26020 Insulator, Cross Shaft Lever Heat, NO.2 (FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66 —
33793F — Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT)
33793-26040 Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33810 — Shaft Assy, Cross, NO.2
33810-26020 Shaft Assy, Cross, NO.2
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
33810E — Ring, Snap (FOR CROSS SHAFT)
96151-01600 Ring, Snap (FOR CROSS SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
