Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

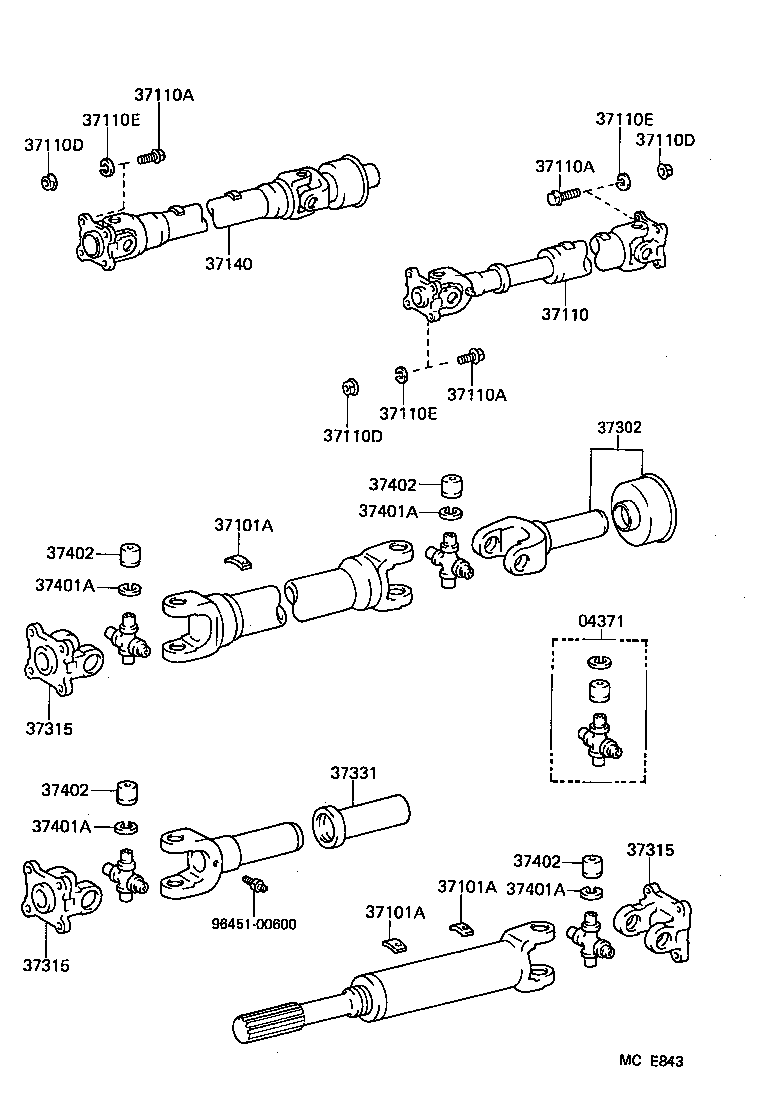

Exploded illustration MCE843 37110A — BOLT (FOR PROPELLER SHAFT) (1 parts) 37110E — WASHER (FOR PROPELLER SHAFT) (2 parts) 37110E — WASHER (FOR PROPELLER SHAFT) (2 parts) 37110D — NUT (FOR PROPELLER SHAFT) (2 parts) 37110D — NUT (FOR PROPELLER SHAFT) (2 parts) 37110A — BOLT (FOR PROPELLER SHAFT) (1 parts) 37140 — SHAFT ASSY, PROPELLER, FRONT (1 parts) 37110 — SHAFT ASSY, PROPELLER (10 parts) 37110A — BOLT (FOR PROPELLER SHAFT) (1 parts) 37110E — WASHER (FOR PROPELLER SHAFT) (2 parts) 37302 — YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE (2 parts) 37110D — NUT (FOR PROPELLER SHAFT) (2 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (6 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (14 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (22 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (6 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (14 parts) 04371 — SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) (5 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (3 parts) 37331 — COVER, SLIDING SHAFT DUST (3 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (6 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (14 parts) 37315 — YOKE, UNIVERSAL JOINT FLANGE (3 parts) 37402 — BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER (6 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (22 parts) 37401A — RING, HOLE SNAP (FOR SPIDER BEARING) (14 parts) 37101A — PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) (22 parts) 9645100600 — not listed in this catalogue 37315 — YOKE, UNIVERSAL JOINT FLANGE (3 parts)
MCE843 · 28 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
04371 — Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
04371-25010 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
04371-30020 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1987-08 → 1988-02 ended
LH56,66,YH56,66 —
04371-30020 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1987-08 → 1988-02 ended
LH56,66,YH56,66 —
04371-30021 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1988-02 → 1989-08 ended
LH56,66,YH56,66 —
04371-30021 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
1988-02 → 1989-08 ended
LH56,66,YH56,66 —
37101A — Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
90937-01132 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01147 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01148 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01149 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01150 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01151 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01152 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90937-01184 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01191 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01192 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01193 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01194 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01290 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01291 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01292 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01293 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01294 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01295 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01301 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01302 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01303 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90937-01304 note Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37110 — Shaft Assy, Propeller
37110-26061 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH61,YH61 4HC —
37110-26131 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH61,YH61 MTM —
37110-26151 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH51,YH51 4HC —
37110-26161 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH51,YH51 MTM —
37110-26190 note Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH51,YH51 MTM —
37110-26200 note Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH51,YH51 4HC —
37110-26210 note Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH61,YH61 MTM —
37110-26220 note Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH61,YH61 4HC —
37110-26320 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH56,YH56 —
37110-26330 Shaft Assy, Propeller
1987-08 → 1989-08 ended
LH66,YH66 —
37110A — Bolt (FOR PROPELLER SHAFT)
90105-10085 note Bolt (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
37110D — Nut (FOR PROPELLER SHAFT)
90179-10059 Nut (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90179-10059 Nut (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37110E — Washer (FOR PROPELLER SHAFT)
90204-10002 Washer (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90204-10002 Washer (FOR PROPELLER SHAFT)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37140 — Shaft Assy, Propeller, Front
37140-26010 Shaft Assy, Propeller, Front
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37302 — Yoke Sub-assy, Universal Joint Sleeve
37302-26010 Yoke Sub-assy, Universal Joint Sleeve
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37302-35010 Yoke Sub-assy, Universal Joint Sleeve
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
37315 — Yoke, Universal Joint Flange
37315-35040 Yoke, Universal Joint Flange
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37315-35040 Yoke, Universal Joint Flange
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37315-35050 Yoke, Universal Joint Flange
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
37331 — Cover, Sliding Shaft Dust
37305-35020 note Cover, Sliding Shaft Dust
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37331-28010 note Cover, Sliding Shaft Dust
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
37331-30010 Cover, Sliding Shaft Dust
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
37401A — Ring, Hole Snap (FOR SPIDER BEARING)
90520-26038 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26040 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26041 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26042 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26043 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26044 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26045 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26046 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
90520-26233 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1987-12 ended
LH56,66,YH56,66 —
90520-26234 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1987-12 ended
LH56,66,YH56,66 —
90520-26235 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1987-12 ended
LH56,66,YH56,66 —
90521-29070 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
90521-29071 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
90521-29072 note Ring, Hole Snap (FOR SPIDER BEARING)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
37402 — Bearing Sub-assy, Universal Joint Spider
37402-25020 Bearing Sub-assy, Universal Joint Spider
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
37402-30010 Bearing Sub-assy, Universal Joint Spider
1987-08 → 1987-12 ended
LH56,66,YH56,66 —
37402-30011 Bearing Sub-assy, Universal Joint Spider
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
37402-30011 Bearing Sub-assy, Universal Joint Spider
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
37402-30020 note Bearing Sub-assy, Universal Joint Spider
1987-08 → 1987-12 ended
LH56,66,YH56,66 —
37402-30021 note Bearing Sub-assy, Universal Joint Spider
1987-12 → 1989-08 ended
LH56,66,YH56,66 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
