Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

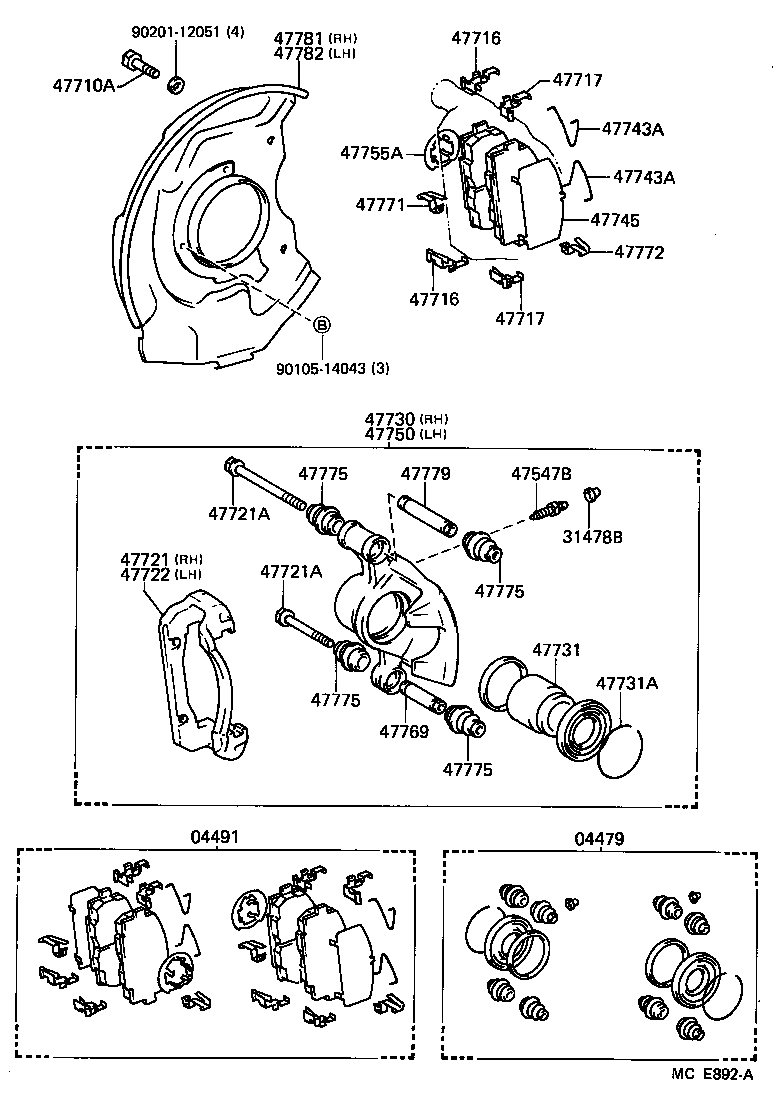

Exploded illustration MCE892A 9020112051 — not listed in this catalogue 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (7 parts) 47781 — COVER, DISC BRAKE DUST, FRONT RH (2 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (2 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (7 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (7 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (7 parts) 47755A — INSULATOR, DISC BRAKE HEAT (2 parts) 47743A — SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) (7 parts) 47771 — PLATE, PAD WEAR INDICATOR, NO.1 (7 parts) 47745 — SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) (7 parts) 47772 — PLATE, PAD WEAR INDICATOR, NO.2 (2 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (7 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (7 parts) 9010514043 — not listed in this catalogue 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (7 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (7 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47779 — BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) (5 parts) 47547B — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (5 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (10 parts) 31478B — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (5 parts) 47721 — MOUNTING, FRONT DISC BRAKE CYLINDER, RH (7 parts) 47721A — BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) (10 parts) 47722 — MOUNTING, FRONT DISC BRAKE CYLINDER, LH (7 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47731 — PISTON, FRONT DISC BRAKE (7 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (7 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (5 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (2 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (13 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (2 parts)
MCE892A · 31 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
139 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-26030 Cylinder Kit, Disc Brake, Front
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
04479-40010 Cylinder Kit, Disc Brake, Front
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
04491 — Pad Kit, Disc Brake, Front
04491-26151 Pad Kit, Disc Brake, Front
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
04491-26151 Pad Kit, Disc Brake, Front
1988-06 → 1988-08 ended
LH51,61,YH51,61 15S,U —
04491-26170 Pad Kit, Disc Brake, Front
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
04491-26170 Pad Kit, Disc Brake, Front
1988-06 → 1988-08 ended
LH56,YH56 U —
04491-26191 note Pad Kit, Disc Brake, Front
1987-08 → 1988-08 ended
YH61 U —
04491-26191 Pad Kit, Disc Brake, Front
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
04491-26191 Pad Kit, Disc Brake, Front
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
04491-26191 note Pad Kit, Disc Brake, Front
1988-01 → 1988-08 ended
LH61 U —
04491-26191 note Pad Kit, Disc Brake, Front
1988-01 → 1988-06 ended
LH51,61 LHD VSP 5H —
04491-26191 note Pad Kit, Disc Brake, Front
1988-01 → 1988-06 ended
LH51,YH51 4HC —
04491-26191 Pad Kit, Disc Brake, Front
1988-01 → 1988-06 ended
YH51 V4D 5H 03S —
04491-26210 note Pad Kit, Disc Brake, Front
1988-01 → 1988-06 ended
LH56 02S —
04491-26210 Pad Kit, Disc Brake, Front
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
47547B — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
47547-12010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1988-06 → 1988-08 ended
LH61 U —
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1988-06 → 1988-08 ended
YH61 U —
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
90101-12132 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
90101-12149 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
90101-12149 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-26030 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47716-26030 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47716-40010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47716-40010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47716-40010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47716-40010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47716-40010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47717-26030 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47717-26030 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47717-40010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47717-40010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47717-40010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47717-40010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47717-40010 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47721 — Mounting, Front Disc Brake Cylinder, RH
47721-26050 Mounting, Front Disc Brake Cylinder, RH
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47721-26050 Mounting, Front Disc Brake Cylinder, RH
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47721-26050 Mounting, Front Disc Brake Cylinder, RH
1988-06 → 1988-08 ended
LH61 U —
47721-26050 Mounting, Front Disc Brake Cylinder, RH
1988-06 → 1988-08 ended
YH61 U —
47721-26050 Mounting, Front Disc Brake Cylinder, RH
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47721-26070 Mounting, Front Disc Brake Cylinder, RH
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47721-26070 Mounting, Front Disc Brake Cylinder, RH
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47721A — Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10014 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
90119-10014 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
LH61 U —
90119-10014 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
YH61 U —
90119-10014 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
90119-10014 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
90119-10249 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
90119-10249 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
LH61 U —
90119-10249 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
YH61 U —
90119-10249 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
90119-10249 note Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47722 — Mounting, Front Disc Brake Cylinder, LH
47721-26050 Mounting, Front Disc Brake Cylinder, LH
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47721-26050 Mounting, Front Disc Brake Cylinder, LH
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47721-26050 Mounting, Front Disc Brake Cylinder, LH
1988-06 → 1988-08 ended
YH61 U —
47721-26050 Mounting, Front Disc Brake Cylinder, LH
1988-06 → 1988-08 ended
LH61 U —
47721-26050 Mounting, Front Disc Brake Cylinder, LH
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47721-26070 Mounting, Front Disc Brake Cylinder, LH
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47721-26070 Mounting, Front Disc Brake Cylinder, LH
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47730 — Cylinder Assy, Front Disc Brake, RH
47730-26080 Cylinder Assy, Front Disc Brake, RH
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47730-26080 Cylinder Assy, Front Disc Brake, RH
1988-06 → 1988-08 ended
LH61 U —
47730-26080 Cylinder Assy, Front Disc Brake, RH
1988-06 → 1988-08 ended
YH61 U —
47730-26080 Cylinder Assy, Front Disc Brake, RH
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47730-26080 Cylinder Assy, Front Disc Brake, RH
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47730-26100 Cylinder Assy, Front Disc Brake, RH
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47730-26100 Cylinder Assy, Front Disc Brake, RH
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47731 — Piston, Front Disc Brake
47731-25010 Piston, Front Disc Brake
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47731-25010 Piston, Front Disc Brake
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47731-40010 Piston, Front Disc Brake
1988-06 → 1988-08 ended
LH61 U —
47731-40010 Piston, Front Disc Brake
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47731-40010 Piston, Front Disc Brake
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47731-40010 Piston, Front Disc Brake
1988-06 → 1988-08 ended
YH61 U —
47731-40010 Piston, Front Disc Brake
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90522-70001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
90522-70001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1988-06 → 1988-08 ended
LH61 U —
90522-70001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1988-06 → 1988-08 ended
YH61 U —
90522-70001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
90522-70001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
90522-76001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
90522-76001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47743A — Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47743-26030 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47743-26030 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47743-40020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47743-40020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47743-40020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47743-40020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47743-40020 Spring, Anti-squeal(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47745 — Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745-26030 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47745-26030 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47745-40020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47745-40020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47745-40020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47745-40020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47745-40020 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47750 — Cylinder Assy, Disc Brake, LH
47750-26080 Cylinder Assy, Disc Brake, LH
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47750-26080 Cylinder Assy, Disc Brake, LH
1988-06 → 1988-08 ended
LH61 U —
47750-26080 Cylinder Assy, Disc Brake, LH
1988-06 → 1988-08 ended
YH61 U —
47750-26080 Cylinder Assy, Disc Brake, LH
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47750-26080 Cylinder Assy, Disc Brake, LH
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47750-26100 Cylinder Assy, Disc Brake, LH
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47750-26100 Cylinder Assy, Disc Brake, LH
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47755A — Insulator, Disc Brake Heat
47755-25010 Insulator, Disc Brake Heat
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47755-25010 Insulator, Disc Brake Heat
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
47769-40010 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47771 — Plate, Pad Wear Indicator, NO.1
47771-26030 Plate, Pad Wear Indicator, NO.1
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47771-26030 Plate, Pad Wear Indicator, NO.1
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47771-35010 Plate, Pad Wear Indicator, NO.1
1987-08 → 1988-06 ended
LH51,61,YH51,61 —
47771-35010 Plate, Pad Wear Indicator, NO.1
1988-08 → 1989-08 ended
LH51,61,YH51,61 —
47771-35010 Plate, Pad Wear Indicator, NO.1
1988-06 → 1988-08 ended
LH51,61,YH51,61 03S,J,R —
47771-35010 Plate, Pad Wear Indicator, NO.1
1988-06 → 1988-08 ended
YH61 U —
47771-35010 Plate, Pad Wear Indicator, NO.1
1988-06 → 1988-08 ended
LH61 U —
47772 — Plate, Pad Wear Indicator, NO.2
47772-26030 Plate, Pad Wear Indicator, NO.2
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47772-26030 Plate, Pad Wear Indicator, NO.2
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-26010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH56,66,YH56,66 —
47775-26010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1988-06 → 1989-08 ended
LH56,66,YH56,66 02S,J,R —
47779 — Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47779-40010 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
1987-08 → 1988-06 ended
LH5#,6#,YH5#,6# —
47779-40010 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH61 U —
47779-40010 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
YH61 U —
47779-40010 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
1988-06 → 1988-08 ended
LH5#,6#,YH5#,6# 02S,03S,J,R —
47779-40010 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
1988-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47781 — Cover, Disc Brake Dust, Front RH
47781-26040 Cover, Disc Brake Dust, Front RH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
47781-26050 Cover, Disc Brake Dust, Front RH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
47782 — Cover, Disc Brake Dust, Front LH
47782-26040 Cover, Disc Brake Dust, Front LH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
47782-26050 Cover, Disc Brake Dust, Front LH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
