Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

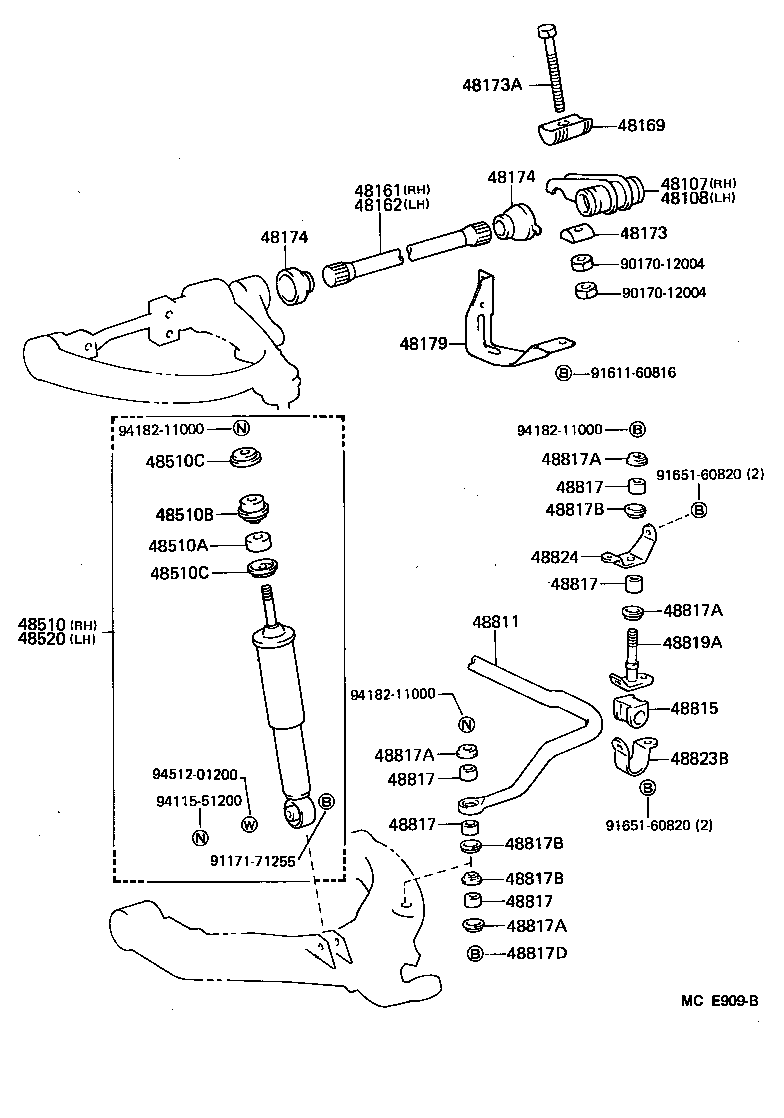

Exploded illustration MCE909B 48173A — BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) (1 parts) 48169 — SWIVEL, ANCHOR ARM (2 parts) 48174 — COVER, TORSION BAR DUST (2 parts) 48107 — ARM SUB-ASSY, ANCHOR, RH (2 parts) 48161 — SPRING, TORSION BAR, RH (4 parts) 48108 — ARM SUB-ASSY, ANCHOR, LH (2 parts) 48162 — SPRING, TORSION BAR, LH (4 parts) 48173 — SEAT, ANCHOR ARM ADJUSTER (1 parts) 48174 — COVER, TORSION BAR DUST (2 parts) 9017012004 — not listed in this catalogue 9017012004 — not listed in this catalogue 48179 — PROTECTOR, TORSION BAR DUST COVER, LH (2 parts) 9161160816 — not listed in this catalogue 9418211000 — not listed in this catalogue 9418211000 — not listed in this catalogue 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48510C — RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) (1 parts) 9165160820 — not listed in this catalogue 48817 — CUSHION, FRONT STABILIZER (2 parts) 48817B — RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) (2 parts) 48510B — RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) (1 parts) 48510A — CUSHION, FRONT SHOCK ABSORBER (1 parts) 48824 — BRACKET, STABILIZER, FRONT (1 parts) 48510C — RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) (1 parts) 48817 — CUSHION, FRONT STABILIZER (2 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48811 — BAR, STABILIZER, FRONT (2 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (2 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (2 parts) 48819A — BOLT, FRONT STABILIZER (1 parts) 9418211000 — not listed in this catalogue 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (2 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48823B — COVER, FRONT STABILIZER BRACKET (2 parts) 9451201200 — not listed in this catalogue 48817 — CUSHION, FRONT STABILIZER (2 parts) 9411551200 — not listed in this catalogue 48817 — CUSHION, FRONT STABILIZER (2 parts) 9165160820 — not listed in this catalogue 48817B — RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) (2 parts) 9117171255 — not listed in this catalogue 48817B — RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) (2 parts) 48817 — CUSHION, FRONT STABILIZER (2 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48817D — BOLT(FOR FRONT STABILIZER) (2 parts)
MCE909B · 34 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
48107 — Arm Sub-assy, Anchor, RH
48107-26010 Arm Sub-assy, Anchor, RH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48107-26030 Arm Sub-assy, Anchor, RH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48108 — Arm Sub-assy, Anchor, LH
48108-26010 Arm Sub-assy, Anchor, LH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48108-26030 Arm Sub-assy, Anchor, LH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48161 — Spring, Torsion Bar, RH
48161-26020 Spring, Torsion Bar, RH
1987-08 → 1989-08 ended
YH51 —
48161-26040 Spring, Torsion Bar, RH
1987-08 → 1989-08 ended
LH51,61,YH61 —
48161-26090 Spring, Torsion Bar, RH
1987-08 → 1989-08 ended
LH66 J;YH56,66 —
48161-26100 Spring, Torsion Bar, RH
1987-08 → 1989-08 ended
LH56,66 02S,U —
48162 — Spring, Torsion Bar, LH
48162-26020 Spring, Torsion Bar, LH
1987-08 → 1989-08 ended
YH51 —
48162-26040 Spring, Torsion Bar, LH
1987-08 → 1989-08 ended
LH51,61,YH61 —
48162-26090 Spring, Torsion Bar, LH
1987-08 → 1989-08 ended
LH66 J;YH56,66 —
48162-26100 Spring, Torsion Bar, LH
1987-08 → 1989-08 ended
LH56,66 02S,U —
48169 — Swivel, Anchor Arm
48169-26010 Swivel, Anchor Arm
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48169-26030 Swivel, Anchor Arm
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48173 — Seat, Anchor Arm Adjuster
48173-27010 Seat, Anchor Arm Adjuster
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48173A — Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
90101-12091 Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48174 — Cover, Torsion Bar Dust
48174-26010 Cover, Torsion Bar Dust
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48174-26010 Cover, Torsion Bar Dust
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48179 — Protector, Torsion Bar Dust Cover, LH
48179-26010 Protector, Torsion Bar Dust Cover, LH
1987-08 → 1989-08 ended
YH51,61 —
48179-26030 Protector, Torsion Bar Dust Cover, LH
1987-08 → 1989-08 ended
YH56,66 —
48510 — Absorber Assy, Shock, Front RH
48511-29425 Absorber Assy, Shock, Front RH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48511-29445 Absorber Assy, Shock, Front RH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48510A — Cushion, Front Shock Absorber
90948-01003 Cushion, Front Shock Absorber
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48510B — Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
90948-01035 Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48510C — Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002 Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48520 — Absorber Assy, Shock, Front LH
48511-29425 Absorber Assy, Shock, Front LH
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48511-29445 Absorber Assy, Shock, Front LH
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48811 — Bar, Stabilizer, Front
48811-26040 Bar, Stabilizer, Front
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48811-26070 Bar, Stabilizer, Front
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48815 — Bush, Front Stabilizer Bar, NO.1
48815-26020 Bush, Front Stabilizer Bar, NO.1
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48815-26050 Bush, Front Stabilizer Bar, NO.1
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48817 — Cushion, Front Stabilizer
90948-01002 Cushion, Front Stabilizer
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90948-01002 Cushion, Front Stabilizer
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48817A — Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
90948-02004 Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
48817B — Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
90948-02005 Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
90948-02005 Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48817D — Bolt(FOR FRONT STABILIZER)
90101-10090 Bolt(FOR FRONT STABILIZER)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
91121-51080 Bolt(FOR FRONT STABILIZER)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48819A — Bolt, Front Stabilizer
48819-26010 Bolt, Front Stabilizer
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48823B — Cover, Front Stabilizer Bracket
48823-26040 Cover, Front Stabilizer Bracket
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48823-26060 Cover, Front Stabilizer Bracket
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48824 — Bracket, Stabilizer, Front
48824-26070 Bracket, Stabilizer, Front
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
