Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

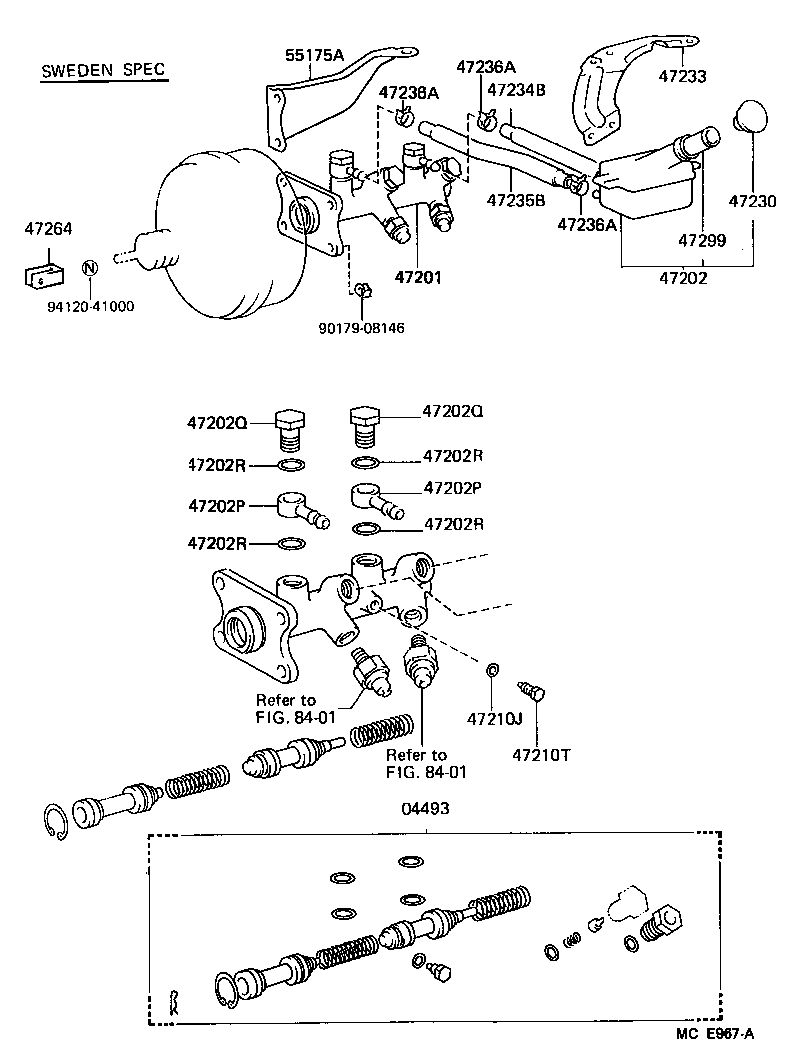

Exploded illustration MCE967A 55175A — SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER (2 parts) 47236A — CLIP(FOR RESERVOIR TUBE) (1 parts) 47233 — BRACKET, RESERVOIR (2 parts) 47234B — TUBE, RESERVOIR, NO.1 (2 parts) 47236A — CLIP(FOR RESERVOIR TUBE) (1 parts) 47235B — TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 (2 parts) 47230 — CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER (1 parts) 47236A — CLIP(FOR RESERVOIR TUBE) (1 parts) 47264 — CLEVIS, MASTER CYLINDER PUSH ROD (1 parts) 47299 — STRAINER, BRAKE MASTER CYLINDER RESERVOIR (1 parts) 47201 — CYLINDER SUB-ASSY, BRAKE MASTER (5 parts) 47202 — RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER (4 parts) 9412041000 — not listed in this catalogue 9017908146 — not listed in this catalogue 47202Q — BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202Q — BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202P — UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202P — UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 8401 — not listed in this catalogue 47210J — GASKET(FOR MASTER CYLINDER) (1 parts) 47210T — BOLT(FOR BRAKE MASTER CYLINDER) (1 parts) 8401 — not listed in this catalogue 04493 — CYLINDER KIT, BRAKE MASTER (3 parts)
MCE967A · 23 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
04493 — Cylinder Kit, Brake Master
04493-26131 note Cylinder Kit, Brake Master
1987-08 → 1989-08 ended
YH61 U;YH51 LHD V4D +3 —
04493-26140 Cylinder Kit, Brake Master
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
04493-26150 Cylinder Kit, Brake Master
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
47201 — Cylinder Sub-assy, Brake Master
47201-26281 note Cylinder Sub-assy, Brake Master
1987-08 → 1989-08 ended
YH61 U;YH51 LHD V4D +3 —
47201-26380 note Cylinder Sub-assy, Brake Master
1987-08 → 1989-08 ended
YH66 VSG —
47201-26390 Cylinder Sub-assy, Brake Master
1987-08 → 1989-08 ended
LH51,61,YH51,61 RHD —
47201-26410 Cylinder Sub-assy, Brake Master
1987-08 → 1989-08 ended
LH51,61,YH51,61 LHD —
47201-26450 Cylinder Sub-assy, Brake Master
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
47202 — Reservoir Sub-assy, Brake Master Cylinder
47220-26150 Reservoir Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# MTM —
47220-26170 note Reservoir Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
YH61 U;YH61 V5D 5H;YH51,66 +3 —
47220-26180 Reservoir Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
LH51,61,YH51,61 4HC —
47220-26190 note Reservoir Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
YH61 V5D 4HC —
47202P — Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
90405-13137 note Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
1987-08 → 1989-08 ended
YH61 U;YH61 V5D (4HC,5H);YH51,66 +3 —
47202Q — Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
90401-16002 note Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
1987-08 → 1989-08 ended
YH61 U;YH61 V5D (4HC,5H);YH51,66 +3 —
47202R — Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242 note Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
1987-08 → 1989-08 ended
YH61 U;YH61 V5D (4HC,5H);YH51,66 +3 —
47210J — Gasket(FOR MASTER CYLINDER)
90430-06104 Gasket(FOR MASTER CYLINDER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47210T — Bolt(FOR BRAKE MASTER CYLINDER)
90109-06008 Bolt(FOR BRAKE MASTER CYLINDER)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47230 — Cap Assy, Brake Master Cylinder Reservoir Filler
47230-28010 Cap Assy, Brake Master Cylinder Reservoir Filler
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47233 — Bracket, Reservoir
47233-95J00 Bracket, Reservoir
1987-08 → 1989-08 ended
LH51,61,YH51,61 RHD —
47233-95J01 Bracket, Reservoir
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# LHD —
47234B — Tube, Reservoir, NO.1
47234-26160 Tube, Reservoir, NO.1
1987-08 → 1989-08 ended
LH51,61,YH51,61 RHD —
47234-26170 Tube, Reservoir, NO.1
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# LHD —
47235B — Tube, Brake Master Cyrinder Reservoir, NO.2
47235-26150 Tube, Brake Master Cyrinder Reservoir, NO.2
1987-08 → 1989-08 ended
LH51,61,YH51,61 RHD —
47235-26160 Tube, Brake Master Cyrinder Reservoir, NO.2
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# LHD —
47236A — Clip(FOR RESERVOIR TUBE)
90467-16002 Clip(FOR RESERVOIR TUBE)
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47264 — Clevis, Master Cylinder Push Rod
47264-22010 Clevis, Master Cylinder Push Rod
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
47299 — Strainer, Brake Master Cylinder Reservoir
47299-26020 Strainer, Brake Master Cylinder Reservoir
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# —
55175A — Support Sub-assy, Brake Master Cylinder
55109-95J03 Support Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
LH5#,6#,YH5#,6# LHD —
55175-95J05 Support Sub-assy, Brake Master Cylinder
1987-08 → 1989-08 ended
LH51,61,YH51,61 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
