Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

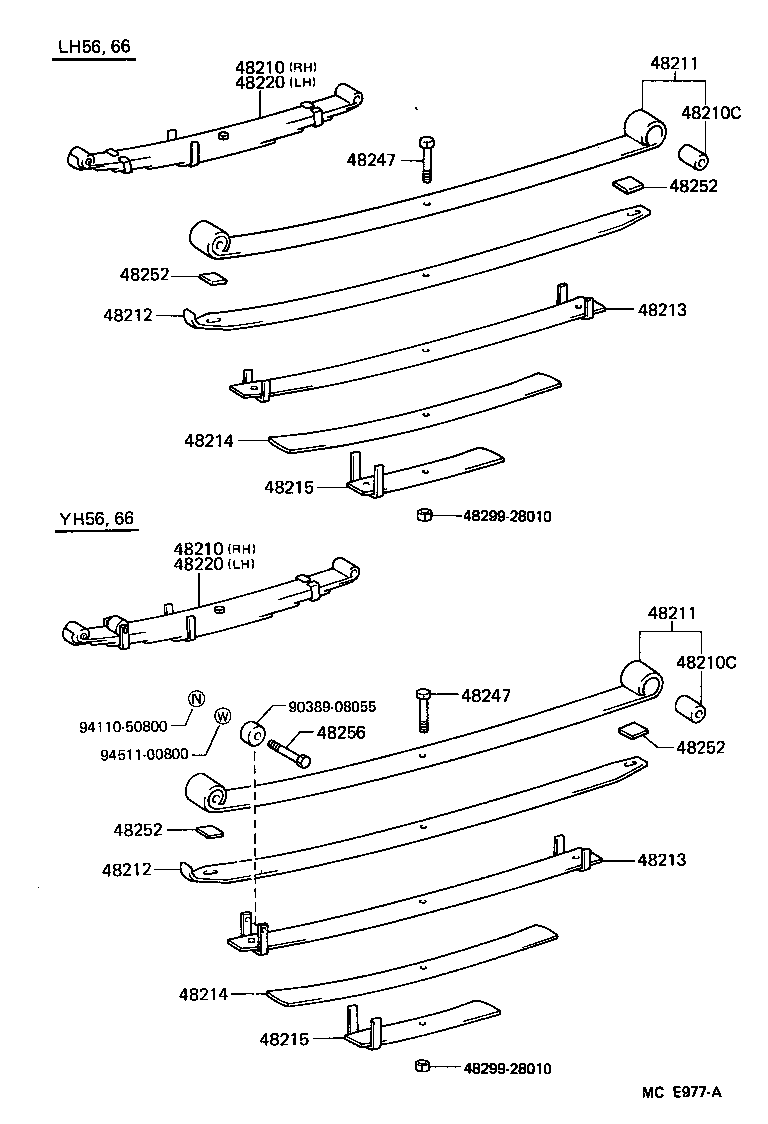

Exploded illustration MCE977A 48211 — LEAF, REAR SPRING, NO.1 (5 parts) 48210 — SPRING ASSY, REAR RH (6 parts) 48220 — SPRING ASSY, REAR LH (6 parts) 48210C — BUSH(FOR REAR SPRING LEAF) (3 parts) 48247 — BOLT, REAR SPRING, CENTER (3 parts) 48252 — SILENCER, REAR SPRING (2 parts) 48252 — SILENCER, REAR SPRING (2 parts) 48213 — LEAF, REAR SPRING, NO.3 (5 parts) 48212 — LEAF, REAR SPRING, NO.2 (5 parts) 48214 — LEAF, REAR SPRING, NO.4 (4 parts) 48215 — LEAF, REAR SPRING, NO.5 (3 parts) 4829928010 — not listed in this catalogue 48210 — SPRING ASSY, REAR RH (6 parts) 48220 — SPRING ASSY, REAR LH (6 parts) 48211 — LEAF, REAR SPRING, NO.1 (5 parts) 48210C — BUSH(FOR REAR SPRING LEAF) (3 parts) 48247 — BOLT, REAR SPRING, CENTER (3 parts) 9038908055 — not listed in this catalogue 9411050800 — not listed in this catalogue 48256 — BOLT, HEXAGON(FOR REAR SPRING CLIP SET) (1 parts) 48252 — SILENCER, REAR SPRING (2 parts) 9451100800 — not listed in this catalogue 48252 — SILENCER, REAR SPRING (2 parts) 48213 — LEAF, REAR SPRING, NO.3 (5 parts) 48212 — LEAF, REAR SPRING, NO.2 (5 parts) 48214 — LEAF, REAR SPRING, NO.4 (4 parts) 48215 — LEAF, REAR SPRING, NO.5 (3 parts) 4829928010 — not listed in this catalogue
MCE977A · 23 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
48210 — Spring Assy, Rear RH
48210-26250 Spring Assy, Rear RH
1987-08 → 1989-08 ended
LH51,YH51 03S,R,U —
48210-26260 Spring Assy, Rear RH
1987-08 → 1989-08 ended
LH61,YH61 03S,15S,R,U —
48210-26320 Spring Assy, Rear RH
1987-08 → 1989-08 ended
LH61,YH51,61 J —
48210-26460 Spring Assy, Rear RH
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48210-26460 note Spring Assy, Rear RH
1987-08 → 1988-08 ended
YH66 J —
48210-26470 Spring Assy, Rear RH
1987-08 → 1989-08 ended
LH66,YH66 J —
48210C — Bush(FOR REAR SPRING LEAF)
90389-08055 note Bush(FOR REAR SPRING LEAF)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90389-14007 note Bush(FOR REAR SPRING LEAF)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
90389-14007 Bush(FOR REAR SPRING LEAF)
1987-08 → 1989-08 ended
LH51,61,YH51,61 —
48211 — Leaf, Rear Spring, NO.1
48201-26250 Leaf, Rear Spring, NO.1
1987-08 → 1989-08 ended
LH51,61,YH51,61 03S,15S,R,U —
48201-26310 Leaf, Rear Spring, NO.1
1987-08 → 1989-08 ended
LH61,YH51,61 J —
48201-26460 Leaf, Rear Spring, NO.1
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48201-26460 note Leaf, Rear Spring, NO.1
1987-08 → 1988-08 ended
YH66 J —
48201-26470 Leaf, Rear Spring, NO.1
1987-08 → 1989-08 ended
LH66,YH66 J —
48212 — Leaf, Rear Spring, NO.2
48202-26320 Leaf, Rear Spring, NO.2
1987-08 → 1989-08 ended
LH61,YH51,61 J —
48212-26250 Leaf, Rear Spring, NO.2
1987-08 → 1989-08 ended
LH51,61,YH51,61 03S,15S,R,U —
48212-26460 note Leaf, Rear Spring, NO.2
1987-08 → 1988-08 ended
YH66 J —
48212-26460 Leaf, Rear Spring, NO.2
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48212-26470 Leaf, Rear Spring, NO.2
1987-08 → 1989-08 ended
LH66,YH66 J —
48213 — Leaf, Rear Spring, NO.3
48202-26250 Leaf, Rear Spring, NO.3
1987-08 → 1989-08 ended
LH51,YH51 03S,R,U —
48202-26260 Leaf, Rear Spring, NO.3
1987-08 → 1989-08 ended
LH61,YH61 03S,15S,R,U —
48202-26460 Leaf, Rear Spring, NO.3
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48202-26460 note Leaf, Rear Spring, NO.3
1987-08 → 1988-08 ended
YH66 J —
48202-26470 Leaf, Rear Spring, NO.3
1987-08 → 1989-08 ended
LH66,YH66 J —
48214 — Leaf, Rear Spring, NO.4
48203-26250 Leaf, Rear Spring, NO.4
1987-08 → 1989-08 ended
LH51,61,YH51,61 03S,15S,R,U —
48214-26460 note Leaf, Rear Spring, NO.4
1987-08 → 1988-08 ended
YH66 J —
48214-26460 Leaf, Rear Spring, NO.4
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48214-26470 Leaf, Rear Spring, NO.4
1987-08 → 1989-08 ended
LH66,YH66 J —
48215 — Leaf, Rear Spring, NO.5
48203-26460 note Leaf, Rear Spring, NO.5
1987-08 → 1988-08 ended
YH66 J —
48203-26460 Leaf, Rear Spring, NO.5
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48203-26470 Leaf, Rear Spring, NO.5
1987-08 → 1989-08 ended
LH66,YH66 J —
48220 — Spring Assy, Rear LH
48210-26250 Spring Assy, Rear LH
1987-08 → 1989-08 ended
LH51,YH51 03S,R,U —
48210-26260 Spring Assy, Rear LH
1987-08 → 1989-08 ended
LH61,YH61 03S,15S,R,U —
48210-26320 Spring Assy, Rear LH
1987-08 → 1989-08 ended
LH61,YH51,61 J —
48210-26460 note Spring Assy, Rear LH
1987-08 → 1988-08 ended
YH66 J —
48210-26460 Spring Assy, Rear LH
1987-08 → 1989-08 ended
LH56,66,YH56,66 02S,R,U —
48210-26470 Spring Assy, Rear LH
1987-08 → 1989-08 ended
LH66,YH66 J —
48247 — Bolt, Rear Spring, Center
48247-26260 Bolt, Rear Spring, Center
1987-08 → 1989-08 ended
LH51,61,YH51,61 03S,15S,R,U —
48247-26280 Bolt, Rear Spring, Center
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
48247-26310 Bolt, Rear Spring, Center
1987-08 → 1989-08 ended
LH61,YH51,61 J —
48252 — Silencer, Rear Spring
48252-26070 Silencer, Rear Spring
1987-08 → 1989-08 ended
LH56,66,YH56,66;LH61,YH51,61 J —
48252-26070 Silencer, Rear Spring
1987-08 → 1989-08 ended
LH51,61,YH51,61 03S,15S,R,U —
48256 — Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48256-26450 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
1987-08 → 1989-08 ended
LH56,66,YH56,66 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
