Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

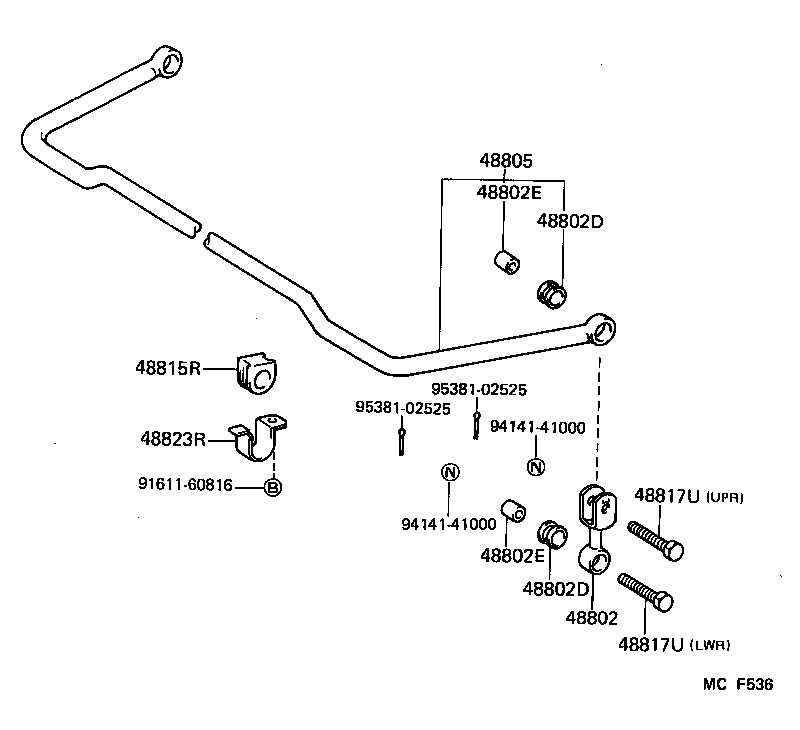

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48802 — Link Sub-assy, Stabilizer | ||||
| 48802-26030 note |
Link Sub-assy, Stabilizer
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48803-26010 note |
Link Sub-assy, Stabilizer
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48802D — Bush, Stabilizer Link | ||||
| 90385-11021 |
Bush, Stabilizer Link
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48802E — Spacer(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
Spacer(FOR REAR STABILIZER BAR)
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48805 — Bar Sub-assy, Rear Stabilizer | ||||
| 48805-26030 |
Bar Sub-assy, Rear Stabilizer
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48815R — Bush, Stabilizer(FOR REAR) | ||||
| 48815-26040 |
Bush, Stabilizer(FOR REAR)
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48817U — Bolt(FOR REAR STABILIZER) | ||||
| 90102-10001 note |
Bolt(FOR REAR STABILIZER)
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 90102-10015 note |
Bolt(FOR REAR STABILIZER)
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
| 48823R — Cover, Stabilizer Link(FOR REAR) | ||||
| 48823-26030 |
Cover, Stabilizer Link(FOR REAR)
1987-08 → 1989-08
ended
|
LH61,YH51,61 J | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
