Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 2 illustrations

Illustrations

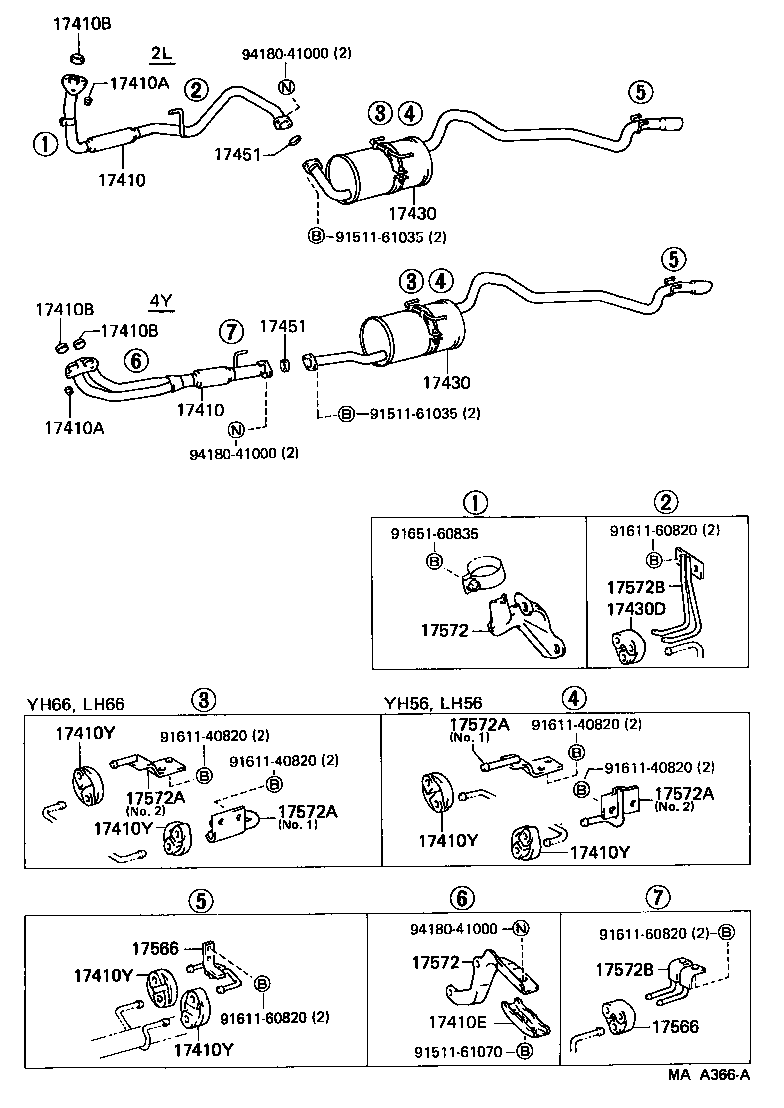

Figure MAA365 MAA365 1987-08 → — Figure MAA366A MAA366A 1987-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17565A Support, Exhaust Pipe, NO.4
17566 Bracket, Tailpipe, Rear
17572 Bracket, Exhaust Pipe NO.1 Support
17572A Bracket, Exhaust Pipe NO.1 Support, Lower
17572B Bracket, Exhaust Pipe Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
