Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

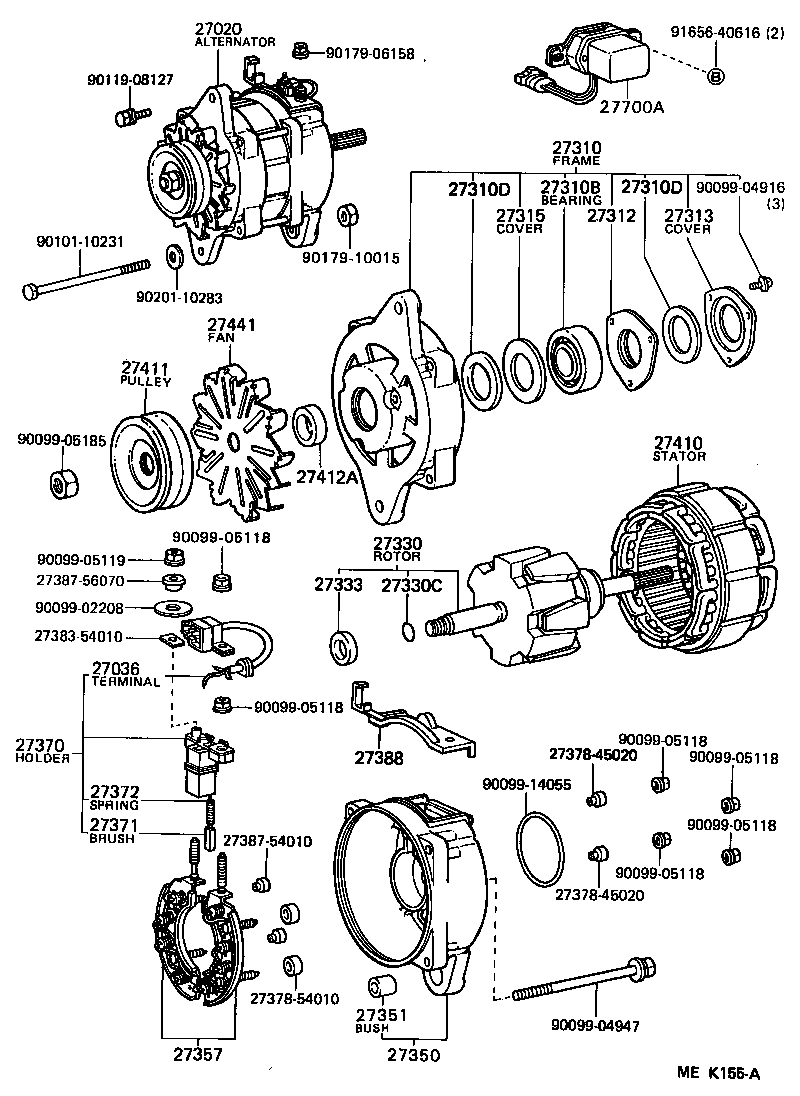

Alternator
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27036 | Terminal Sub-assy, Lead Wire, Alternator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310D | Washer, Felt |
| 27312 | Plate, Retainer |
| 27313 | Cover, Alternator Felt, Inner NO.2 |
| 27315 | Cover, Alternator Felt, Inner NO.1 |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27330C | Ring, Snap |
| 27333 | Collar, Space(FOR ALTERNATOR ROTOR) |
| 27350 | Frame Assy, Rectifier End |
| 27350B | Condenser, Alternator |
| 27351 | Bush(FOR ALTERNATOR RECTIFIER END FRAME) |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27362 | Rectifier Assy, W/Brush |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27388 | Cover, Alternator Brush |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27412A | Collar, Space(FOR ALTERNATOR DRIVE END FRAME) |
| 27441 | Fan, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
