Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

15 part groups · 2 illustrations

Illustrations

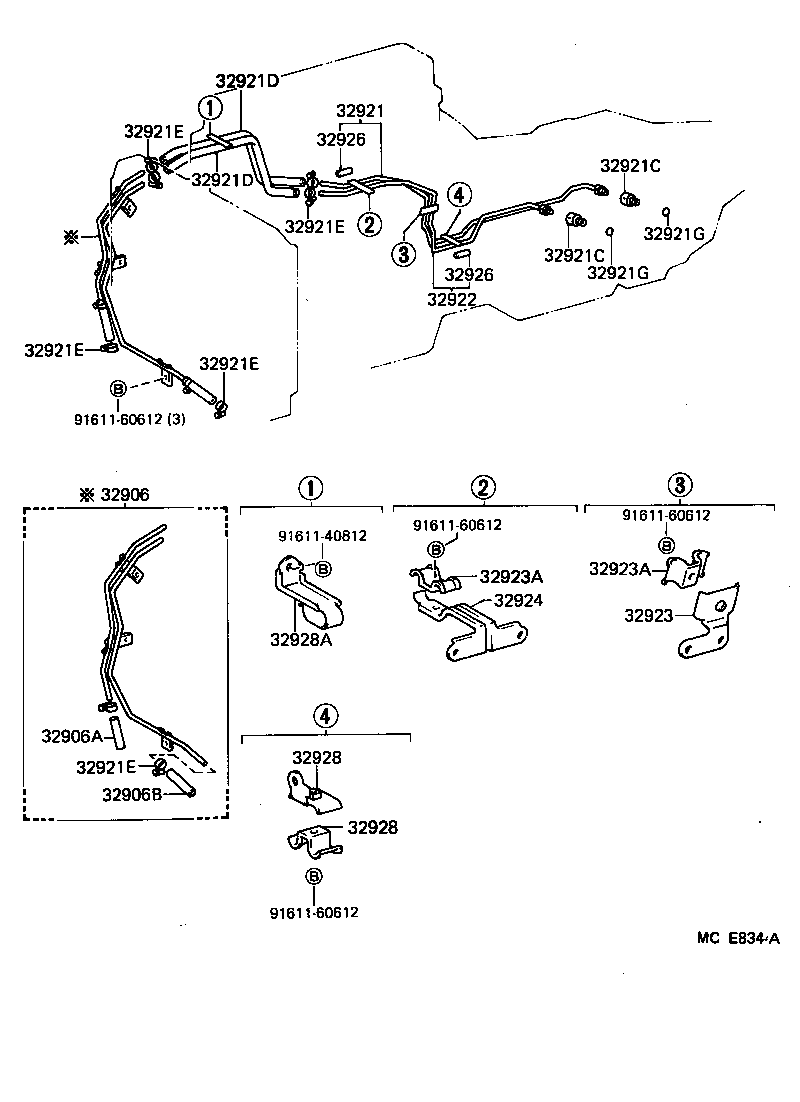

Figure MCE833A MCE833A 1987-08 → — Figure MCE834A MCE834A 1987-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32906A Hose, Oil Cooler Tube(FOR INLET)
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
