Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

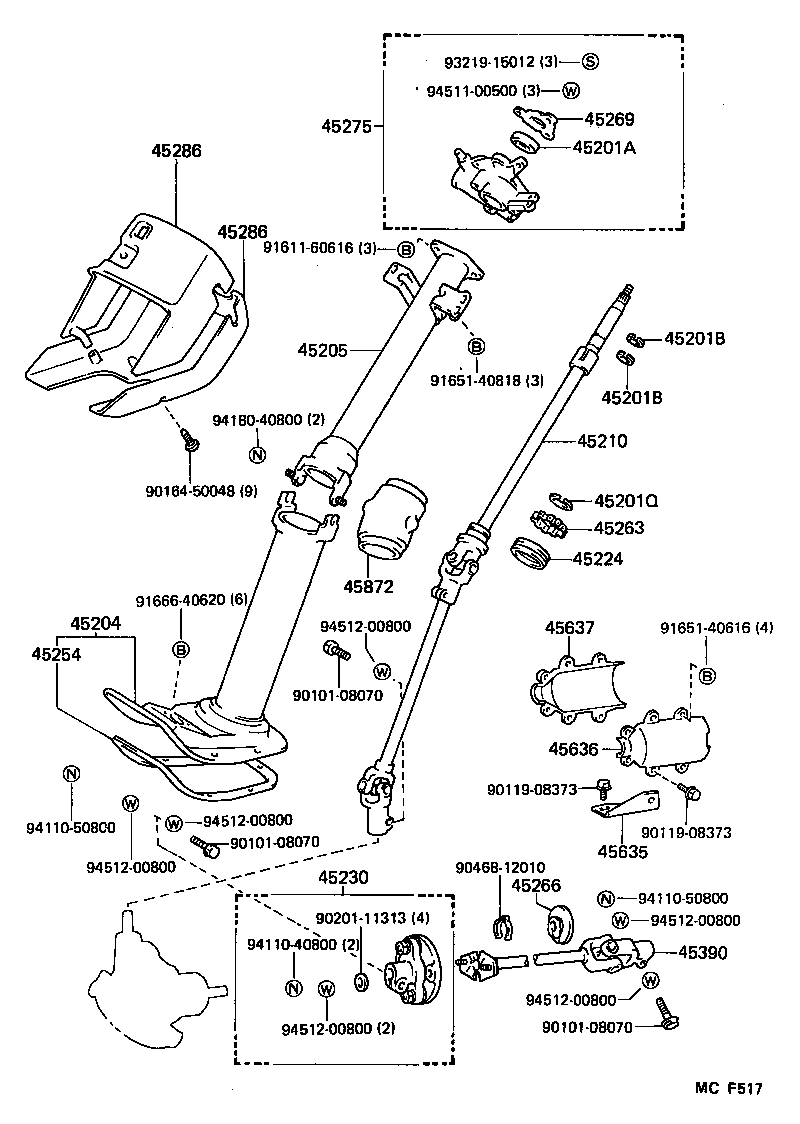

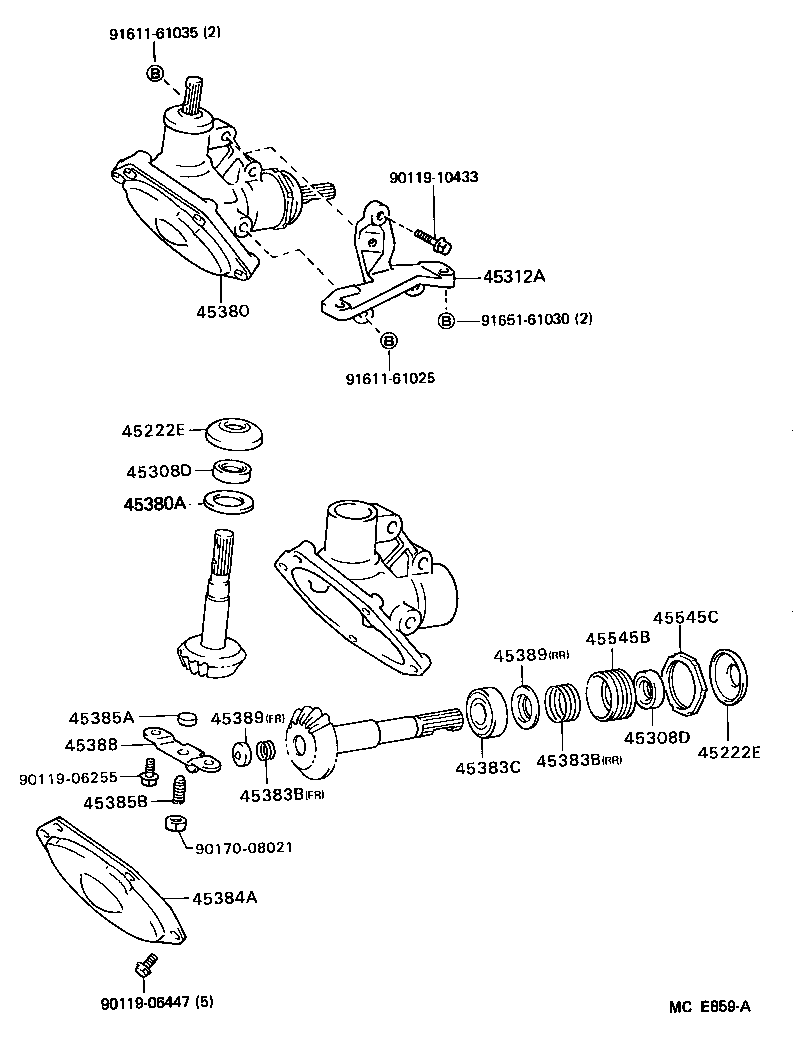

Steering Column & Shaft
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33621 | Plate, Control Lever Caution |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201Q | Ring(FOR STEERING COLUMN RING) |
| 45204 | Tube Assy, Steering Column, Lower |
| 45205 | Tube Sub-assy, Steering Column |
| 45210 | Shaft Assy, Steering Main |
| 45222E | Cover, Dust(FOR STEERING BEVEL GEAR) |
| 45224 | Block, Bearing(FOR STEERING FLEXIBLE COUPLING) |
| 45230 | Coupling Assy, Flexible |
| 45254 | Shield, Steering Column Hole |
| 45263 | Ring, Steering Column, NO.1 |
| 45266 | Cover, Steering Intermediate Shaft Dust |
| 45269 | Retainer, Main Shaft Bearing |
| 45275 | Bracket, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45308D | Seal, Oil(FOR STEERING BEVEL GEAR HOUSING) |
| 45312A | Bracket, Steering Bevel Gear Housing |
| 45380 | Gear Assy, Steering Bevel |
| 45380A | Washer(FOR STEERING BEVEL GEAR) |
| 45383B | Spring, Compression(FOR STEERING BEVEL GEAR) |
| 45383C | Bearing, Radial Ball(FOR STEERING BEVEL GEAR) |
| 45384A | Cover, Steering Bevel Gear |
| 45385A | Seat, Lock Bolt(FOR STEERING BEVEL GEAR) |
| 45385B | Bolt, Set(FOR LOCK BOLT SEAT) |
| 45388 | Plate, Steering Bevel Gear |
| 45389 | Holder, Steering Bevel Gear Spring |
| 45390 | Shaft Assy, Steering Torque |
| 45545B | Screw, Pinion Bearing Adjusting(FOR STEERING BEVEL GEAR) |
| 45545C | Nut(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW) |
| 45635 | Support, Intermediate Link Joint Protector |
| 45636 | Protector, Intermediate Link Joint, Upper |
| 45637 | Protector, Inter Link Joint, Lwr NO.1 |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45872 | Cover, Steering Column Tube |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
