Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Ventilator

6 part groups · 2 illustrations

Illustrations

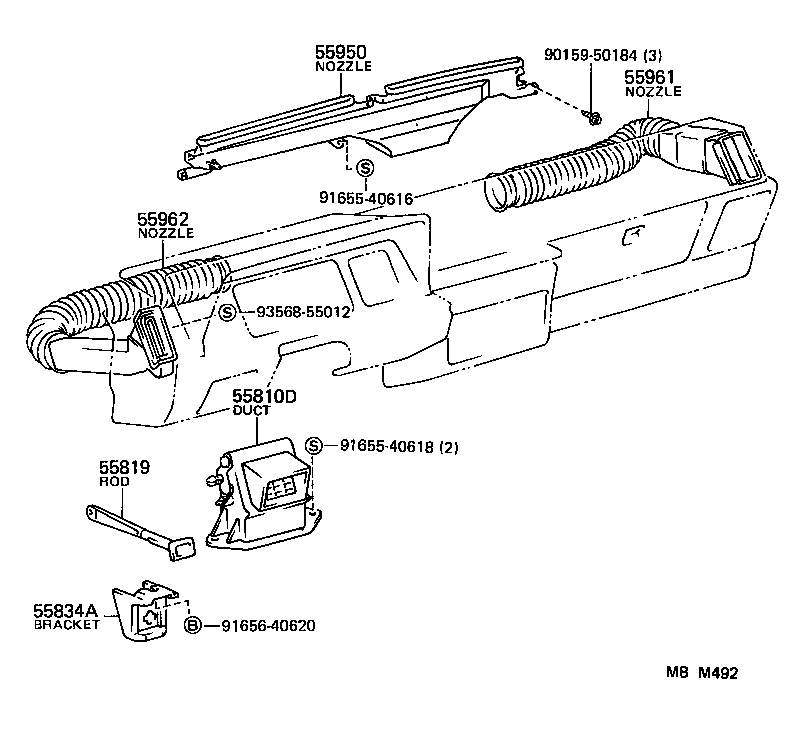

Figure MBM491 MBM491 1987-08 → — Figure MBM492 MBM492 1987-08 → —

Part groups

PNCDescription
55810D Ventilator Assy, Front Foot Side
55819 Rod, Side Ventilator Control
55834A Bracket, Foot Ventilator Control Rod
55950 Nozzle Assy, Defroster
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
