Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

83 part groups · 3 illustrations

Illustrations

MBM167C 1987-08 → —

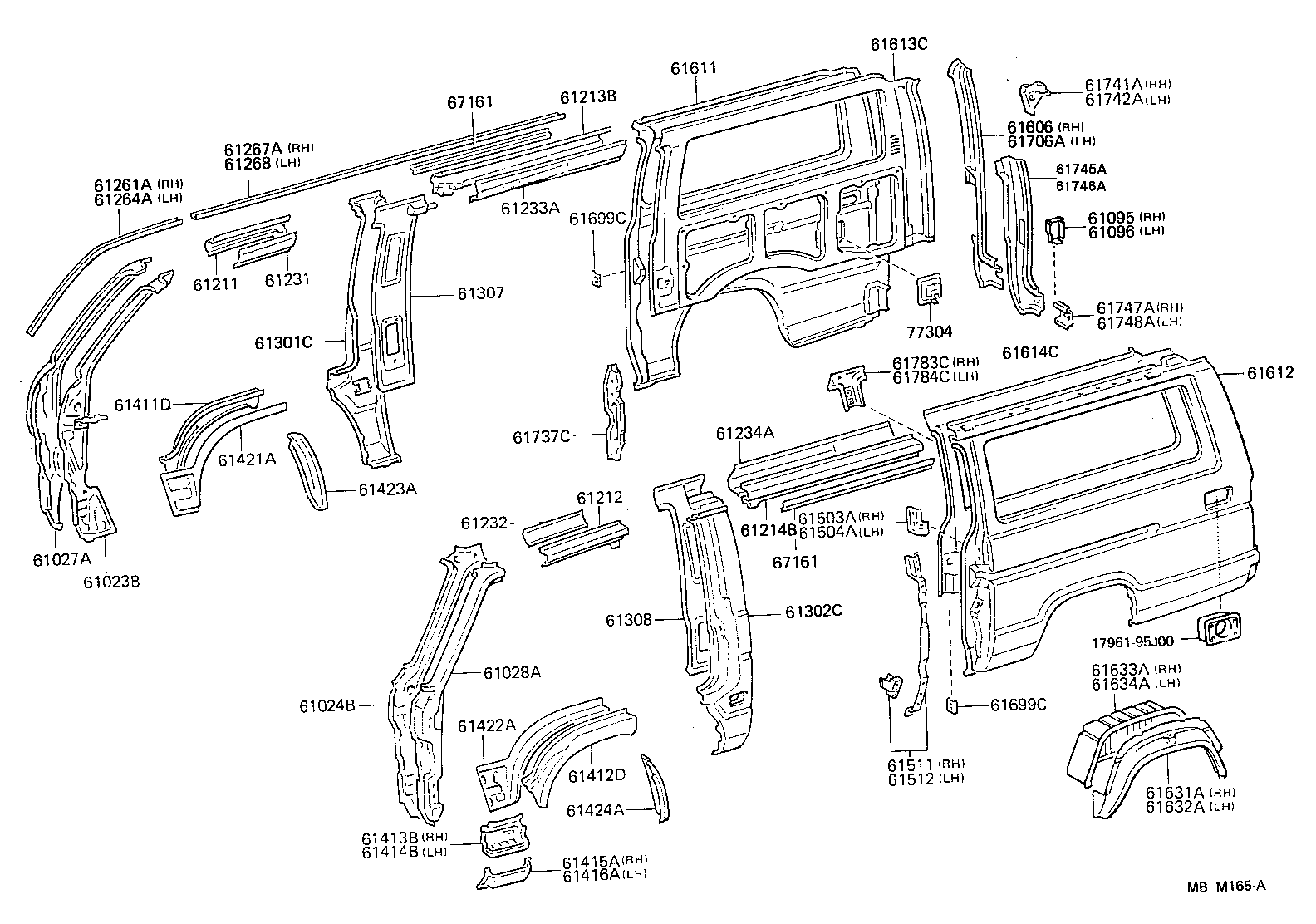

MBM165A 1987-08 → —

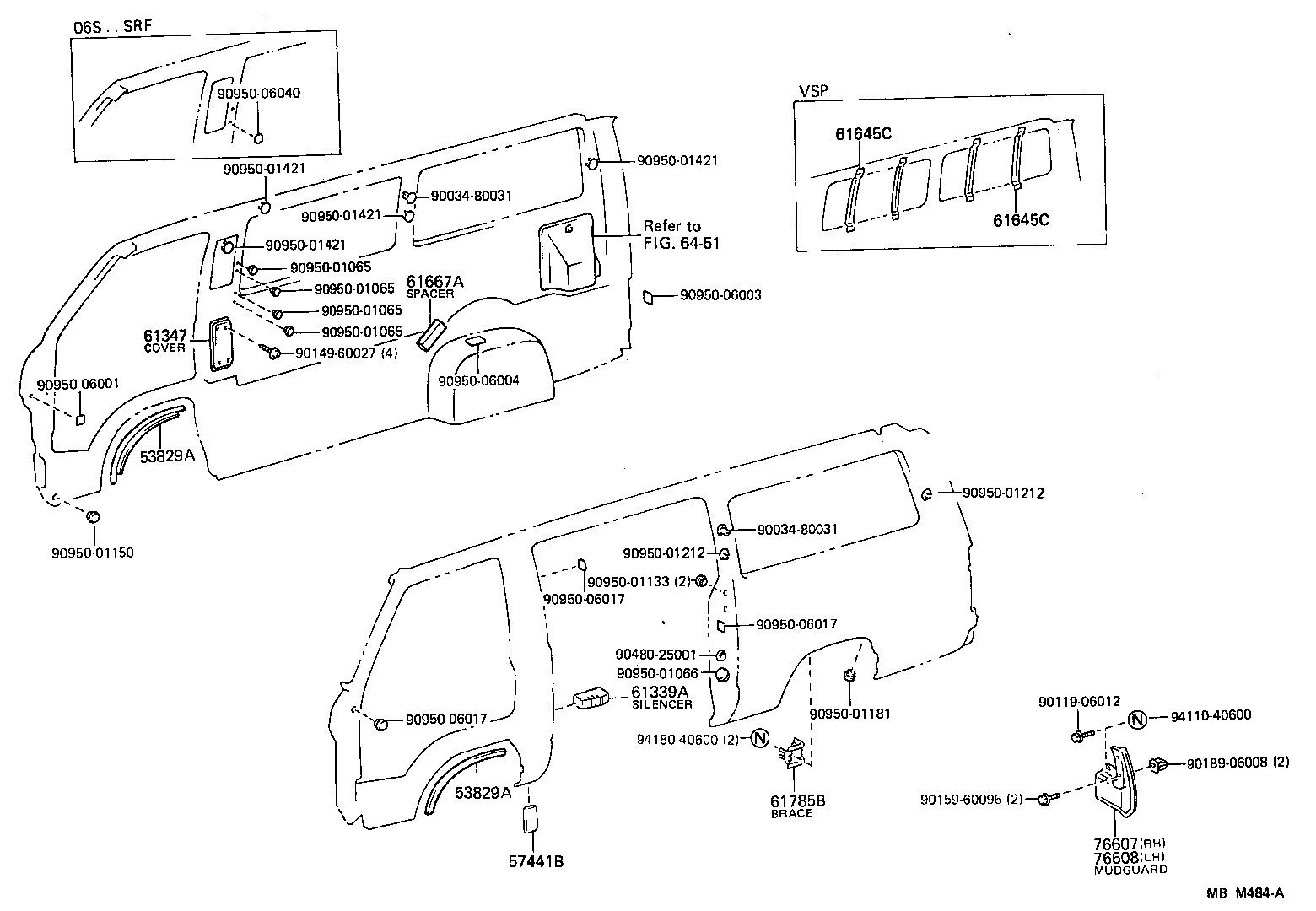

MBM484A 1987-08 → —

Part groups

PNC	Description
53829A	Protector, Front Fender, Lower
57441B	Cover, Floor Side Rail Plate
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61031B	Extension Sub-assy, Quarter Panel, RH
61032B	Extension Sub-assy, Quarter Panel, LH
61033	Extension Sub-assy, Quarter Lock Pillar
61088A	Reinforcement Sub-assy, Seat Belt Anchor Stay, NO.2 RH
61089A	Reinforcement Sub-assy, Seat Belt Anchor Stay, NO.2 LH
61095	Plate Sub-assy, Back Door Opening, Lower RH
61096	Plate Sub-assy, Back Door Opening, Lower LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61261A	Channel, Roof Drip Side, Front RH
61264A	Channel, Roof Drip Side, Front LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61301C	Pillar Sub-assy, Center Body, Outer RH
61302C	Pillar Sub-assy, Center Body, Outer LH
61307	Pillar Sub-assy, Center Body, Inner RH
61308	Pillar Sub-assy, Center Body, Inner LH
61309A	Seal Sub-assy, Center Body Pillar
61325	Reinforcement, Center Body Piller, Center
61337A	Reinforcement, Center Body Pillar, Inner RH
61338A	Reinforcement, Center Body Pillar, Inner LH
61339A	Silencer, Pillar Inner
61347	Cover, Center Body Pillar
61389	Patch, Center Body Pillar, Outer
61411D	Panel, Fender, Outer RH
61412D	Panel, Fender, Outer LH
61413B	Panel, Front Step, RH
61414B	Panel, Front Step, LH
61415A	Panel, Front Step, Under, RH
61416A	Panel, Front Step Under, LH
61421A	Panel, Fender, Inner RH
61422A	Panel, Fender, Inner LH
61423A	Panel, Fender, Inner Lower RH
61424A	Panel, Fender, Inner Lower LH
61503A	Reinforce Sub-assy, Slide Door Lock Striker, RH
61504A	Reinforce Sub-assy, Slide Door Lock Striker, LH
61505	Reinforce Sub-assy, Front Door Lock Striker, RH
61506	Reinforce Sub-assy, Front Door Lock Striker, LH
61511	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61606	Frame Sub-assy, Back Door Opening Side, RH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613C	Panel Sub-assy, Quarter, Inner Rear RH
61614C	Panel Sub-assy, Quarter, Inner Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645C	Reinforcement, Side Window
61648B	Bracket, Quarter Panel Pad
61667A	Spacer Quarter Panel, NO.1
61699C	Retainer, Courtesy Switch
61706A	Frame Sub-assy, Back Door Opening Side, LH
61737C	Reinforcement, Quarter, Inner
61739B	Reinforcement, Extension Quarter Inner Panel
61741A	Reinforcement, Back Door Opening, Upper RH
61742A	Reinforcement, Back Door Opening, Upper LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61747A	Extension, Back Door Opening Lower Reinforcement, RH
61748A	Extension, Back Door Opening Lower Reinforcement, LH
61783C	Brace, Quarter Panel, Inner RH
61784C	Brace, Quarter Panel, Inner LH
61785B	Brace, Quarter Panel Outer
61803B	Reinforce Sub-assy, Roof Side, Outer RH
61804B	Reinforce Sub-assy, Roof Side, Outer LH
67161	Retainer, Slide Door W/Strip Set, RH
76607	Mudguard Sub-assy, Quarter Panel, Rear RH
76608	Mudguard Sub-assy, Quarter Panel, Rear LH
77304	Box Sub-assy, Fuel Inlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
