Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 2 illustrations

Illustrations

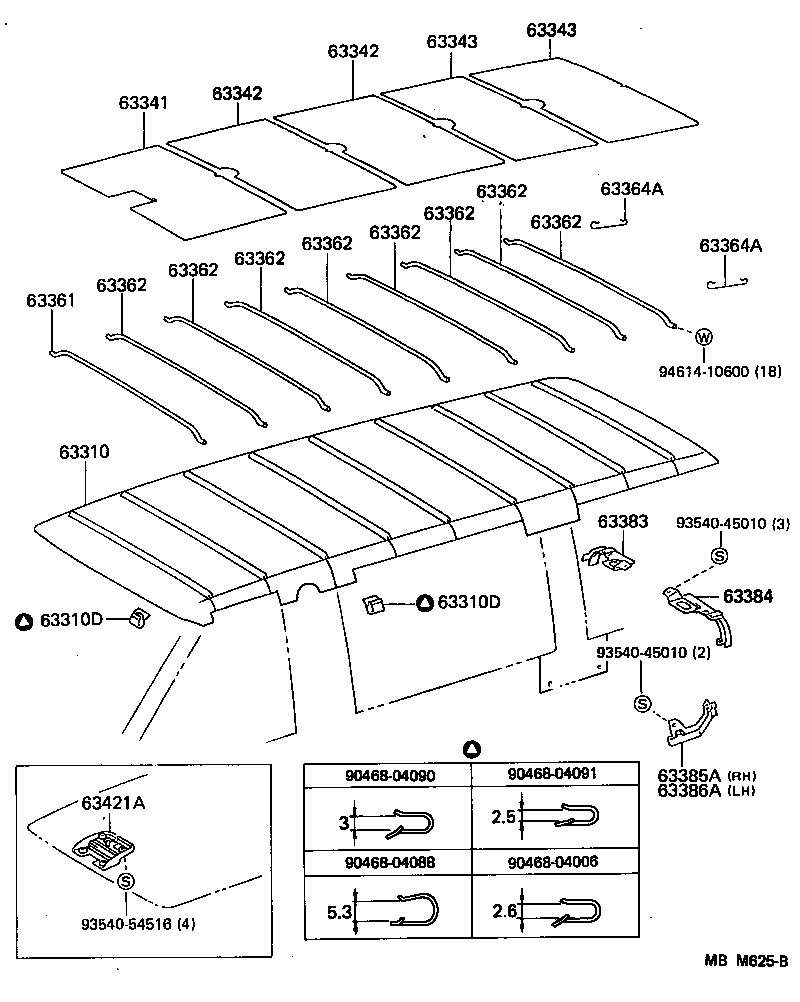

Figure MBM370 MBM370 1987-08 → — Figure MBM625B MBM625B 1987-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311A Headlining, Roof NO.1
63312A Headlining, Roof, NO.2
63313A Headlining, Roof, NO.3
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63364A Hook, Roof Headlining
63383 Retainer, Roof Headlining, Rear RH
63384 Retainer, Roof Headlining, Rear LH
63385A Retainer, Roof Headlining Trim Side, RH
63386A Retainer, Roof Headlining Trim Side, LH
63421A Ornament, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
