Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

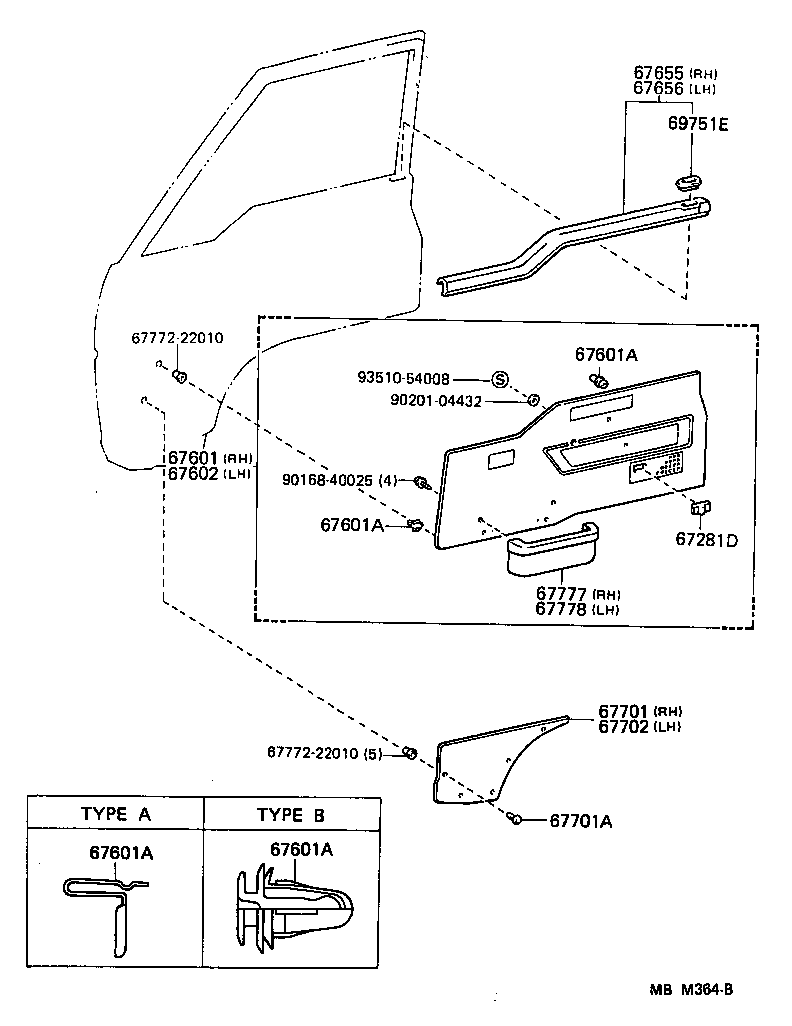

Front Door Panel & Glass
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62367C | Clip, Door Window Glass |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67281D | Knob, Front Door Ventilating Hole Cover |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67465A | Inner Garnish, Upper Bracket, RH |
| 67466A | Inner Garnish, Upper Bracket, LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67482C | Packing, Front Door Front Lower Frame |
| 67485E | Seal, Front Door Bracket |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67655 | Garnish, Front Door Trim, RH |
| 67656 | Garnish, Door Trim, LH |
| 67701 | Cover Sub-assy, Front Door Trim, RH |
| 67701A | Clip(FOR FRONT DOOR TRIM COVER) |
| 67702 | Cover Sub-assy, Front Door Trim, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867E | Retainer, Front Door Lower Protector, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868E | Retainer, Front Door Lower Protector, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68125A | Protector, Front Door, Lower RH |
| 68126A | Protector, Front Door, Lower LH |
| 68127B | Shutter, Front Door, Lower RH |
| 68128B | Shutter, Front Door, Lower LH |
| 68141 | Run, Front Door Glass |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
| 69751E | Holder, Front Door Lock Control Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
