Toyota Hiace Van,Commuter

1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

17 part groups · 2 illustrations

Illustrations

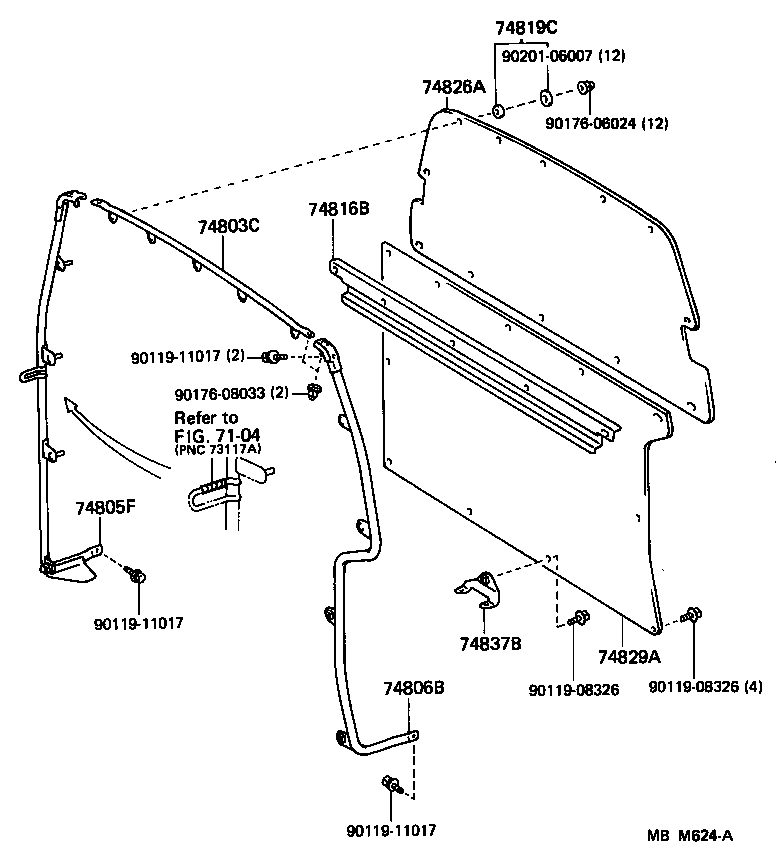

Figure MBM314A MBM314A 1987-08 → — Figure MBM624A MBM624A 1987-08 → —

Part groups

PNCDescription
74803C Bar Sub-assy, Separator, C
74805F Bar Sub-assy, Separator, A
74806B Bar Sub-assy, Separator, B
74816B Reinforcement, Separator Window
74819C Cushion, Separator Window
74820B Board Assy, Separator
74821B Bracket, Separator Board, Upr
74823B Bracket, Separator Board Side, Lower
74826A Window, Separator
74827B Bracket, Separator Bar, RH
74828A Extension, Separator Board
74828B Bracket, Separator Bar, LH
74829A Board, Separator
74837B Bracket, Separator Board, Lower
74854A Stop, Separator
74856B Plate, Spring Set
74858A Bracket, Separator Bar, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
