Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08
Fuel Tank & Tube
35 part groups · 2 illustrations

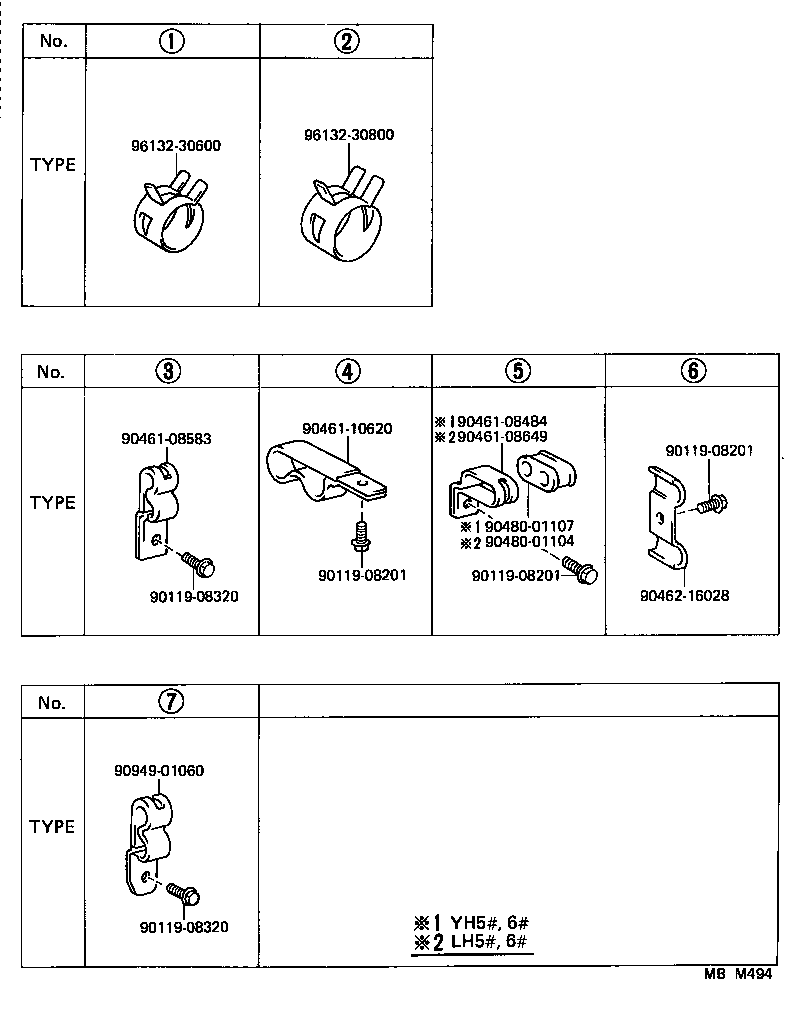

Part groups
| PNC | Description |
|---|---|
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77218B | Plate, Fuel Inlet Pipe Lower Shield |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77251E | Shield, Fuel Tank Inlet Pipe |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267 | Cover, Fuel Evaporative Tube |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77293B | Packing, Fuel Inlet Pipe Lower Shield Plate |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340 | Door Assy, Fuel Inlet Box |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740G | Tube, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77752 | Bracket, Charcoal Canister Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
