Toyota Hiace Van,Commuter
1987-08 → 1989-08 · chassis YH5#,6#,LH5#,6# · catalogue 711530 · Europe
Discontinued model
Data version 1989-08

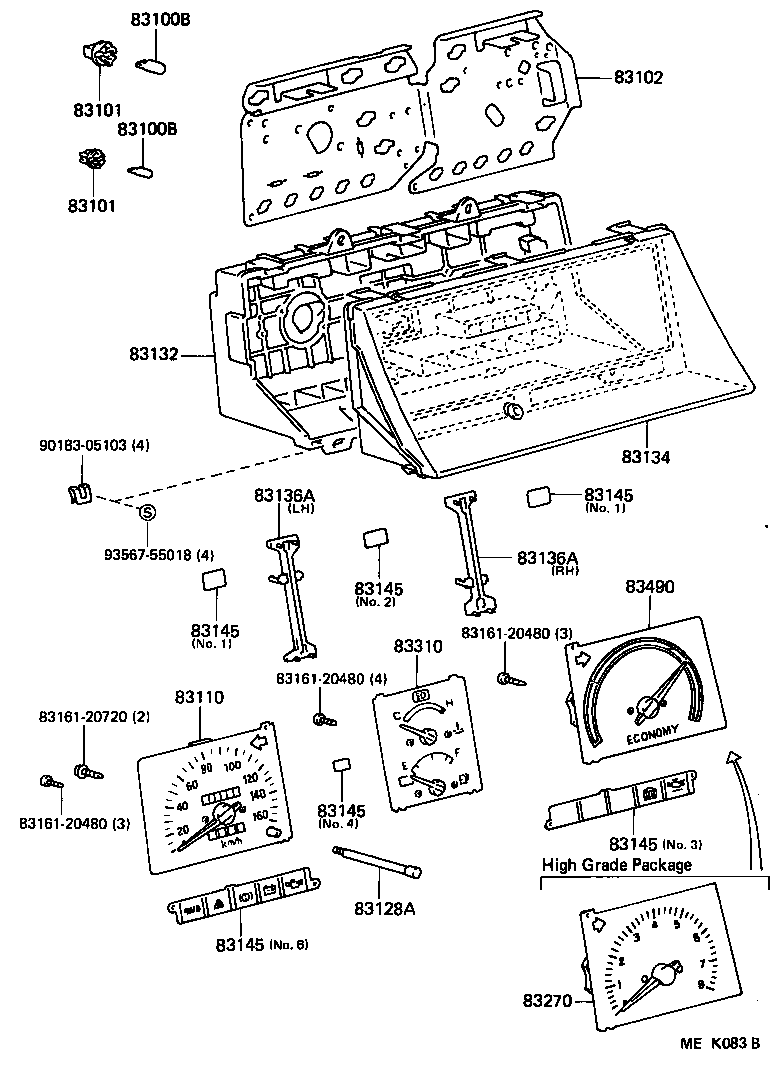

Meter
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128A | Knob, Meter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83136A | Cover, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83490 | Gage Assy, Air Pressure Receiver |
| 83550A | Hose, ED Monitor Gage |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83910 | Clock Assy |
| 83911C | Ornament, Clock |
| 83915 | Bracket, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
